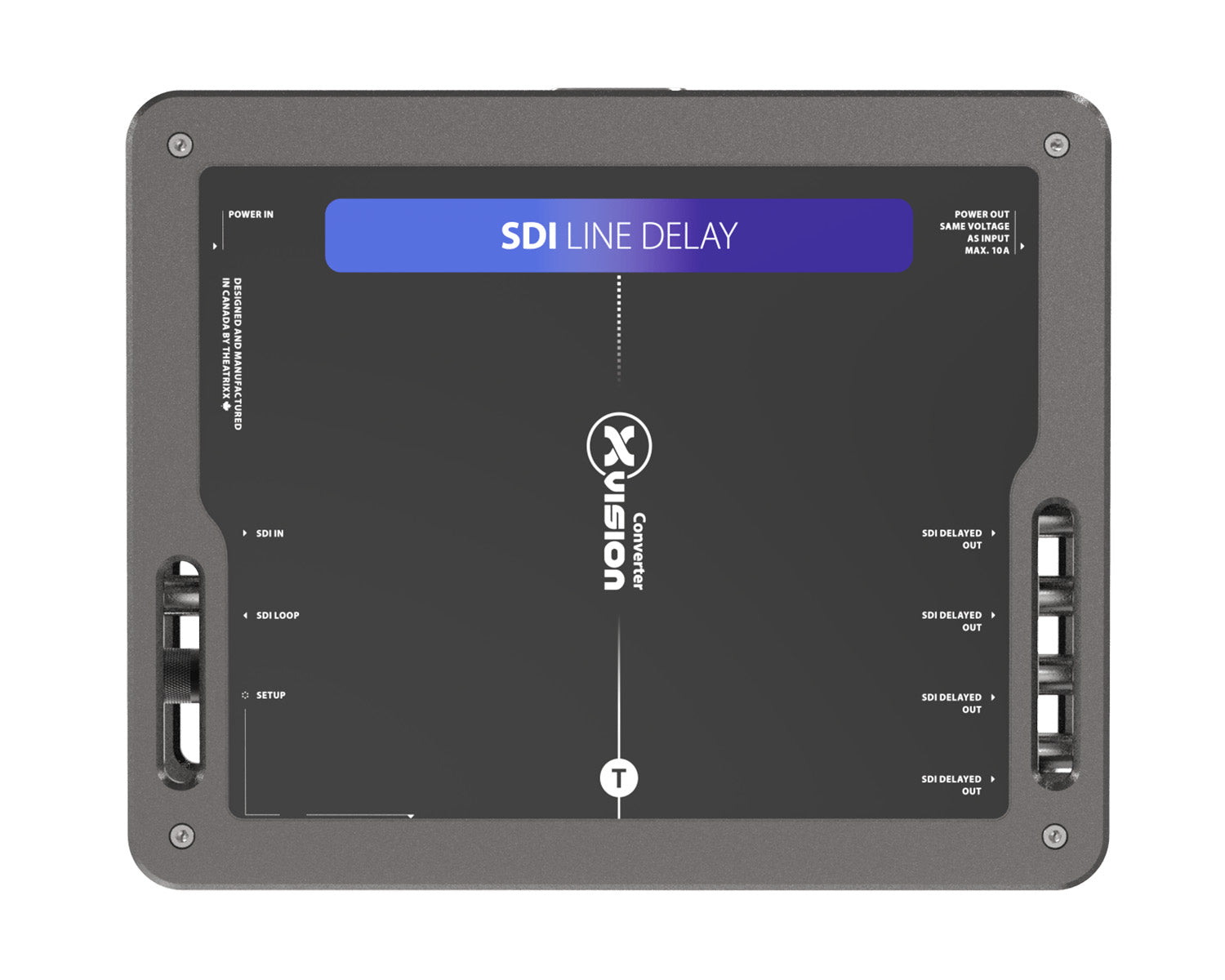

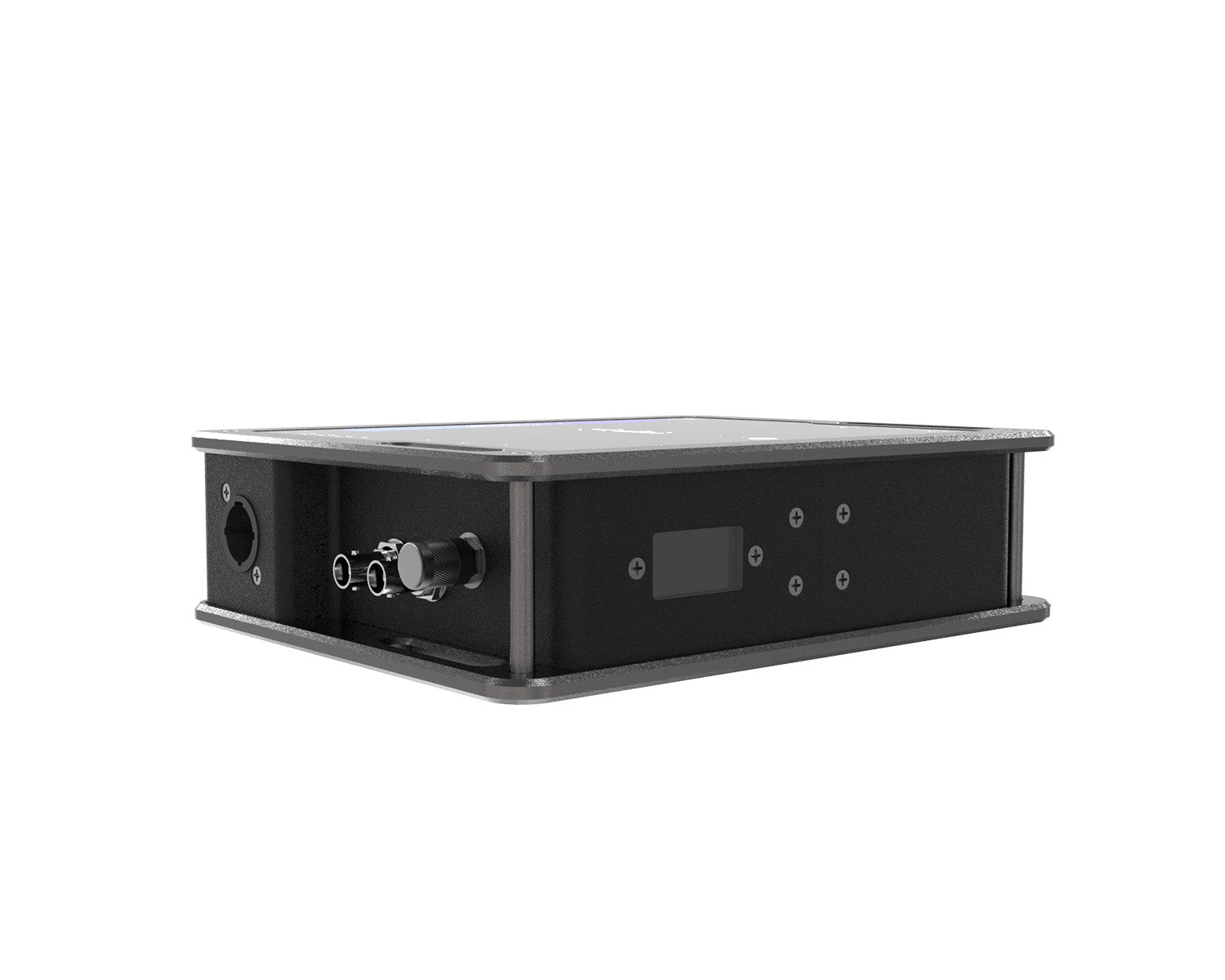

The Theatrixx xVision HD 1:4 3G-SDI Line Delay DA Splitter combines signal distribution with adjustable line delay, making it ideal for multi-screen setups where timing alignment is critical. It takes a single 3G-SDI input and distributes it to four re-clocked outputs, each with configurable delay compensation. Built in the A-size standalone format with internal PSU and locking connectors.
Outputs
4
Re-clocked SDI
Max Data Rate
3G-SDI
Up to 1080p60
Line Delay
Adjustable
Per output
Form Factor
A-Size
Standalone
Line Delay
The adjustable line delay allows you to compensate for timing differences across multiple display outputs – particularly useful in LED wall configurations, IMAG setups, and distributed projection systems where frame-accurate synchronisation is required.
Features
✓
1 input to 4 re-clocked SDI outputs with adjustable line delay
1 input to 4 re-clocked SDI outputs with adjustable line delay
✓
Supports SD-SDI, HD-SDI, and 3G-SDI signals
Supports SD-SDI, HD-SDI, and 3G-SDI signals
✓
Delay compensation for multi-screen timing alignment
Delay compensation for multi-screen timing alignment
✓
Internal power supply – no external adaptor required
Internal power supply – no external adaptor required
✓
Locking power connector for reliable mains connection
Locking power connector for reliable mains connection
✓
Compact A-size standalone enclosure – built for touring and install
Compact A-size standalone enclosure – built for touring and install
✓
Automatic input format detection
Automatic input format detection
✓
Compatible with xVision rack frames for multi-unit installations
Compatible with xVision rack frames for multi-unit installations
Specifications
| SKU | XVVSDIDLY |

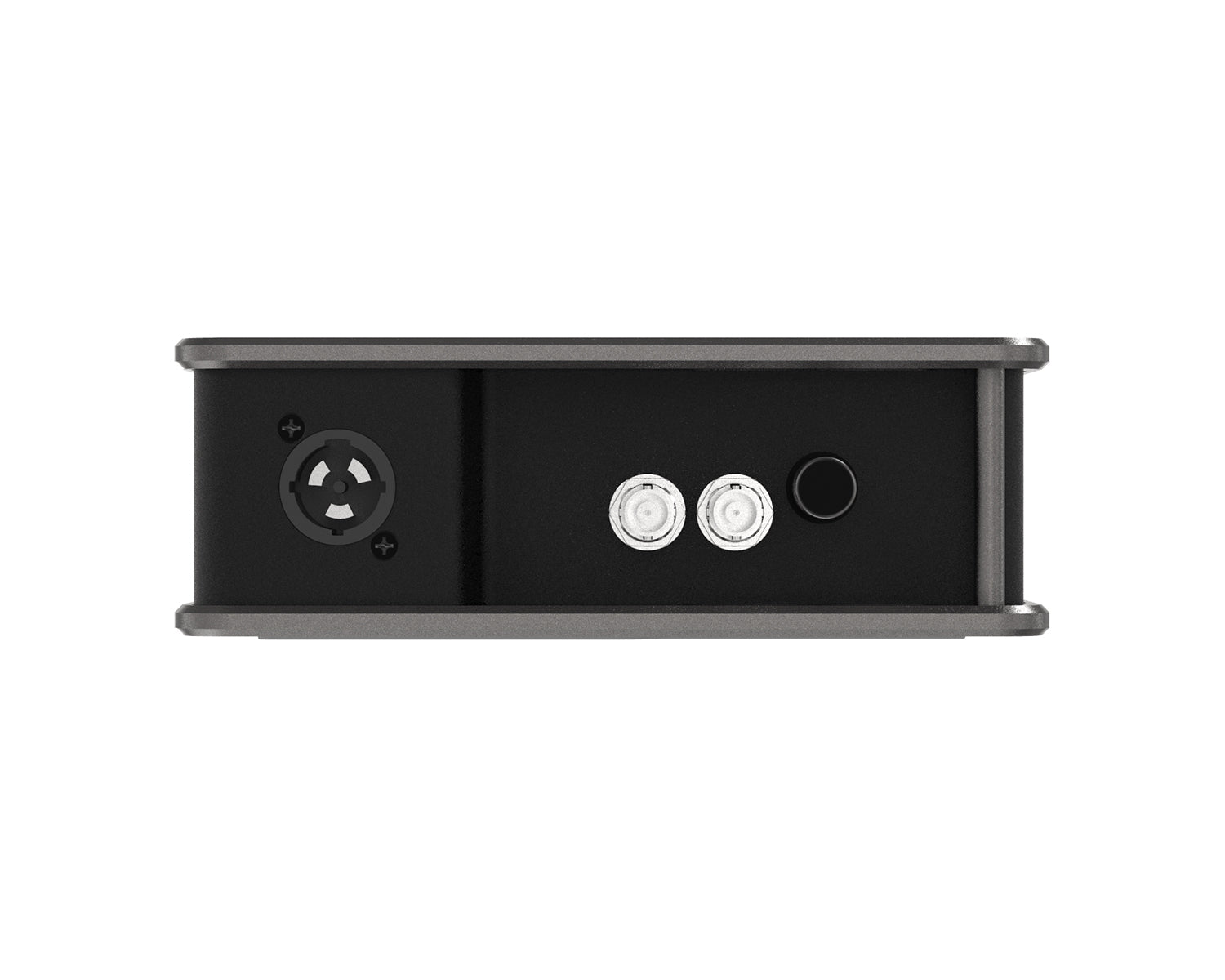

| Input | 1x 3G-SDI (BNC) |

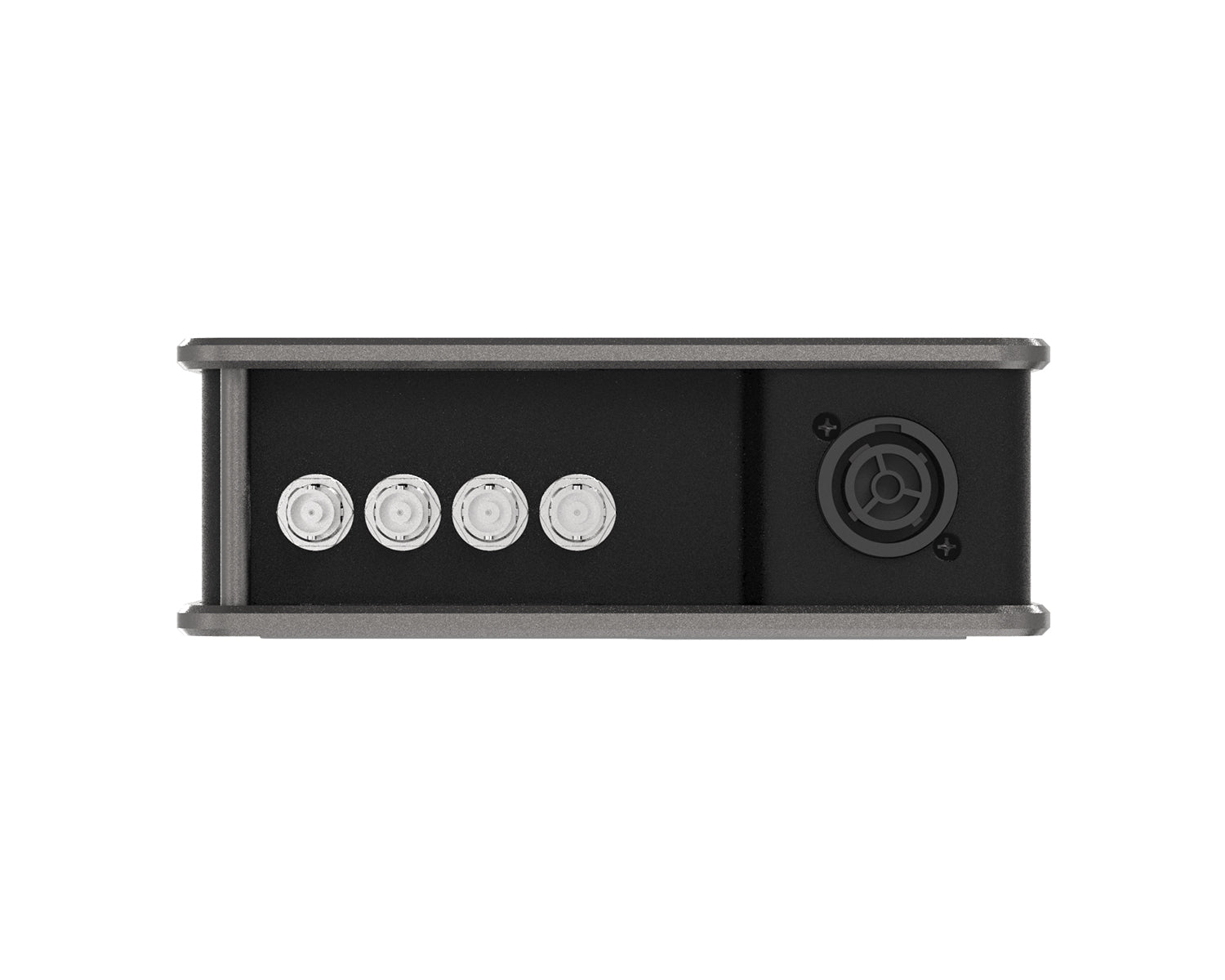

| Outputs | 4x 3G-SDI (BNC) |
| SDI Standard | SD-SDI / HD-SDI / 3G-SDI |
| Line Delay | Adjustable |
| Form Factor | A-Size Standalone |
| Power | Internal PSU, locking connector |
| Manufacturer | Theatrixx |
