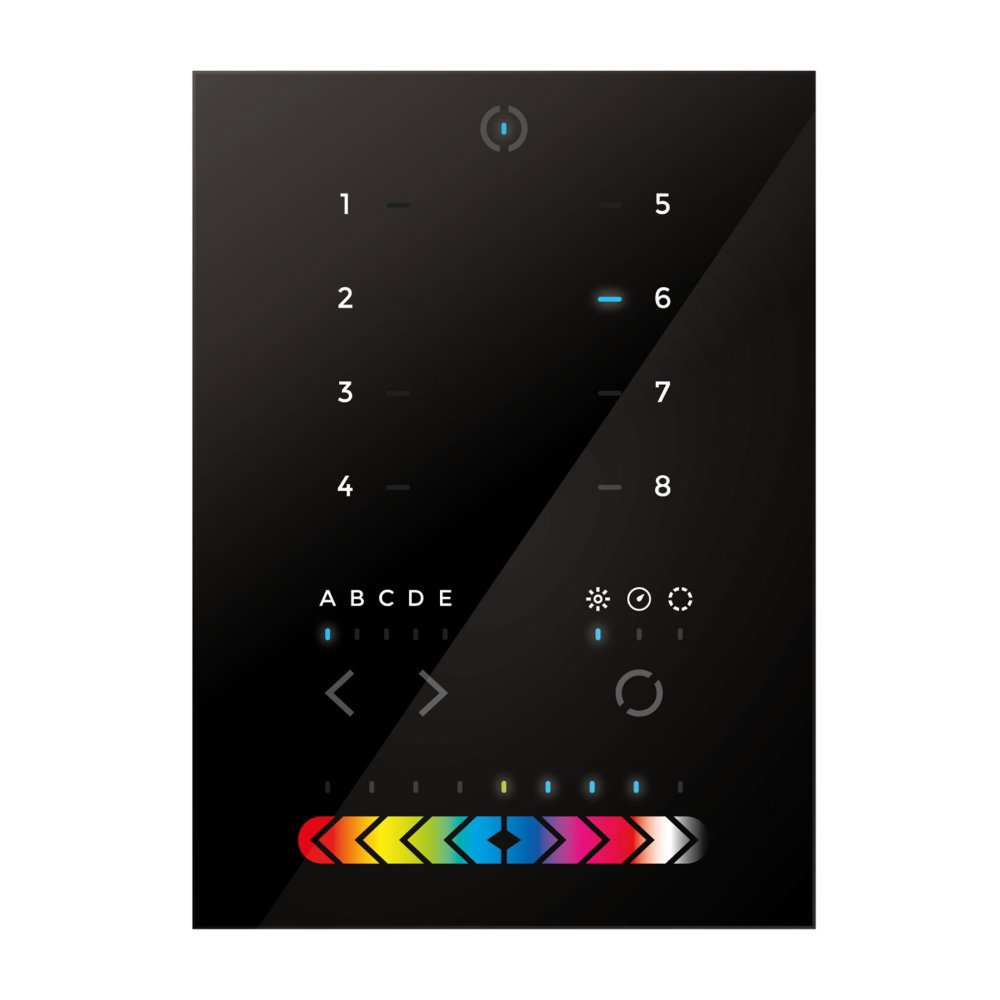

The Nicolaudie STICK-KE2 is a wall-mounted DMX controller for architectural and commercial install work, with a touch-sensitive glass front panel and a horizontal fader for live dimming, speed and colour adjustment. Two DMX universes (1024 channels) drive up to 200 scenes across 5 zones, ideal for restaurants, hotels, retail and corporate spaces where end users need a clean front-of-house interface to a pre-programmed lighting state.
CHANNELS
1024
2 universes
SCENES
200
5 zones
DEPTH
11mm
From wall
MOUNTING
Single/double
Gang box
Features
✓2 DMX universes, 1024 channels
✓Up to 200 scenes across 5 zones
✓8 scene buttons + 2 page buttons (25 x 8 = 200)
✓Horizontal fader for dimmer, speed and colour
✓Touch-sensitive keypad
✓USB and Ethernet for programming and control
✓RS232 and dry contact ports
✓iOS and Android app control
✓Real-time clock with sunrise/sunset triggering
✓Sunlite Easy Stand Alone and ESA Pro software included
✓Mounts in single or double gang wall socket
✓CE, EMC, RoHS, ETL approvals
Specifications
| DMX | 2 universes / 1024 channels |
| Scenes | Up to 200 across 5 zones |
| Connectivity | USB, Ethernet, RS232, dry contact ports |
| Memory | microSD, 128MB supplied (4GB max) |
| Mains supply | 120 to 240V AC, 50/60Hz |
| Controller power | 6-7V DC, 0.6A |
| Dimensions | 146 x 106 x 11mm |
| Weight | 247g |
| Operating temperature | -10C to 45C |
| Mounting | Single or double gang wall box |
