Theatrixx xVision 4K 1:4 HDMI 2.0 Distribution Amplifier Splitter

SKU: XVVHDMIDA4T1
Theatrixx xVision 4K 1:4 HDMI 2.0 Distribution Amplifier Splitter
Theatrixx xVision 4K 1:4 HDMI 2.0 Distribution Amplifier Splitter
Theatrixx xVision 4K 1:4 HDMI 2.0 Distribution Amplifier Splitter
Theatrixx xVision 4K 1:4 HDMI 2.0 Distribution Amplifier Splitter
Theatrixx xVision 4K 1:4 HDMI 2.0 Distribution Amplifier Splitter
Theatrixx xVision 4K 1:4 HDMI 2.0 Distribution Amplifier Splitter
Theatrixx xVision 4K 1:4 HDMI 2.0 Distribution Amplifier Splitter
Click to enlarge

    £479.00 inc VAT
    £399.17 ex VAT

    51 in stock (more available subject to additional lead time)

    Order in 19h 41m 31s for FREE delivery by Tuesday
    Click & collect available Monday ›
    VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
    5 Year Manufacturer Warranty Included
    About Stage Supply
    Chat to us on WhatsApp

    About this Product

    The Theatrixx xVision 4K 1:4 HDMI 2.0 Distribution Amplifier takes a single HDMI input and distributes it to four HDMI outputs, supporting resolutions up to 4K. Built in the compact A-size standalone format with internal power supply and locking connectors, it provides reliable HDMI distribution for live events, conference rooms, and digital signage installations.

    Outputs
    4
    HDMI 2.0

    Max Resolution
    4K
    HDMI 2.0

    Form Factor
    A-Size
    Standalone

    Power
    Internal PSU
    No external adaptor

    Features
    ✓
    1 HDMI input to 4 HDMI outputs
    ✓
    HDMI 2.0 with 4K resolution support
    ✓
    Internal power supply – no external adaptor required
    ✓
    Locking power connector for reliable mains connection
    ✓
    Compact A-size standalone enclosure – road-ready build
    ✓
    HDCP support for protected content distribution
    ✓
    Compatible with xVision rack frames for multi-unit installations
    ✓
    Ideal for digital signage, conference, and live event applications

    Specifications
    SKU XVVHDMIDA4T1
    Input 1x HDMI 2.0
    Outputs 4x HDMI 2.0
    Max Resolution 4K
    Form Factor A-Size Standalone
    Power Internal PSU, locking connector
    Manufacturer Theatrixx

    More Information

    • Integrated power supply with locking PowerCON True 1 Connector. Never rely on a cluster of wall-warts again.
    • Built-in convenience outlet to power nearby monitor, flat-screen, laptop, video projector or any device up to 10 amps… Power bar to connect both converter and device not required anymore.
    • Magnetic stacking system and non-skid rubber pad for table top application. Saves at least 10 gaffer tape rolls a year.

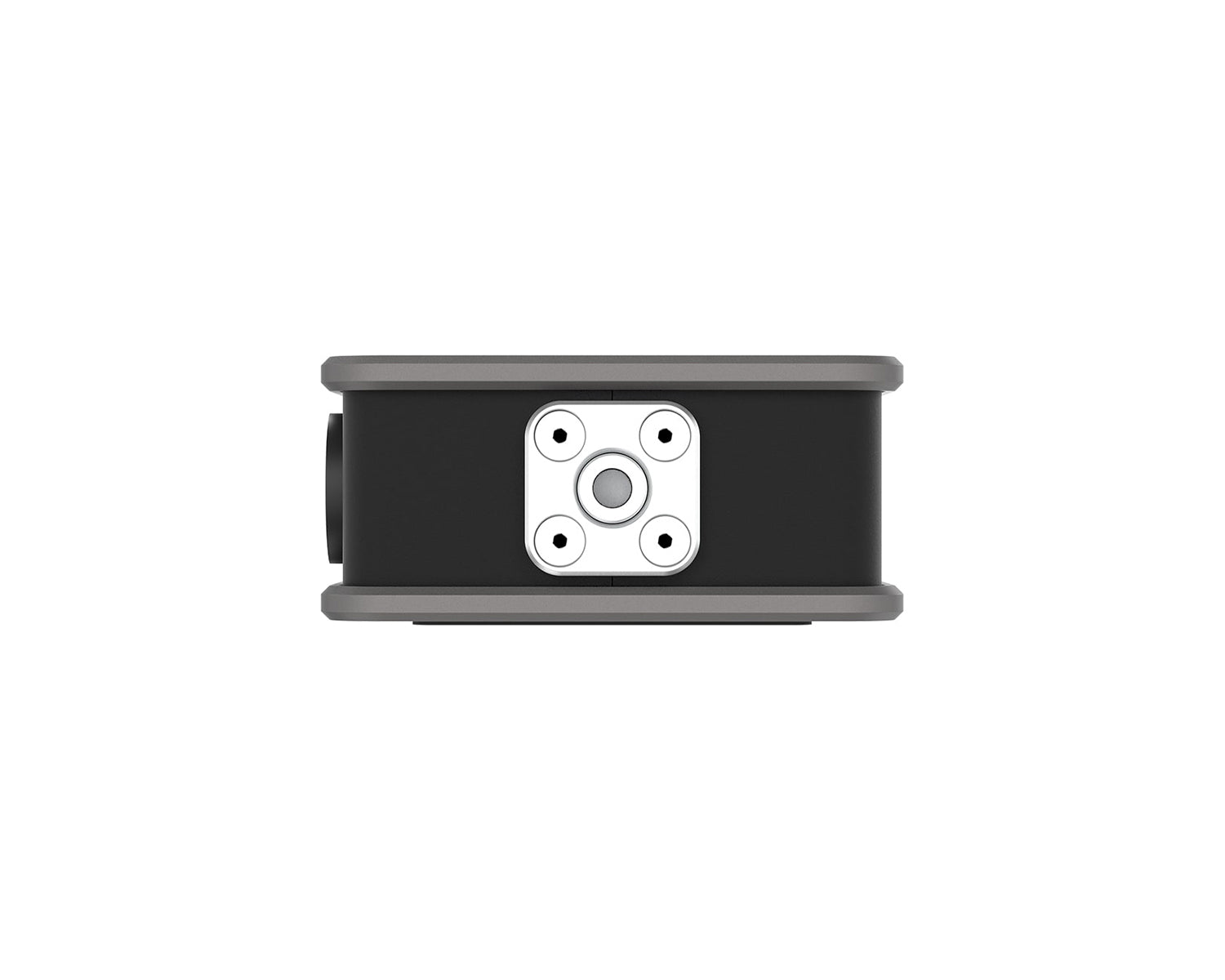

    • Multiple mounting options: C-Clamp, wall-mount adapter, LCD mount adapter and belt adaptor.
    • Rugged, Tour-ready and aesthetic enclosure: The sexiest widget in your tool box, that will keep looking good for years to come.
    • Plug-n-play operation; No dipswitches, buttons or menus to fumble with : It just works.
    • Clear and ample status LED indicators for quick troubleshooting.
    • HDMI input tested and compatible with Apple computers and iPad.
    • Easy on-the-field identification with unique colour and alphabetic coding system.
    • Locking HDMI port prevents accidental disconnection.
    • Automatic downscaling per output – Effortlessly send the same signal to 4K and FullHD displays with a single signal source.
    • Proudly designed and assembled in Canada.
