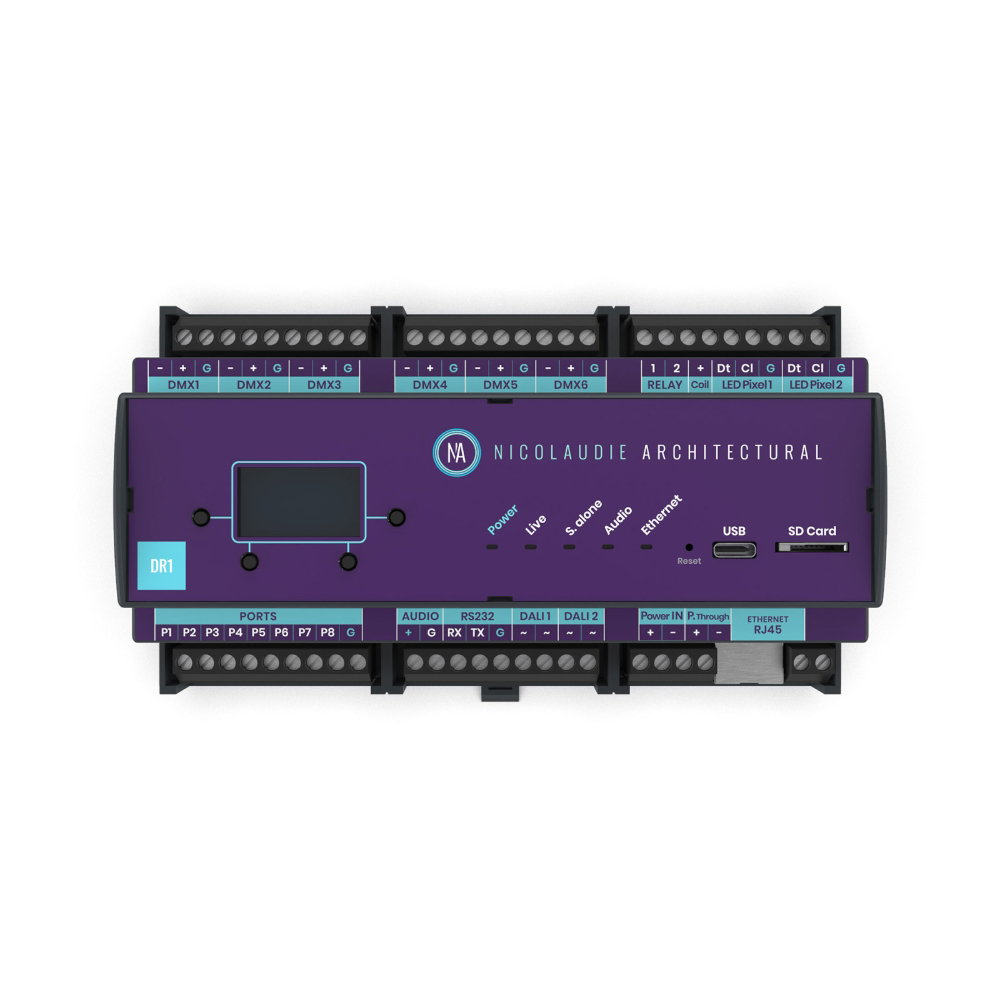

The Nicolaudie DINA-DR1 is a stand-alone architectural lighting controller in a DIN rail enclosure, built around the NSA engine for permanent installation work. It outputs DMX 512, Art-Net, sACN, LED Pixel and DALI, handles up to 3072 channels (expandable to 6144 with eDMX), and stores up to 2,000 scenes across 20 zones for offline operation.
Channels
3,072
expandable to 6,144
Zones
20
Scenes
Up to 2,000
stand-alone
Form factor
DIN rail
Features
✓Stand-alone DIN rail mount lighting controller
✓3,072 channels (1024 RGB or 768 RGBW fixtures)
✓Expandable to 6,144 channels with eDMX
✓DMX 512, Art-Net, sACN, LED Pixel and DALI output
✓20 independent zones
✓Up to 2,000 stand-alone scenes
✓Triggers via Time, Audio, Ports, RS232, TCP and DALI
✓USB and Ethernet for programming
✓16 MB flash plus microSD slot
✓Programmed using ESA2 / ESA Pro2 software
✓Multiple controllers can be synchronised for large installs
Install Use
Designed for permanent architectural and commercial installations. The DIN rail form factor and 8-15V DC supply suit integration alongside building control and lighting management gear in a panel.
Specifications
| Channels | 3,072 (expandable to 6,144 via eDMX) |
| Fixture capacity | 1,024 RGB or 768 RGBW |
| Protocols | DMX 512, Art-Net, sACN, LED Pixel, DALI |
| Zones | 20 |
| Scenes | Up to 2,000 stand-alone |
| Triggers | Time, Audio, Ports, RS232, TCP, DALI |
| Connectivity | USB, Ethernet |
| Memory | 16 MB flash + microSD slot |
| Software | ESA2 / ESA Pro2 |
| Power | 8-15V DC, screw terminal |
| Dimensions | 160 x 91 x 62 mm |
| Weight | 317 g |
