Theatrixx xVision Reversible 4K 1:8 12G-SDI Distribution Amplifier Module

SKU: XVVRMSDIDA812G
Theatrixx xVision Reversible 4K 1:8 12G-SDI Distribution Amplifier Module
Theatrixx xVision Reversible 4K 1:8 12G-SDI Distribution Amplifier Module
Theatrixx xVision Reversible 4K 1:8 12G-SDI Distribution Amplifier Module
Theatrixx xVision Reversible 4K 1:8 12G-SDI Distribution Amplifier Module
Theatrixx xVision Reversible 4K 1:8 12G-SDI Distribution Amplifier Module
Theatrixx xVision Reversible 4K 1:8 12G-SDI Distribution Amplifier Module
Theatrixx xVision Reversible 4K 1:8 12G-SDI Distribution Amplifier Module
Click to enlarge

    £1,123.50 inc VAT
    £936.25 ex VAT

    1 in stock (more available subject to additional lead time)

    Order in 17h 2m 56s for FREE delivery by Tuesday
    Click & collect available Monday ›
    VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
    5 Year Manufacturer Warranty Included
    About Stage Supply
    Chat to us on WhatsApp

    About this Product

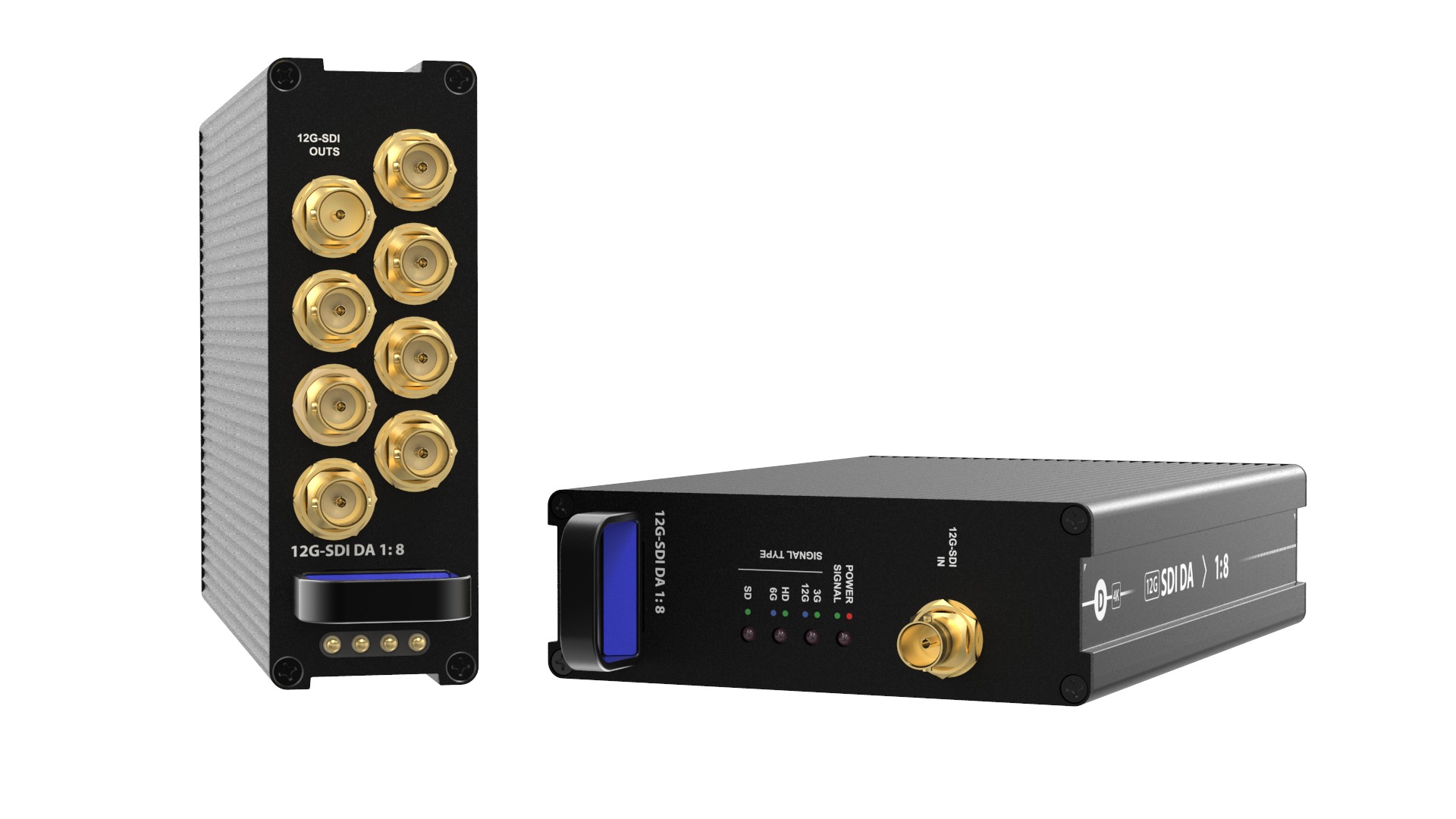

    For 4K workflows requiring signal distribution at scale, the Theatrixx xVision Reversible 1:8 12G-SDI DA splits a single 12G-SDI input across eight buffered outputs. Eight outputs from one module slot makes this particularly efficient for large LED wall feeds, multi-destination recording, or broadcast distribution – all powered directly from the xVision Reversible frame.

    Distribution
    1:8
    1 in, 8 out

    SDI Standard
    12G-SDI
    4K UHD capable

    Max Resolution
    4K UHD
    2160p via 12G-SDI

    Outputs
    8x BNC
    Buffered & re-clocked

    Features
    ✓
    1 input to 8 buffered, re-clocked 12G-SDI outputs
    ✓
    Supports SD-SDI, HD-SDI, 3G-SDI, and 12G-SDI signals
    ✓
    4K UHD distribution over single-link 12G-SDI
    ✓
    Reversible design – insert from front or rear of frame
    ✓
    Hot-swappable – swap modules without powering down the frame
    ✓
    Fully enclosed module – protected against static, dust, and wear
    ✓
    Gold-plated redundant spring pins with magnetic retention for DC power
    ✓
    No external power supplies or additional cabling required

    Note

    Requires a Theatrixx 2-Bay (RF2) or 8-Bay (RF8) Reversible Rackmount Converter frame (sold separately).

    Specifications
    SKU XVVRMSDIDA812G

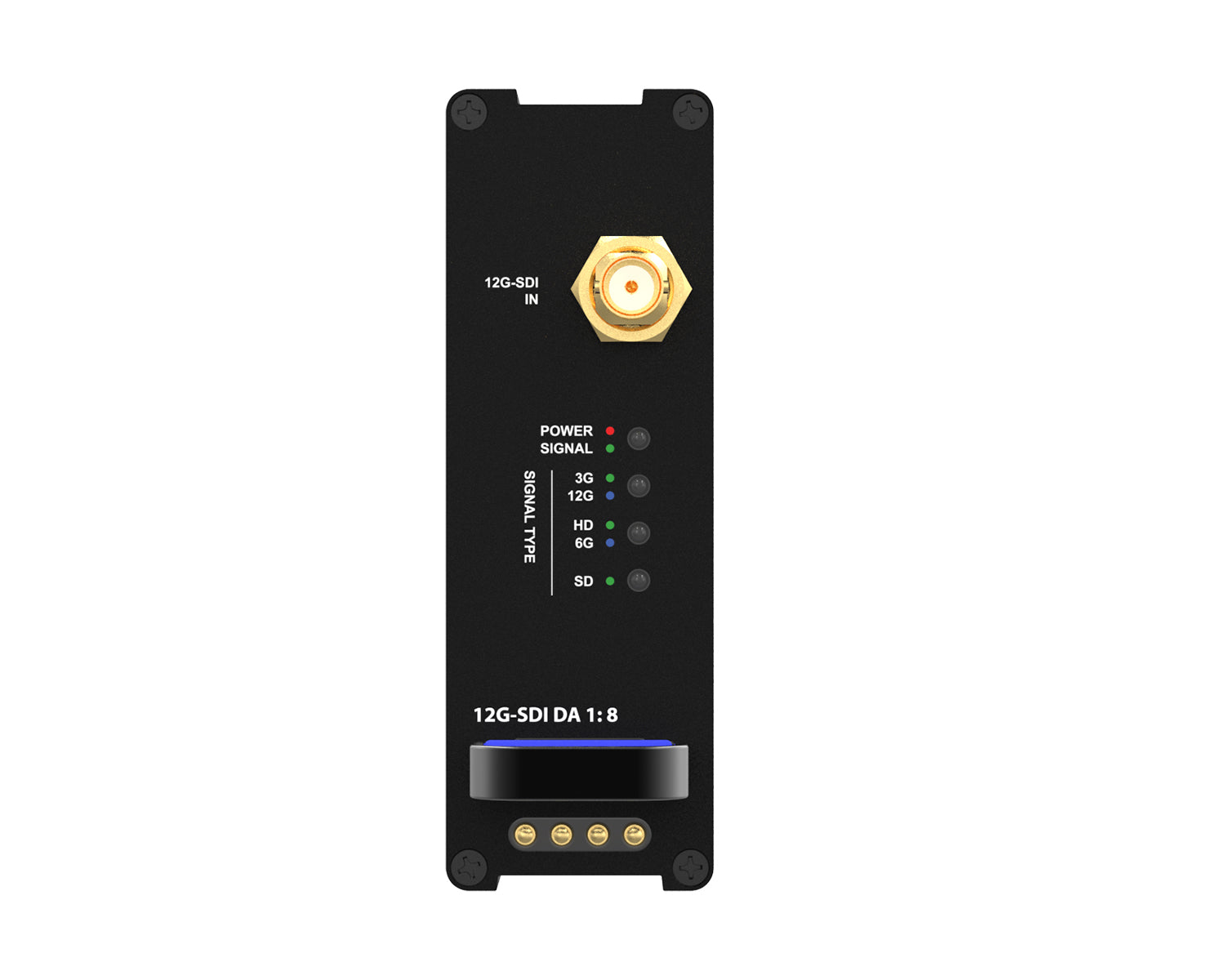

    Input 1x 12G-SDI (BNC)

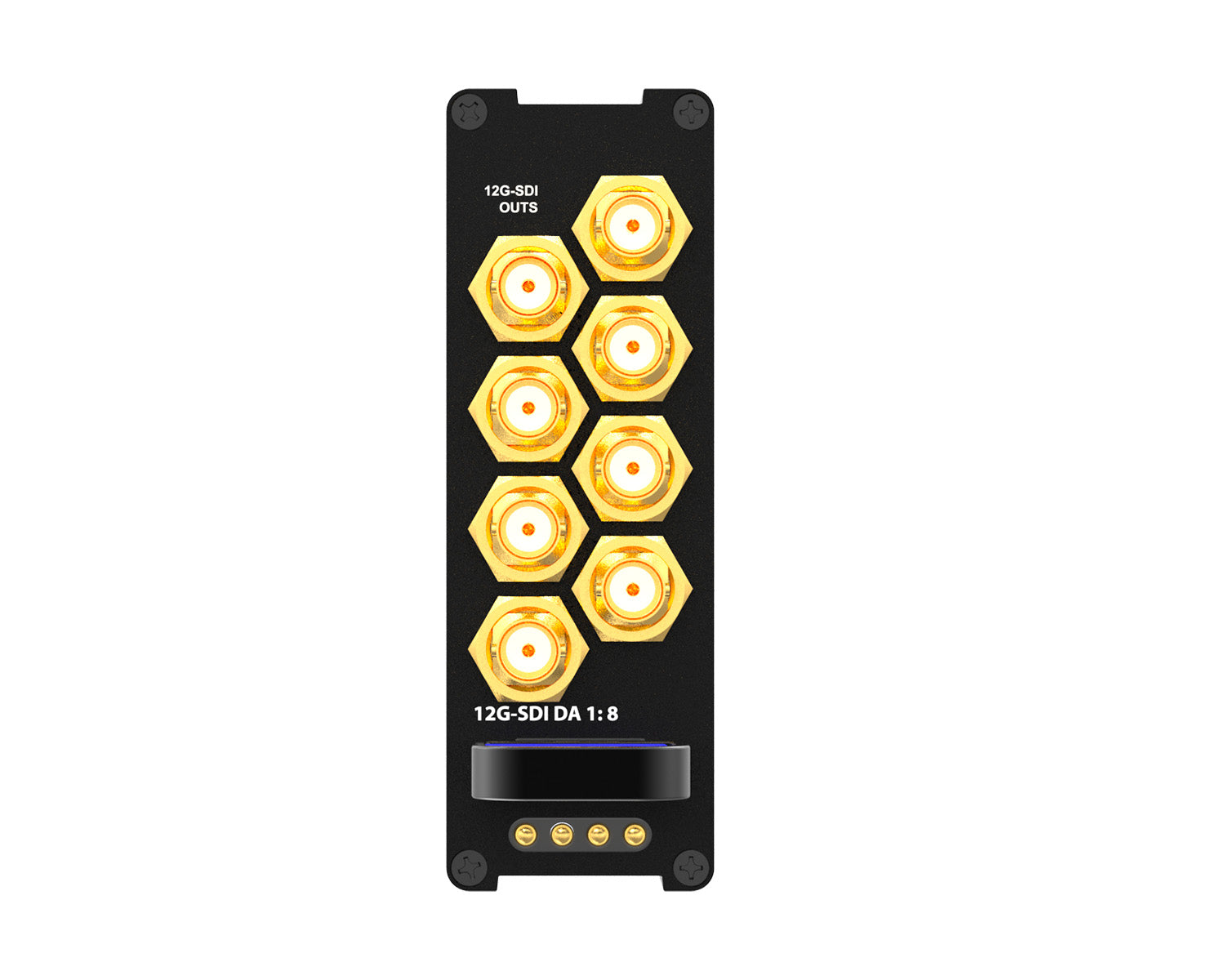

    Output 8x 12G-SDI (BNC)
    SDI Standard SD / HD / 3G / 12G-SDI
    Maximum Resolution 4K UHD (2160p) via 12G-SDI
    Module Size Single-width
    Compatible Frames xVision RF2 (2-Bay), RF8 (8-Bay)

    More Information

    • Reversible module for 8-bay 2U converter rack (sold separately)
    • Video Input: 1 x 12G/6G/3G/HD/SD SDI BNC
    • Video Output: 8 x 12G/6G/3G/HD/SD SDI BNC
    • Supports 4K Formats
    • SDI Video Sampling: 4:2:2 and 4:4:4
    • SDI Audio Sampling: Sample rate of 48 kHz and 24 bit
