ADJ 32 HEX Panel IP Outdoor LED Wash / Blinder

SKU: ADJ1237000203
ADJ 32 HEX Panel IP Outdoor LED Wash / Blinder
ADJ 32 HEX Panel IP Outdoor LED Wash / Blinder
ADJ 32 HEX Panel IP Outdoor LED Wash / Blinder
ADJ 32 HEX Panel IP Outdoor LED Wash / Blinder
ADJ 32 HEX Panel IP Outdoor LED Wash / Blinder
ADJ 32 HEX Panel IP Outdoor LED Wash / Blinder
Click to enlarge

    £735.00 inc VAT
    £612.50 ex VAT

    24 in stock

    Order in 18h 23m 48s for FREE delivery by Tuesday
    Click & collect available Monday ›
    VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
    2 Year Manufacturer Warranty Included
    About Stage Supply
    Chat to us on WhatsApp

    About this Product

    The ADJ 32 HEX Panel IP is an IP65-rated multi-functional wash, blinder and colour strobe panel. Thirty-two 12W six-in-one HEX LEDs (RGBAW + UV) deliver wide-gamut colour mixing across 8 individually-controllable pixel zones, with a 24 degree beam, OLED touch display and locking IP65 connectors throughout. A magnetic removable filter frame lets you drop in a diffusion filter to widen the beam. Suited to concert, touring and outdoor event production.

    LED ENGINE
    32 x 12W
    HEX (RGBAW+UV)

    BEAM
    24°
    Stock

    ZONES
    8
    Pixel zones

    RATING
    IP65
    Outdoor use

    Features
    ✓32 x 12W 6-in-1 HEX LEDs (RGBAW + UV)
    ✓8 individually controllable pixel zones
    ✓24 degree beam (with magnetic diffusion filter frame)
    ✓33,040 lux @ 1m (Full On No UV)
    ✓Multiple DMX modes (6, 8, 10, 11, 16, 48, 57, 96 channels)
    ✓Flicker free for film and broadcast
    ✓OLED display with touch buttons
    ✓IP65 locking 5-pin XLR DMX in/out
    ✓IP65 locking power in/out for daisy chain

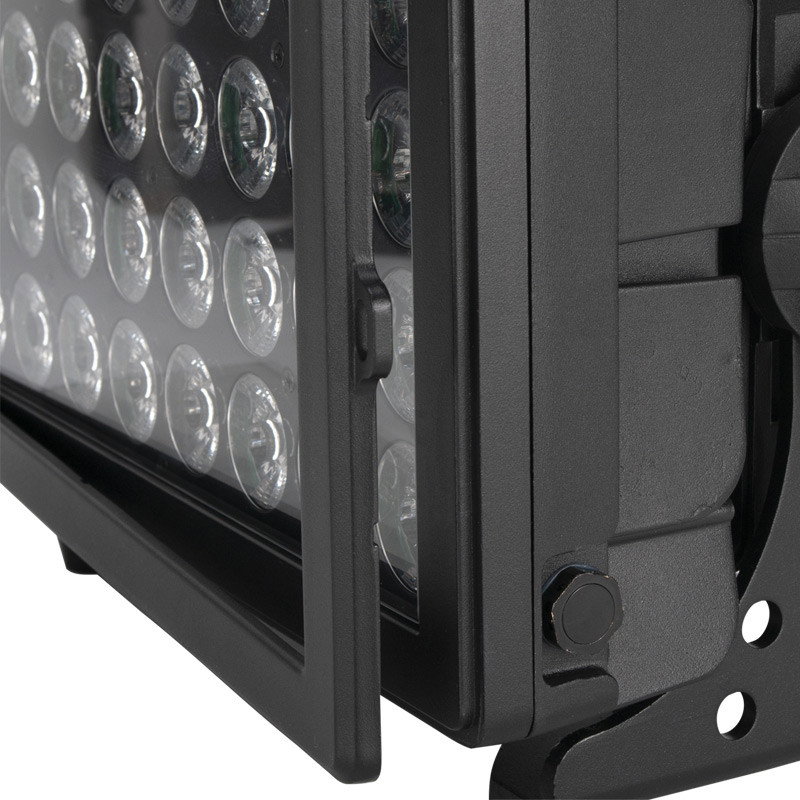

    ✓Magnetic removable filter frame included
    ✓All-metal black housing
    ✓50,000 hour average LED life

    Specifications
    Light source 32 x 12W HEX (6-in-1 RGBAW + UV)
    Beam angle 24 degrees
    Lux @ 1m (Full On No UV) 33,040
    Lux @ 1m (Full On) 20,659
    Pixel zones 8 independent
    DMX modes 6, 8, 10, 11, 16, 48, 57, 96 channels
    DMX connectors IP65 locking 5-pin XLR in/out
    Power connectors IP65 locking in/out
    IP rating IP65
    Dimensions 350 x 230 x 170mm
    Weight 11kg
    LED life 50,000 hours average

    More Information

    Specifications
    Source
    • Light Source: 32x 12W HEX (6-in-1) RGBWA+UV LEDs
    • Average LED lifetime: approx. 50,000 hrs
    Optics
    • Beam Angle: 24°
    • LUX: 33,040 @ 1m, 1,322 @ 5m (Full On No UV); 20,659 @ 1m, 826 @ 5m (Full On)
    • Removable magnetic filter frame with 32° diffusion filter (60° field angle)
    • Optional barndoors available (ordering code 1237000206)
    Control
    • 5 operational modes: Static Colour, RGBAW+UV Dimmer, Program, Colour Macro, DMX
    • 8 DMX modes: 6, 8, 10, 11, 16, 48, 57 & 96-channel
    • RDM compatible (Remote Device Management)
    • 16-bit electronic dimming: 0-100%
    • 63 built-in colour macros
    • Built-in programs with speed and fade time adjustments
    • 8 individually controlled sections with zone control
    • 5 selectable dim curves: Standard, Stage, TV, Architectural, Theatre
    • Gamma control: 2.0 / 2.2 / 2.4 / 2.6 / 2.8
    • LED refresh rate control: 900Hz-25kHz
    • LED pulse and strobe effect
    • OLED display with function buttons
    Colours
    • RGBAW+UV colour mixing
    Construction
    • All-metal heavy-duty housing
    • IP rating: IP65
    • Fan cooling
    • Sure-lock heavy-duty locking bracket system (locks every 10°)
    • Optional Omega quicklock bracket (ordering code 1226100419, 108mm)
    Electrical
    • Multivoltage 100-240V 50/60Hz
    • Daisy chain up to 6 fixtures max (@ 230V)
    • Power consumption: 220W max
    • Operating temperature: -15°C to +45°C
    Connections
    • 5-pin locking IP65 DMX connectors
    • IP65 locking power in/out connections
    Dimensions
    • 350 x 230 x 170mm
    • Weight: 11kg
    What's Included
    • Removable frost filter with metal frame
    • IP65 locking power cable
    • Two safety cables
    Approvals / Rating
    • IP65-rated
    Specifications are subject to change

    Manuals & Downloads

    PDFManuals & Instructions: 2_kopie_von_adj_32_hex_panel_ip_-_user_manual.pdfPDF
