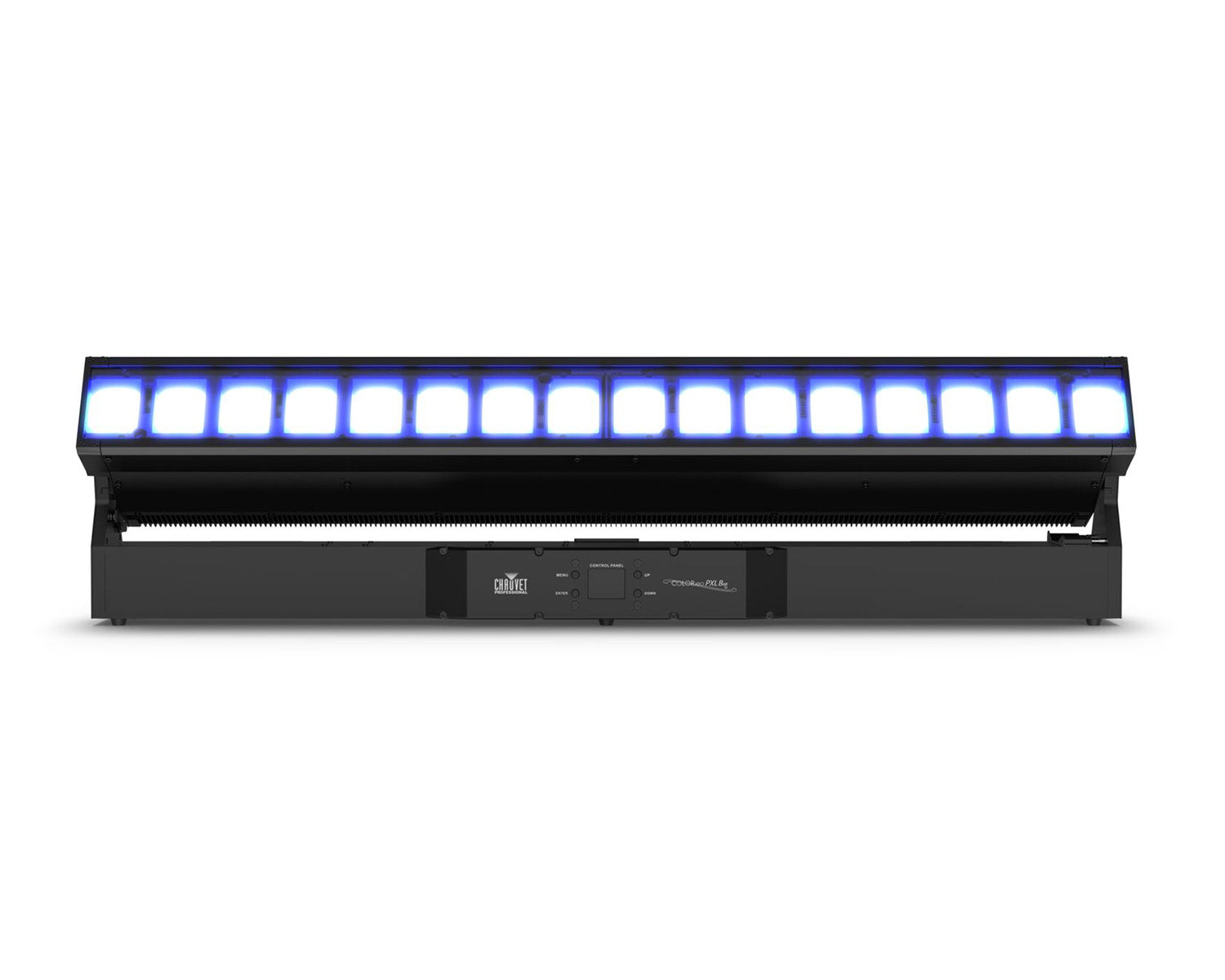

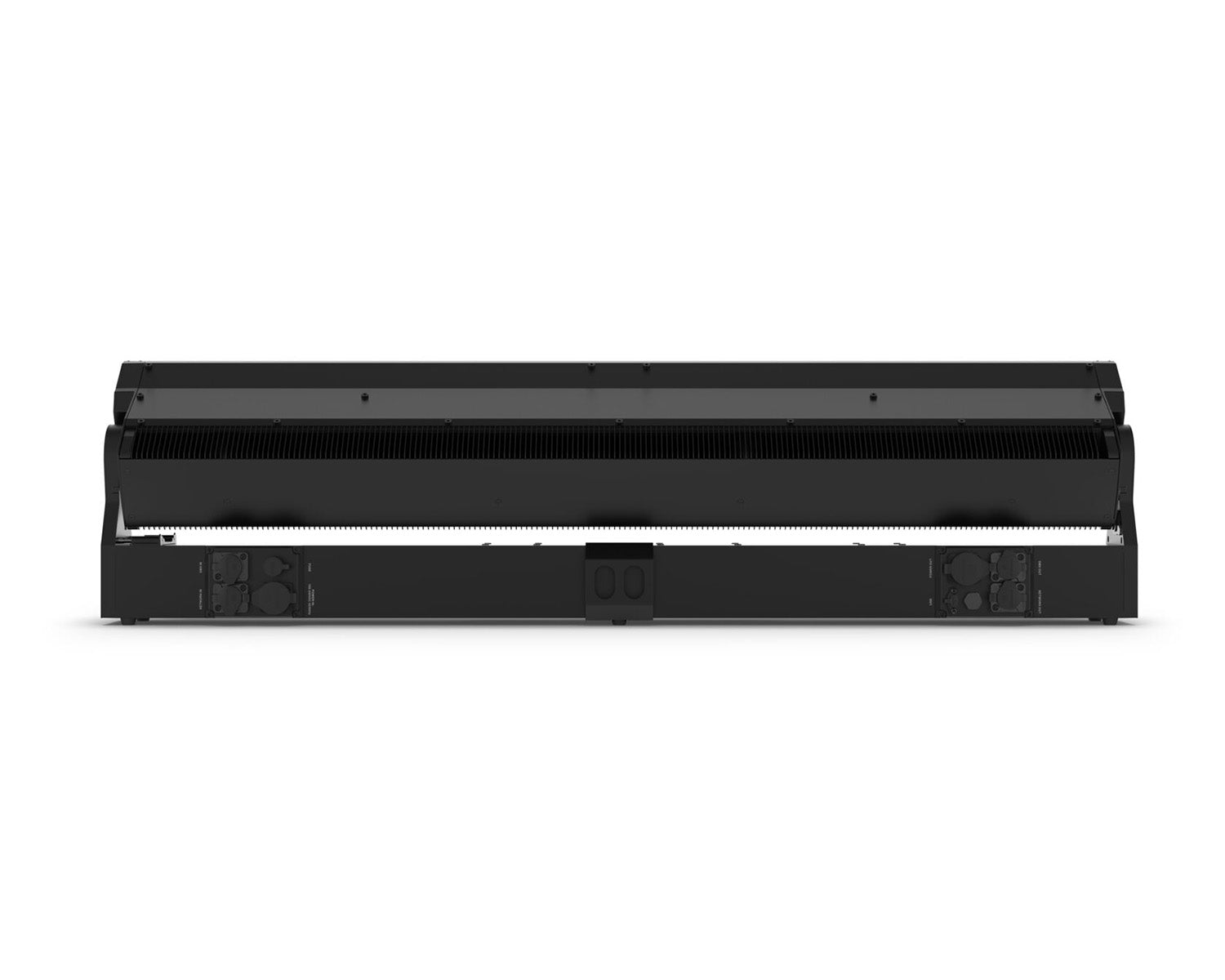

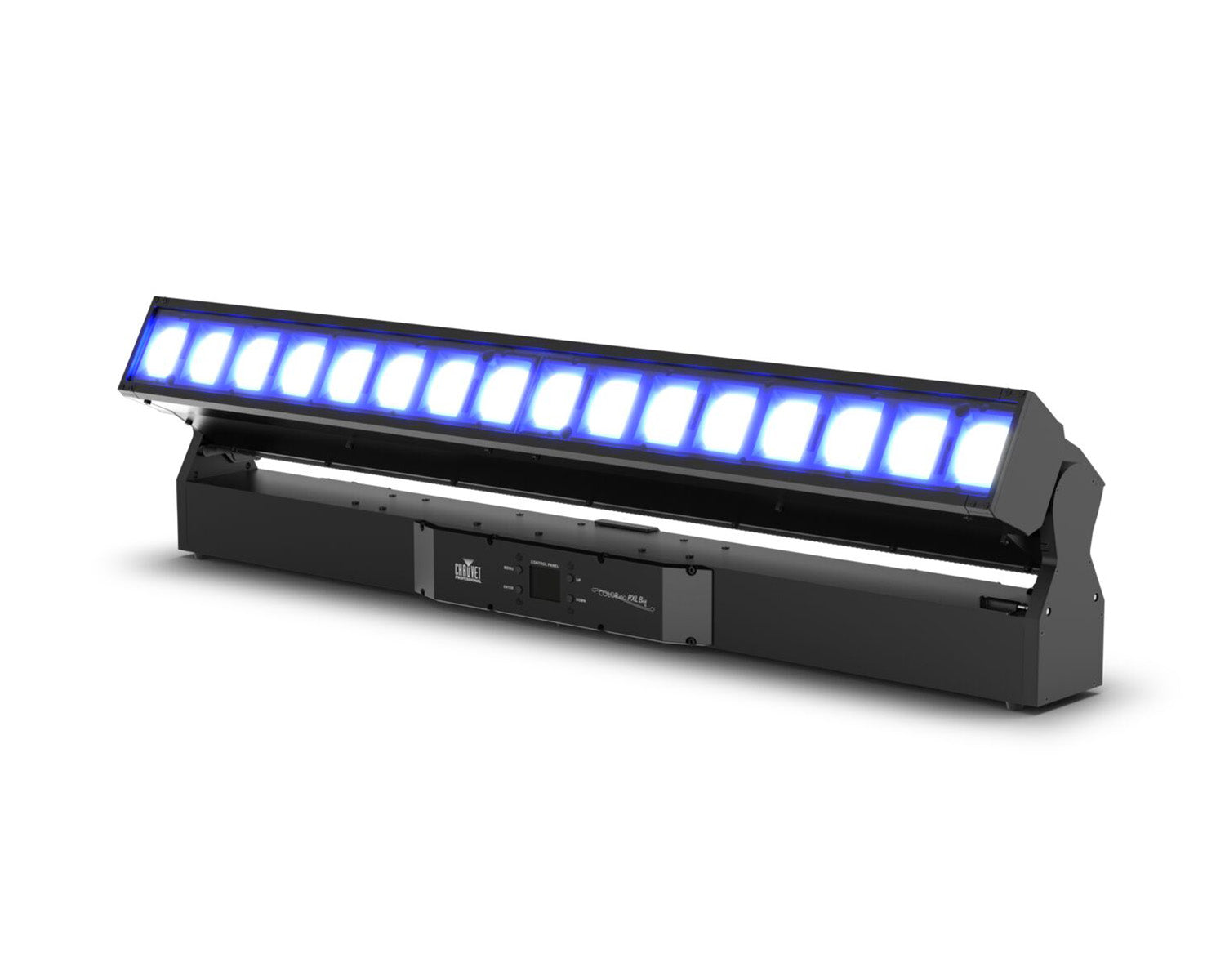

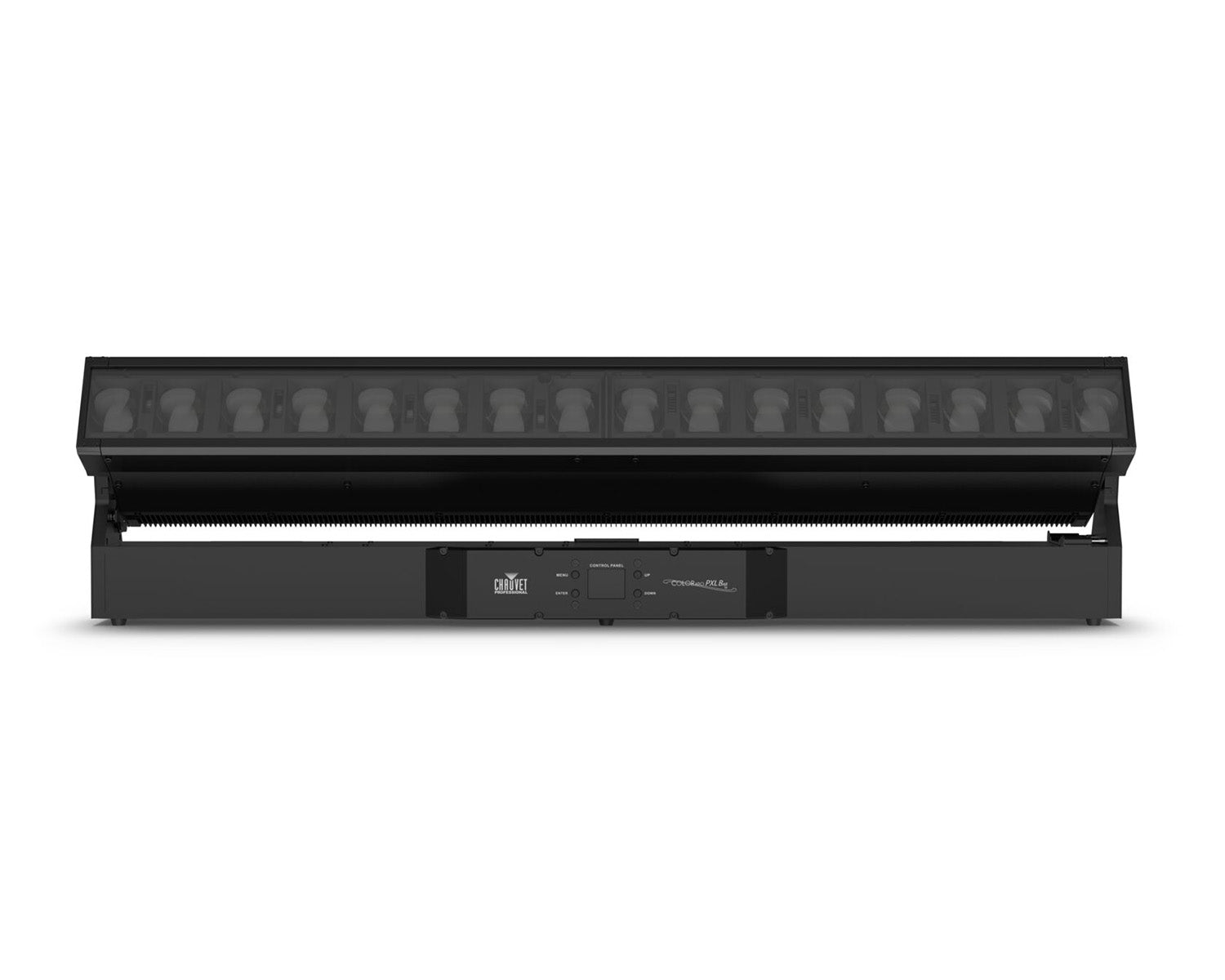

Chauvet Professional COLORado PXL Bar 16 LED Batten

• IP65-rated motorized tilting batten with (16) 45 W RGBW LEDs with a 5.8 ° to 47.9° zoom range, maintains pixel pitch between fixtures.
• Quiet and quick operation of 200° tilt
• Quiet and quick operation of (2) section zoom
• Fully pixel mappable
• Several built-in effects including virtual gobos and movement macros with foreground and background colour control for easy pixel animation effects
• DMX, SACN, Art-Net, and Kling-Net control for full flexibility
• RDM Enabled for remote addressing and trouble shooting
• 5.8° - 47.9° zoom range for variable beam sizes
• TRUE1 compatible power input/output ports
• IP65-rated 5 pin DMX and TCP/IP input/output ports
• IP65-rated USBc software upload port
• Slotted Omega brackets for easy hanging on truss

OPTICAL

• Light Source: 16 LEDs (quad-colour RGBW) 45 W, (3.0 A), 8875 K, 50,000 hours life expectancy.
• Colour Temperature (at full): 8875 K
• CRI: 73.3
• Beam Angle: 5.8° to 30.4°
• Beam Angle single cell: 4° to 29.9
• Field Angle: 8.9° to 42.2°
• Field Angle single cell: 5.4° to 42.3°
• Cutoff Angle: 10° to 47.9°
• Cutoff Angle single cell: 6.1° to 45.5°
• Zoom Range: 5.8° to 47.9°
• Zoom Range single cell: 4° to 45.5°
• Lumens (43.3°): 8,959
• Illuminance (5.7°): 27,415 lux @ 5 m
• Illuminance (43.3°): 1,294 lux @ 5 m
• Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 15,000 Hz

DYNAMIC EFFECTS

• Tilt: 200°
• Tilt Ranges: 60°, 180°, 200°
• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Zoom: Motorized
• Strobe Rate: 0 to 20 Hz
• Dim Modes: 2
• Dim Curves: 4

CONSTRUCTION / PHYSICAL

• Dimensions: 39.37 x 5.47 x 10.75 in (1000 x 139 x 273 mm)
• Weight: 45.6 lb (20.7 kg)
• Exterior Colour: Black
• Housing Material: Aluminium alloy, Aluminium diecast, High-impact flame-retardant polymer

CONNECTIONS

• Power Connection: Seetronic Powerkon IP65

CONTROL

• Control Protocol: Art-Net, Kling-Net, DMX, RDM, sACN

ELECTRICAL

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power Linking: 1 unit @ 120 V; 3units @ 208 V; 3 units @ 230 V
• Power and Current: 790 W, 6.60 A @ 120 V, 60 Hz
• Power and Current: 771 W, 3.821 A @ 208 V, 60 Hz
• Power and Current: 768 W, 3.485 A @ 230 V, 50 Hz

CERTIFICATIONS / QUALIFICATIONS

• CE, MET, FCC
• IP Rating: IP65, temporary outdoor/wet use, with pressure equalizing M12 GORE valve
• Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
