When you need to split a 4K SDI signal to multiple destinations without a standalone DA eating rack space and power outlets, the Theatrixx xVision Reversible 1:4 12G-SDI DA handles it from a single module slot. Takes one 12G-SDI input and delivers four buffered, re-clocked outputs – suitable for LED processor feeds, multi-screen monitoring, or parallel recording paths.
Distribution
1:4
1 in, 4 out
SDI Standard
12G-SDI
4K UHD capable
Max Resolution
4K UHD
2160p via 12G-SDI
Features
✓

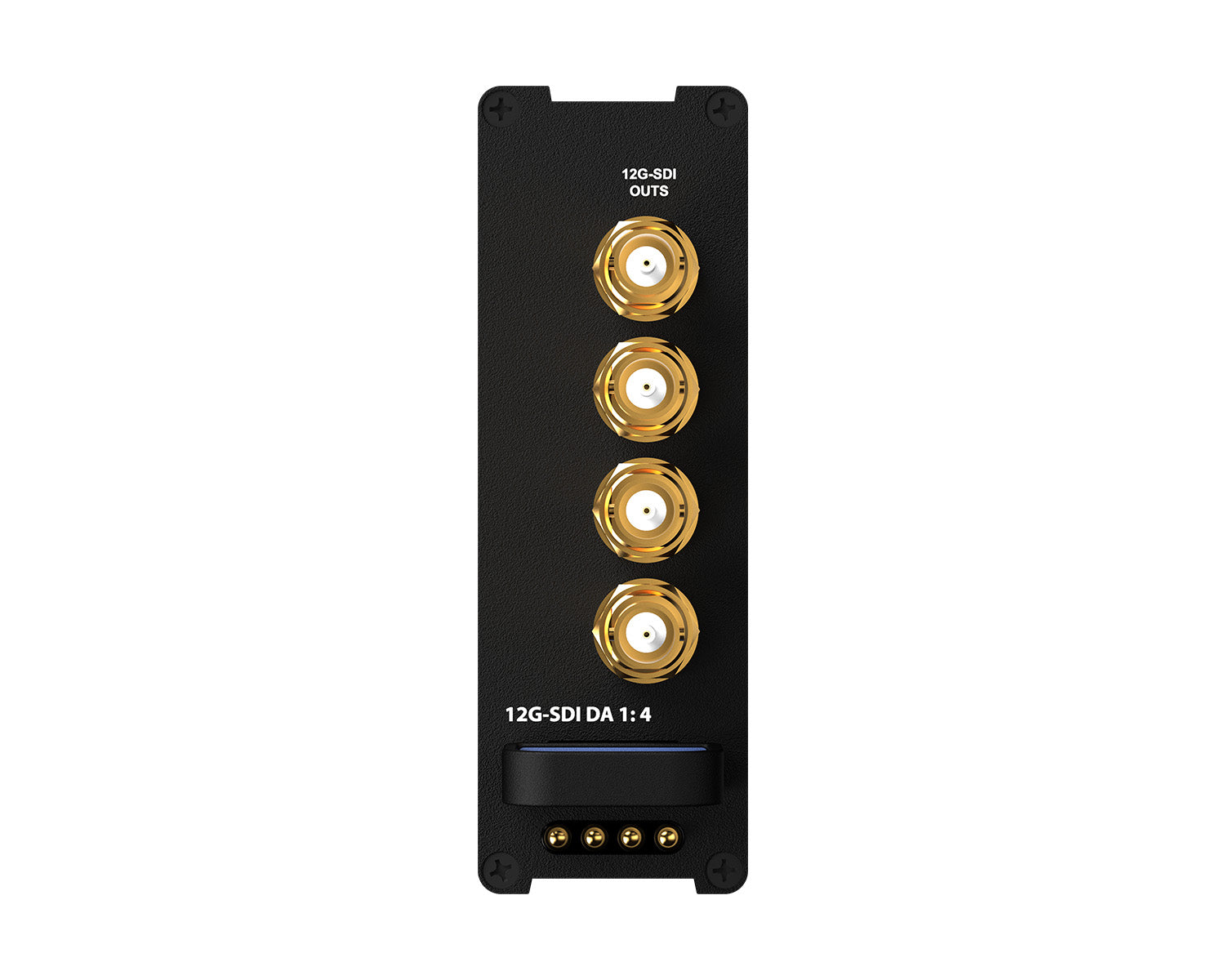

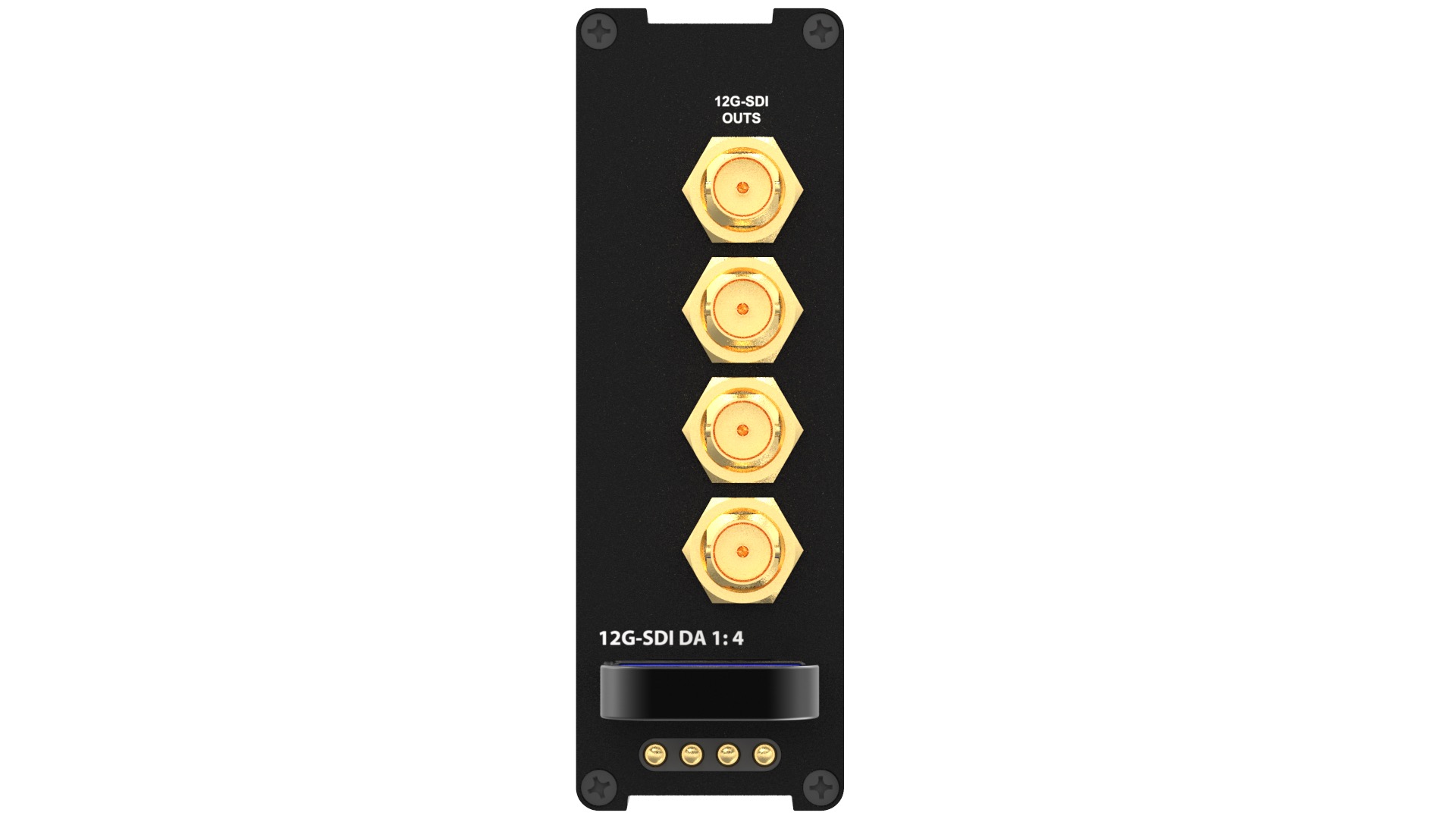

1 input to 4 buffered, re-clocked 12G-SDI outputs
1 input to 4 buffered, re-clocked 12G-SDI outputs
✓
Supports SD-SDI, HD-SDI, 3G-SDI, and 12G-SDI signals
Supports SD-SDI, HD-SDI, 3G-SDI, and 12G-SDI signals
✓
4K UHD distribution over single-link 12G-SDI
4K UHD distribution over single-link 12G-SDI
✓
Reversible design – insert from front or rear of frame
Reversible design – insert from front or rear of frame
✓
Hot-swappable – swap modules without powering down the frame
Hot-swappable – swap modules without powering down the frame
✓
Fully enclosed module – protected against static, dust, and wear
Fully enclosed module – protected against static, dust, and wear
✓
Gold-plated redundant spring pins with magnetic retention for DC power
Gold-plated redundant spring pins with magnetic retention for DC power
Note
Requires a Theatrixx 2-Bay (RF2) or 8-Bay (RF8) Reversible Rackmount Converter frame (sold separately).
Specifications
| SKU | XVVRMSDIDA412G |
| Input | 1x 12G-SDI (BNC) |
| Output | 4x 12G-SDI (BNC) |
| SDI Standard | SD / HD / 3G / 12G-SDI |
| Maximum Resolution | 4K UHD (2160p) via 12G-SDI |
| Module Size | Single-width |
| Compatible Frames | xVision RF2 (2-Bay), RF8 (8-Bay) |
