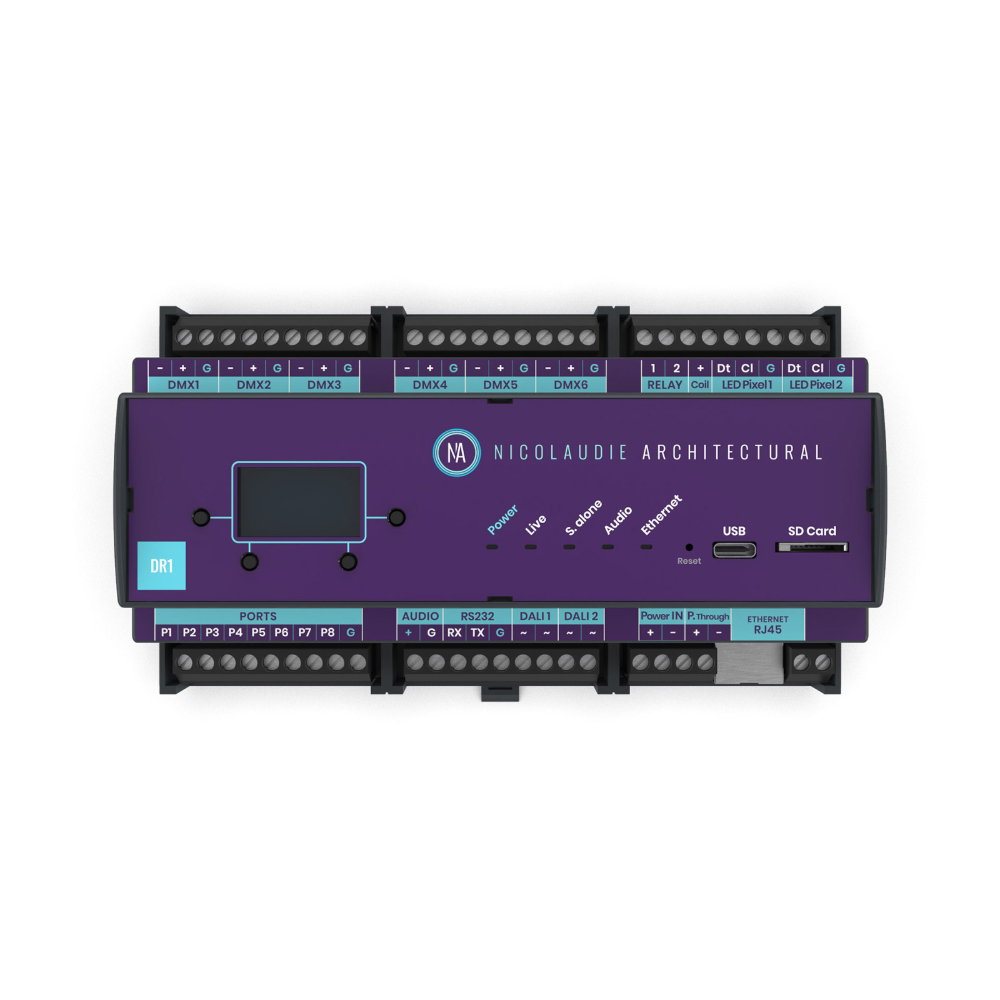

The Nicolaudie DINA-DR1-LITE is a DIN rail mounted standalone lighting controller designed for architectural and commercial install work. Out of the box it controls 1024 DMX channels (2 universes) and is upgradable to 3072 channels (6 universes). Programmed from a Mac or PC over USB or Ethernet using ESA2 / ESA Pro 2, then triggered locally by dry contact, real-time clock or mobile app for ongoing operation without a host computer.
CHANNELS
1024
Up to 3072
UNIVERSES
2
Up to 6 with upgrade
MOUNTING
DIN rail
Standalone
CONTROL
USB / LAN
Mobile apps
Features
✓1024 DMX channels, upgradable to 3072
✓DMX-512 output, Art-Net and sACN supported
✓Optional DALI, eDMX and LED Pixel protocols
✓Programmed in ESA2 / ESA Pro 2 (Mac and Windows)
✓USB and Ethernet programming and control
✓Dry contact triggers for architectural integration
✓iOS and Android app control (Easy Remote Pro, LightPad, Arcolis)
✓Standalone operation, no host PC required after upload
Note
The DINA-DR1-LITE is supplied with a USB Type C cable. A 12V DIN rail power supply is available as a separate option.
Specifications
| Channels | 1024 (upgradable to 3072) |
| Protocols | DMX-512, Art-Net, sACN; optional DALI, eDMX, LED Pixel |
| Programming | USB or Ethernet, ESA2 / ESA Pro 2 software |
| App control | Easy Remote Pro, LightPad, Arcolis (iOS / Android) |
| Triggers | Dry contact ports, real-time clock |
| Mounting | DIN rail |
| Supplied with | USB Type C cable |
