Elumen8 ISCHL Distribution Box 63A 230V In, 2 x 32A + 4 x 16A Out

SKU: CONN087
Elumen8 ISCHL Distribution Box 63A 230V In, 2 x 32A + 4 x 16A Out
Elumen8 ISCHL Distribution Box 63A 230V In, 2 x 32A + 4 x 16A Out
Elumen8 ISCHL Distribution Box 63A 230V In, 2 x 32A + 4 x 16A Out
Click to enlarge

    £531.00 inc VAT
    £442.50 ex VAT

    2 in stock

    Order in 19h 40m 5s for FREE delivery by Tuesday
    Click & collect available Monday ›
    VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
    2 Year Manufacturer Warranty Included
    About Stage Supply
    Chat to us on WhatsApp

    About this Product

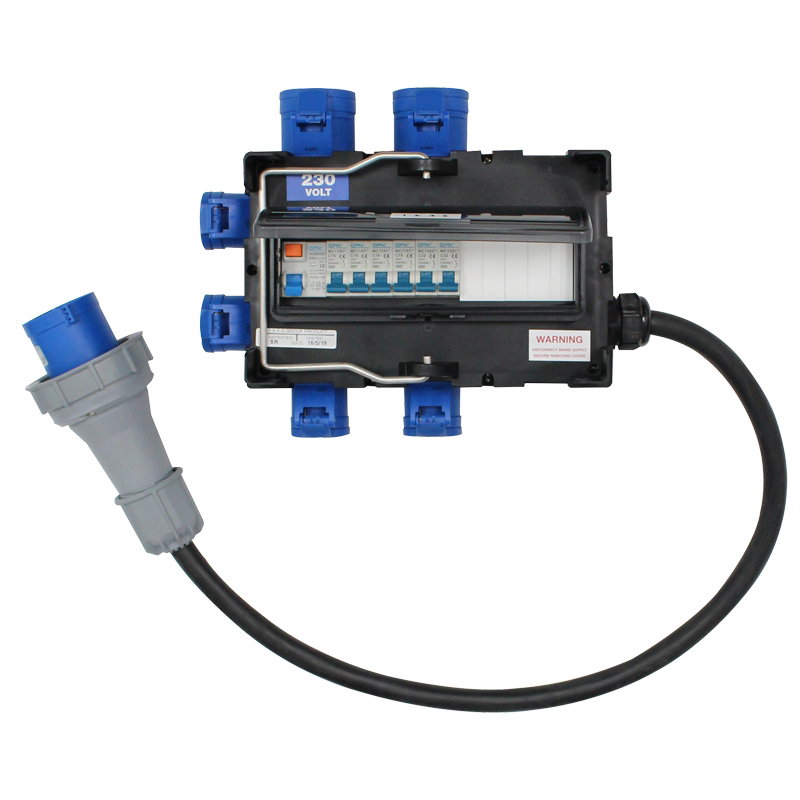

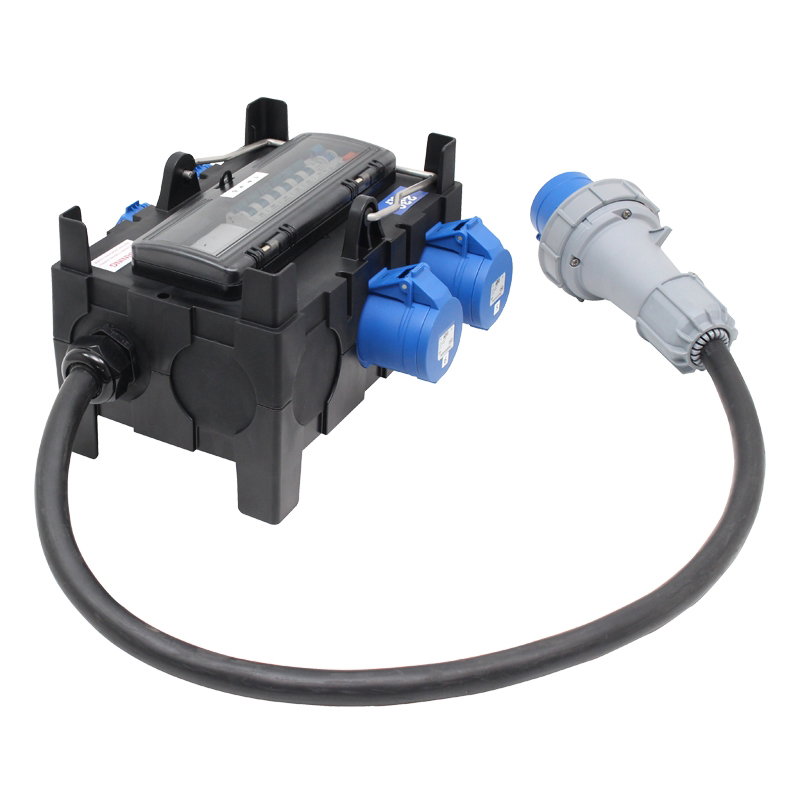

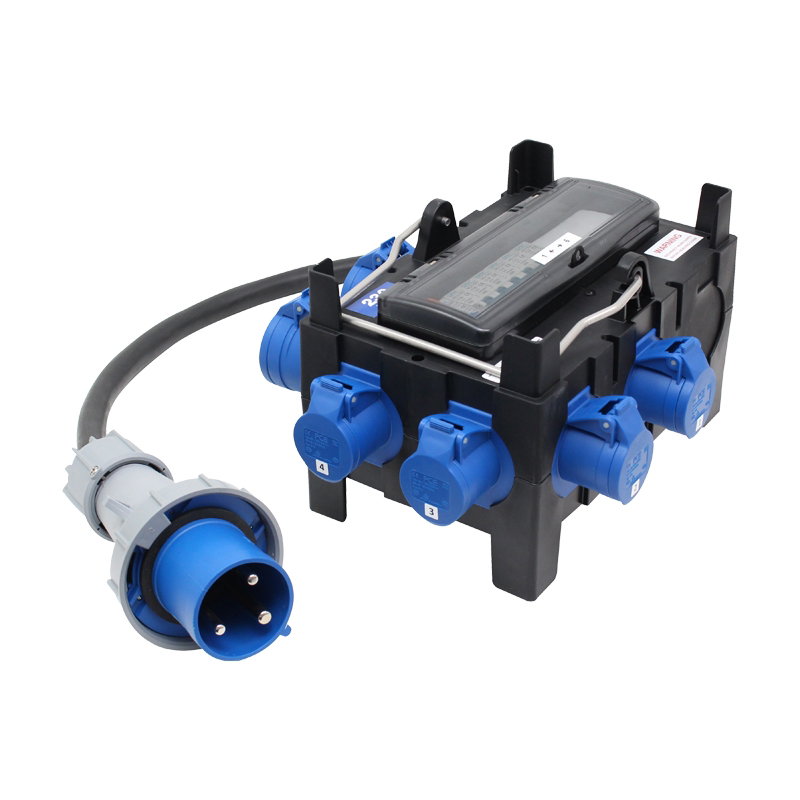

    The Elumen8 CONN087 ISCHL distribution box takes a 63A 230V single-phase supply and breaks it out into two 32A and four 16A 240V outlets. The unit ships with a 1m 16mm 3-core trailing tail and a built-in 63A 30mA 2-pole RCD, with each outlet protected by its own Type C MCB. A go-to specification when the venue offers a 63A wall feed and you need to land it into a tidy six-way breakout for backline, lighting risers or video.

    Input
    63A 230V
    single phase
    Outputs
    2 x 32A + 4 x 16A
    240V
    Main RCD
    63A 30mA
    2-pole
    Rating
    IP44
    Features
    ✓1m 16mm 3-core H07 trailing input cable, plug fitted
    ✓2 x 32A 230V outlets, individual 32A Type C MCB
    ✓4 x 16A 230V outlets, individual 16A Type C MCB
    ✓63A 30mA 2-pole RCD on the input
    ✓13 modules under clear MCB window
    ✓Polyamide enclosure, IP44, made in EU
    Specifications
    Input 63A 230V 1P+N+E IP44, 1m 16mm tail
    Main protection 63A 30mA 2-pole RCD
    32A outputs 2 x 32A 230V 1P+N+E IP44, 32A 1P Type C MCB
    16A outputs 4 x 16A 230V 1P+N+E IP44, 16A 1P Type C MCB
    Dimensions 200 x 400 x 320mm
    Weight 5.8kg
    Manufacturer code CONN087

    More Information

    • Handy, robust and lightweight distribution box made of shock-resistant polyamide
    • Number of modules: 8 (Can be increased to 13)
    • IP44 rated
    • Stackable design for space saving
    • Made in the EU

    Similar Products

    PCE MERZ Distribution Box 63A 3PH to 32A/16A RCD/MCB (A81)

    PCE MERZ Distribution Box 63A 3PH to 32A/16A RCD/MCB (A81)

    £848.00 inc VAT
    £706.67 ex VAT
    Penn Elcom 2U 32A Rackmount PDU with 8x Powercon Out (PDU16-32PC)

    Penn Elcom 2U 32A Rackmount PDU with 8x Powercon Out (PDU16-32PC)

    £258.00 inc VAT
    £215.00 ex VAT
    PCE IMST Distribution Box 32A 415V In, 3 x 32A 240V Out (9030657)

    PCE IMST Distribution Box 32A 415V In, 3 x 32A 240V Out (9030657)

    £404.00 inc VAT
    £336.67 ex VAT
    Elumen8 MERZ Distribution Box 63A 3PH In/Thru to 32A/16A

    Elumen8 MERZ Distribution Box 63A 3PH In/Thru to 32A/16A

    £1,489.00 inc VAT
    £1,240.83 ex VAT

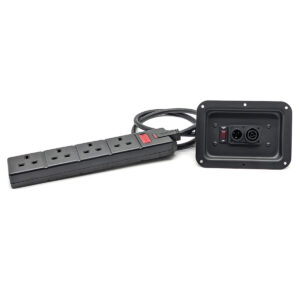

    Penn Elcom 12A Large Power Dish with Tru1 In/Out Duo to 4 UK Sockets
