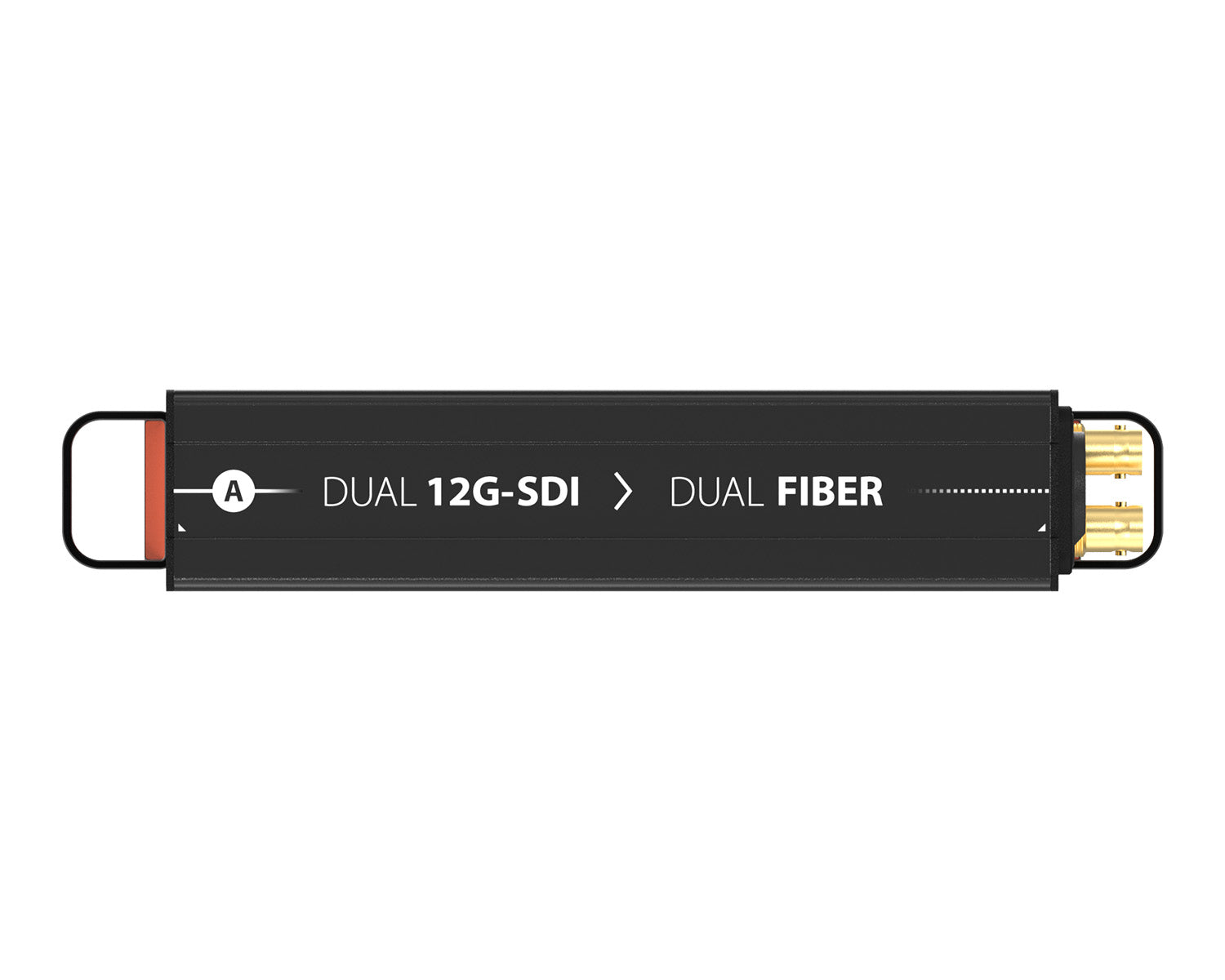

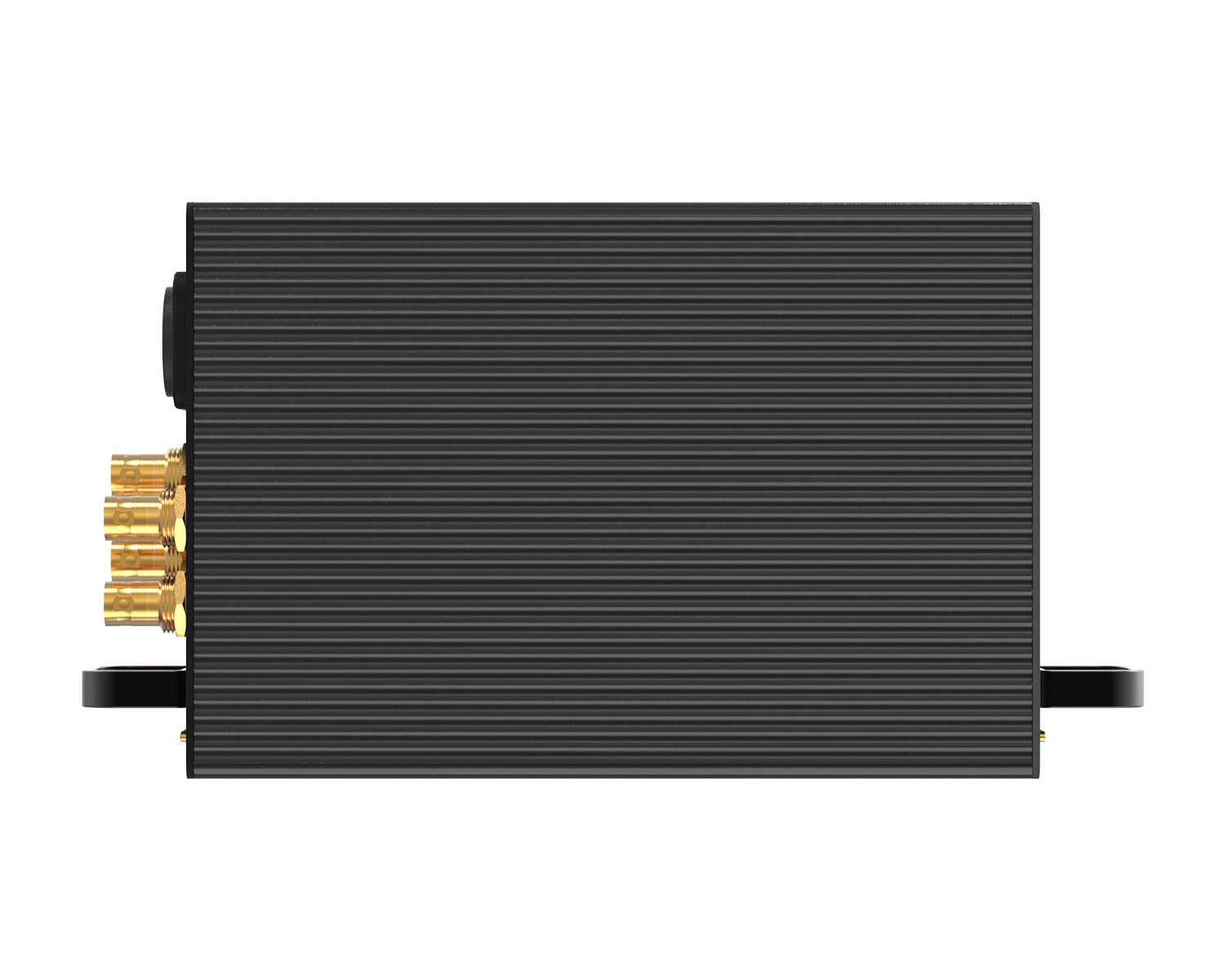

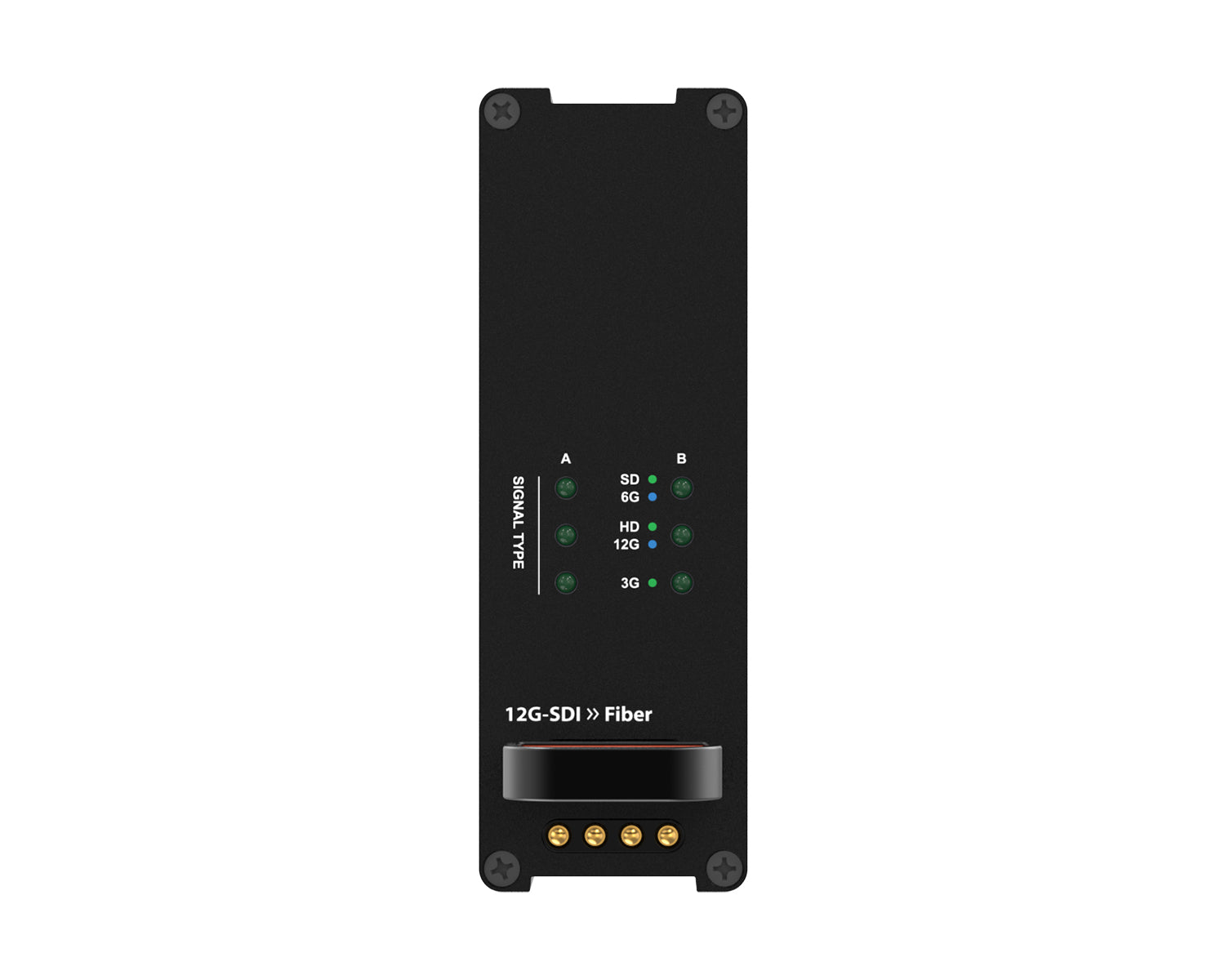

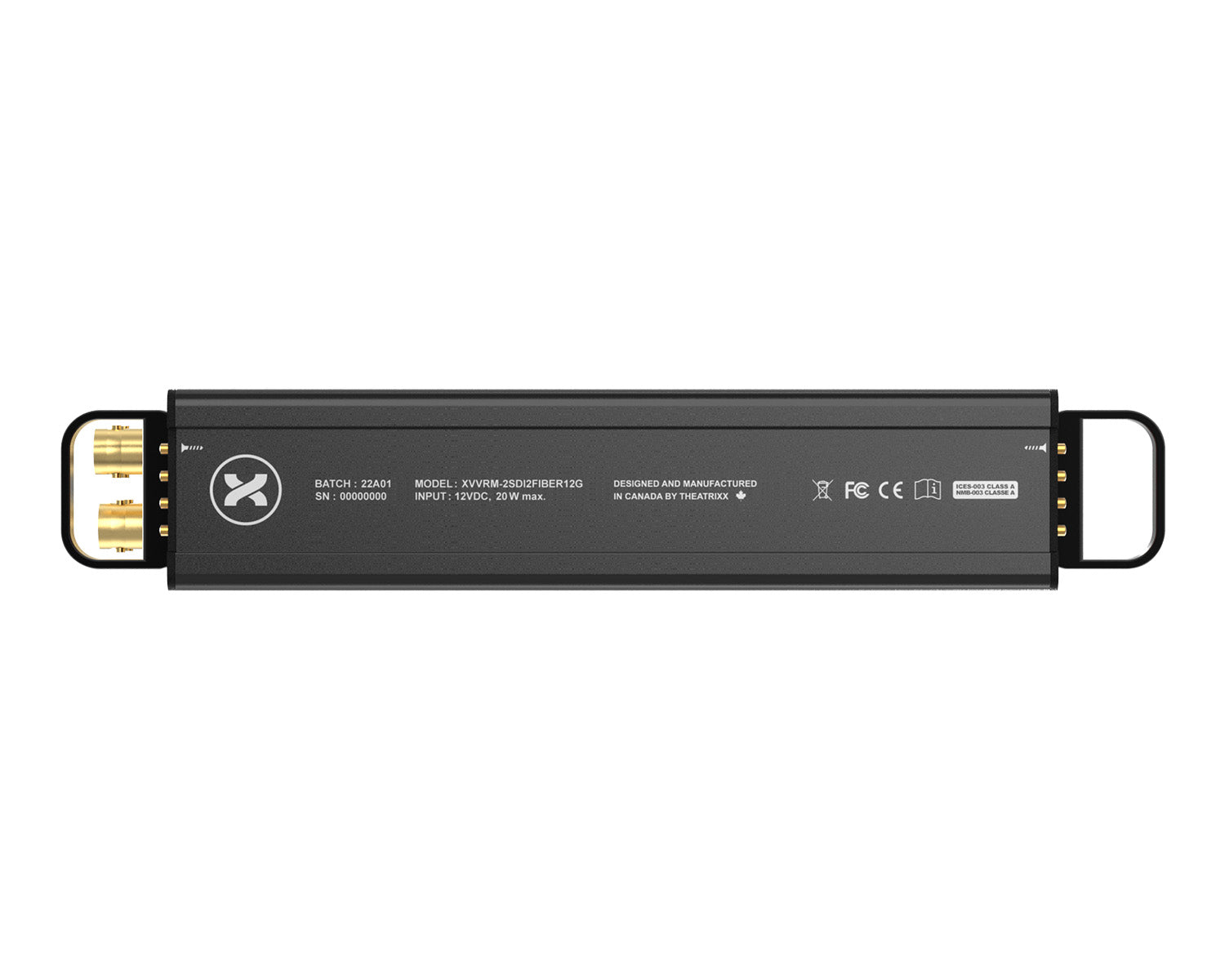

The Theatrixx Dual 12G-SDI to Fibre Reversible Module provides two channels of 12G-SDI to multimode fibre conversion in a single hot-swappable module. Designed for the Theatrixx 2-Bay or 8-Bay Reversible Rackmount Converter system, the module can be inserted in either direction – placing inputs and outputs at the front or rear of the frame depending on your infrastructure requirements. Ideal for broadcast, live event and AV installation environments where reliable, high-bandwidth video transport over fibre is essential.
Video Standard
12G-SDI
Up to 4K UHD
Channels
Dual
2x independent paths
Fibre Type
Multimode
OpticalCON Duo
Design
Reversible
Front or rear I/O
Rackmount System
This module requires a Theatrixx 2-Bay or 8-Bay Reversible Rackmount Converter frame (sold separately). Modules are hot-swappable and receive DC power via gold-plated, redundant spring pins with magnetic retention – no external power supplies or cabling required.
Features
✓
Dual 12G-SDI to multimode fibre conversion in a single module
Dual 12G-SDI to multimode fibre conversion in a single module
✓
Reversible design – insert the module in either direction for front or rear I/O
Reversible design – insert the module in either direction for front or rear I/O
✓
Fully enclosed module with no exposed PCBs – protected against static, dust and wear
Fully enclosed module with no exposed PCBs – protected against static, dust and wear
✓
Gold-plated, redundant spring pins with magnetic retention for reliable DC power delivery
Gold-plated, redundant spring pins with magnetic retention for reliable DC power delivery
✓
No external power bricks or cabling – powered entirely by the host frame
No external power bricks or cabling – powered entirely by the host frame
✓
Hot-swappable for quick deployment and maintenance in live environments
Hot-swappable for quick deployment and maintenance in live environments
✓
OpticalCON Duo connector for robust, lockable fibre connections
OpticalCON Duo connector for robust, lockable fibre connections
✓
Compatible with 2-Bay and 8-Bay Reversible Rackmount Converter frames
Compatible with 2-Bay and 8-Bay Reversible Rackmount Converter frames
Note
This is a converter module only – a Theatrixx 2-Bay or 8-Bay Reversible Rackmount Converter frame is required for operation.
Specifications
| Video Input/Output | Dual 12G-SDI |
| Fibre Output/Input | Multimode (OpticalCON Duo) |
| Channels | 2 |
| Module Design | Reversible (front or rear I/O) |
| Compatible Frames | 2-Bay & 8-Bay Reversible Rackmount Converter |
| Power | DC via host frame (magnetic spring pins) |
| SKU | XVVRM2SDI2FIBER12GM2 |
