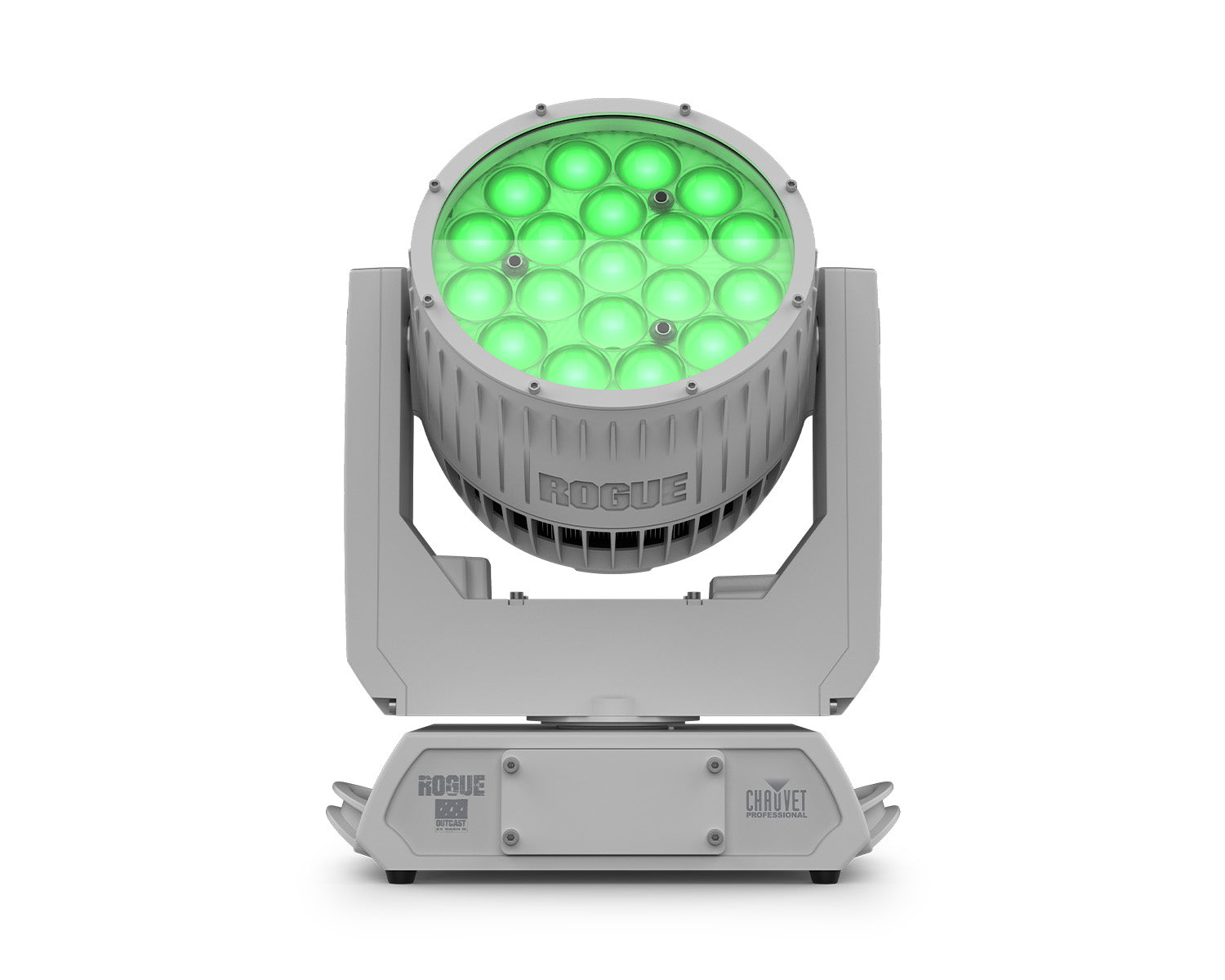

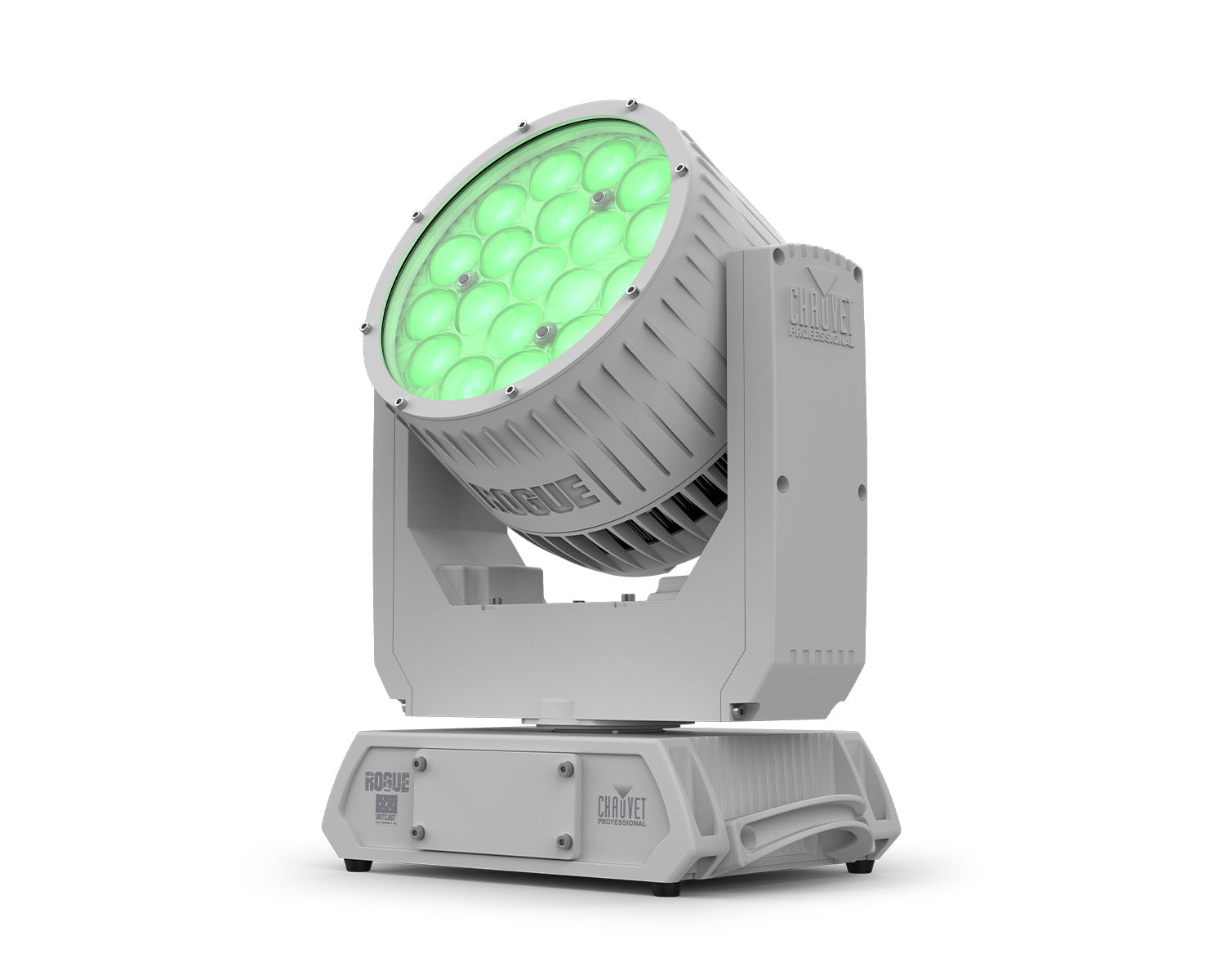

Chauvet Professional Rogue Outcast 2X Wash M Marine Grade Mover

• Fully featured IP66 RGBW LED yoke wash fixture with LED zone control, zoom, durable and lightweight aluminum body
• C5M Paint application process and full aluminium construction for extended outdoor usage in and near marine environments
• Included display cover for extended outdoor usage in and near marine environments
• 16-bit dimming of master dimmer as well as individual colors for smooth control of fades
• 19 RGBW LEDs, 25 W each
• 5 zones of LED control for pixel mapping control
• Color temperature control in select personalities (23CH, 55CH)
• Fast, smooth pan and tilt movement
• RDM enabled for remote addressing and trouble shooting
• Selectable PWM options for camera operation
• Easy to read OLED display with simple, effective menu options
• User selectable calibrated white for 7500 K at full output
• 6 distinct dimming modes for advanced control
• Easy to read OLED display with simple, effective menu options
• Simple and complex DMX channel profiles for programming versatility
• USB-C port for uploading software

Optical

• Light Source:  19 LEDs (quad-colour RGBW) 25 W, (1.5 A), 50,000 hours life expectancy
• Colour Temperature (range):  2800 to 10000 K
• Beam Angle:  7.9° to 35.3°
• Field Angle:  11.6° to 50.5°
• Cutoff Range:  18.5° to 63.7°
• Zoom Range:  7.9° to 63.7°
• Lumens – Source:  n/a
• Lumens – Output 5,371
• Illuminance (7.9°):  7,632 lux @ 5 m
• Illuminance (63.7°):  639 lux @ 5 m
• Selectable PWM:  600Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 15,000 Hz

Dynamic Effects

• Pan and Tilt:  540°/270°
• Pan and Tilt Ranges:  180°, 360°, 540° pan/90°, 180°, 270° tilt
• Dimmer:  Electronic
• Shutter/Strobe:  Electronic
• Zoom:  Motorised
• Strobe Rate:  0 to 20 Hz
• Standalone Colour Mixing:  Yes
• Colour Temperature Presets:  Yes
• Dim Curves:  6
• Built-in Automated Programs:  Yes
• Customizable Programs:  yes
• Recall Custom Programs:  yes

Connections

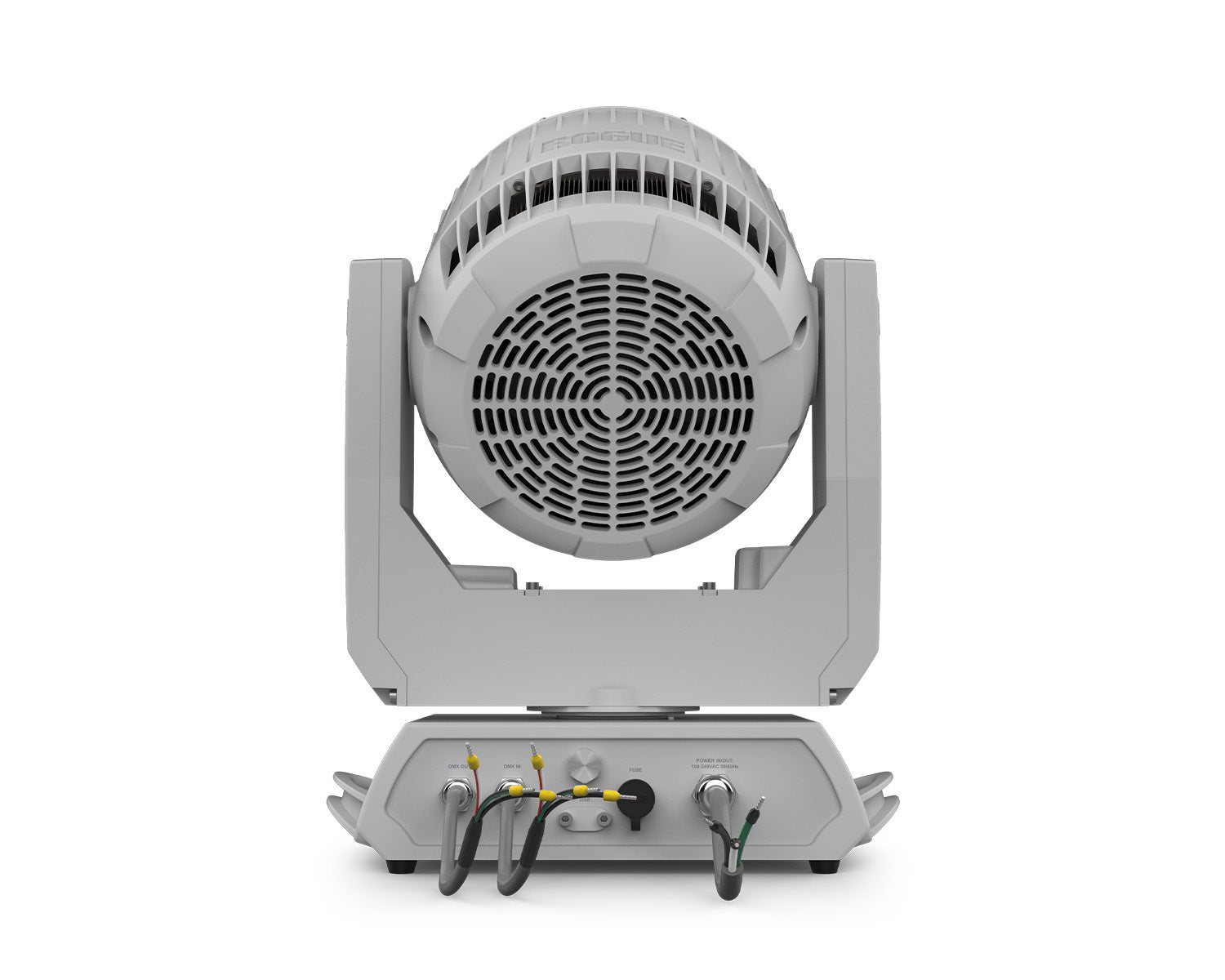

• Power Connection:  Termination-ready bare-ended
• Data input/output:  Termination-ready bare-ended
• Cable Length (power input):  5 ft (1.5 m)
• Cable Length (signal in/out):  5 ft (1.5 m)

Control

• Control Protocol:  DMX, RDM
• DMX Channels:  15, 17, 22, 23, 33, 54, 55 or 56
• Modes/Personalities:  8 personalities (15CH, 17CH, 22CH,23CH, 33CH, 33CH MS, 54CH, 54CH MS, 55CH or 56CH)

Electrical

• Input Voltage:  100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power Linking:  5 units @ 120 V; 9 units @ 208 V; 10 units @ 230 V
• Power and Current:  291 W, 2.47 A @ 120 V, 60 Hz
• Power and Current:  284 W, 1.41 A @ 208 V, 60 Hz
• Power and Current:  282 W, 1.28 A @ 230 V, 50 Hz

Certifications / Qualifications

• CE, MET, FCC, UKCA
• IP Rating:  IP66 temporary outdoor/wet use, with pressure equalizing M12 GORE valve

Construction / Physical

• Dimensions:  11.92x8.58x14.1" (303x218x361mm)
• Weight:  21.2 lb. (9.6 kg)
• Exterior Colour:  White
• Housing Material:  Aluminium
