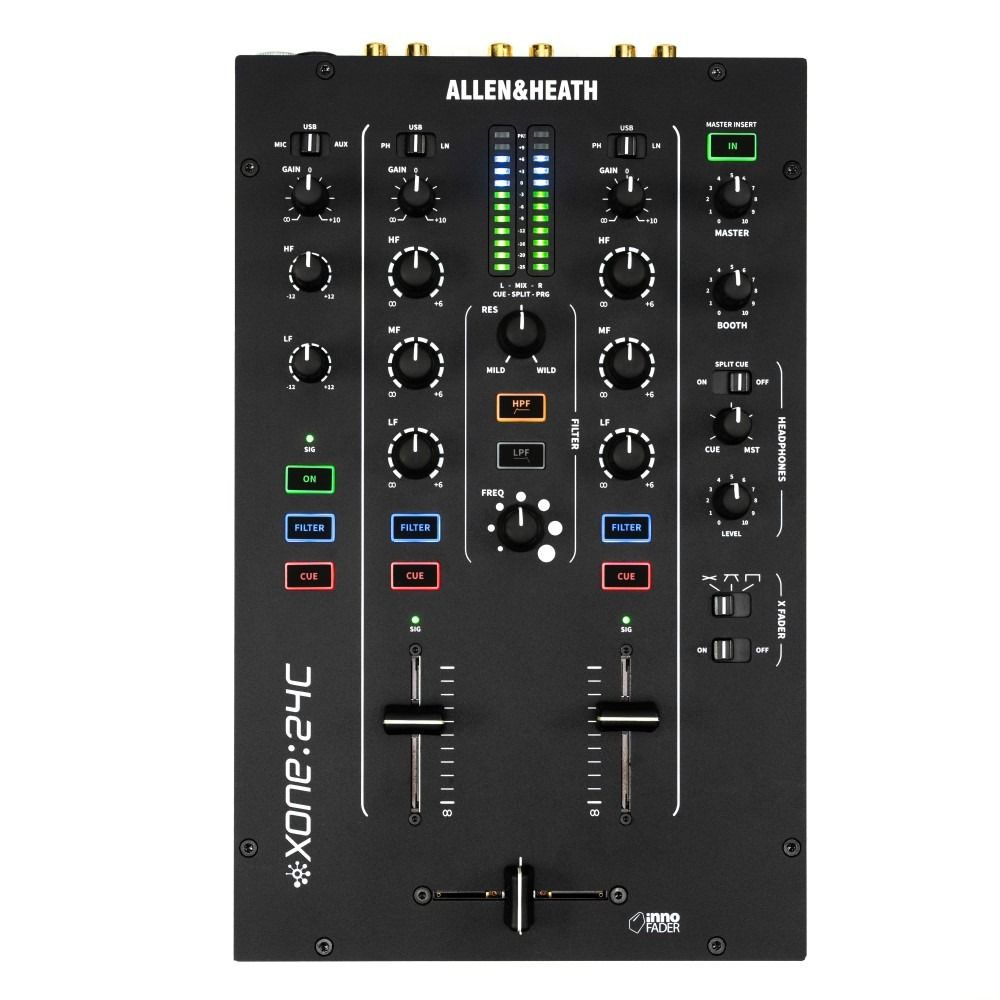

The Allen & Heath Xone:24C is a compact 2+1 channel hybrid DJ mixer combining an all-analogue signal path with a 96kHz/24-bit USB-C audio/MIDI interface. Three operating modes — Stream, DVS Pro, and DAW — cover vinyl, digital, and hybrid workflows. The Xone VCF filter, mini Innofader crossfader, 3-band isolator EQ, and master insert FX loop deliver the core Xone toolkit in a smaller footprint.
Channels
2+1
Hybrid analogue/digital
Soundcard
96kHz / 24-bit
USB-C, class-compliant
Filter
Xone VCF
HPF / LPF
Crossfader
Innofader
Mini
Weight
2.8 kg
Compact
Features
✓
All-analogue signal path with high-gain, low-noise RIAA phono preamps
All-analogue signal path with high-gain, low-noise RIAA phono preamps
✓
6×6 96kHz/24-bit USB-C audio/MIDI interface — class-compliant (Mac/Windows/iOS)
6×6 96kHz/24-bit USB-C audio/MIDI interface — class-compliant (Mac/Windows/iOS)
✓
Three soundcard modes: Stream, DVS Pro, and DAW
Three soundcard modes: Stream, DVS Pro, and DAW
✓
Xone VCF analogue filter with HPF/LPF, frequency sweep, and resonance
Xone VCF analogue filter with HPF/LPF, frequency sweep, and resonance
✓
Mini Innofader crossfader with fast-cut and blend curves
Mini Innofader crossfader with fast-cut and blend curves
✓
3-band isolator EQ per channel with improved cutoff and phase coherence
3-band isolator EQ per channel with improved cutoff and phase coherence
✓
Master insert FX loop for external effects hardware
Master insert FX loop for external effects hardware
✓
MIDI output from channel faders, crossfader, and filter controls
MIDI output from channel faders, crossfader, and filter controls
✓
2x USB-C hub ports with power delivery for controllers
2x USB-C hub ports with power delivery for controllers
✓
Dedicated booth and record outputs
Dedicated booth and record outputs
✓
Backlit tactile switches and RGB chromatic channel meters
Backlit tactile switches and RGB chromatic channel meters
Specifications
| Channels | 2+1 (CH1/CH2: Phono/USB/Line, Aux: Mic/USB/Line) |
| EQ | 3-band isolator per channel |
| Filter | Xone VCF (HPF/LPF) with frequency sweep and resonance |
| Soundcard | 6×6, 32-bit/96kHz, USB 2.0 Type-C, class-compliant |
| Soundcard Modes | Stream / DVS Pro / DAW |
| Crossfader | 45mm VCA mini Innofader, 2 curve types |
| Channel Faders | 45mm linear VCA |
| MIDI | USB (faders, crossfader, VCF controls) |
| USB Hub | 2x USB-C with power delivery |

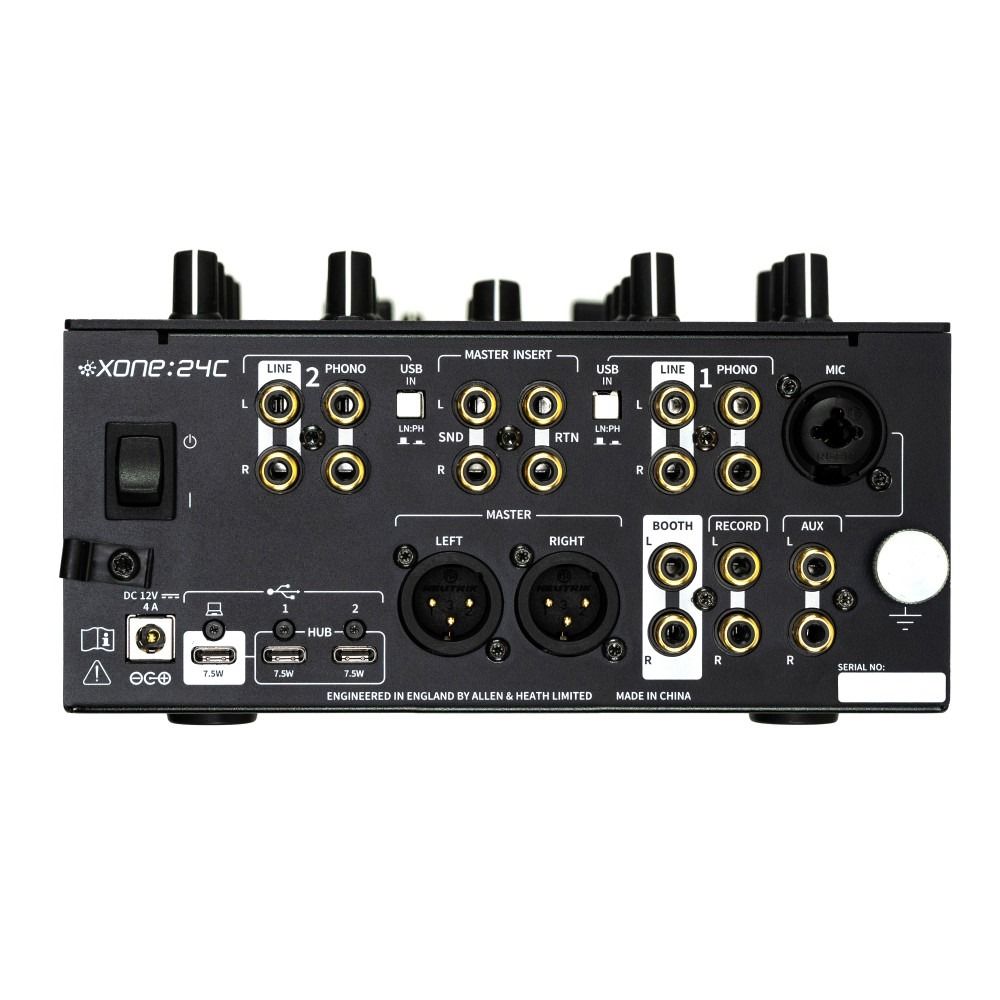

| Inputs | 3x RCA Line, 2x RCA Phono, 1x Combi XLR+TRS Mic |
| Master Output | Balanced XLR |
| Other Outputs | Booth (RCA), Record (RCA) |
| Master Insert | RCA send/return FX loop |
| Dimensions | 108 x 190 x 314mm |
| Weight | 2.8 kg |
| Power | DC, 100–240V AC, 35W max |
| SKU | XONE:24C/240X |
