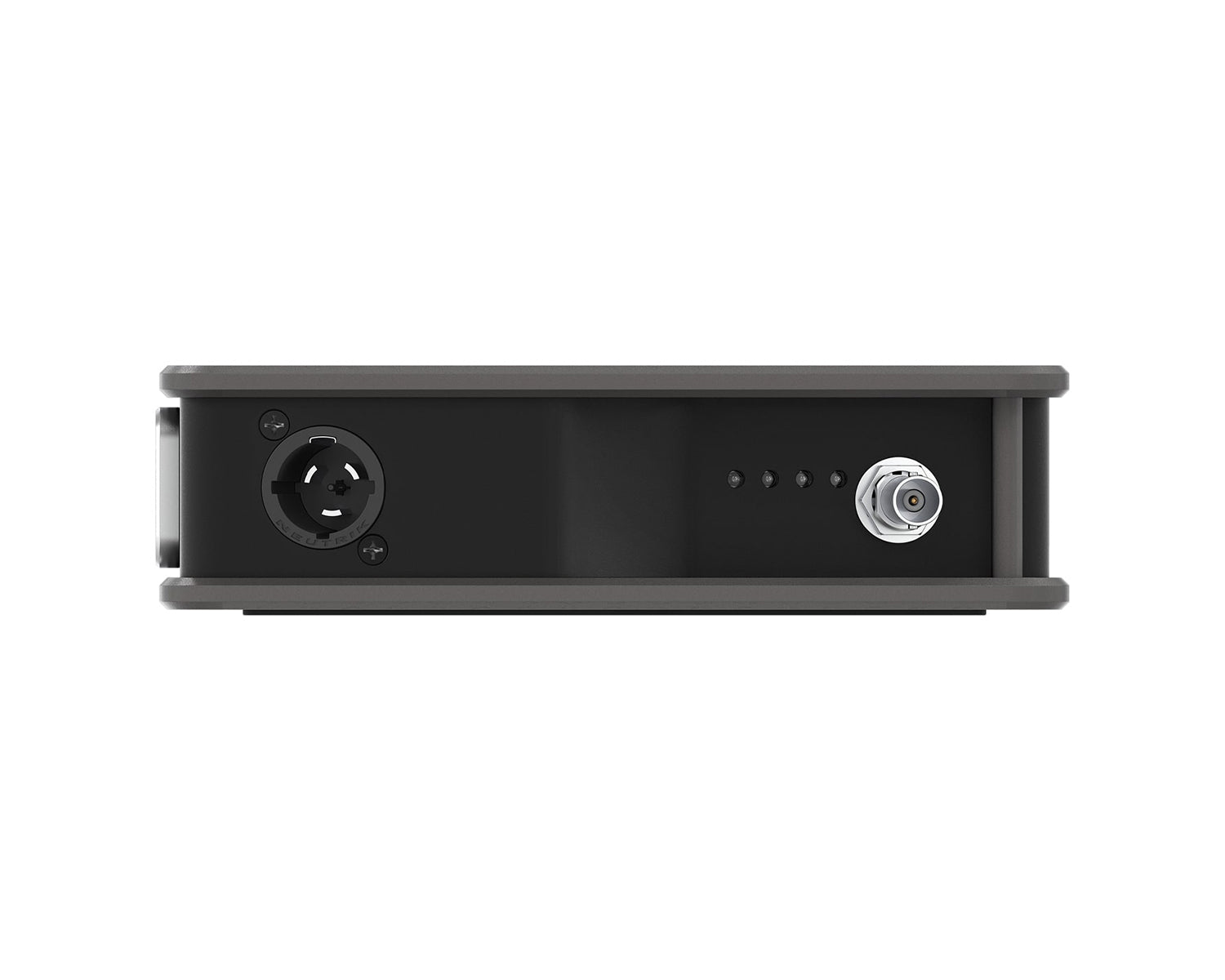

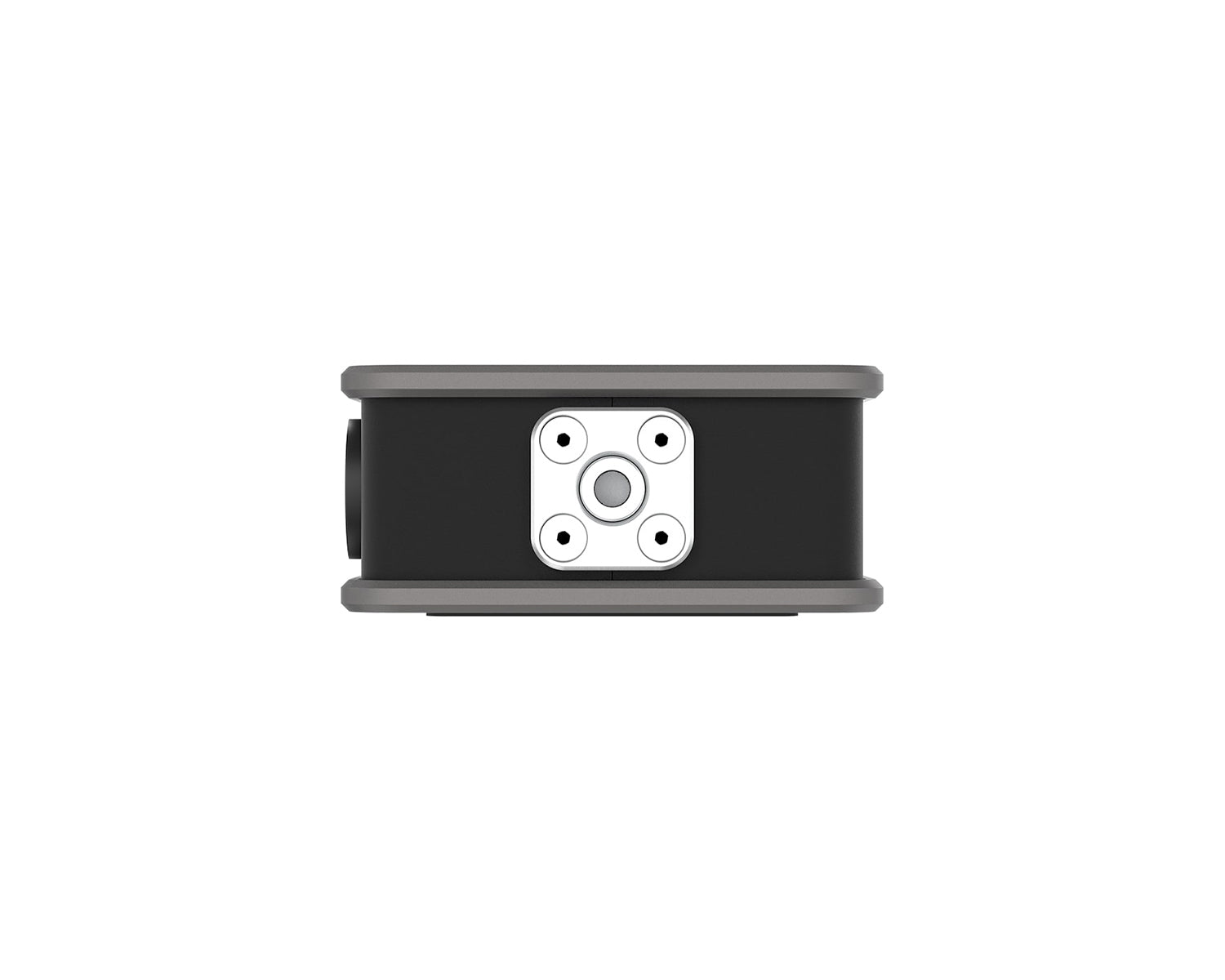

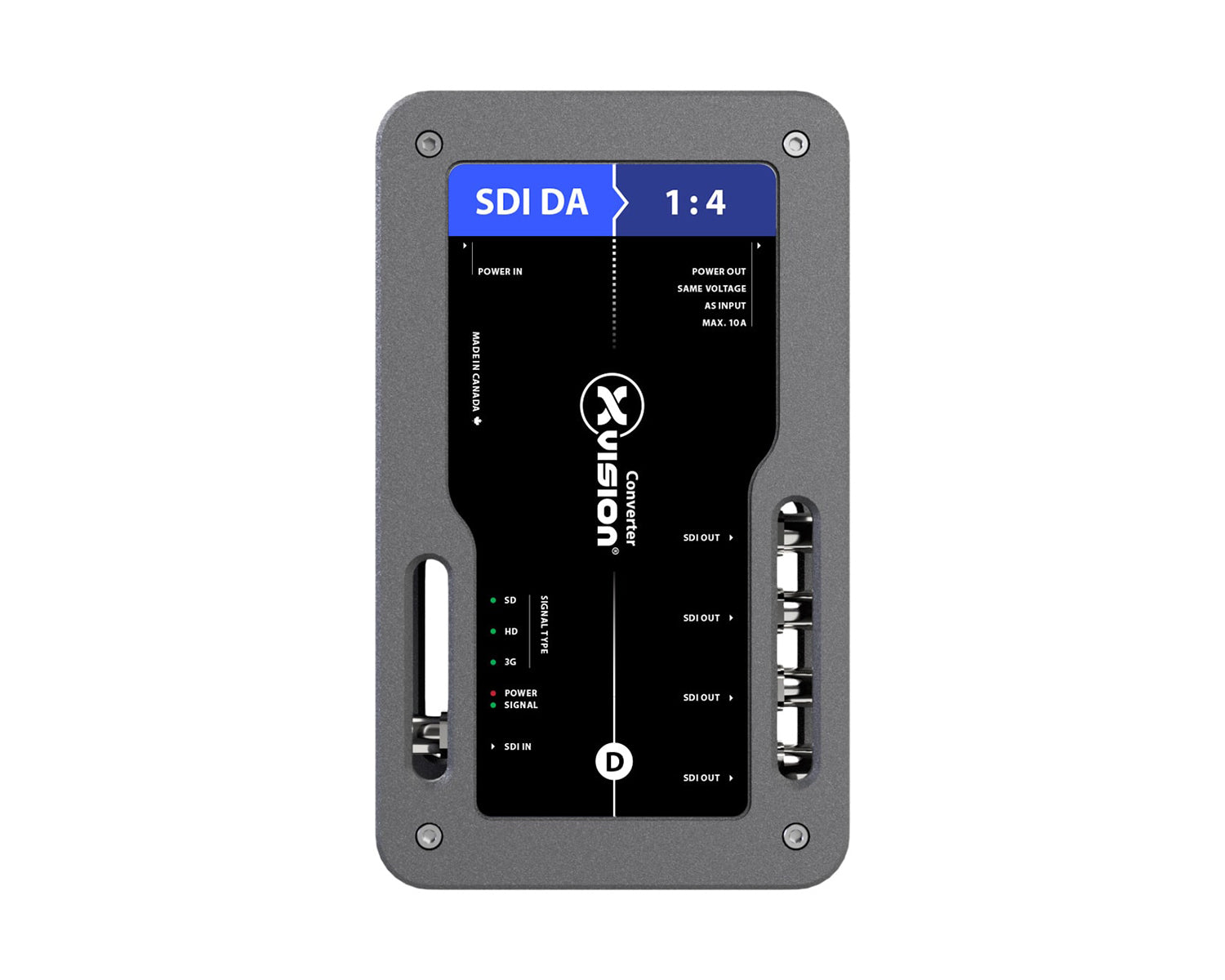

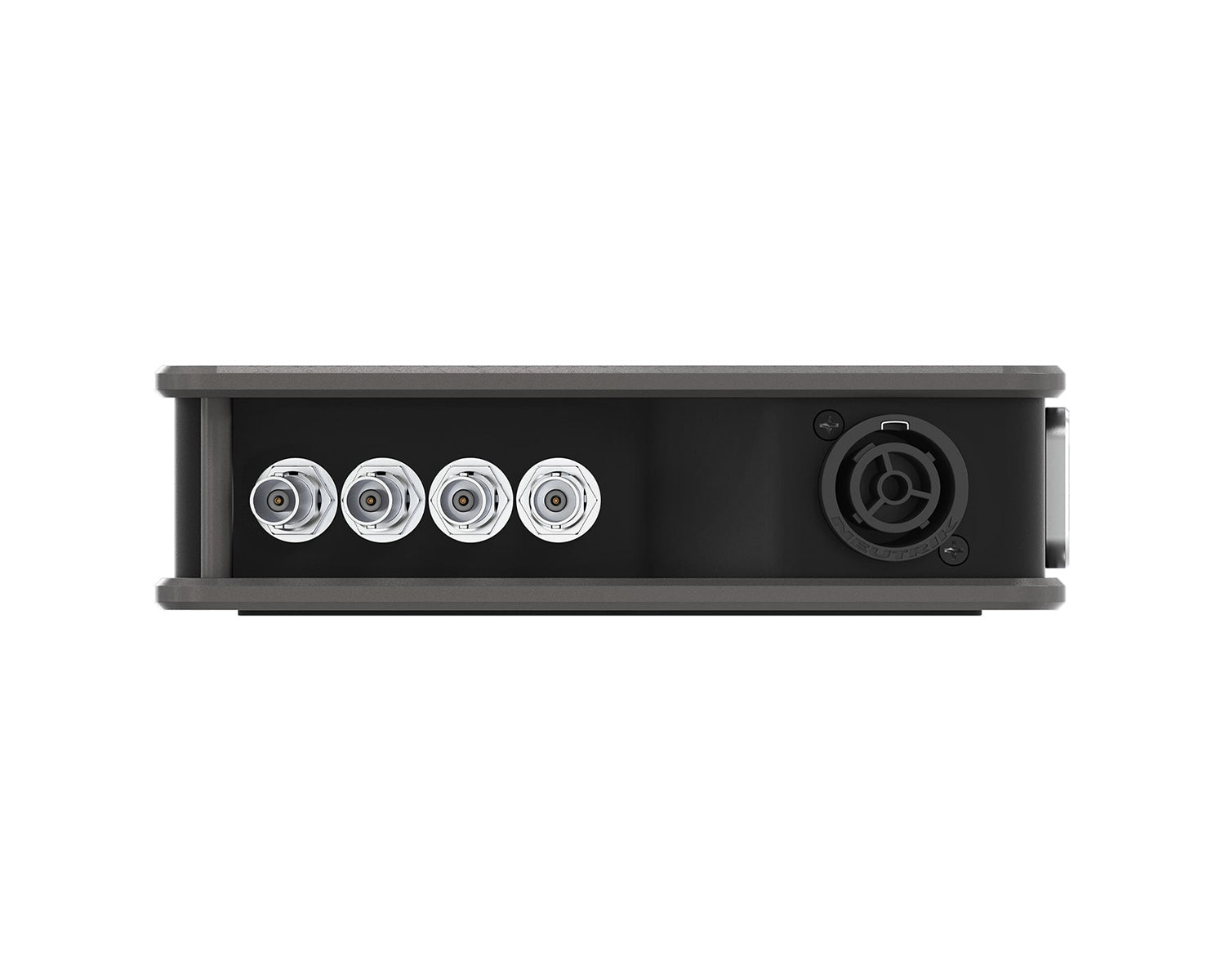

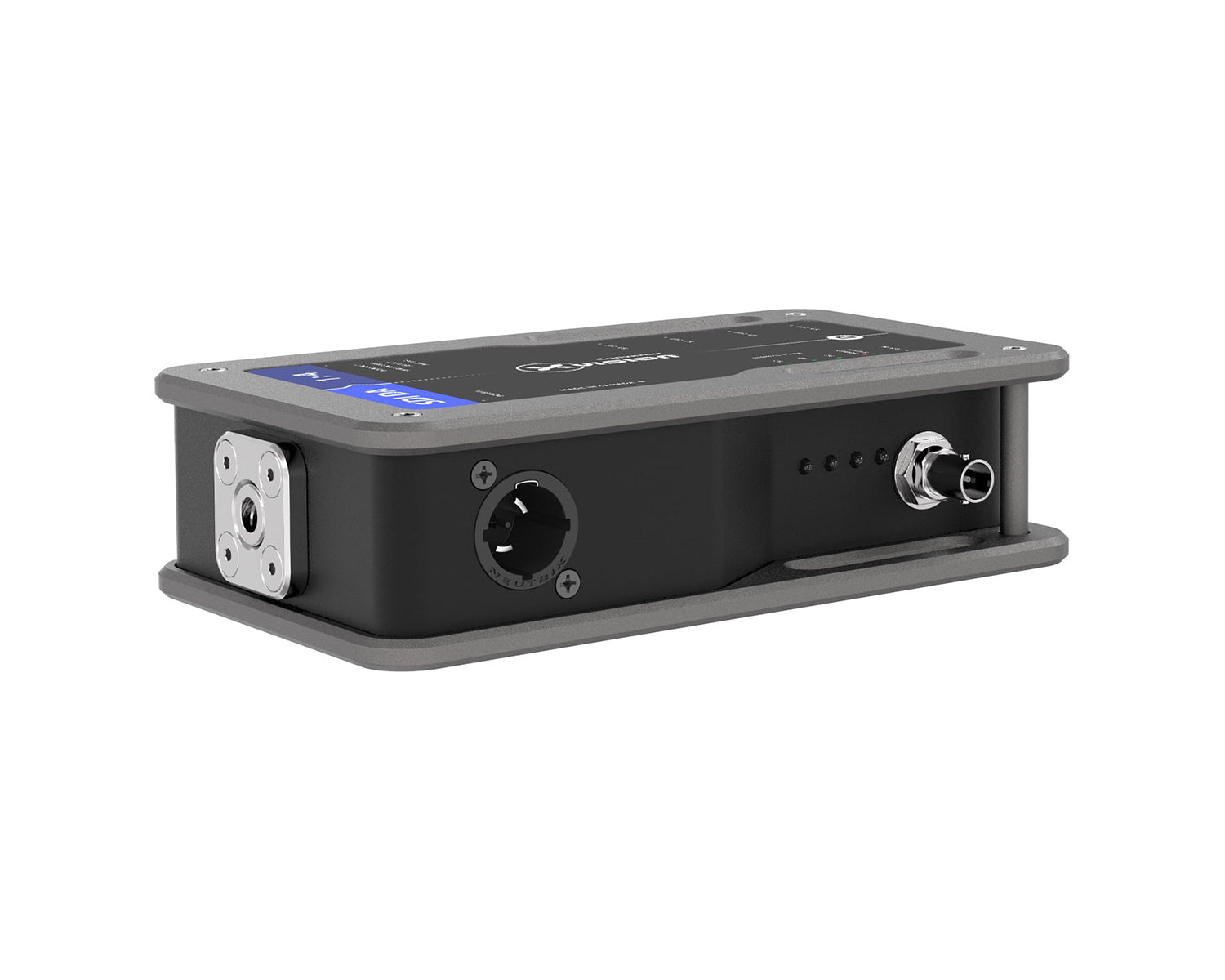

The Theatrixx xVision HD 1:4 3G-SDI Distribution Amplifier takes a single 3G-SDI input and distributes it to four re-clocked outputs. Built in the compact A-size standalone format with an internal power supply and locking connectors, it is designed for broadcast, live events, and fixed installations where reliable signal distribution is essential.
Outputs
4
Re-clocked SDI
Max Data Rate
3G-SDI
Up to 1080p60
Form Factor
A-Size
Standalone
Power
Internal PSU
No external adaptor
Features
✓
1 input to 4 re-clocked SDI outputs
1 input to 4 re-clocked SDI outputs
✓
Supports SD-SDI, HD-SDI, and 3G-SDI signals
Supports SD-SDI, HD-SDI, and 3G-SDI signals
✓
Internal power supply – no wall wart or external adaptor
Internal power supply – no wall wart or external adaptor
✓
Locking power connector for secure mains connection
Locking power connector for secure mains connection
✓
Compact A-size standalone enclosure – road-ready construction
Compact A-size standalone enclosure – road-ready construction
✓
Automatic input format detection
Automatic input format detection
✓
Signal re-clocking for long cable runs
Signal re-clocking for long cable runs
✓
Compatible with xVision rack frames for multi-unit installations
Compatible with xVision rack frames for multi-unit installations
Specifications
| SKU | XVVSDIDA4T1 |
| Input | 1x 3G-SDI (BNC) |
| Outputs | 4x 3G-SDI (BNC) |
| SDI Standard | SD-SDI / HD-SDI / 3G-SDI |
| Form Factor | A-Size Standalone |
| Power | Internal PSU, locking connector |
| Manufacturer | Theatrixx |
