ChamSys GeNetix GN5 5-Port Ethernet-DMX Node for Art-Net / sACN Consoles

SKU: CS300063
ChamSys GeNetix GN5 5-Port Ethernet-DMX Node for Art-Net / sACN Consoles
ChamSys GeNetix GN5 5-Port Ethernet-DMX Node for Art-Net / sACN Consoles
ChamSys GeNetix GN5 5-Port Ethernet-DMX Node for Art-Net / sACN Consoles
ChamSys GeNetix GN5 5-Port Ethernet-DMX Node for Art-Net / sACN Consoles
Click to enlarge

    £1,020.00 inc VAT
    £850.00 ex VAT

    11 in stock (more available subject to additional lead time)

    Order in 19h 40m 18s for FREE delivery by Tuesday
    Click & collect available Monday ›
    VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
    1 Year Manufacturer Warranty Included
    About Stage Supply
    Chat to us on WhatsApp

    About this Product

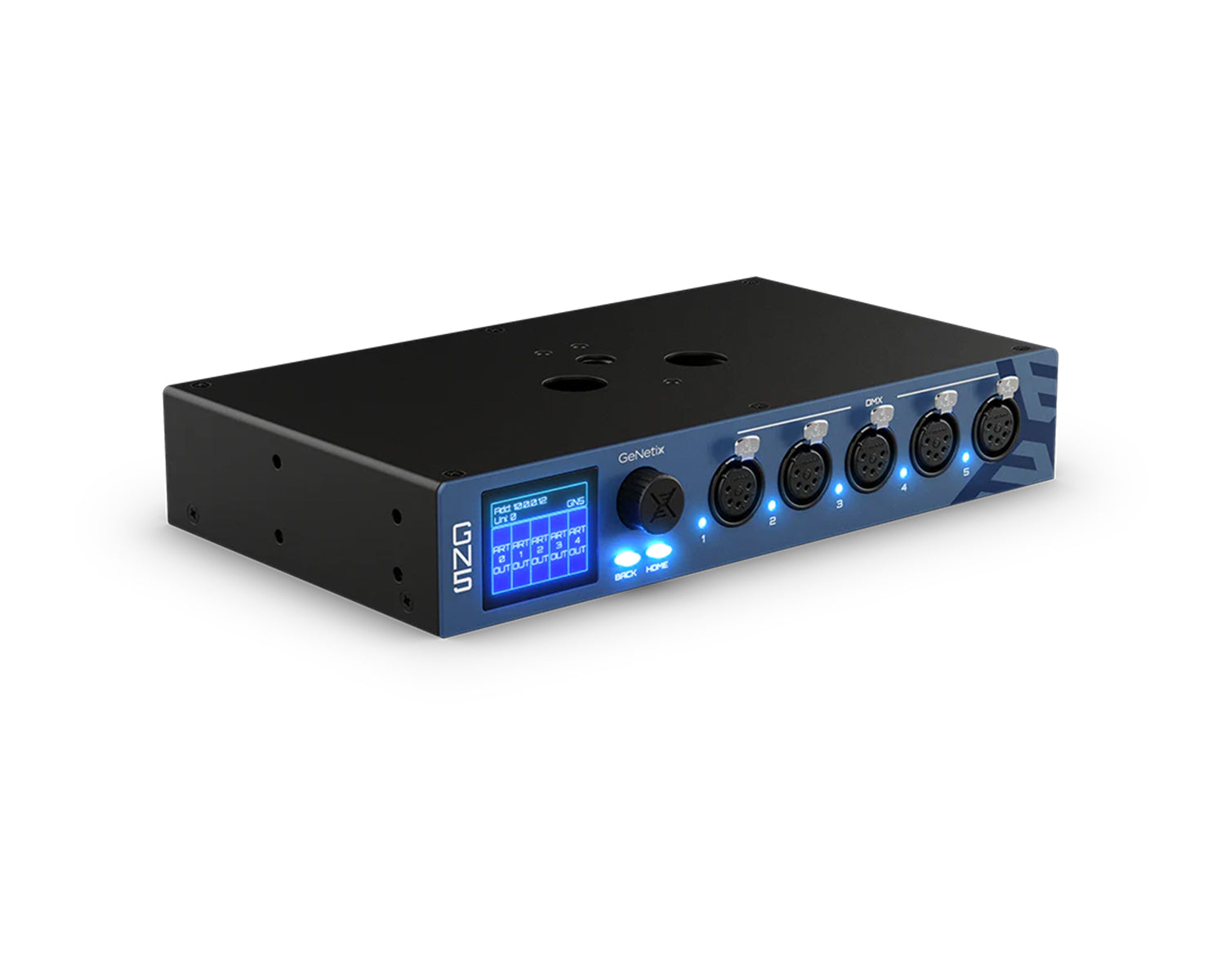

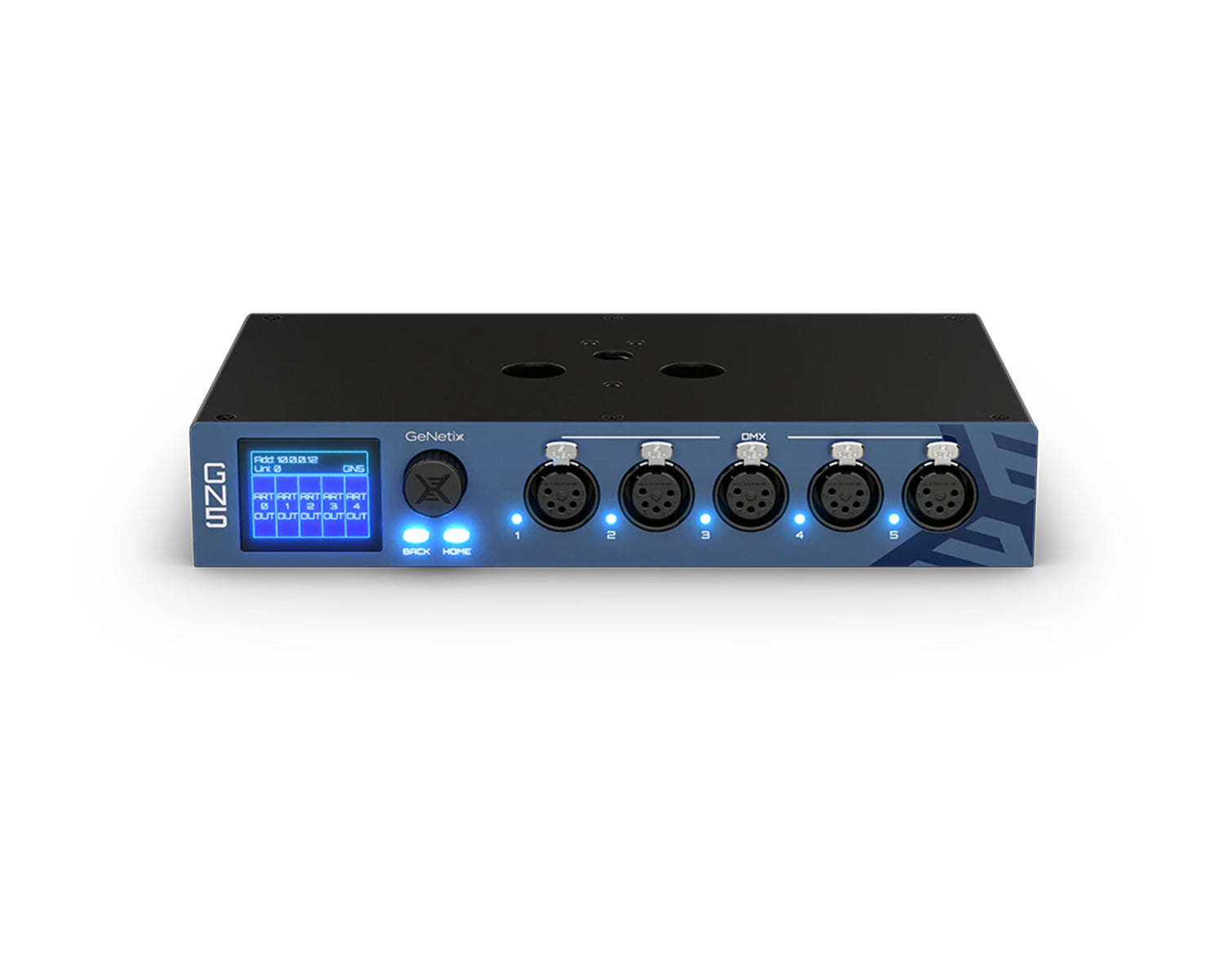

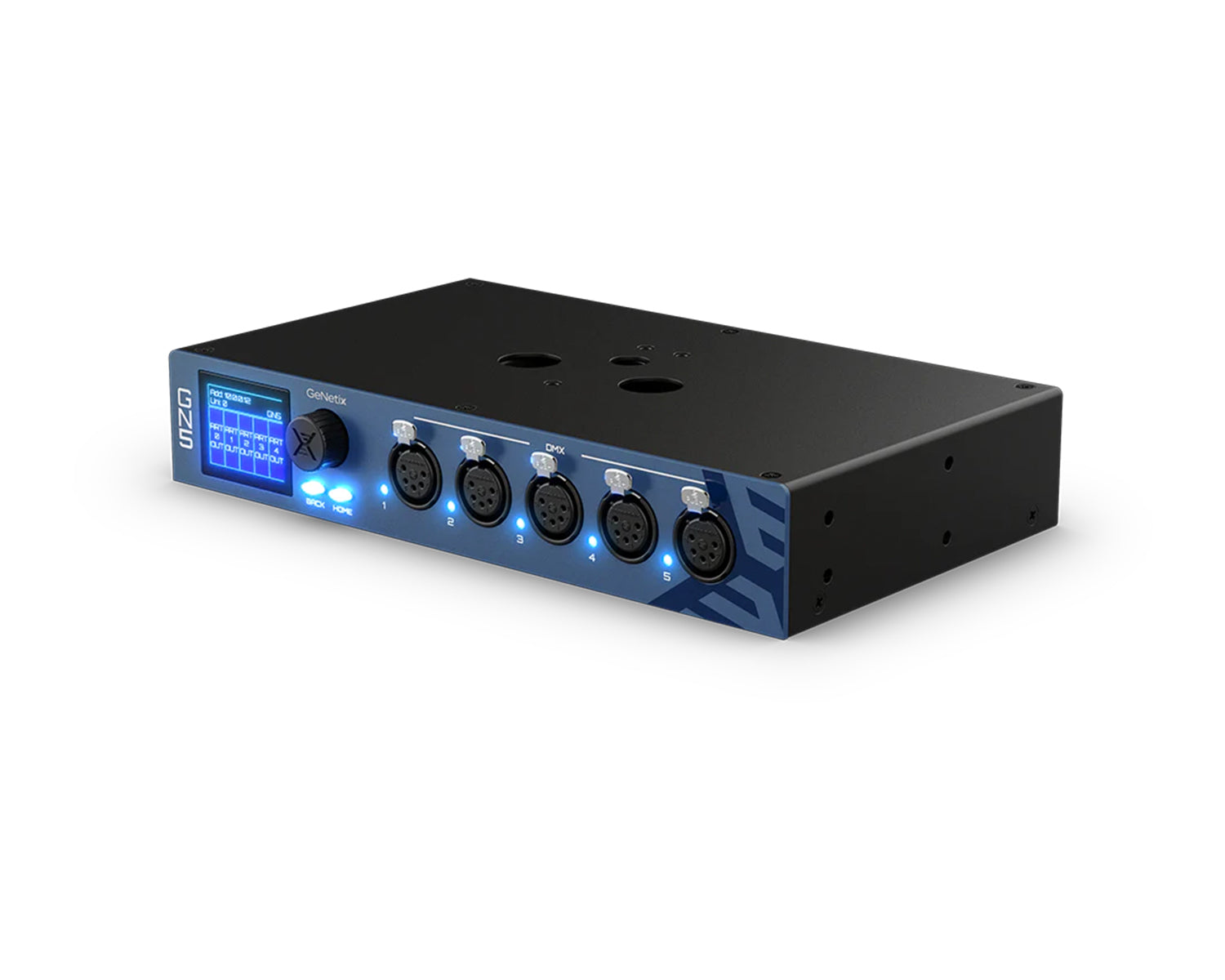

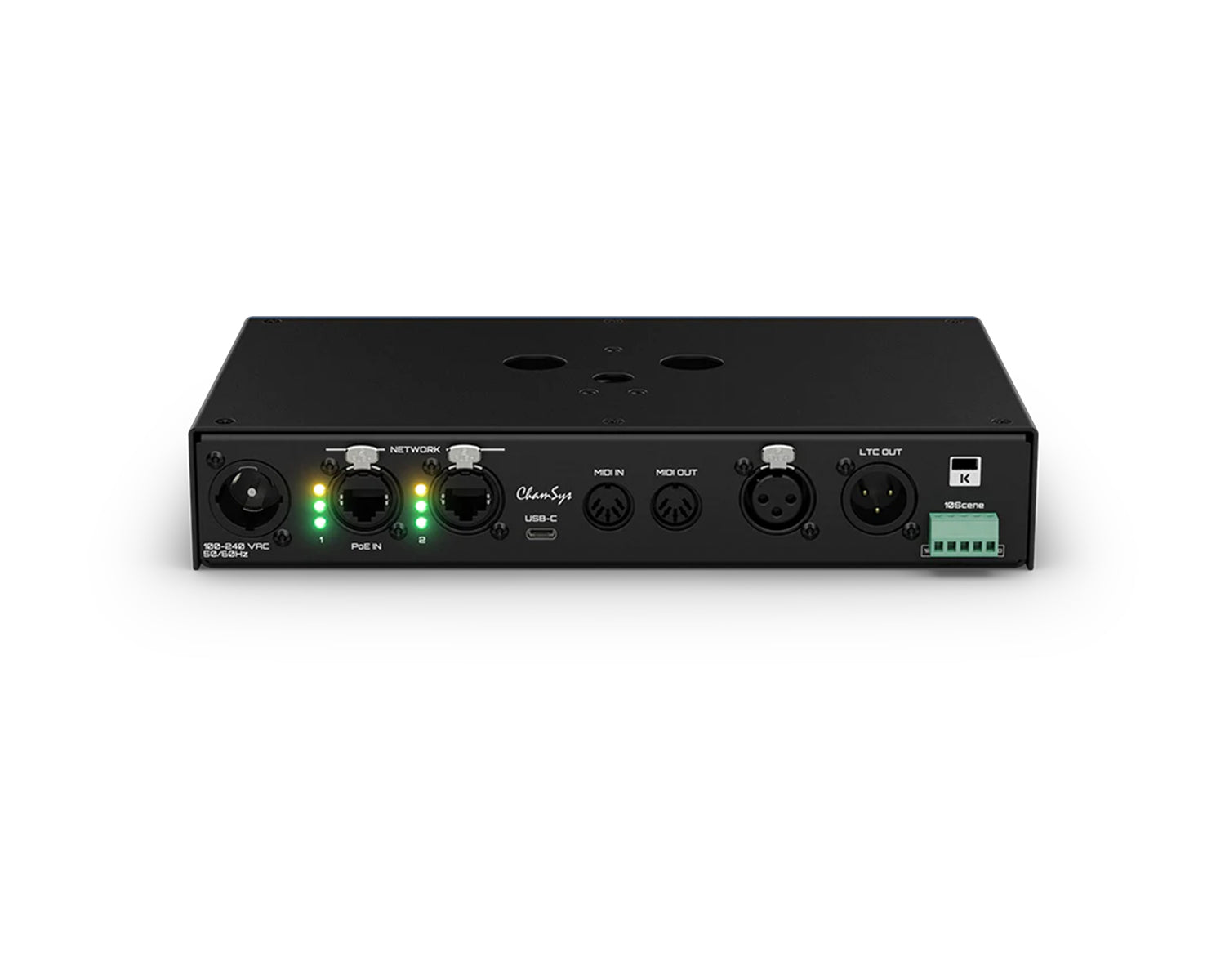

    The ChamSys GeNetix GN5 is a 5-port Ethernet-to-DMX node supporting Art-Net and sACN, suited to medium-scale permanent installations and touring rigs. Five individually configurable DMX ports with RDM and PoE power in a compact enclosure.

    DMX Ports
    5
    Protocols
    Art-Net 4
    sACN E1.31
    Power
    PoE 802.3af
    or DC
    Art-Net and sACN

    All GeNetix GN nodes support both Art-Net and sACN (E1.31) protocols and are fully RDM-compliant. Configuration is via the built-in web server or directly from ChamSys MagicQ consoles via network discovery — no separate node management software required.

    Features
    ✓Art-Net 4 and sACN (E1.31) protocol support
    ✓Full RDM (Remote Device Management) on all ports
    ✓Configurable DMX timing — frame rate and inter-packet gap
    ✓Built-in web server for browser-based configuration
    ✓Auto-discovery from ChamSys MagicQ consoles
    ✓PoE powered (802.3af) — single cable installation
    ✓Status LEDs per DMX port for live monitoring
    Specifications
    DMX Ports 5 (configurable in/out)
    Protocols Art-Net 4, sACN E1.31
    RDM Yes
    Power PoE 802.3af or DC
    Config Web browser / MagicQ

    More Information

    • 5 RDM DMX Ports supporting Input and Output
    • Supports Art-Net & sACN
    • LTC & MIDI Timecode over Ethernet
    • MIDI Notes over Ethernet
    • Recall Scenes via UDP commands
    • Webserver for remote configuration
    • In-built display and encoder for local configuration
    • Full Unlock of MagicQ PC Systems when connected via USB
    • Full Unlock of up to 2 MagicQ Instances when connected via Network
    • Includes Rack ears for 19″ Rack Mounting
