Theatrixx xVision 4K 1:8 12G-SDI Distribution Amplifier Splitter

• Integrated power supply with locking PowerCON connector. Never rely on a cluster of wall-warts again.
• Built-in convenience outlet to power nearby monitor, flat-screen, laptop, video projector or any device up to 10 amps… Power bar to connect both converter and device not required anymore.
• Magnetic stacking system and non-skid rubber pad. Saves at least 10 gaffer tape rolls a year.

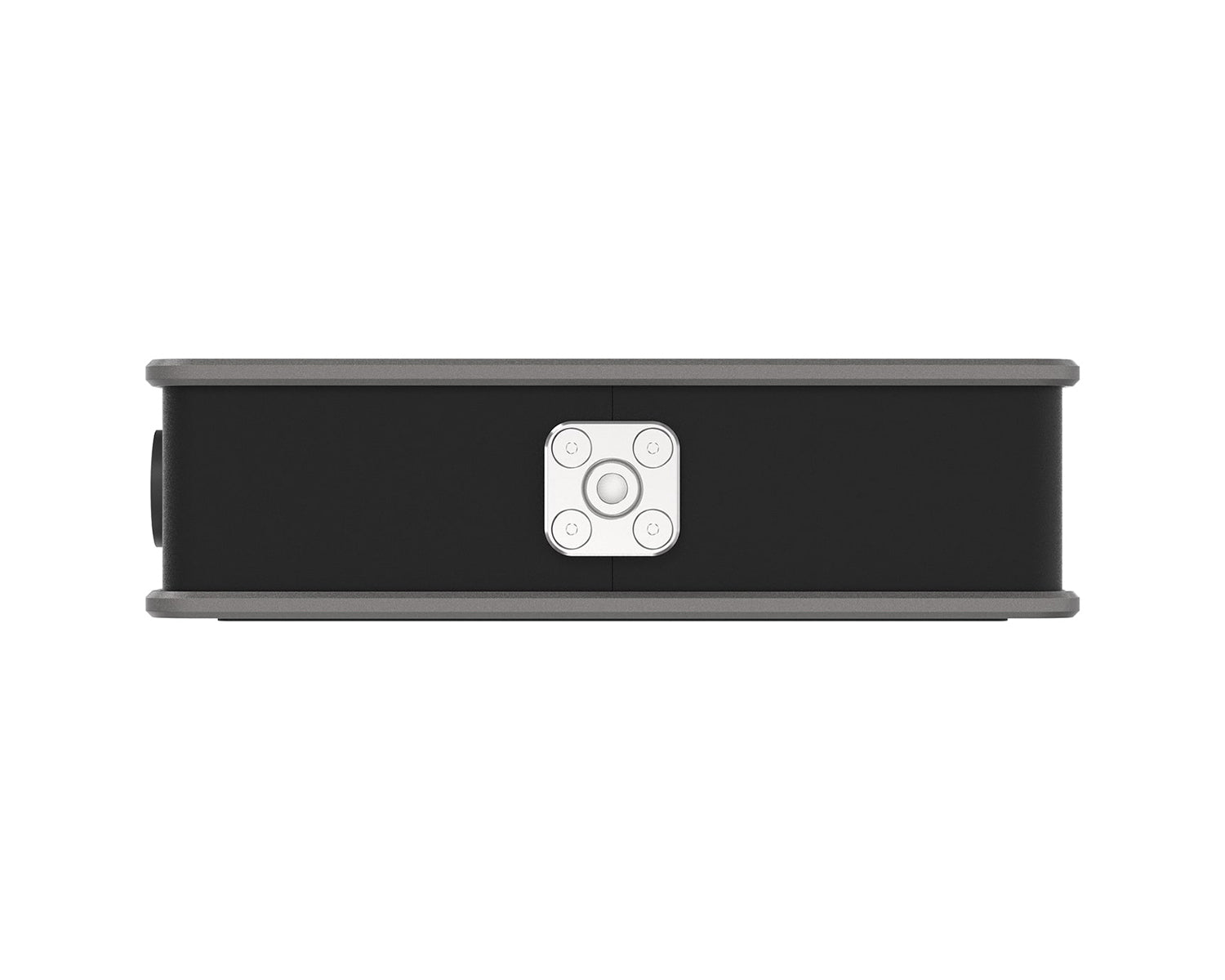

• Multiple mounting options: C-Clamp, wall-mount adapter, LCD mount adapter and belt adapter.
• Rugged, Tour-ready and aesthetic enclosure: The sexiest widget in your tool box, that will keep looking good for years to come.
• Plug-n-play operation; No dipswitches, buttons or menus to fumble with: It just works.
• Clear and ample status LED indicators for quick troubleshooting.
• Easy on-the-field identification with unique colour and alphabetic coding system.
• Locking HDMI port prevents accidental disconnection.
• Reclocked and amplified SDI loop thru

Connections

• Video Input: 1 x 12G-SDI BNC

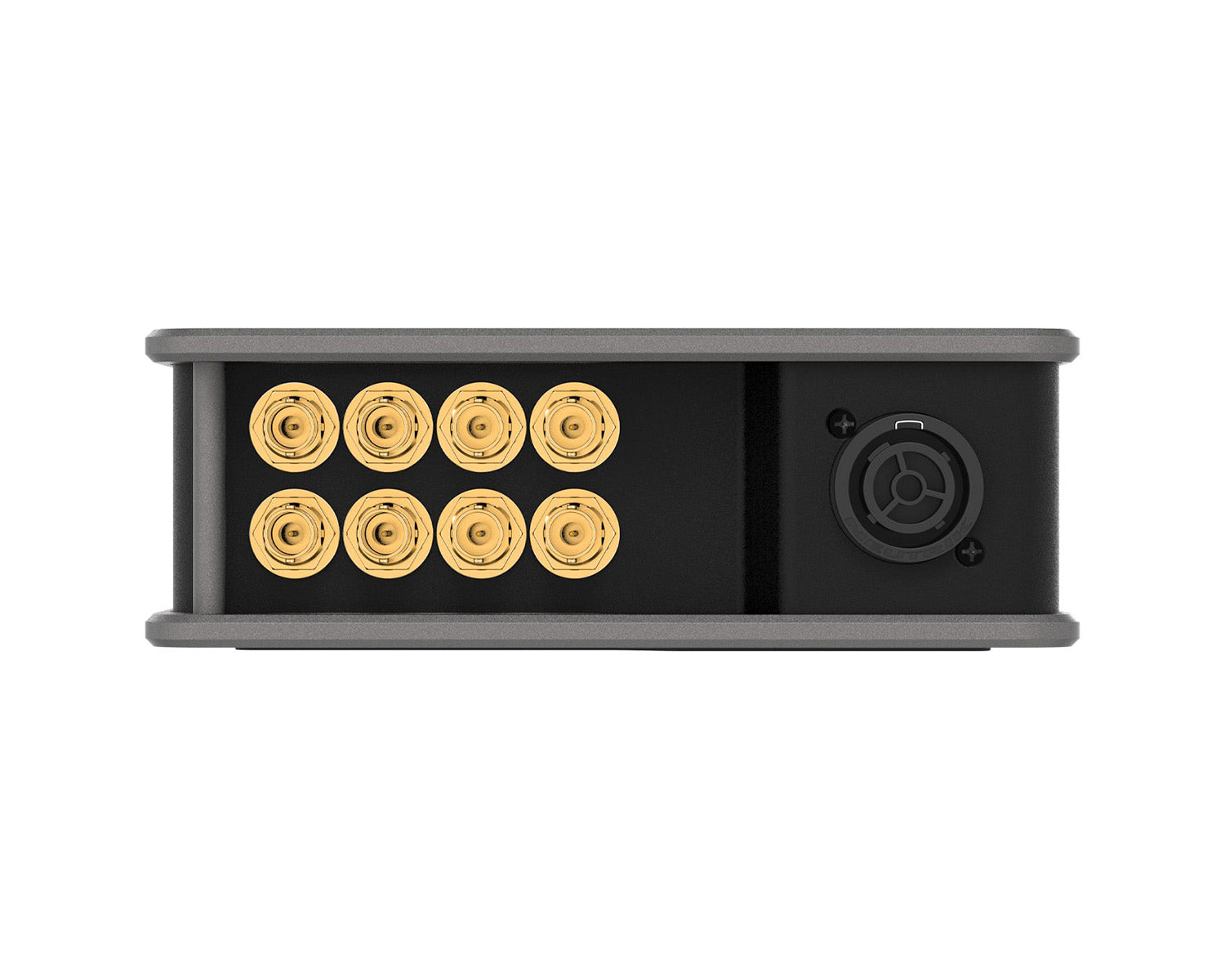

• Video Output: 8 x 12G-SDI BNC (reclocked & amplified)

Supported Signals

• 12G format:
  • 4096x2160p @ 60/50 fps
  • 3840x2160p @ 60/50 fps
• 6G format: 4096x2160p @ 30/25/24 fps, 3840x2160p @ 30/25/24 fps
• 3G format: 1920x1080p @ 60/50 fps
• HD format:
  • 1920x1080p @ 30/25/24 fps, 1920x1080i @ 60/50 fps,
  • 1280x720p @ 60/50 fps
• SD format: 720x480i @ 60 fps, 720x576i @ 50 fps
• Embedded audio: Up to 16 channels, 24 bit, 48 kHz
• SMPTE Standards: ST2082-1S, ST2082-10, ST425M Level A and B, ST424M, ST292M, ST259M

Environmental

• Operating temp.: 0-40° C
• Relative Humidity: 0 % to 90 % RH non-condensing

Power Requirements

• Power Supply:
  • Built-in power supply
  • PowerCON True1 in / loop thru
• Power Consumption: 45W max.
• Operational Voltage Range: 100-240 V 50-60 Hz

Physical and Dimensions

• Height: 62 mm (2.44 in)
• Depth: 180 mm (7.08 in)
• Width: 221 mm (8.7 in)
• Weight: 2 kg (4.4 lbs)
