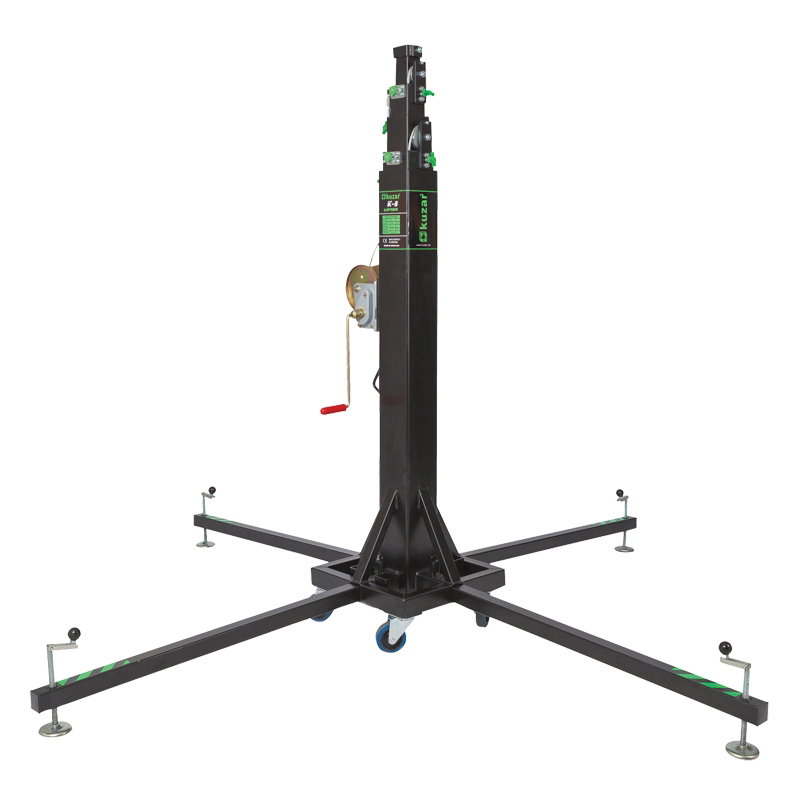

The Kuzar K-8 is the largest tower lifter in the Kuzar range, capable of lifting up to 300kg to a maximum height of 6.5m. Built for production companies and rental houses lifting heavier truss spans, ground support sections and large lighting rigs. Five telescopic steel profiles, automatic KAT locks at every section and a 2.57 x 2.57m footprint with adjustable non slip rubber stabilisers.
Max Load
300 kg
Max Height
6.5 m

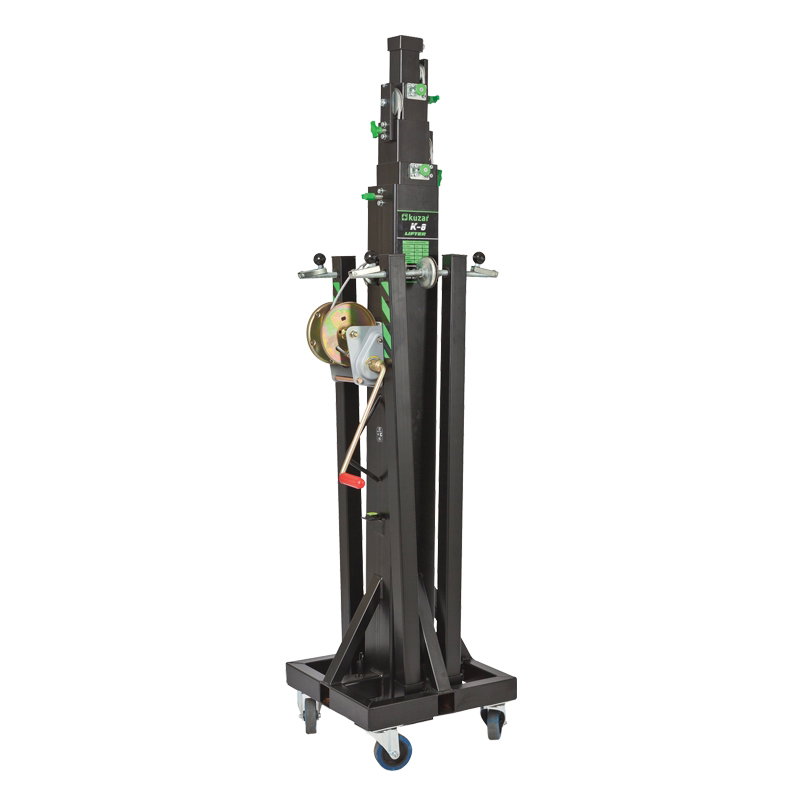

Folded
1.87 m
transport
Footprint
2.57 x 2.57 m
Safety
Manufactured in Europe to BGV C1 and CE 2006/42/CE standards. KAT automatic locks engage at every section as the tower is raised so the load is held even in the unlikely event of a cable failure.
Features
✓Lifts up to 300kg to 6.5m
✓Five telescopic steel profile sections
✓Minimum load 25kg
✓50mm diameter adaptor for truss spigots
✓AL-KO winch with steel cable
✓Manufactured in Europe to BGV C1 and CE 2006/42/CE standards
✓Automatic KAT locks engage at every section as the tower is raised
✓Adjustable non slip rubber stabilising plates on each leg
✓Steel base with swivel castors for transport between rooms and trucks
✓Steel cable winch with metal protected pulley bearings
✓2 year manufacturer warranty
Specifications
| Brand | Kuzar |
| Model | K-8 |
| Max load | 300 kg |
| Min load | 25 kg |
| Max height | 6.5 m |
| Folded height | 1.87 m |
| Footprint | 2.57 x 2.57 m |
| Weight | 124 kg |
| Adaptor | 50 mm diameter |
| Sections | 5 telescopic steel profiles |
| Standards | BGV C1, CE 2006/42/CE |
| Warranty | 2 years |
