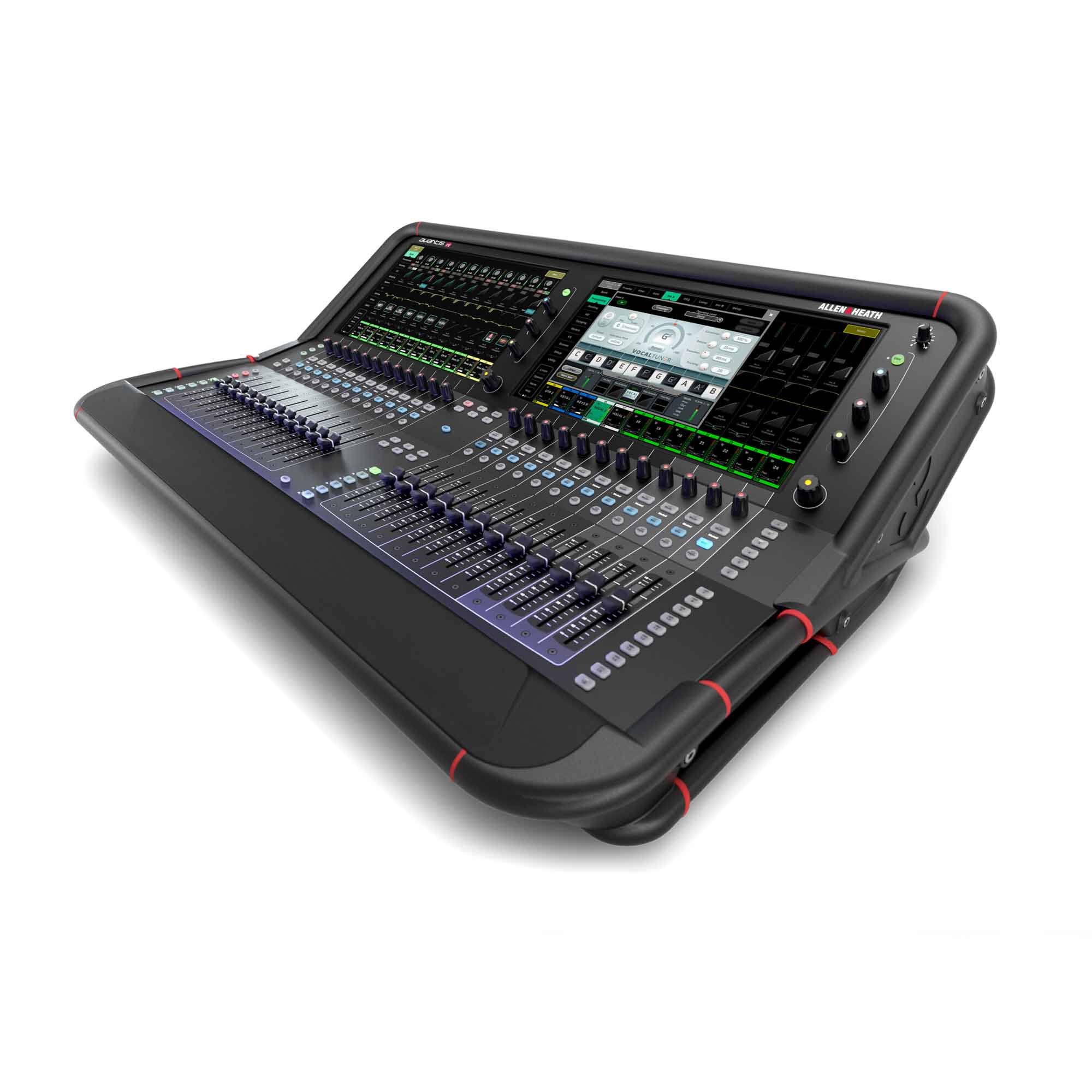

Allen & Heath Avantis Ultra 96 Channel Mixing Console

Hardware:
• Two 15.6” Full HD touchscreens
• 24 assignable SoftKeys
• 24 faders, 6 layers
• 12 Analog/1 stereo AES Inputs
• 12 Analog/2 stereo AES Outputs
• 2 I/O Ports (128×128)

Mix Engine:
↑ 96 Input Channels
↑ 56 Busses
+ 24 Dyn8
+ DEEP Preamp, Compressor & Expander Models
+ NEQ12
+ 8 RackUltra FX
• 12 RackExtra FX

Key Features

• 56 buses
• 96 kHz XCVI FPGA core with very low latency (0.7 ms)
• Freely configurable mix bus architecture
• Very sturdy, solid metal housing
• User interface combines physical controls with touchscreen controls for the fastest and most intuitive workflow
• 12 stereo FX returns
• 8 RackUltra FX slots
• 16 DCAs
• Two 15.6″ Full HD displays with capacitive touchscreens with gesture control
• AMM (Automatic Mic Mixer) for up to 64 channels across 1, 2 or 4 zones
• Fully assignable layout
• 144 fader strips (24 faders, 6 layers) with optional master section
• SLink port for connection to remote I/O extensions and the ME Personal Mixing System
• Inputs: 12 analogue XLR, 1 stereo AES
• Output: 12 analouge XLR, 2 stereo AES
• 2 I/O slots for 128 x 128 at 96 kHz each – for optional cards including Dante, MADI and gigaACE
• User-configurable rotary controls
• 24 assignable softkeys
• Comprehensive metering with multi-point peak detection
• USB stereo recording and playback
• BNC Word Clock


Specifications

• Dimensions (H x W x D): 269 x 917 x 627 mm
• Weight: 26 kg
• Includes dPack
