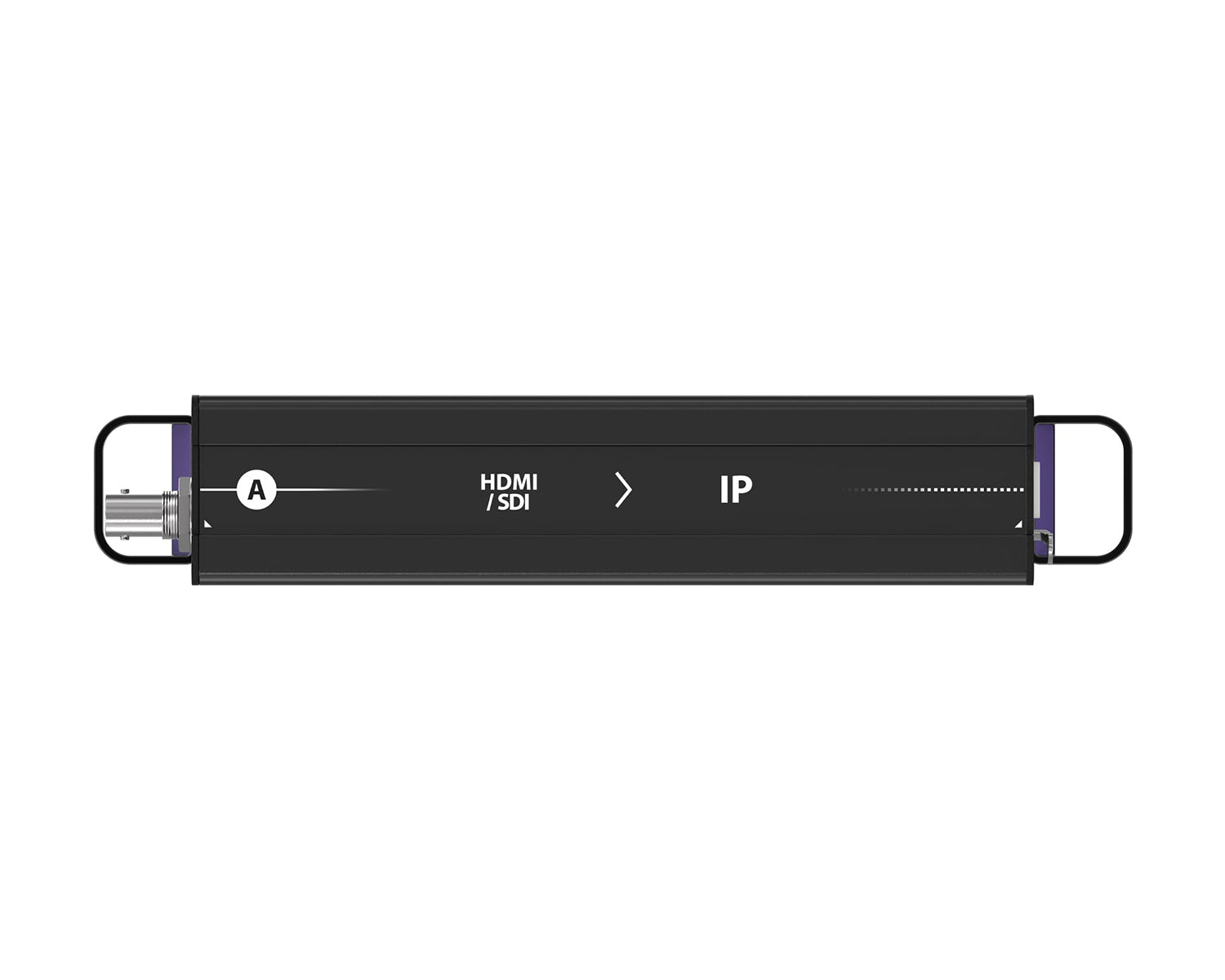

The Theatrixx xVision Reversible Streaming Server module encodes HDMI 1.2 or 3G-SDI video into H.264 for IP-based streaming – directly from a module slot in the xVision Reversible frame. Ideal for adding a live stream output to an existing production rig without introducing standalone encoders, extra power supplies, or network configuration headaches at the last minute.
Input
HDMI / SDI
HDMI 1.2 or 3G-SDI
Encoding
H.264
IP streaming
Max Resolution
1080p60
Full HD
Output
IP Stream
Via Ethernet
Streaming Encoder

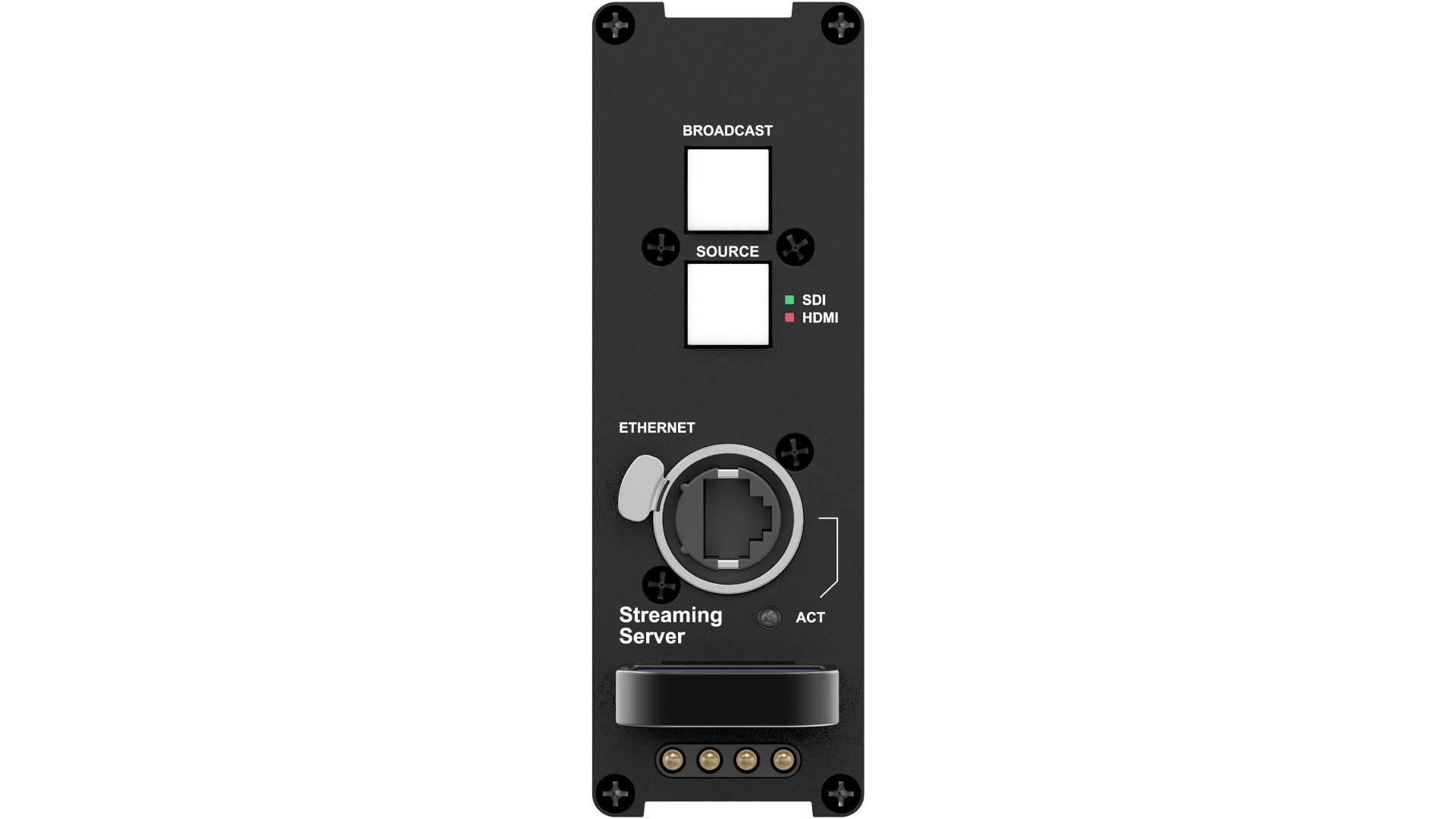

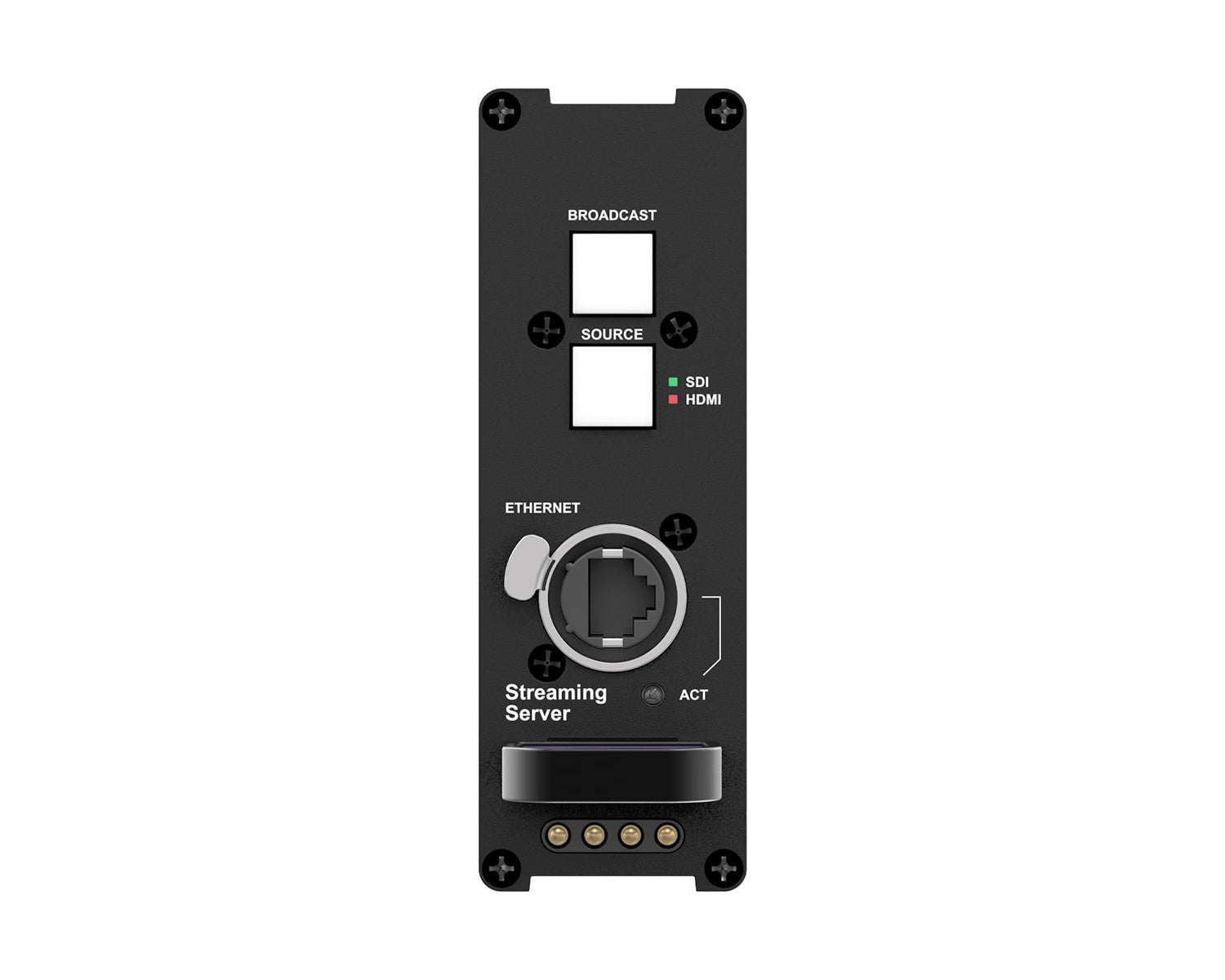

This module functions as a hardware H.264 encoder, taking video from HDMI or SDI and delivering it as an IP stream. Connect the frame’s Ethernet port to your network and configure the stream destination – no additional encoding hardware needed.
Features
✓

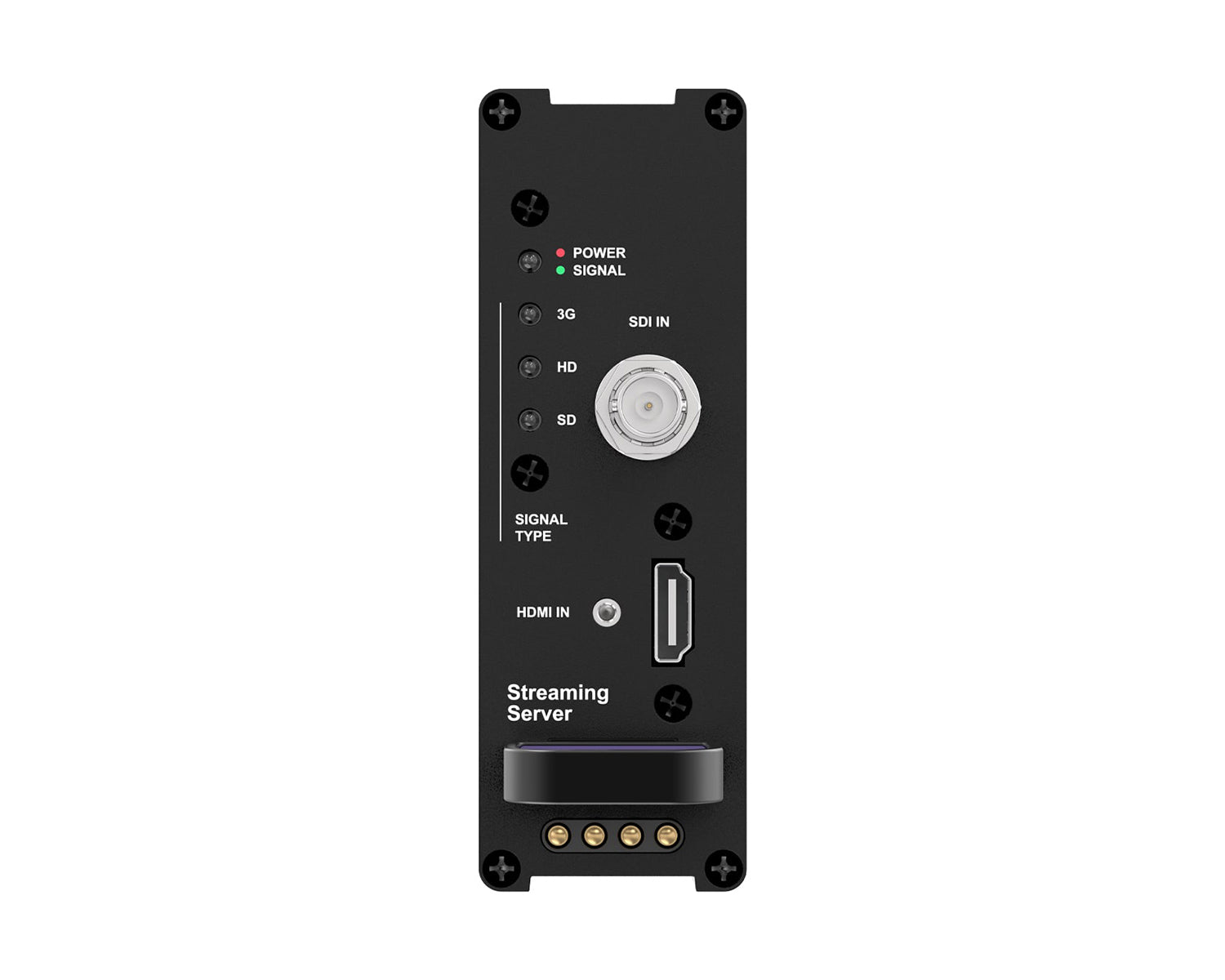

Hardware H.264 encoding from HDMI 1.2 or 3G-SDI input
Hardware H.264 encoding from HDMI 1.2 or 3G-SDI input
✓
Encodes and streams video over IP up to 1080p60
Encodes and streams video over IP up to 1080p60
✓
Accepts both HDMI and SDI sources – dual input flexibility
Accepts both HDMI and SDI sources – dual input flexibility
✓
Reversible design – insert from front or rear of frame
Reversible design – insert from front or rear of frame
✓
Hot-swappable – swap modules without powering down
Hot-swappable – swap modules without powering down
✓
Fully enclosed housing – no exposed PCBs, protected against static and dust
Fully enclosed housing – no exposed PCBs, protected against static and dust
✓
Gold-plated redundant spring pins with magnetic retention for DC power
Gold-plated redundant spring pins with magnetic retention for DC power
✓
No external power supplies or additional cabling required
No external power supplies or additional cabling required
Note
Requires a Theatrixx 2-Bay (RF2) or 8-Bay (RF8) Reversible Rackmount Converter frame (sold separately).
Specifications
| SKU | XVVRMVDO2IP |
| Video Input | HDMI 1.2 (Type A) or 3G-SDI (BNC) |
| Encoding | H.264 |
| Output | IP stream (via frame Ethernet) |
| Maximum Resolution | 1920 x 1080p @ 60Hz |
| Module Size | Single-width |
| Compatible Frames | xVision RF2 (2-Bay), RF8 (8-Bay) |
