Double your 4K SDI-to-fibre capacity in a single box. The Theatrixx xVision DUAL 12G-SDI to Fibre SingleMode converter packs two independent conversion channels into one B-size enclosure, each accepting 12G-SDI and outputting over single-mode fibre via Neutrik opticalCON DUO. When you are sending multiple 4K feeds across a large venue or broadcast compound on single-mode infrastructure, this dual unit keeps the rig clean and the converter count down.
Input
2x 12G-SDI
BNC
Output
2x Fibre SM
opticalCON DUO
Resolution
4K UHD
12G-SDI
Form Factor
B-Size
Dual converter
Features
✓
Two independent 12G-SDI to single-mode fibre conversion channels
Two independent 12G-SDI to single-mode fibre conversion channels
✓
B-size enclosure consolidates two converters into one unit
B-size enclosure consolidates two converters into one unit
✓
Single-mode fibre output for maximum transmission distance
Single-mode fibre output for maximum transmission distance
✓
Neutrik opticalCON DUO connectors – touring-standard fibre termination
Neutrik opticalCON DUO connectors – touring-standard fibre termination
✓
Rugged enclosure with no exposed PCBs – built for the road
Rugged enclosure with no exposed PCBs – built for the road
✓
Internal power supply for both channels – no external power bricks
Internal power supply for both channels – no external power bricks
✓

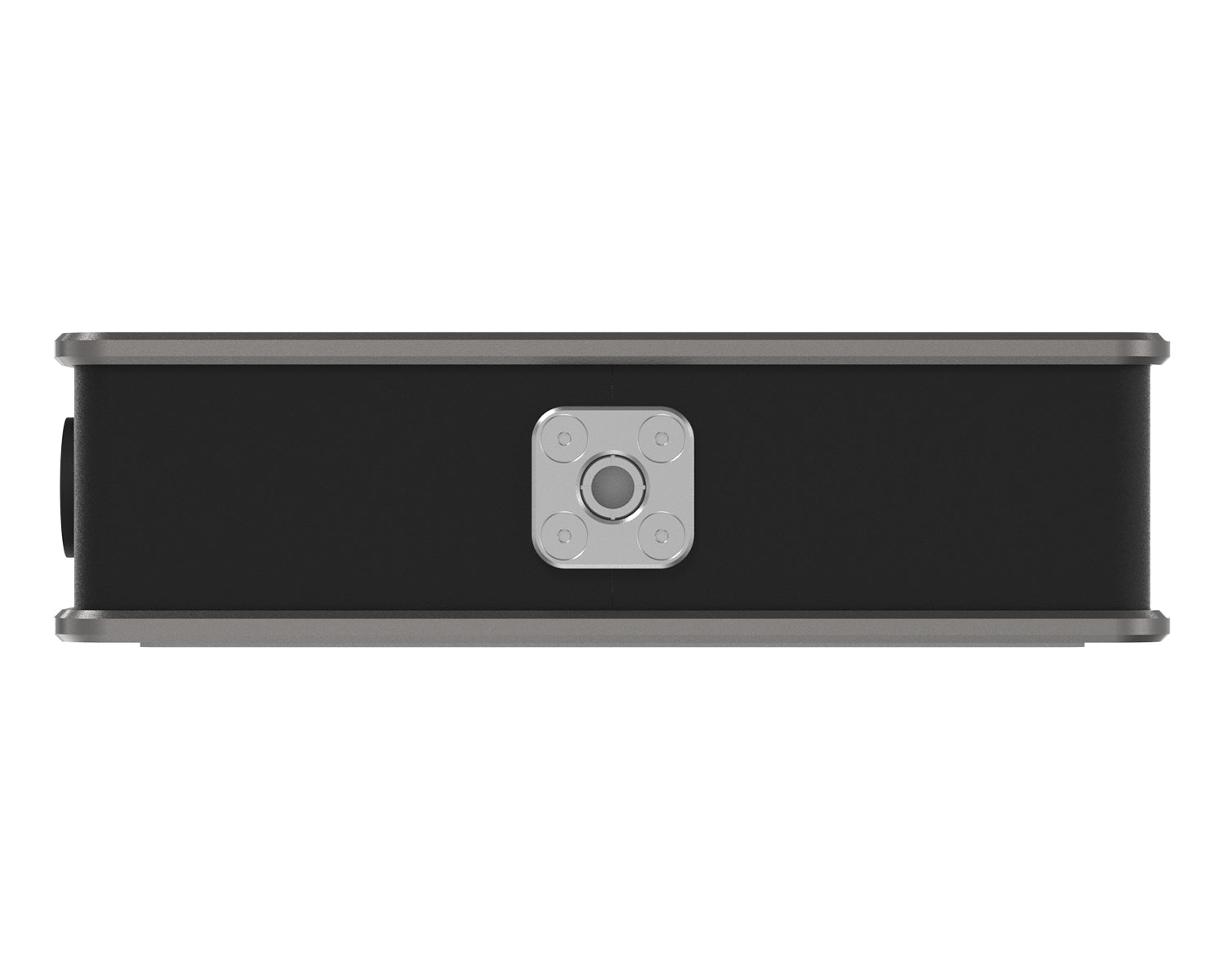

Magnetic mounting with spring-loaded plunger retention
Magnetic mounting with spring-loaded plunger retention
✓
Professional locking connectors on all inputs and outputs
Professional locking connectors on all inputs and outputs
Specifications
| Input | 2x 12G-SDI |
| Output | 2x Single-mode fibre (opticalCON DUO) |
| Resolution | Up to 4K UHD (12G-SDI) |
| Channels | 2 independent conversion paths |
| Input Connectors | 2x BNC (12G-SDI) |
| Output Connectors | 2x Neutrik opticalCON DUO |
| Fibre Type | Single-mode |
| Form Factor | B-Size Standalone (Dual) |
| SKU | XVV2SDI2FIBER-12GS2 |
