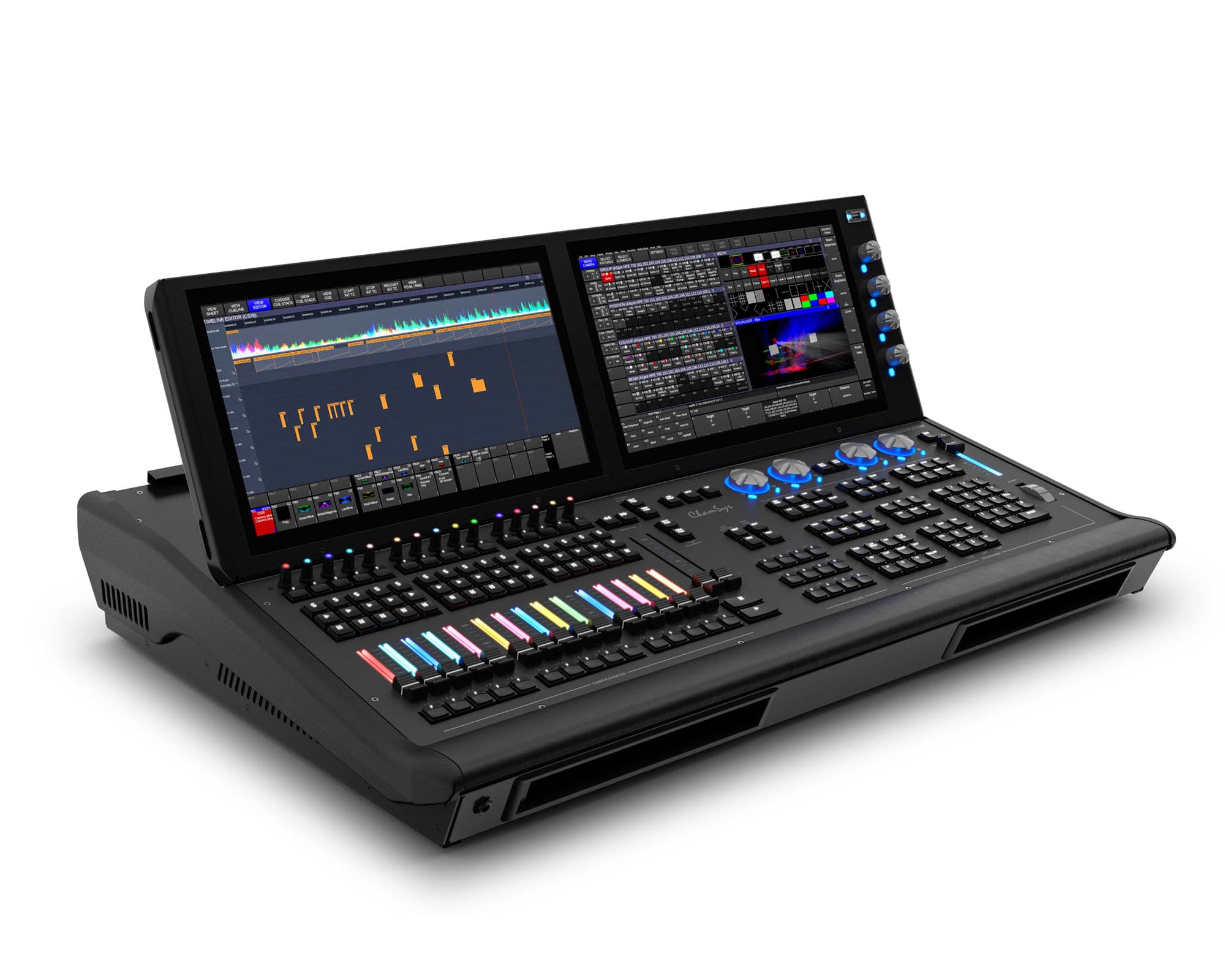

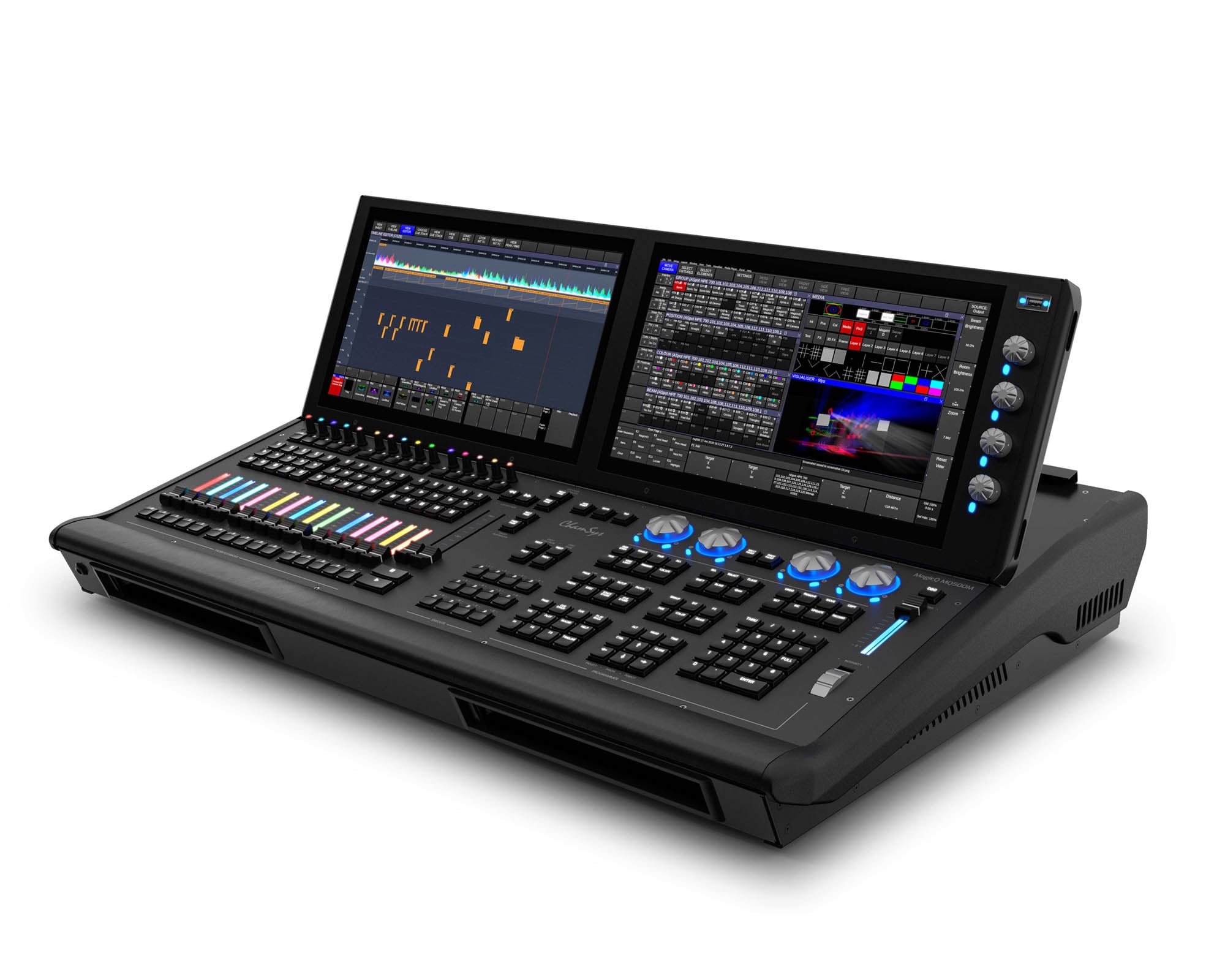

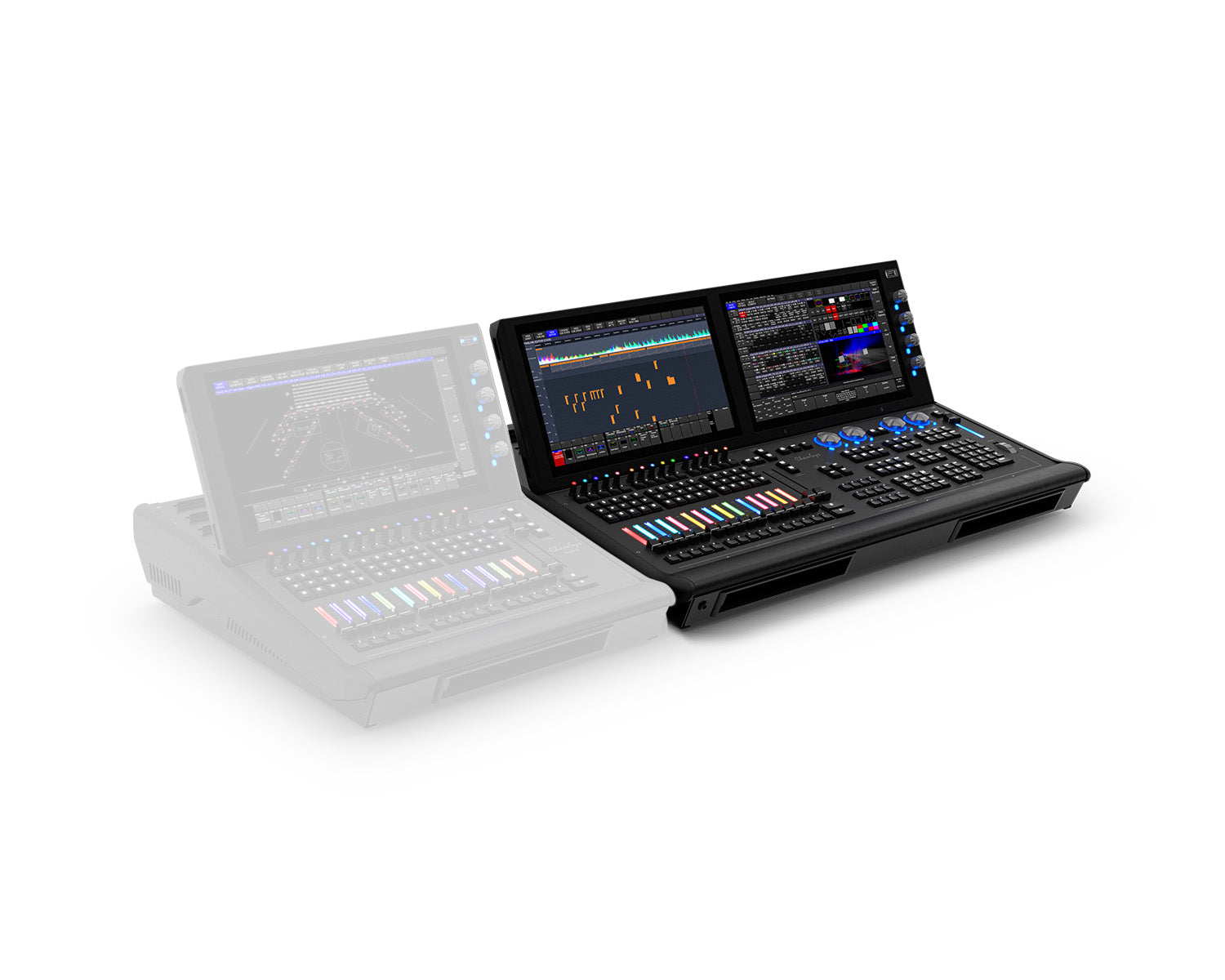

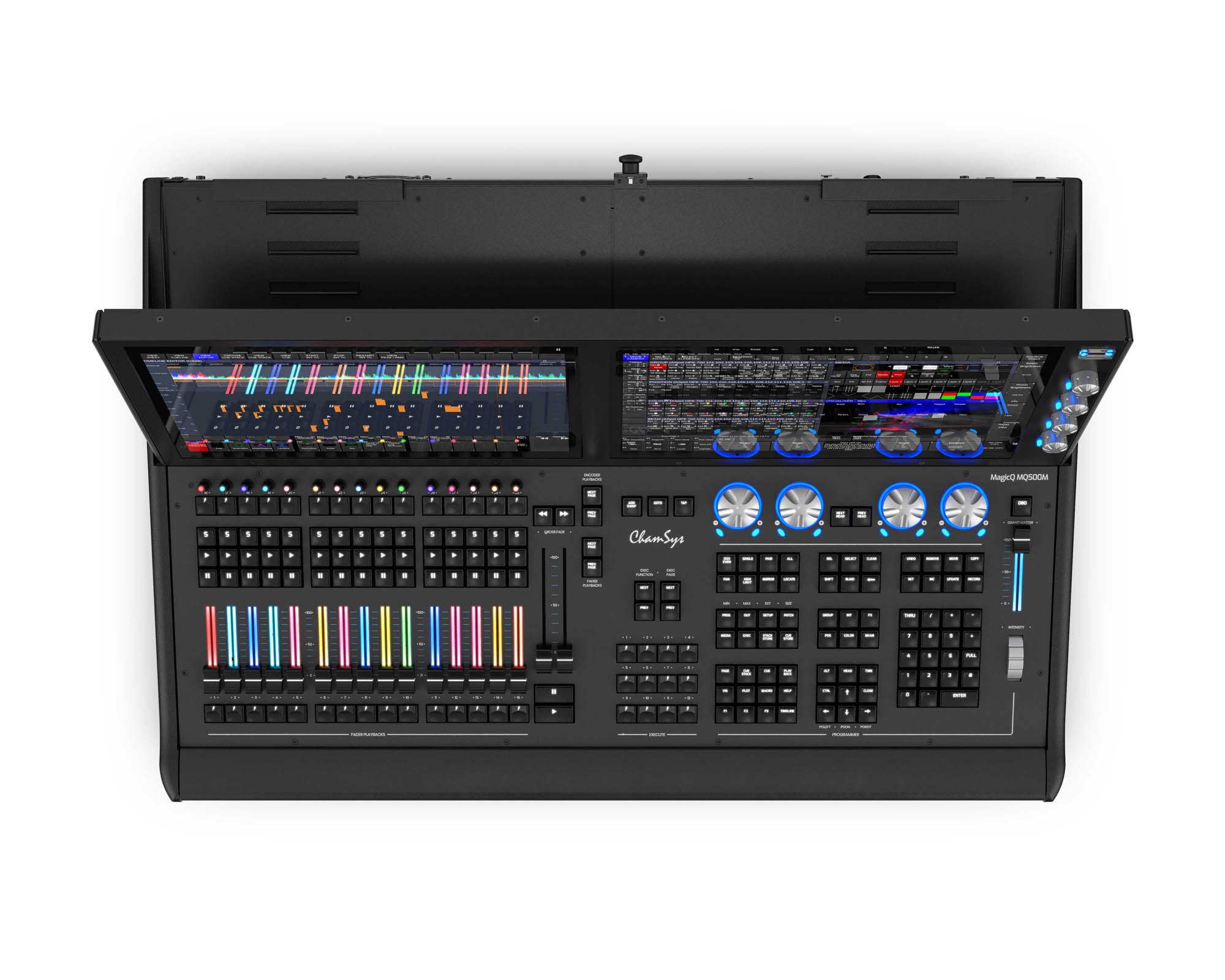

The ChamSys MQ500M+ Stadium Console is the flagship of the MagicQ range, delivering 400 universes of direct output from a single desk. Dual 15″ HD multitouch displays with adjustable viewing angles, 42 playbacks across motorised faders, encoder playbacks, and macro/execute keys, plus built-in MagicVis 3D visualisation make it the go-to console for concerts, touring, television, broadcast, houses of worship, and theatre at the highest level.
Universes
400
Direct output
Playbacks
42
Faders + encoders + keys
Displays
2 x 15″
HD multitouch
Crossfaders
100 mm
Split
Monitor Outputs
2
DisplayPort++
Features
✓
400 universes direct output — no external processors
400 universes direct output — no external processors
✓
Dual 15″ HD multitouch displays with adjustable angles
Dual 15″ HD multitouch displays with adjustable angles
✓
15 motorised faders + 15 encoder playbacks + 12 macro/execute keys
15 motorised faders + 15 encoder playbacks + 12 macro/execute keys
✓
Built-in MagicVis 3D visualisation
Built-in MagicVis 3D visualisation
✓
Two DisplayPort++ external monitor outputs
Two DisplayPort++ external monitor outputs
✓
Built-in WiFi and 4-port Gigabit network switch
Built-in WiFi and 4-port Gigabit network switch
✓
Intensity wheel and 100 mm split crossfaders
Intensity wheel and 100 mm split crossfaders
✓
4 DMX ports for direct fixture connection
4 DMX ports for direct fixture connection
Specifications
| SKU | CS100607 |
| Universes | 400 (direct output) |
| Playbacks | 42 (15 faders + 15 encoders + 12 macro/execute) |
| Displays | 2 x 15″ HD multitouch (adjustable angles) |
| External Monitors | 2 x DisplayPort++ |
| DMX Ports | 4 |
| Network | 4-port Gigabit switch |
| WiFi | Built-in |
| Crossfaders | 100 mm split |
| Visualisation | MagicVis 3D (built-in) |
| Intensity Control | Intensity wheel |
