Allen & Heath GR4 Mixer

SKU: GR4/240X
Allen & Heath GR4 Mixer
Allen & Heath GR4 Mixer
Click to enlarge

    £811.00 inc VAT
    £675.83 ex VAT

    Available on back-order|Available from 31 Jul 2026

    Backorder – Available from 31 Jul 2026
    VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
    1 Year Manufacturer Warranty Included
    About Stage Supply
    Chat to us on WhatsApp

    About this Product

    GR4 is a 1U rack-mounting or desktop audio mixer providing simple yet comprehensive control of background music and paging in bars, restaurants, stores and other leisure and retail environments. Standout features include optional remote wall plates, a front panel mic input and a 3.5mm jack output for headphone monitoring.

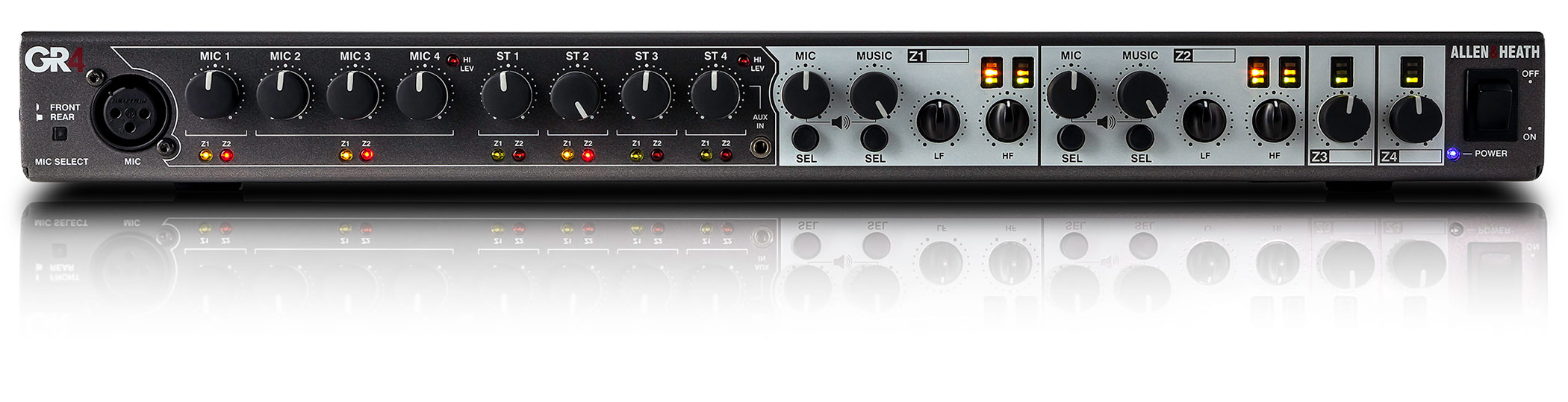

    Allen & Heath GR4 front panel

    Inputs

    Mic + Line Inputs

    4 × mic inputs on rear Phoenix connectors — MIC1 selectable to a front-mounted XLR. 4 × stereo inputs on rear phono connectors, plus a front-mounted 3.5mm jack.

    Outputs

    Zone Outputs

    2 × stereo zones (mono selectable via jumper) on rear Phoenix connectors, plus 2 × additional mono zone outputs — 4 zones total.

    Integration

    Paging + Alarm

    Paging and alarm contact inputs on rear Phoenix connectors for integration with 3rd party paging stations and fire alarm systems.

    Control

    Remote Ready

    Remote control via PL-14 wall plate on rear RJ45, or custom/3rd party analogue remotes on rear Phoenix connectors.

    GR4 controls close-up

    Configurable

    Installer Selectable Modes

    Primary + Secondary Mic modes control hierarchical mic feeds for simple paging announcements.

    Emergency mode integrates with 3rd party systems — mutes all inputs except MIC 1 on alarm contact closure.

    Jukebox mode provides a priority line input for pre-recorded announcements or programme material such as sports channels.

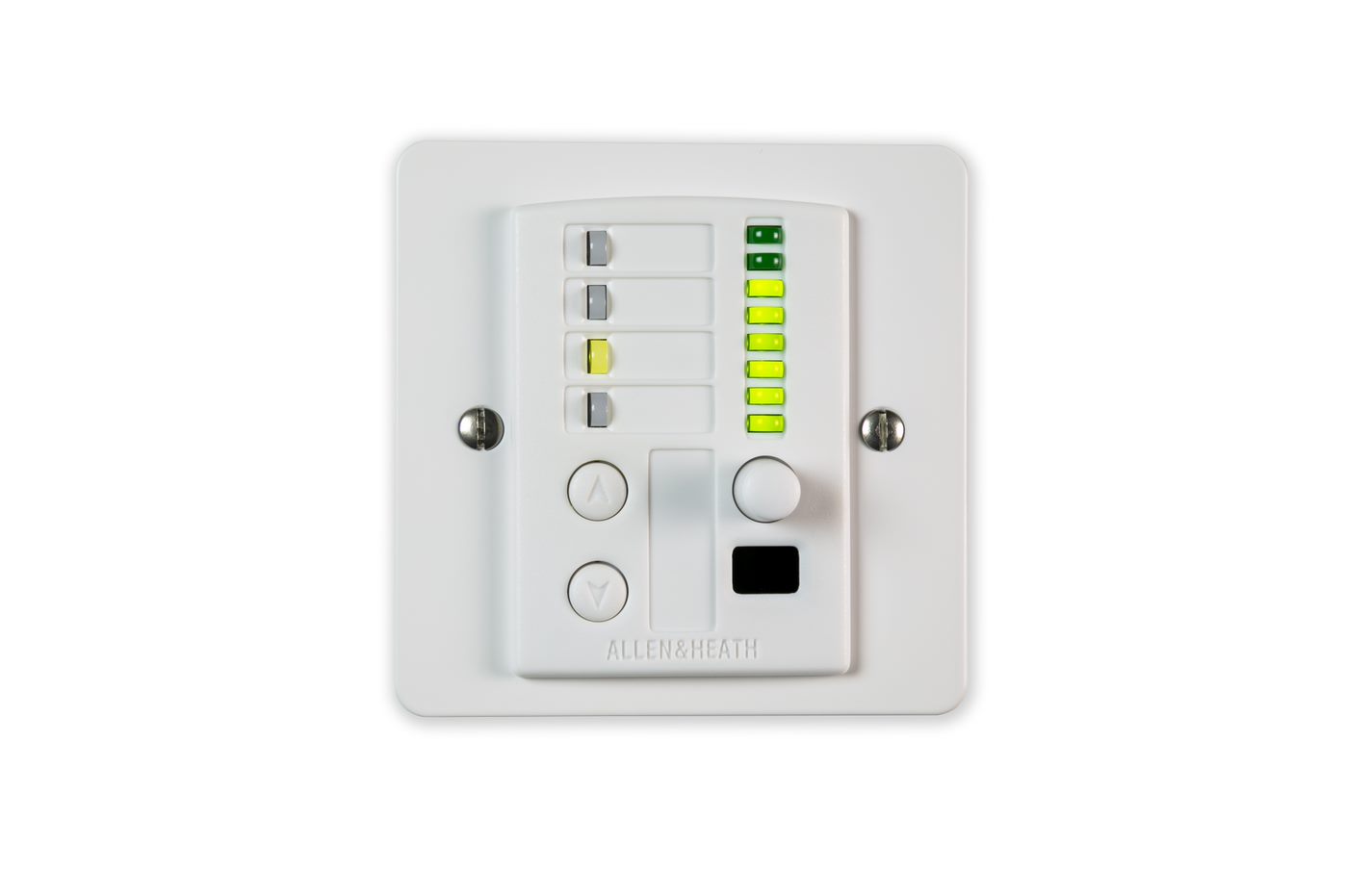

    PL-14 remote wall plate

    Remote Control

    PL-14 Compatible

    The PL-14 is an intelligent remote controller for the GR4, giving non-technical operators local control of music source selection and/or audio level. Up to two controllers can be connected — one for each zone, or a single unit to simultaneously control both zones.

    A menu of setup options allows the installer to configure its functions to suit the specific application.

    Applications

    Built for Installed Audio

    GR4 is engineered for the practical demands of hospitality and retail installs — background music distribution, live announcements, emergency paging and integration with fire alarm systems, all in a single 1U unit.

    Rack mount or desktop deployment, rear-panel Phoenix connectivity throughout for clean, professional installation.

    GR4 Specifications

    • 4 × mic inputs on rear Phoenix connectors (MIC1 selectable to front XLR)
    • 4 × stereo line inputs on rear phono connectors
    • Front panel 3.5mm jack input
    • 2 × stereo zone outputs on rear Phoenix (mono selectable via jumper)
    • 2 × additional mono zone outputs (4 zones total)
    • Front panel 3.5mm headphone monitoring output
    • Paging + alarm contact inputs (rear Phoenix)
    • Installer selectable modes: Primary/Secondary Mic, Emergency, Jukebox
    • PL-14 remote wall plate compatible (rear RJ45)
    • 3rd party analogue remote compatible (rear Phoenix)
    • Up to 2 × PL-14 controllers (per zone or combined)
    • 1U rack mounting or desktop use

    More Information

    General

    • Mic Input Sensitivity (Gain = Min): 0dBu
    • Mic Input Sensitivity (Gain = Max): -50dBu
    • Mic Level control (Max): +5dB
    • Mic Level control (Min): -80dB
    • Mic HPF -3dB: 320Hz (TBC)
    • Mic EQ LF: +/- 15dB fc = 80Hz
    • Mic EQ HF: +/-15dB fc = 8kHz
    • Mic Frequency Response: 20Hz - 20kHz +/-1dB
    • Mic THD+n @0dBu in 1kHz: 0.004% 22-22kHz
    • Mic THD+n @-30dBu in 30dB gain 1kHz: 0.005% 22-22kHz
    • Mic Hi Level warning LED (Unity gain): +18dBu
    • Clip level (Unity gain): +21dBu
    • ST Input Sensitivity (Gain link OFF): 0dBu
    • ST Input Sensitivity (Gain Link ON): -10dBu
    • ST Level control (Max): +6dB
    • ST Level control (Min): -76dB
    • ST Frequency response 20Hz: 20Hz - 20kHz +/-0.5dB
    • ST THD+n @-10dBu in 1kHz: 0.015% 22-22kHz
    • ST THD+n @0dBu in 1kHz: 0.035% 22-22kHz
    • Crosstalk from unselected channel: -75dB @ 1kHz
    • Main Zone Level control (Max): 0dB
    • Main Zone Level control (Min): -74dB
    • Main Zone Hi Lev LED (Unity gain): +18dBu
    • Main Zone EQ LF: +/-15dB fc = 80Hz
    • Main Zone EQ HF: +/-15dB fc 8kHz
    • Main Zone Clip level (Unity gain) : +21dBu
    • ST Input to Main Zone output (Unity): -90dBu 22-22kHz
    • Mic Input routed at Min gain as well: -88dBu 22-22kHz
    • Mic Input routed at Max gain: -77dBu 22-22kHz (150R source)
    • Power consumption: 15W

    Physical & Dimensions

    • Height: 48mm
    • Length: 242mm
    • Width: 438mm
    • Weight: 3.4kg

    Manuals & Downloads

    PDFUser ManualPDF
    PDFTech SpecsPDF
