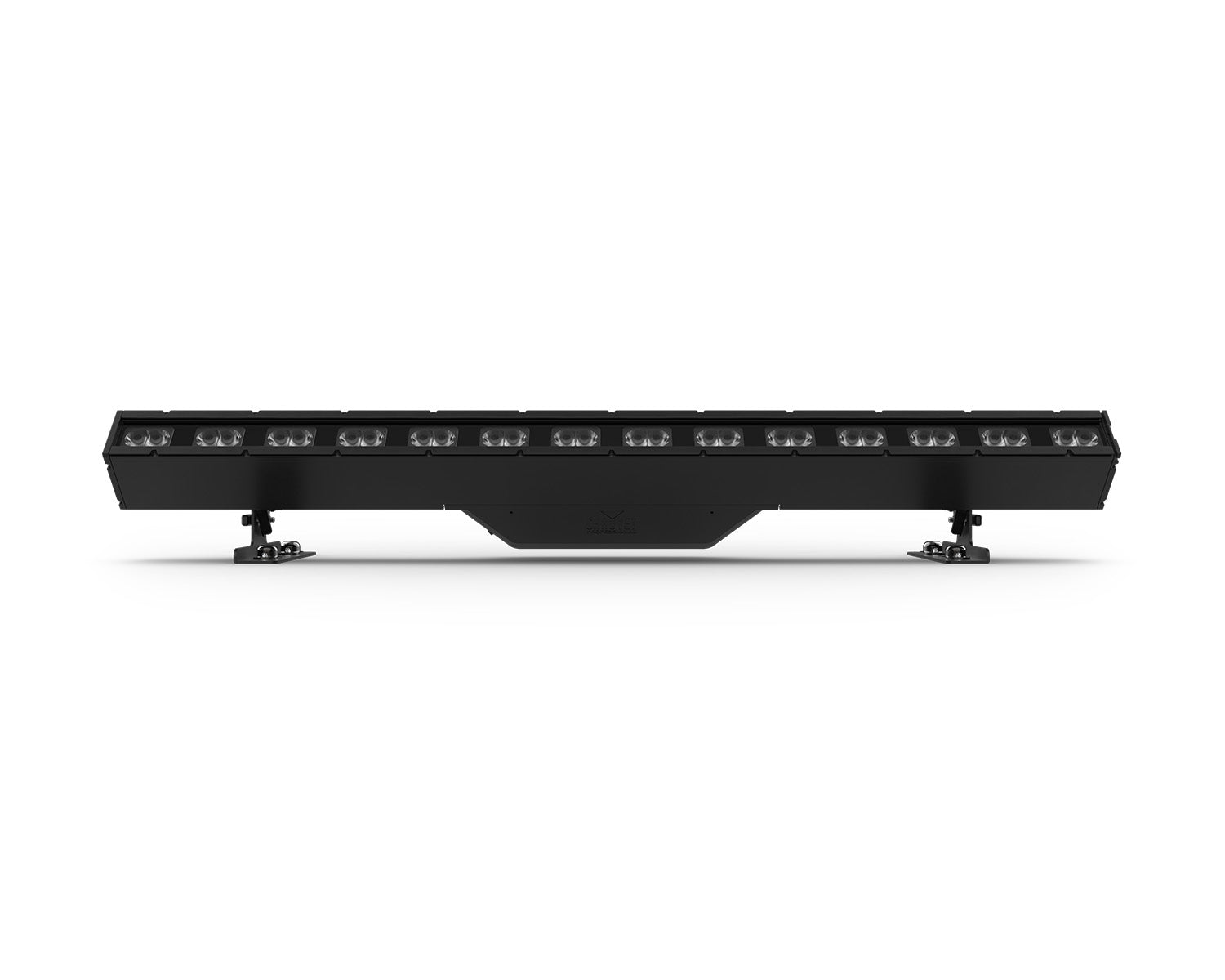

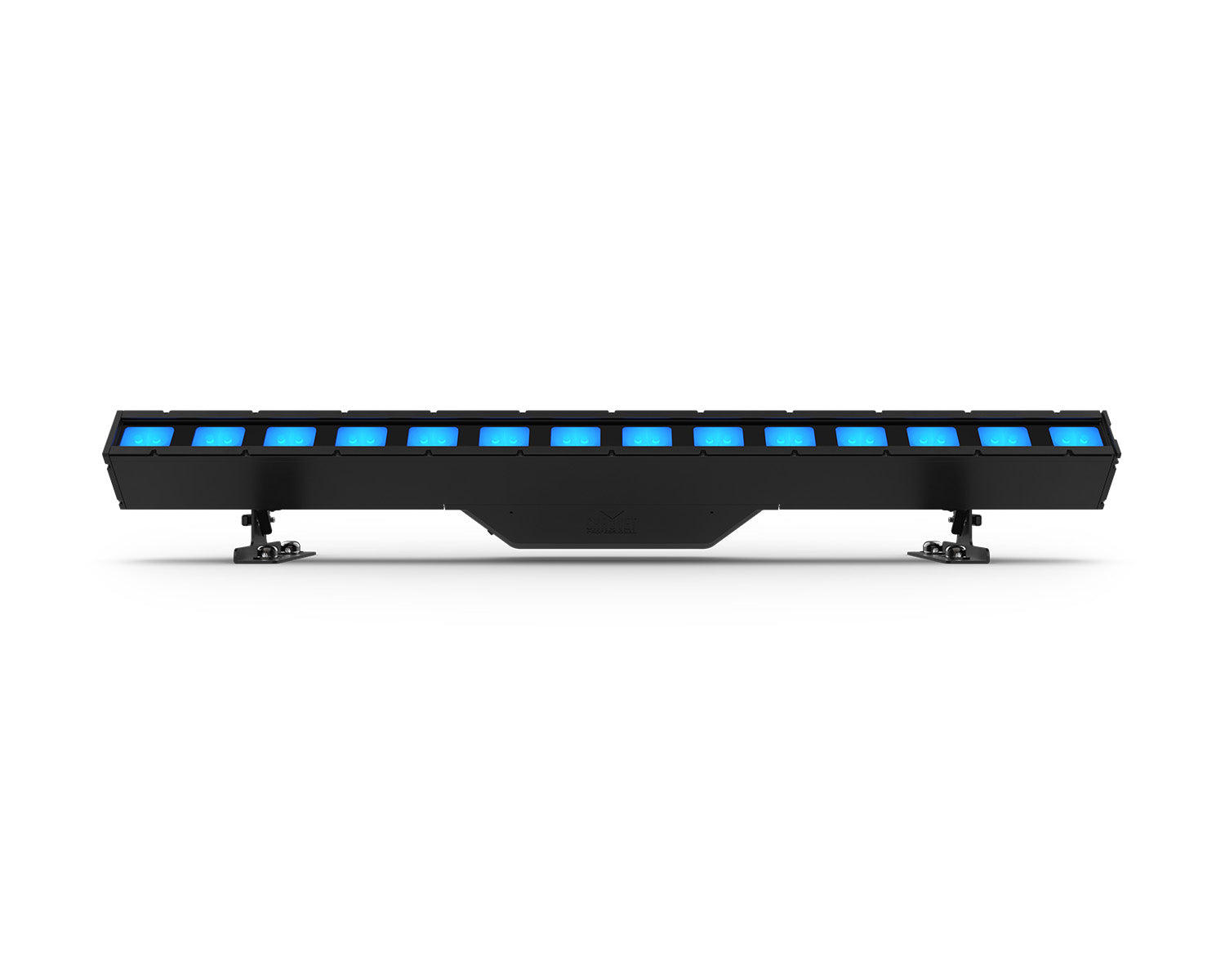

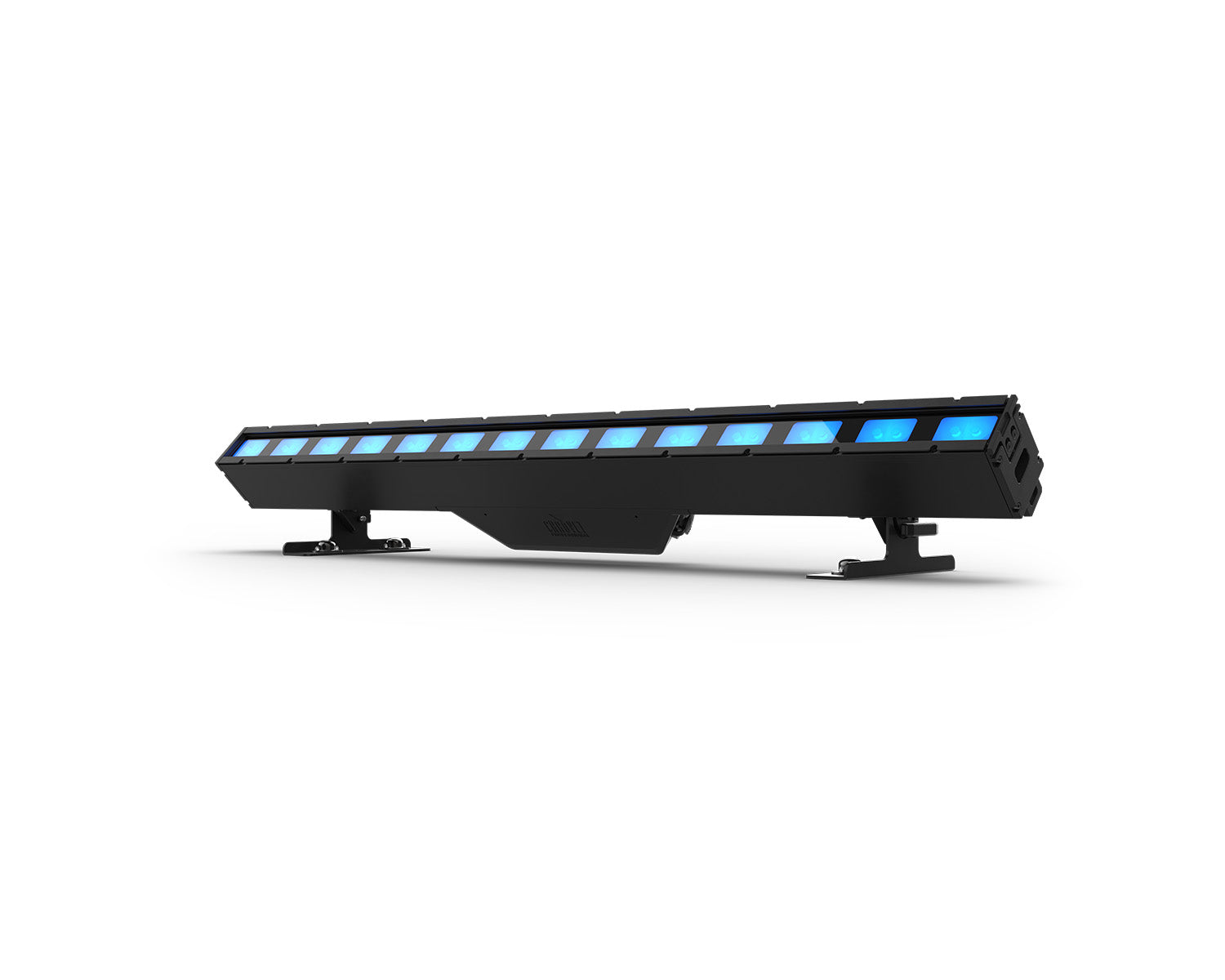

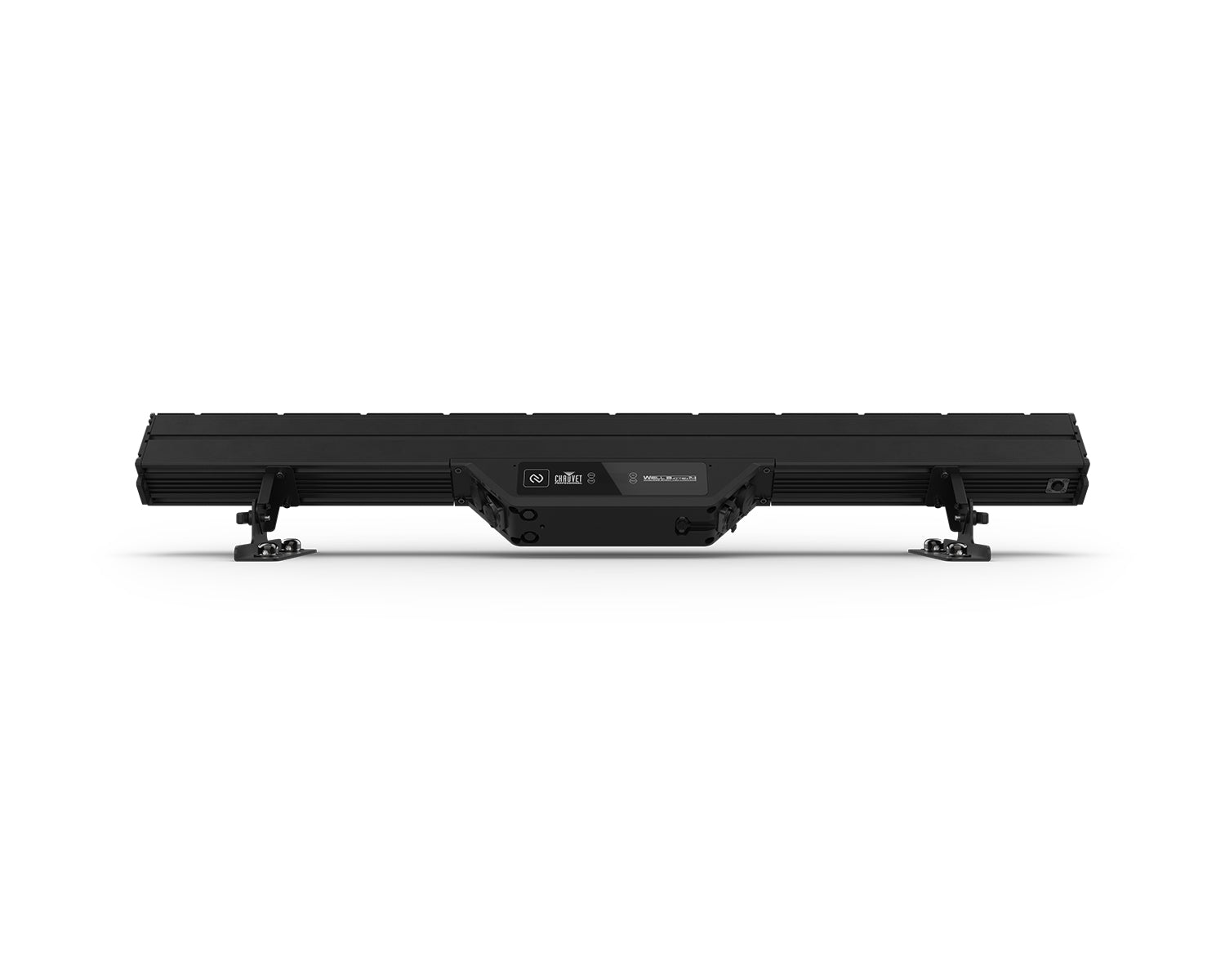

Chauvet Professional WELL Batten 14 x4 LED Battens 4x in Charging Flightcase

• A fully realized kit of (4) battery-operated black IP65-rated batten style fixtures, with (28) RGB warm white LEDs in (14) sections of control and a beam angle of 16 degrees
• 14 individual zones of control for pixel mapping effects
• Battery run time selections of 5, 8, 12, and 18 hours of operation at full output
• Built-in battery charger allows fixture to operate while charging
• Built-in IP65 5-pin DMX in/out allows for wired data
• Built-in Seetronic IP65 PowerKon input/output
• Control over RDM, CRMX, or RF
• Easy connection to WELL COM and WELL COM 2 boxes for app control
• USB-C port for convenient software updates
• Pressure equalizing M6 Gore valve
• Built-in safety cable attachment point
• Easy-to-read OLED display
• Built-in theft alarm (audio and visual notification)
• Built-in PWM Adjustment
• Included RF remote

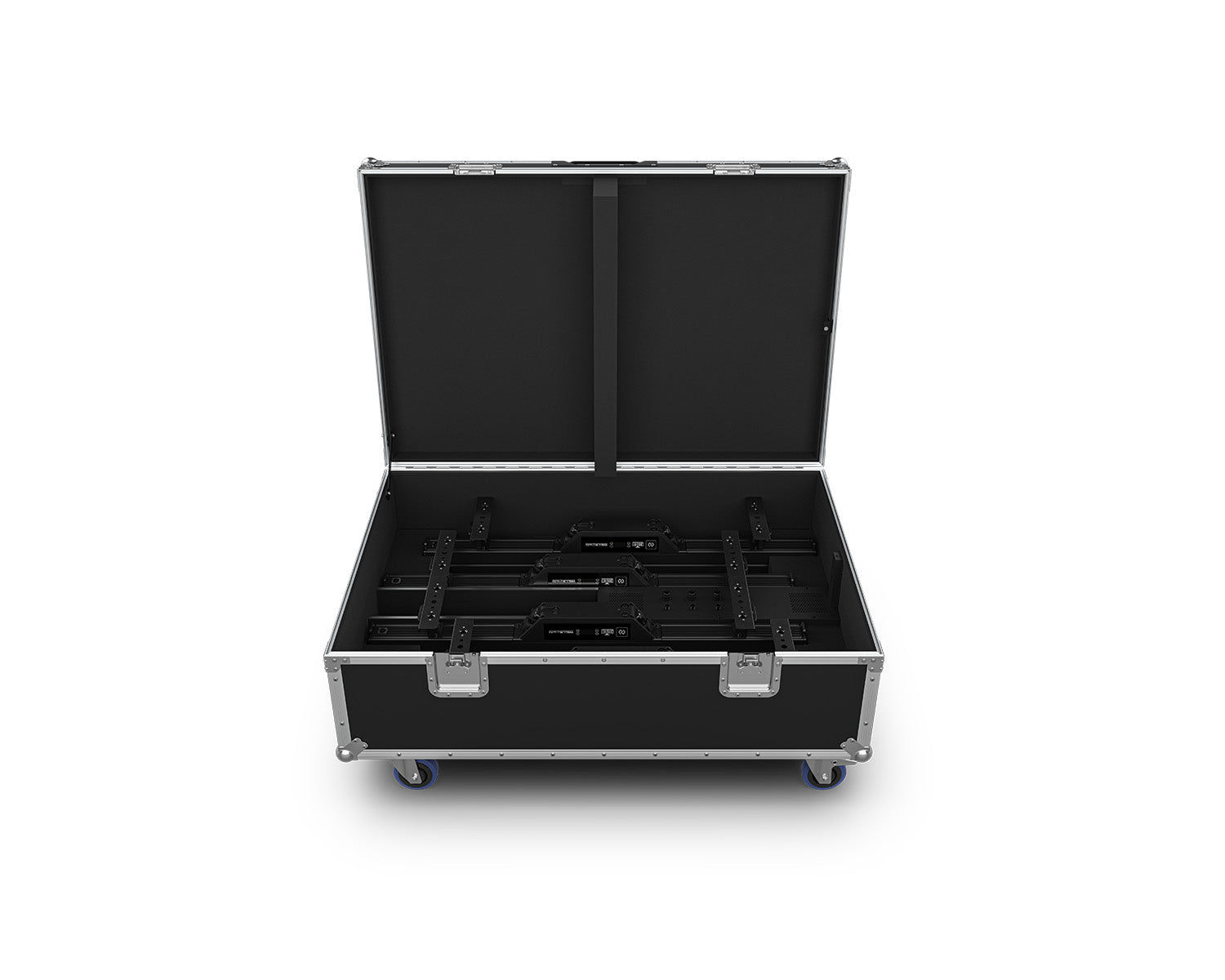

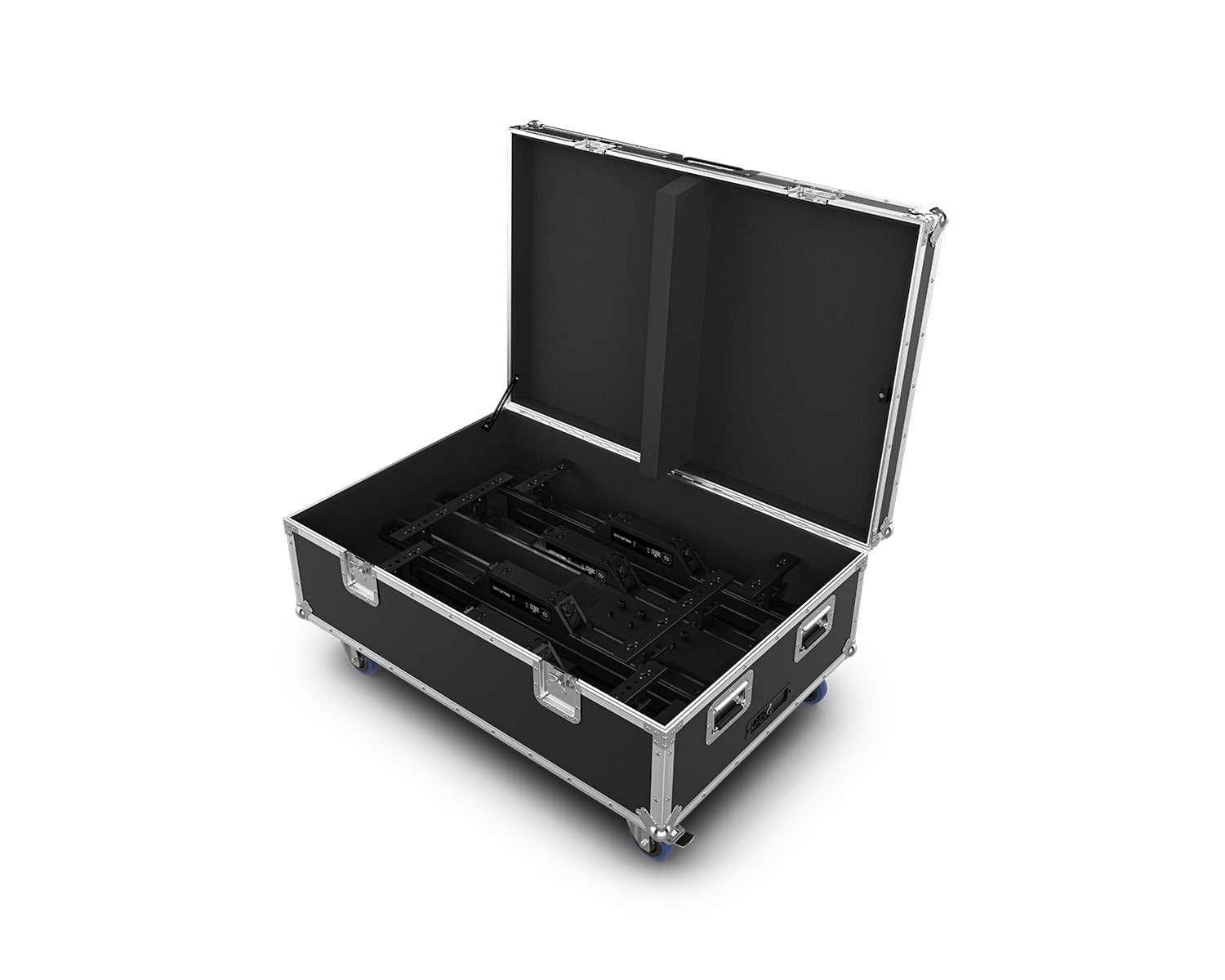

• Included 4 pack charging case

Optical

• Light Source:  28 LEDs (RGBW) 10W, (516mA), 50,000 hours life expectancy.
• Colour Temperature (range):  2600 to 10,000K
• Beam Angle:  16°
• Field Angle:  33.8°
• Cutoff Angle:  64.1°
• Lumens:  3854 lm (AC power)
• Illuminance:  1050 lux @ 5 m (AC power) Lumens:
• Lumens:  2210 lm (OFF battery setting)
• Illuminance:  601 lux @ 5 m (OFF battery setting)
• Lumens:  2319 lm (5-hour battery setting)
• Illuminance:  631 lux @ 5 m (5-hour battery setting)
• Lumens:  1437 lm (8-hour battery setting)
• Illuminance:  392 lux @ 5 m (8-hour battery setting)
• Lumens:  890 lm (12-hour battery setting)
• Illuminance:  243 lux @ 5 m (12-hour battery setting)
• Lumens:  548 lm (18-hour battery setting)
• Illuminance:  148 lux @ 5 m (18-hour battery setting)
• Selectable PWM:  1000 Hz, 2000 Hz, 3000Hz, 4000Hz, 6000Hz, 25kHz

Dynamic Effects

• Dimmer:  Electronic
• Shutter/Strobe:  Electronic
• Strobe Rate:  0 to 30 Hz
• Standalone Colour Mixing:  Yes
• Colour Temperature Presets:  Yes
• Dim Modes:  4
• Dim Curves:  4
• Built-in Automated Programs:  Yes
• Customisable Programs:  No
• Recall Custom Programs:  No

Control

• Control Protocol:  DMX, RDM, CRMX, NFC, RF
• DMX Channels:  5,8,14,66,85
• Modes/Personalities:  6 personalities (5ch,8ch,14ch,66ch,85ch)
• Wireless WDMX “G” Compatibility:  G4S
• Wireless Lumen Radio Compatibility:  CRMX

Electrical

• Input Voltage:  100 to 240 VAC, 50/60 Hz (auto-ranging)
• Single unit
  • Power Linking:  17 units @ 120 V; 30 units @ 208 V; 32 units @ 230 V
  • Power and Current:  80 W, 0.67 A @ 120 V, 60 Hz
  • Power and Current:  79 W, 0.40 A @ 208 V, 60 Hz
  • Power and Current:  79 W, 0.37 A @ 230 V, 50 Hz
• 4 Pack case
  • Power Linking:  5 units @ 120 V; 9 units @ 208 V; 10 units @ 230 V
  • Power and Current:  219 W, 2.04 A @ 120 V, 60 Hz
  • Power and Current:  222 W, 1.27 A @ 208 V, 60 Hz
  • Power and Current:  222 W, 1.1 A @ 230 V, 50 Hz

Battery

• Battery type:  Lithium Nickel Cobalt AL (Li) (NiCoAL)
• Rechargeable:  Yes
• Battery Charge Time:  7 hours
• Battery Life:  selectable:  off, 5, 8, 12, 18 hrs

Certifications / Qualifications

• CE, UKCA, FCC, ROHS
• IP Rating:  IP65, temporary outdoor/wet use
• Temperature (Ambient):  -4 °F to 113 °F (-20 °C to 45 °C)

Connections

• Power Connection:  Edison (local) plug to Seetronic PowerKon IP65
• Power Input (fixture and charging case):  Seetronic PowerKon IP65
• Power Output (fixture and charging case):  Seetronic PowerKon IP65
• Data Connectors:  5-pin XLR
• Cable Length (power):  5 ft (1.5 m)
• Software Connection:  USB-C

Construction / Physical

• Dimensions:  39.4 x 7.9 x 6.4 in (1001 x 200 x 163 mm)
• Weight:  16.4 lb (7.4 kg)
• Exterior Colour:  Black
• Housing Material:  Aluminium diecast
