Avolites Diamond 7 D7-215 Lighting Console Bundle (With Peli Case)
Avolites Diamond 7 D7-215 Lighting Console Bundle (With Peli Case) £24,542.00 inc VAT
£20,451.67 ex VAT
Back to products
Avolites Diamond 7 D7-330 Lighting Console Bundle (With Peli Case)
Avolites Diamond 7 D7-330 Lighting Console Bundle (With Peli Case) £35,135.00 inc VAT
£29,279.17 ex VAT
Avolites

Avolites Diamond 7 D7-330 Lighting Console Bundle (With Flight Case)

SKU: Bundle73
Avolites Diamond 7 D7-330 Lighting Console Bundle (With Flight Case)
Avolites Diamond 7 D7-330 Lighting Console Bundle (With Peli Case)
Avolites Diamond 7 D7-330 Lighting Console Bundle (With Peli Case)
Avolites Diamond 7 D7-330 Lighting Console Bundle (With Peli Case)
Click to enlarge

    £33,145.00 inc VAT
    £27,620.83 ex VAT

    Ordered from manufacturer. Allow 1–3 weeks
    VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
    1 Year Manufacturer Warranty Included
    About Stage Supply
    Chat to us on WhatsApp
    Compare the Range
    Avolites Diamond 7 D7-330 Lighting Console Bundle (With Flight Case)
    Avolites Diamond 7 D7-330 Lighting Console Bundle (With Flight Case)
    £33,145.00 inc VAT
    £27,620.83 ex VAT
    • Diamond 7 Generation
    • 3 x 30 Faders
    • 3 Touchscreens
    • Includes Flight Case
    Viewing Now
    Avolites Diamond 7 D7-215 Lighting Console
    Avolites Diamond 7 D7-215 Lighting Console
    £24,299.00 inc VAT
    £20,249.17 ex VAT
    • Diamond 7 Generation
    • 2 x 15 Faders
    • 2 Touchscreens
    • Console Only
    View →
    Avolites Diamond 7 D7-215 Lighting Console Bundle (With Flight Case)
    Avolites Diamond 7 D7-215 Lighting Console Bundle (With Flight Case)
    £24,542.00 inc VAT
    £20,451.67 ex VAT
    • Diamond 7 Generation
    • 2 x 15 Faders
    • 2 Touchscreens
    • Includes Flight Case
    View →
    Avolites Diamond 7 D7-215 Lighting Console Bundle (With Peli Case)
    Avolites Diamond 7 D7-215 Lighting Console Bundle (With Peli Case)
    £24,542.00 inc VAT
    £20,451.67 ex VAT
    • Diamond 7 Generation
    • 2 x 15 Faders
    • 2 Touchscreens
    • Includes Peli Case
    View →
    Avolites Diamond 7 D7-330 Lighting Console Bundle (With Peli Case)
    Avolites Diamond 7 D7-330 Lighting Console Bundle (With Peli Case)
    £35,135.00 inc VAT
    £29,279.17 ex VAT
    • Diamond 7 Generation
    • 3 x 30 Faders
    • 3 Touchscreens
    • Includes Peli Case
    View →
    Avolites Diamond 9 D9-215 Lighting Console Bundle
    Avolites Diamond 9 D9-215 Lighting Console Bundle
    £48,302.00 inc VAT
    £40,251.67 ex VAT
    • Diamond 9 Generation
    • 2 x 15 Faders
    • 2 Touchscreens
    • Latest Generation
    View →
    Avolites Diamond 9 D9-330 Lighting Console Bundle
    Avolites Diamond 9 D9-330 Lighting Console Bundle
    £61,192.00 inc VAT
    £50,993.33 ex VAT
    • Diamond 9 Generation
    • 3 x 30 Faders
    • 3 Touchscreens
    • Latest Generation
    View →

    About this Product

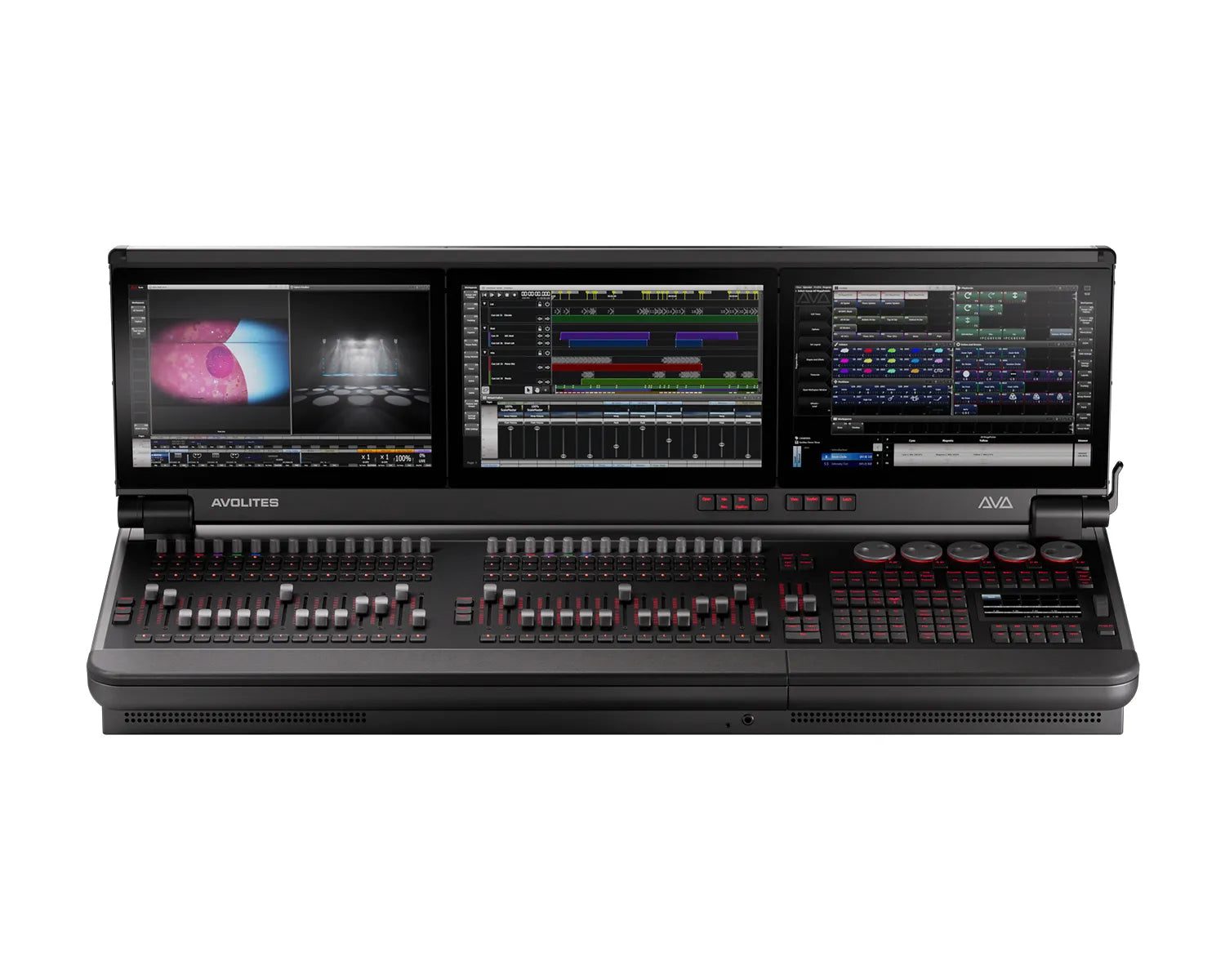

    The Avolites Diamond 7 D7-330 bundled with a purpose-built flightcase. The larger Diamond 7 variant, the D7-330 provides a 3 x 30 fader configuration for maximum hands-on playback control, following the same Diamond 9 design language with a clam shell screen panel. Suited to multi-purpose venues, broadcast environments, and corporate production where fader real estate and build quality matter.

    Fader Configuration
    3 x 30
    Diamond-series faders

    Screen Panel
    Clam Shell
    Folds for transport

    Case Type
    Flightcase
    Included in bundle

    Bundle Includes

    Everything included in this package:

    Diamond 7 D7-330 Console
    Flightcase

    Ideal For

    Key applications:

    Multi-Purpose Venues
    Broadcast
    Corporate Production

    Features
    ✓
    Diamond 9 design language — larger D7 variant
    ✓
    3 x 30 fader configuration for maximum playback access
    ✓
    Clam shell screen panel folds for transport
    ✓
    Purpose-built flightcase included
    ✓
    Titan operating system with full fixture library
    ✓
    Multi-user networking for complex multi-operator shows
    ✓
    Suited to broadcast, corporate, and venue environments
    ✓
    Premium build quality throughout

    Specifications
    SKU Bundle73
    Bundle Contents D7-330 console + flightcase
    Model D7-330 (3 x 30 fader banks)
    Operating System Avolites Titan
    Screen Panel Clam shell (folds for transport)
    Manufacturer Avolites

    More Information

    D7-330 Features

    • 30 Motorised touch-sensitive faders, with designer fader cap
    • Dual, motorised, touch-sensitive, master cue list fader with 9 control buttons
    • Single RGB LED Halo indicator alongside each fader
    • Halo RGB indicator for each playback
    • 30 ultra-high resolution touch sensitive playback encoders with push function
    • RGB halo indicator for each encoder
    • 120 C&K playback function buttons with positive haptics for timing, designer button cap
    • 3 x 14" 850 nits 1920 x 1200 capacitive touch main screens with adjustable brightness
    • 1 x 4.3" 850 nits 800 x 480 capacitive
    • touch macro and workspace screen with adjustable brightness
    • LED desk light above LCD screen
    • 10 backlit Macro / Executor key, plus
    • 10 soft Macro buttons with legend on
    • Macro screen Independent paging for each playback section
    • Programming buttons all RGB backlit, short travel Cherry MX Low Profile switches
    • 5 custom RGB backlit attribute encoders Dedicated level wheel and onscreen level indication

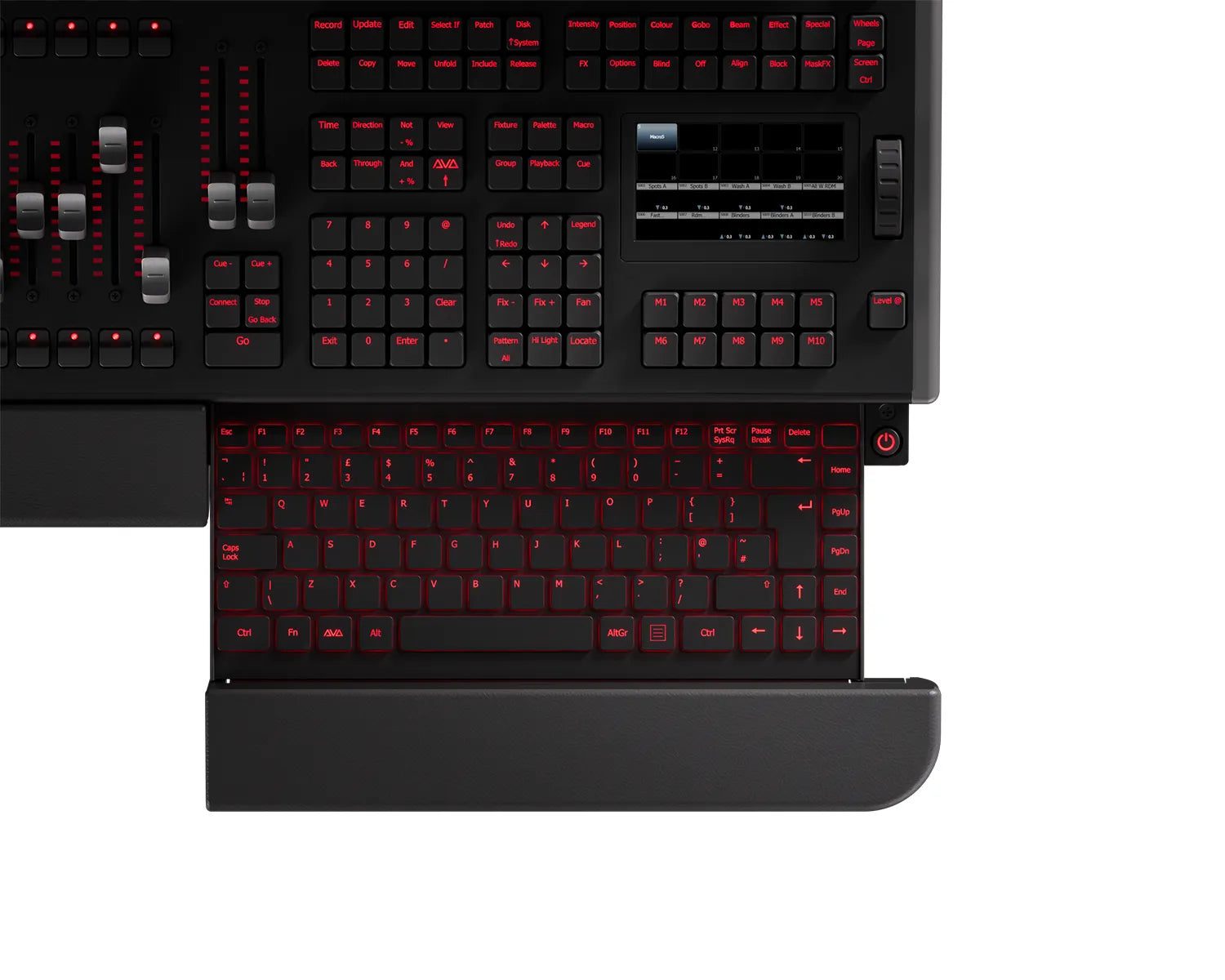

    • Full custom backlit QWERTY keyboard in drawer
    • Supports one additional external DisplayPort 1920*1080 touchscreen
    • All aluminium construction to reduce weight
    • Clam shell LCD panel design to reduce transport size, with positive locking mechanism, adjustable screen panel articulation in 6 degrees steps from - 90 to 155 degrees from vertical
    • Comfortable armrest
    • Exclusively manufactured button caps, fader caps, encoder knobs, encoder wheels and level wheel
    • All screens flush-mounted

    Similar Products

    Avolites Diamond 9 D9-215 Lighting Console Bundle

    Avolites Diamond 9 D9-215 Lighting Console Bundle

    £48,302.00 inc VAT
    £40,251.67 ex VAT

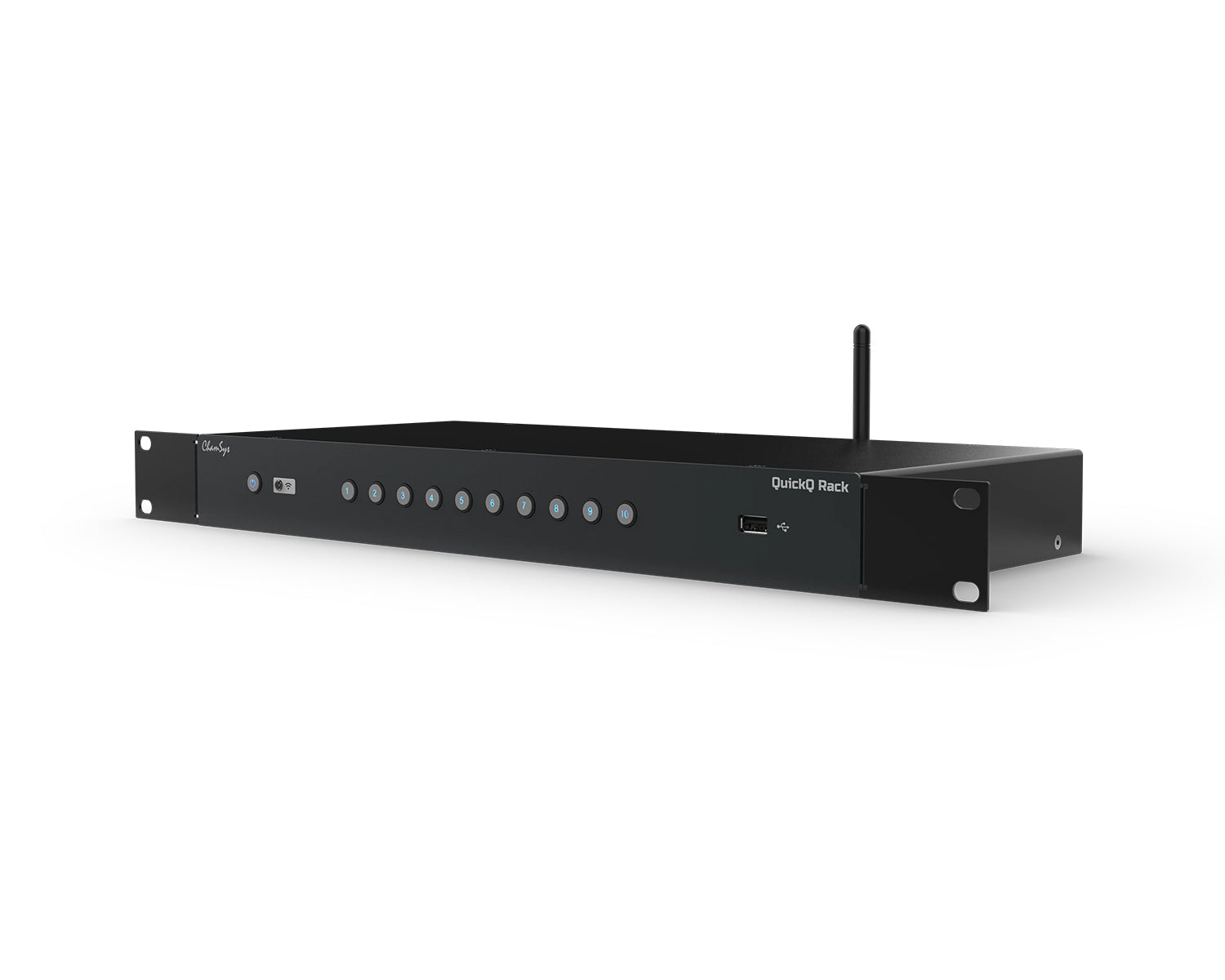

    ChamSys QuickQ Rack Lighting Control Console

    ChamSys QuickQ Rack Lighting Control Console

    £2,199.00 inc VAT
    £1,832.50 ex VAT

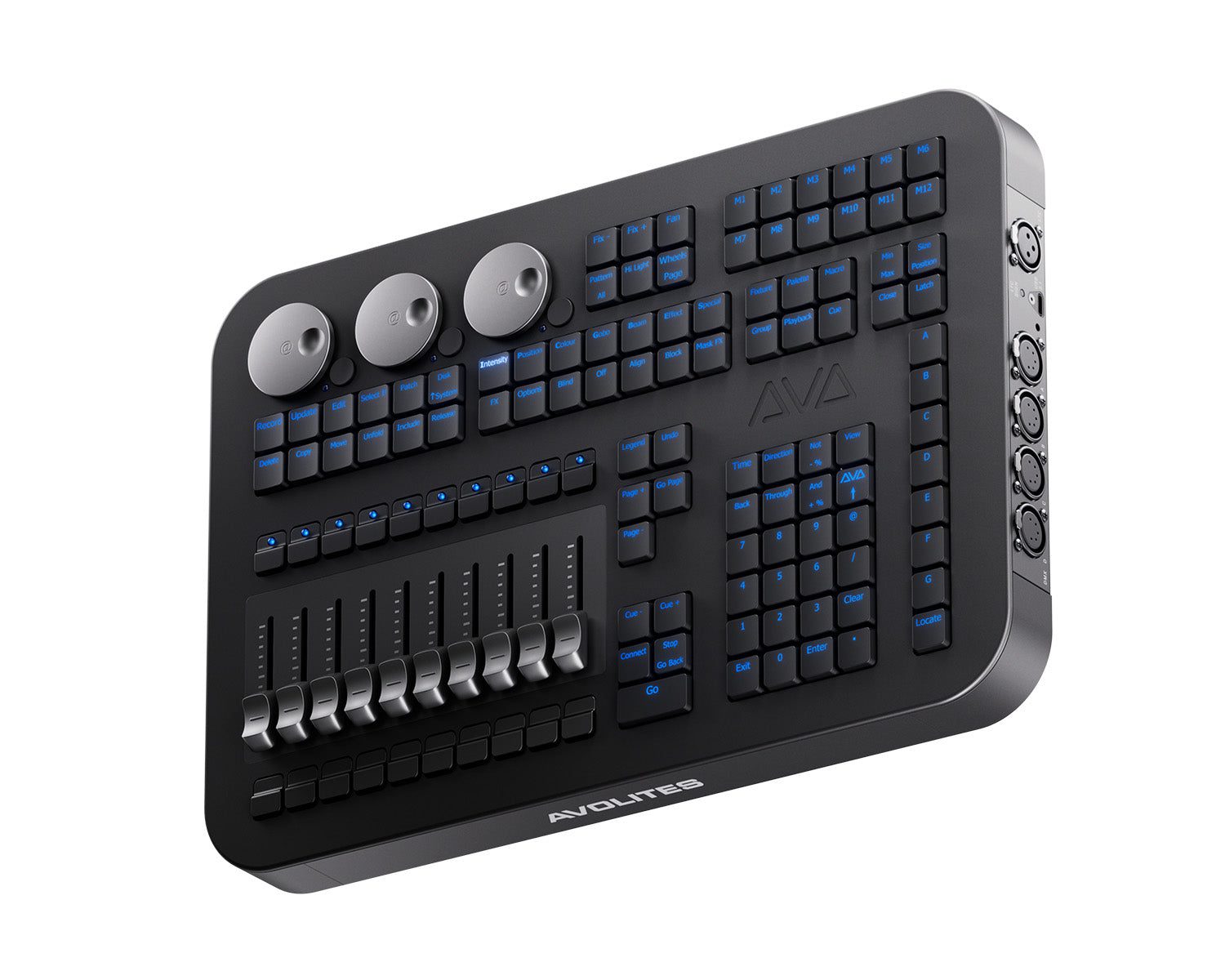

    Avolites T3 Lighting Controller

    Avolites T3 Lighting Controller

    £2,710.00 inc VAT
    £2,258.33 ex VAT

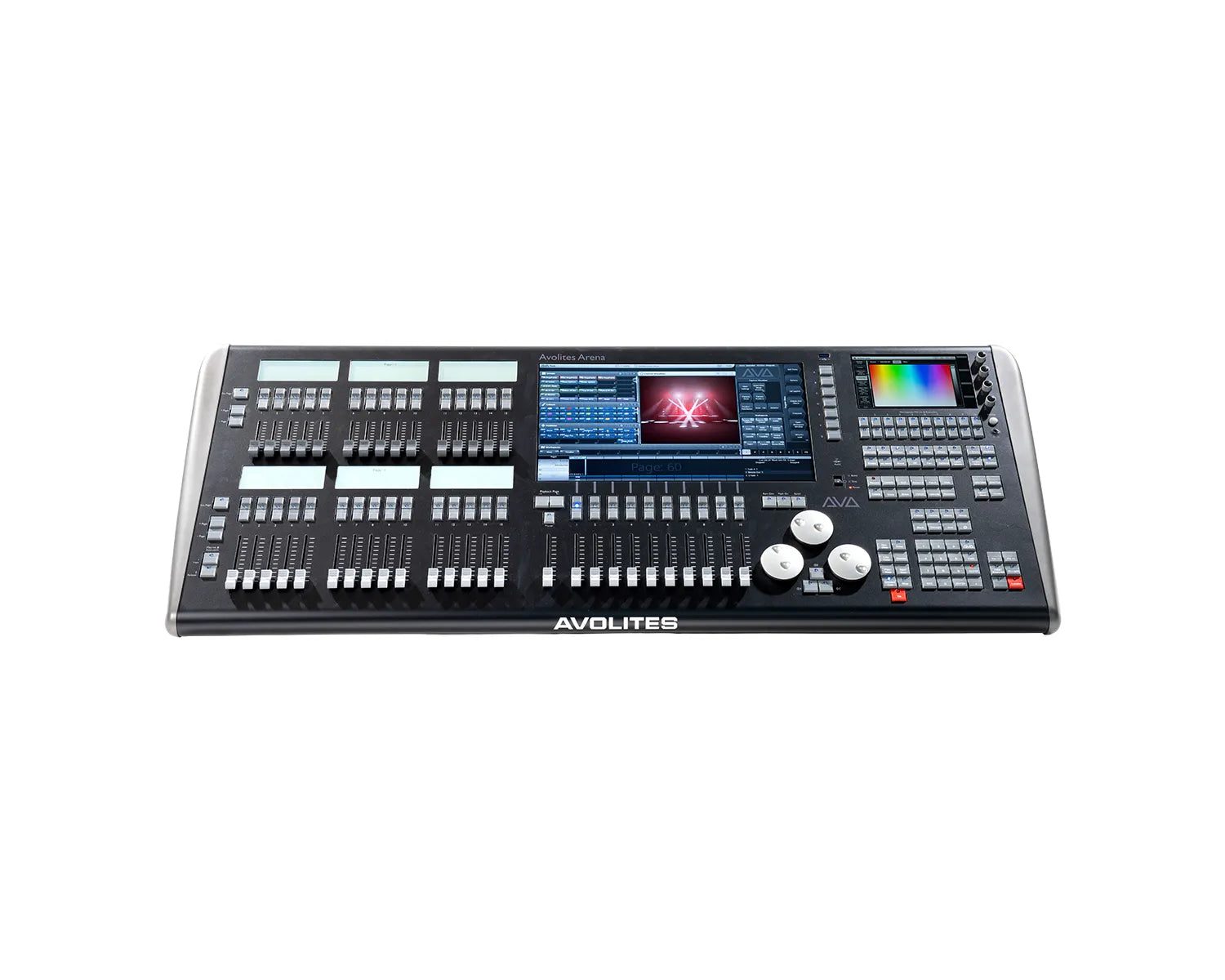

    Avolites Arena Live Lighting Console

    Avolites Arena Live Lighting Console

    £16,163.00 inc VAT
    £13,469.17 ex VAT

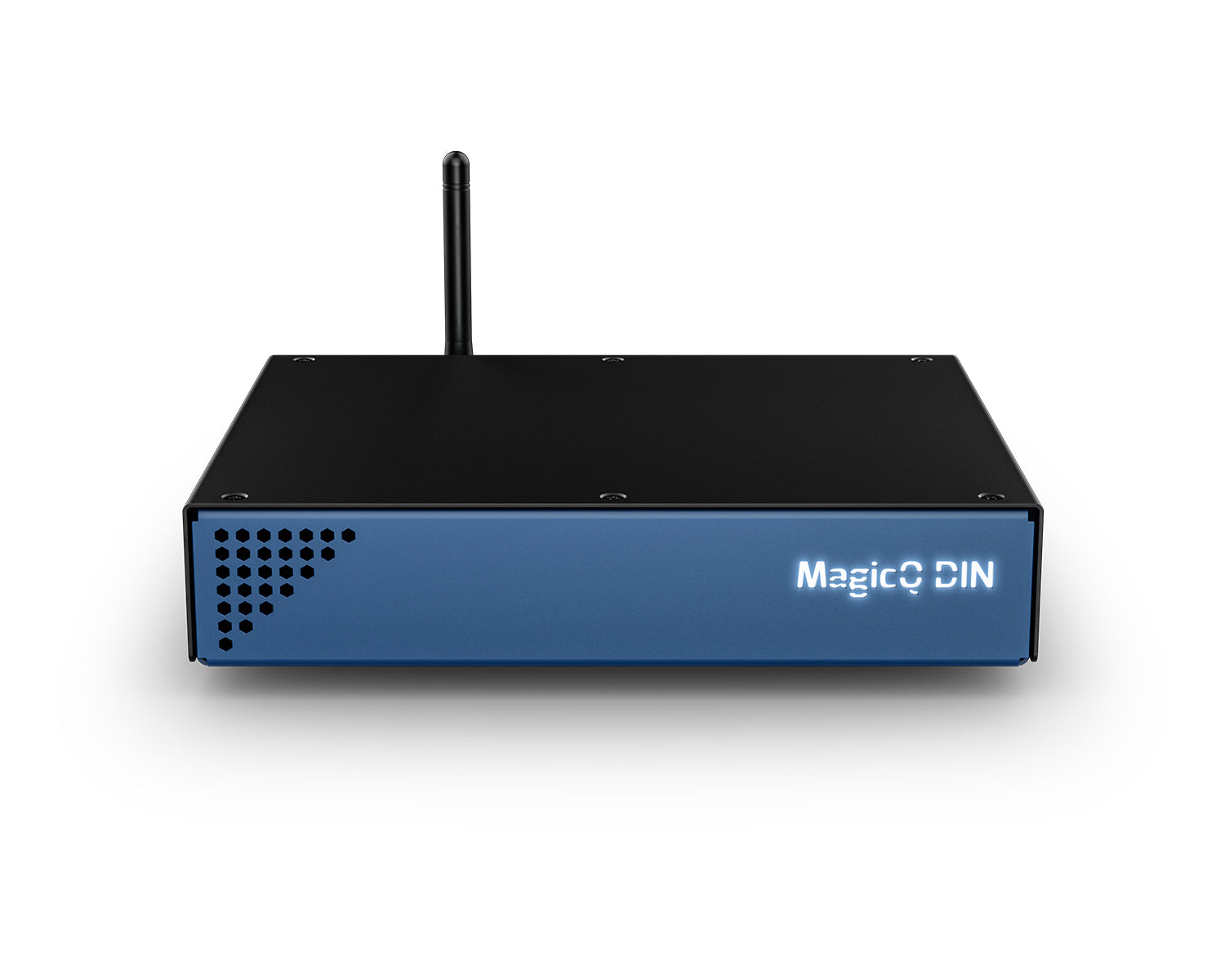

    ChamSys MagicQ DIN Lighting Control Console
