ADJ

ADJ 40 Hex IP Panel Outdoor LED Wash / Blinder

SKU: ADJ1226100438
ADJ 40 Hex IP Panel Outdoor LED Wash / Blinder
ADJ 40 Hex IP Panel Outdoor LED Wash / Blinder
ADJ 40 Hex IP Panel Outdoor LED Wash / Blinder
ADJ 40 Hex IP Panel Outdoor LED Wash / Blinder
ADJ 40 Hex IP Panel Outdoor LED Wash / Blinder
ADJ 40 Hex IP Panel Outdoor LED Wash / Blinder
Click to enlarge

    £1,200.00 inc VAT
    £1,000.00 ex VAT

    2 in stock

    Order in 19h 42m 59s for FREE delivery by Tuesday
    Click & collect available Monday ›
    VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
    2 Year Manufacturer Warranty Included
    About Stage Supply
    Chat to us on WhatsApp

    About this Product

    The ADJ 40 HEX IP Panel is an IP65 rated outdoor wash, blinder and colour strobe panel built around forty 20W six in one HEX LEDs (RGBAL plus UV). Ten independently controlled pixel zones, Aria X2 wireless management with over the air firmware updates and a magnetic removable diffusion filter frame make this a flexible heavy duty tool for concert touring, festival and outdoor production work.

    LEDs
    40 x 20W
    HEX RGBAL+UV

    Zones
    10
    pixel control

    IP Rating
    IP65

    Wireless
    Aria X2
    OTA updates

    Outdoor rated

    IP65 sealed all metal housing with IP65 locking power in / out and IP65 5 pin DMX in / out, designed for permanent outdoor installation and exposed touring positions.

    Features
    ✓40 x 20W six in one RGBAL plus UV HEX LEDs
    ✓10 independently controlled pixel zones
    ✓Wash, blinder and colour strobe in one fixture
    ✓IP65 rated all metal sealed housing
    ✓Flicker free for film and broadcast
    ✓Selectable LED refresh rate
    ✓Multiple DMX modes and dimming options
    ✓Aria X2 wireless management with OTA updates

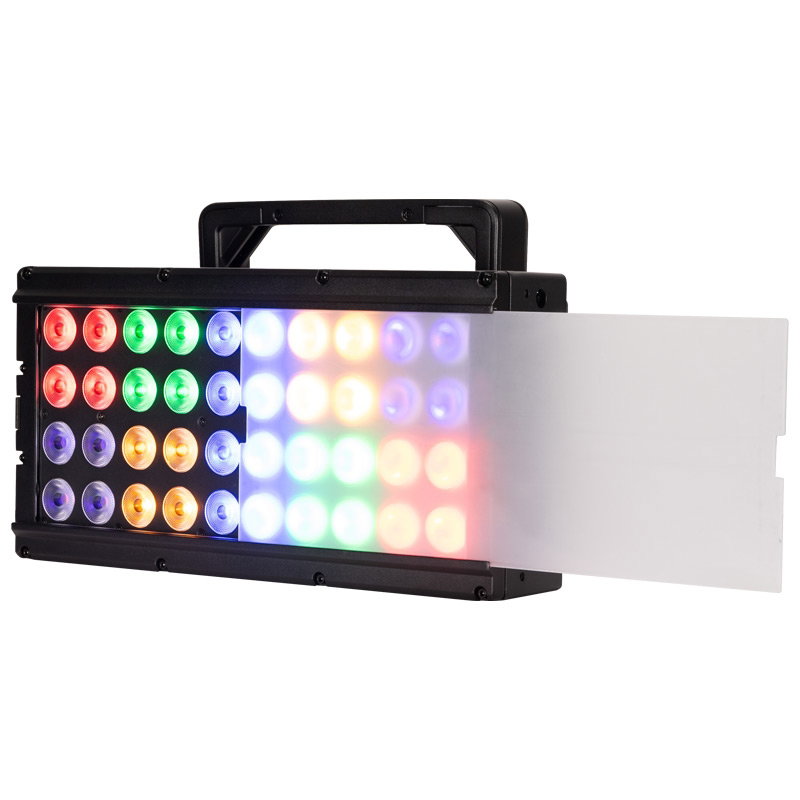

    ✓Magnetic removable diffusion filter frame
    ✓IP65 locking power in / out
    ✓IP65 5 pin DMX in / out
    ✓OLED display with touch buttons

    Specifications
    Brand ADJ
    LED source 40 x 20W HEX (RGBAL + UV)
    Pixel zones 10
    Control DMX-512, Aria X2 wireless
    Wireless features OTA firmware updates
    Power connections IP65 locking in / out
    DMX connections IP65 5 pin in / out
    Display OLED with touch buttons
    Housing All metal sealed
    IP rating IP65

    More Information

    Light Source:
    • LED: 40x 20W HEX (6-In-1) RGBAL+UV LEDs (50,000 hr.)
    • Beam Angle: X = 28.61°, Y = 23.72°
    • Field Angle: X = 50.82°, Y = 44.95°
    • Lumens: 19,590
    Features:
    • IP65 rated - protects from dust, sand, moisture, water
    • Aria X2 Management System
    • All-metal construction with black housing
    • Includes heavy-duty bracket
    • Flicker free for film and broadcast
    • Linear variable white temperature control
    Construction:
    • Display: OLED display with function buttons
    • All-metal heavy-duty housing built to last in outdoor or touring applications
    Control:
    • 24 DMX Control Modes; 6ch 1G / 12Ch 1G / 15Ch 1G / 16Ch 1G / 20Ch 1G / 24Ch 1G / 12Ch 2G / 20Ch 2G / 24Ch 2G / 27Ch 2G / 29Ch 2G / 36Ch 2G / 30Ch 5G / 40Ch 5G / 60Ch 5G / 63Ch 5G / 68Ch 5G / 72Ch 5G / 60Ch 10G / 70Ch 10G / 120Ch 10G / 123Ch 10G / 128Ch 10G & 132Ch 10G modes
    • 4 Control Groups: 1 / 2 / 5 & 10 Groups
    • 0-100% Dimming + smooth 16-bit Dimming
    • 5 Dimming Curve Modes
    • Control Mode: DMX512, RDM (Remote Device Management)
    • LED Refresh Rate: Multiple settings
    • With Wired Digital Communication Network
    Connections:
    • Data: IP65 Locking 5-pin DMX In/Out
    • Power: IP65 Locking Power In/Out
    Electrical:
    • 100-240V 50Hz/60Hz (Auto Sensing)
    • Max Power Consumption: 492W @220V
    • Max Power Link: 4pcs @230V
    • Fuse Protected: T4A/250V Glass Fuse (5x20MM)
    Dimensions / Weight:
    • Dimensions (LxWxH): 417x296.8x212mm
    • Weight: 11.15 kg
    What's Included:
    • 1 x IP65 Locking Power Cable
    • 1 x Frost Filter
    • 1 x Safety Cable
    Optional Accessories:
    • 180mm Omega Bracket
    • JPFXBLKF (Black Filter for Jolt Panel FX2 and Jolt Panel FXIP)
    • JPFX1X60LF (1x60° Linear Effect Filter for Jolt Panel FX2 and Jolt Panel FXIP)
    • JPFX60X1LF (60x1° Linear Effect Filter for Jolt Panel FX2 and Jolt Panel FXIP)
    Approvals and Ratings:
    • IP65
    Specifications are subject to change without notice.

    Manuals & Downloads

    PDFManuals & Instructions: adj_40_hex_panel_ip_-_user_manual.pdfPDF
