    About this Product

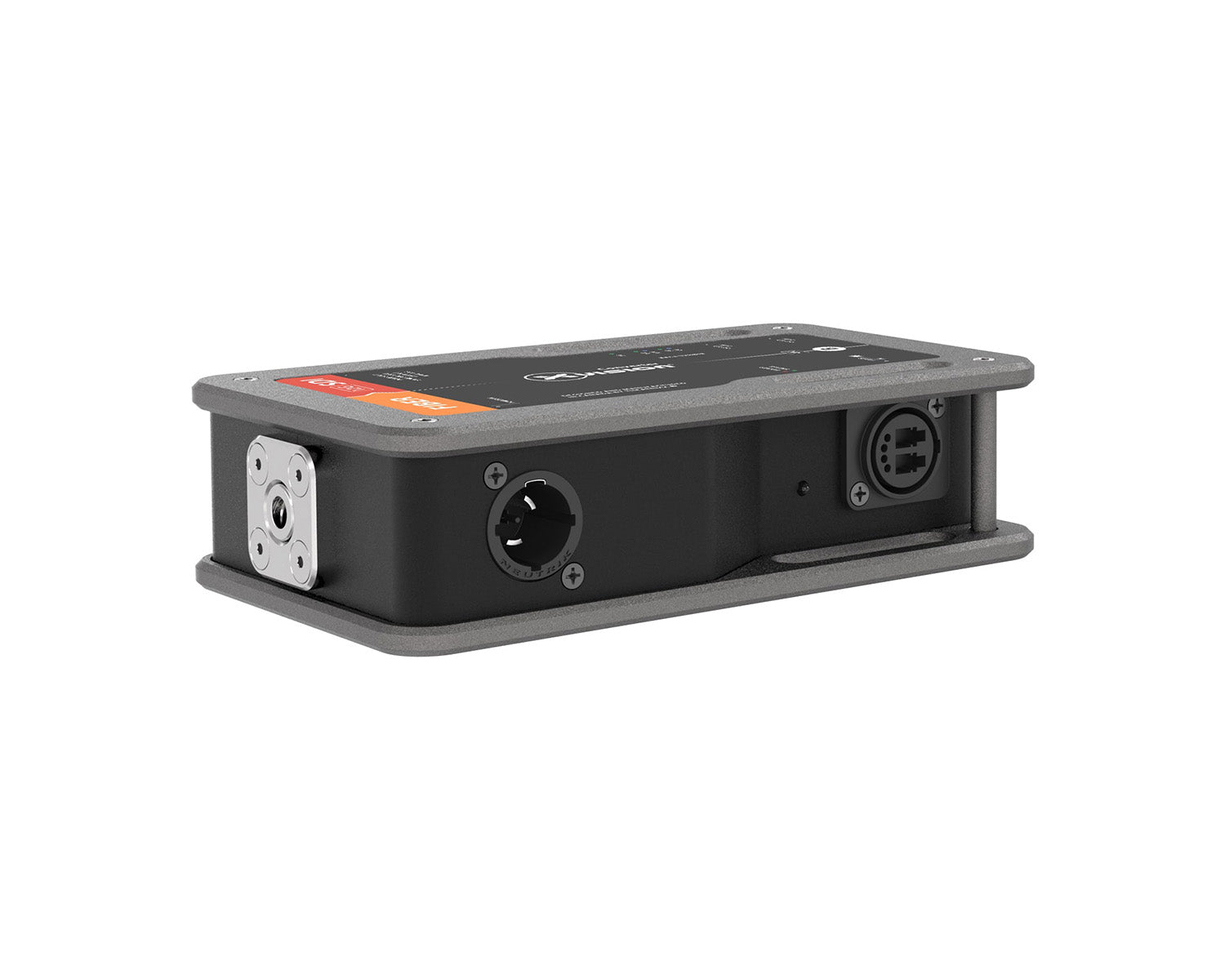

    Bring 4K signals in over single-mode fibre and output clean 12G-SDI. The Theatrixx xVision Fibre SingleMode to 12G-SDI converter is the receive end of a 4K fibre transport system, taking optical input via Neutrik opticalCON DUO and delivering 12G-SDI for integration into professional 4K infrastructure. Single-mode fibre support means maximum distance capability for the largest venues, broadcast compounds, and festival sites.

    Input
    Fibre SM
    opticalCON DUO

    Output
    12G-SDI
    4K capable

    Resolution
    4K UHD
    12G-SDI

    Form Factor
    A-Size
    Standalone

    Features
    ✓
    Converts single-mode fibre to 12G-SDI for 4K signal reception
    ✓
    Neutrik opticalCON DUO input – touring-grade fibre termination
    ✓
    Single-mode fibre for maximum transmission distance
    ✓
    Road-ready enclosure with no exposed PCBs
    ✓
    Internal power supply – no external power bricks needed
    ✓
    Professional locking connectors for secure connections
    ✓

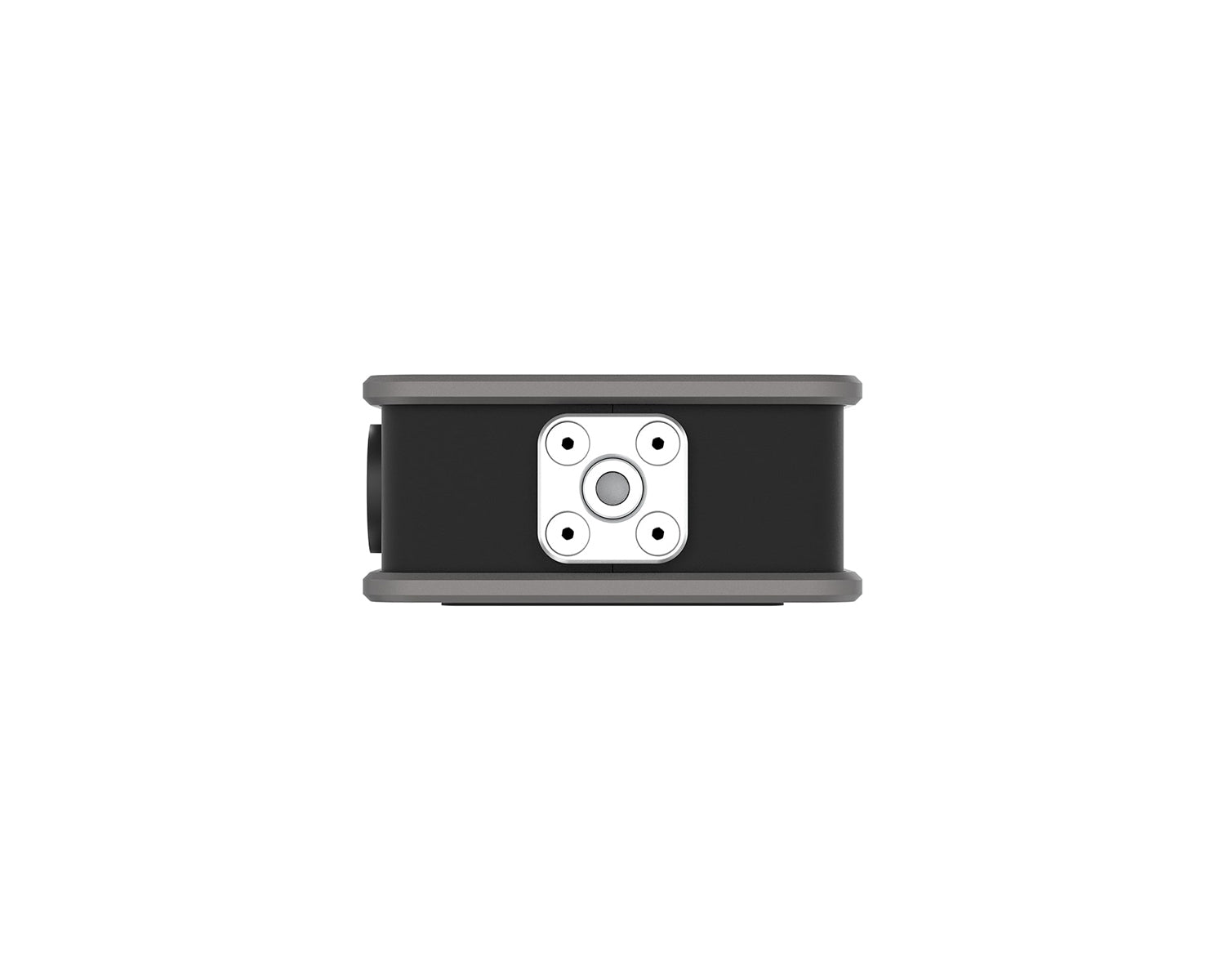

    Magnetic mounting system with spring-loaded plunger retention

    Specifications
    Input Single-mode fibre (opticalCON DUO)
    Output 12G-SDI
    Resolution Up to 4K UHD (12G-SDI)
    Input Connector Neutrik opticalCON DUO

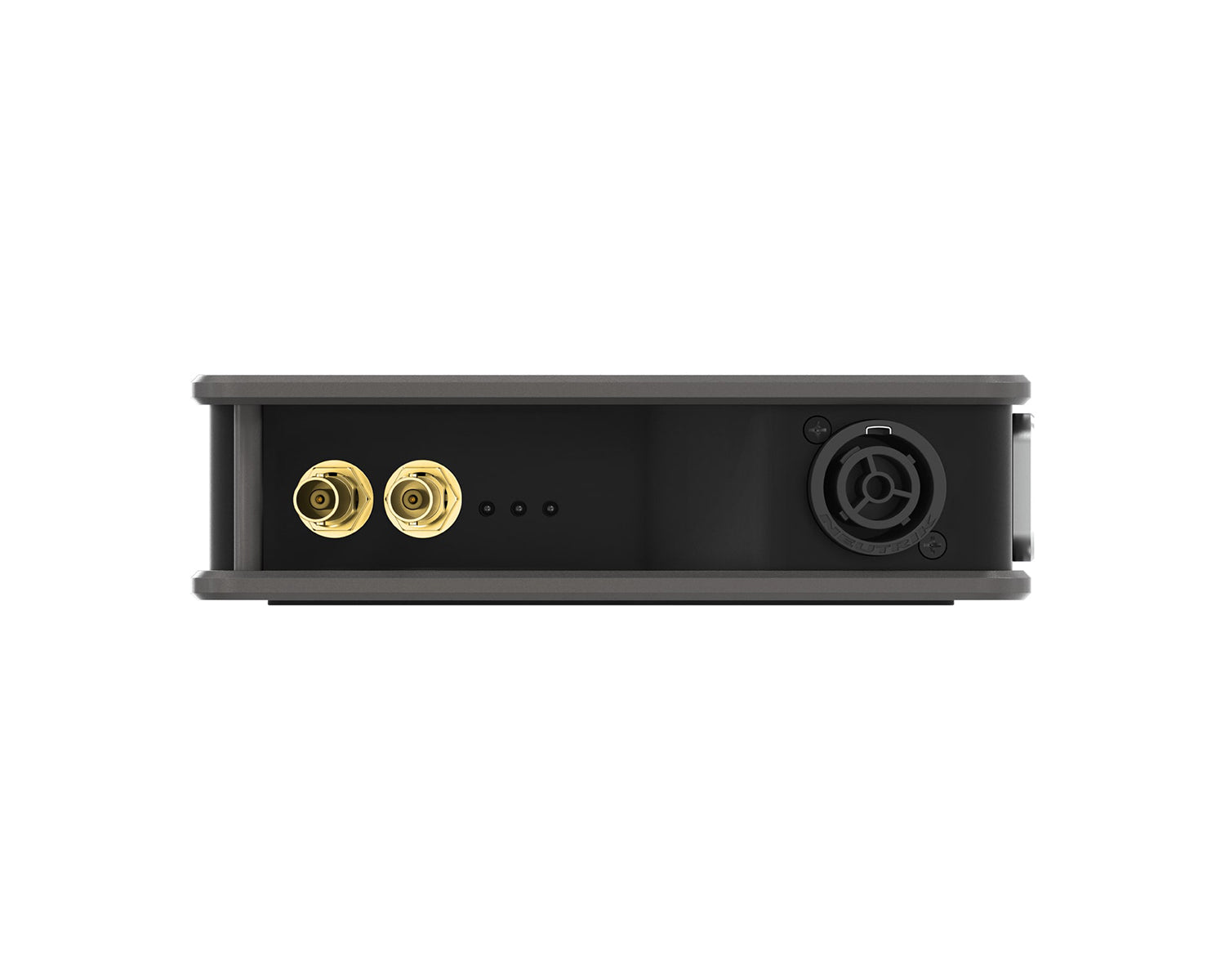

    Output Connector BNC (12G-SDI)
    Fibre Type Single-mode
    Form Factor A-Size Standalone
    SKU XVVFIBER2SDIT1-12GS2

    More Information

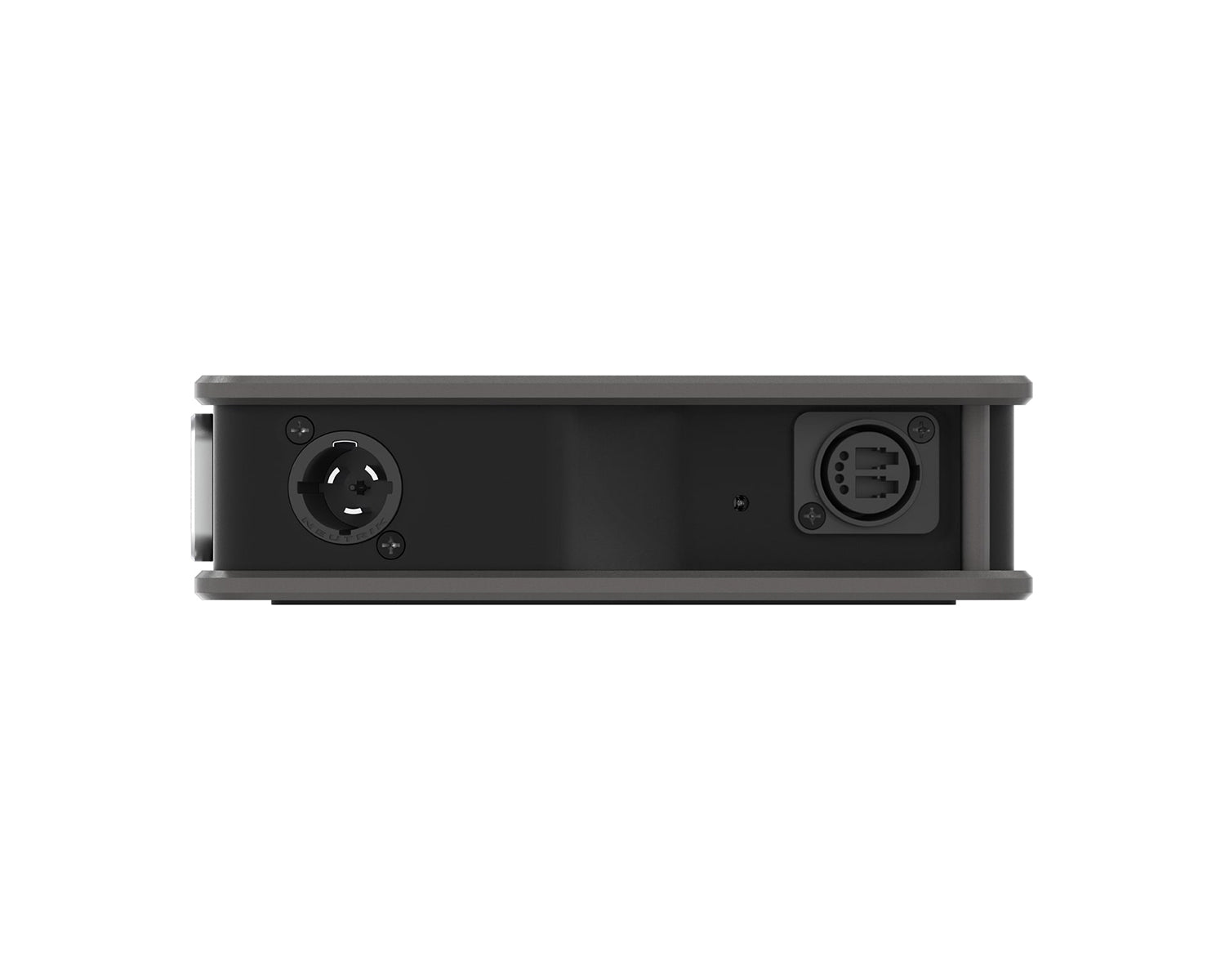

    • Integrated power supply with locking PowerCON True 1 Connector. Never rely on a cluster of wall-warts again.
    • Built-in convenience outlet to power nearby monitor, flat-screen, laptop, video projector or any device up to 10 amps… Power bar to connect both converter and device not required anymore.
    • Magnetic stacking system and non-skid rubber pad for table top application. Saves at least 10 gaffer tape rolls a year.
    • Multiple mounting options: C-Clamp, wall-mount adapter, LCD mount adapter and belt adaptor.
    • Rugged, Tour-ready and aesthetic enclosure: The sexiest widget in your tool box, that will keep looking good for years to come.
    • Plug-n-play operation; No dipswitches, buttons or menus to fumble with : It just works.
    • Clear and ample status LED indicators for quick troubleshooting.
    • Easy on-the-field identification with unique colour and alphabetic coding system.
    • Reclocked and amplified SDI loop thru
    • SFP-based video transmission for interoperability with standard SDI over fiber devices.
    • Available as singlemode and multimode types.
    • Proudly designed and assembled in Canada.
