Allen & Heath dLive S Class S3000 Control Surface

SKU: DLIVE-S3/240X
Allen & Heath dLive S Class S3000 Control Surface
Allen & Heath dLive S Class S3000 Control Surface
Allen & Heath dLive S Class S3000 Control Surface
Allen & Heath dLive S Class S3000 Control Surface
Allen & Heath dLive S Class S3000 Control Surface
Allen & Heath dLive S Class S3000 Control Surface
Click to enlarge

    Usually delivered in 2–3 working days
    VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
    1 Year Manufacturer Warranty Included
    About Stage Supply
    Chat to us on WhatsApp

    About this Product

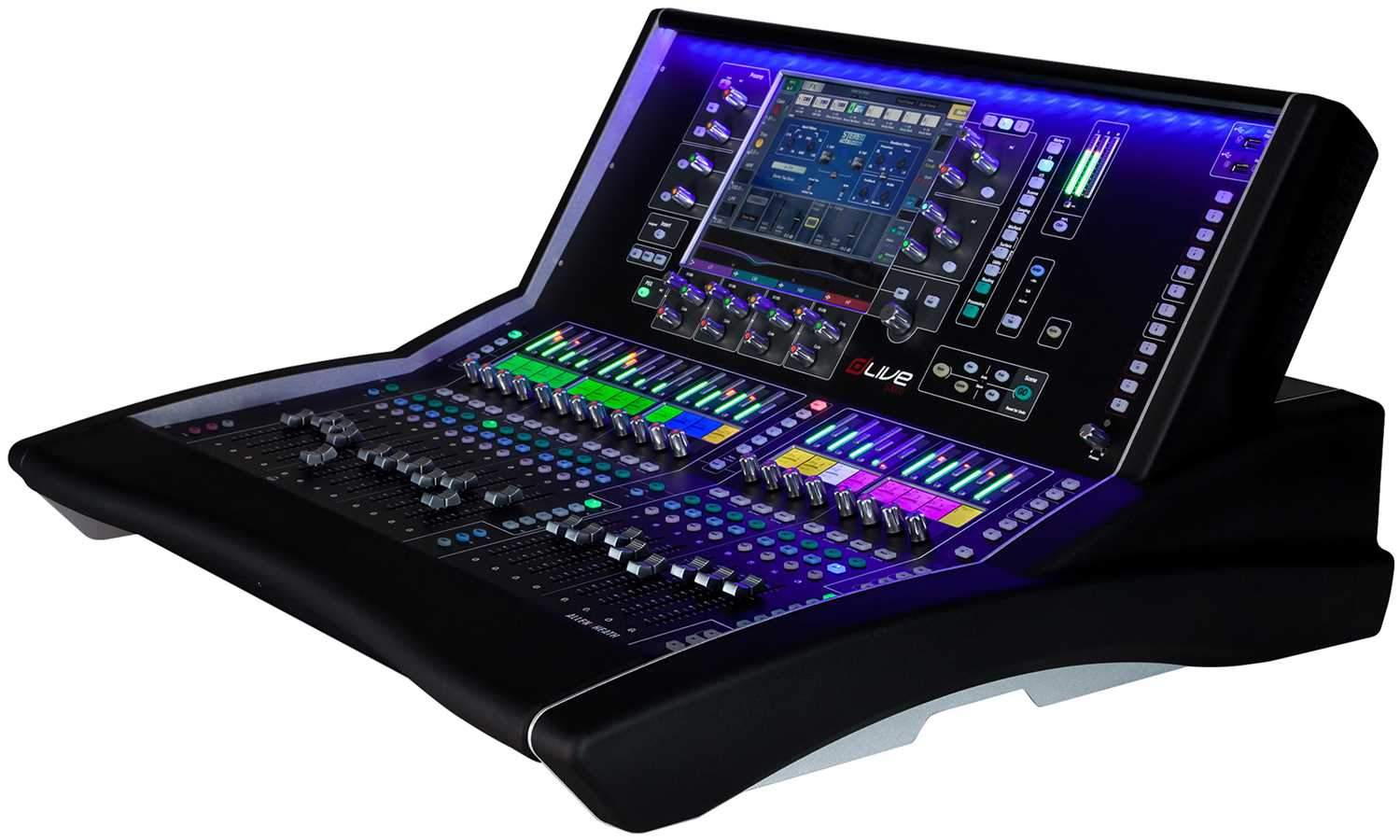

    The dLive S3000 is the most compact S Class control surface in the dLive range, delivering the full power of the dLive mixing platform in a small-footprint frame. Designed for touring engineers, production companies, and venues that need serious channel counts without the desk space of a full-size console, the S3000 pairs with any dLive MixRack over gigaACE for a complete system.

    Faders
    20
    120 strips across 6 layers

    Touchscreen
    12″
    Capacitive multitouch

    SoftKeys
    26
    Fully assignable

    Sample Rate
    96 kHz
    With 96-bit accumulator

    System Architecture

    The S3000 connects to any dLive MixRack via gigaACE, providing redundant audio transport over standard Cat5e. The surface includes built-in audio I/O and an audio networking port, plus a DX link for connecting additional I/O expanders. S Class surfaces feature hot-swappable, redundant power supplies shared across the entire dLive range.

    Compatible MixRacks

    Pairs with any dLive MixRack via gigaACE

    DM0
    DM32U
    DM48U
    DM64U

    Expansion Options

    Expand I/O with DX and gigaACE expanders

    DX32
    DX168
    GX4816
    DX012

    Features
    ✓
    Harmony UI with pinch, swipe and drag-and-drop touchscreen control
    ✓
    RGB-illuminated rotary controls with colour-mapped functions
    ✓
    Fully customisable layout — assign any input or mix to any fader layer
    ✓
    Configurable widget areas for scenes, meters, FX and custom controls
    ✓
    Built-in audio I/O and audio networking port
    ✓
    Hot-swappable redundant power supplies
    ✓
    Redundant gigaACE audio connections to MixRack
    ✓
    High-visibility display optimised for outdoor use
    ✓
    3 pages of 6 assignable rotaries per screen
    ✓
    Virtual scribble strips with naming and colour coding

    Specifications
    Faders 20 motorised (120 strips across 6 layers)
    Touchscreens 1 x 12″ capacitive multitouch
    Assignable SoftKeys 26
    MixRack Connection gigaACE (redundant)
    Built-in I/O Yes — audio I/O and networking port
    Power Supply Dual redundant, hot-swappable
    SKU DLIVE-S3/240X

    More Information

    Features:

    • 20 faders
    • Fully assignable layout - 120 fader strips
    • Harmony UI integrates screen and wrap-around controls
      • Single 12" capacitive touchscreen
      • Gesture control - pinch, swipe, drag 'n drop
      • Dedicated multi-mode EQ view
      • Configurable widget areas for Scenes, meters, FX and more
      • 3 pages of 6 assignable rotaries
    • 26 assignable SoftKeys
    • Engineer's Wedge and IEM fader strips
    • Comprehensive multipoint metering
    • Daylight visibility
    • USB stereo recording and playback

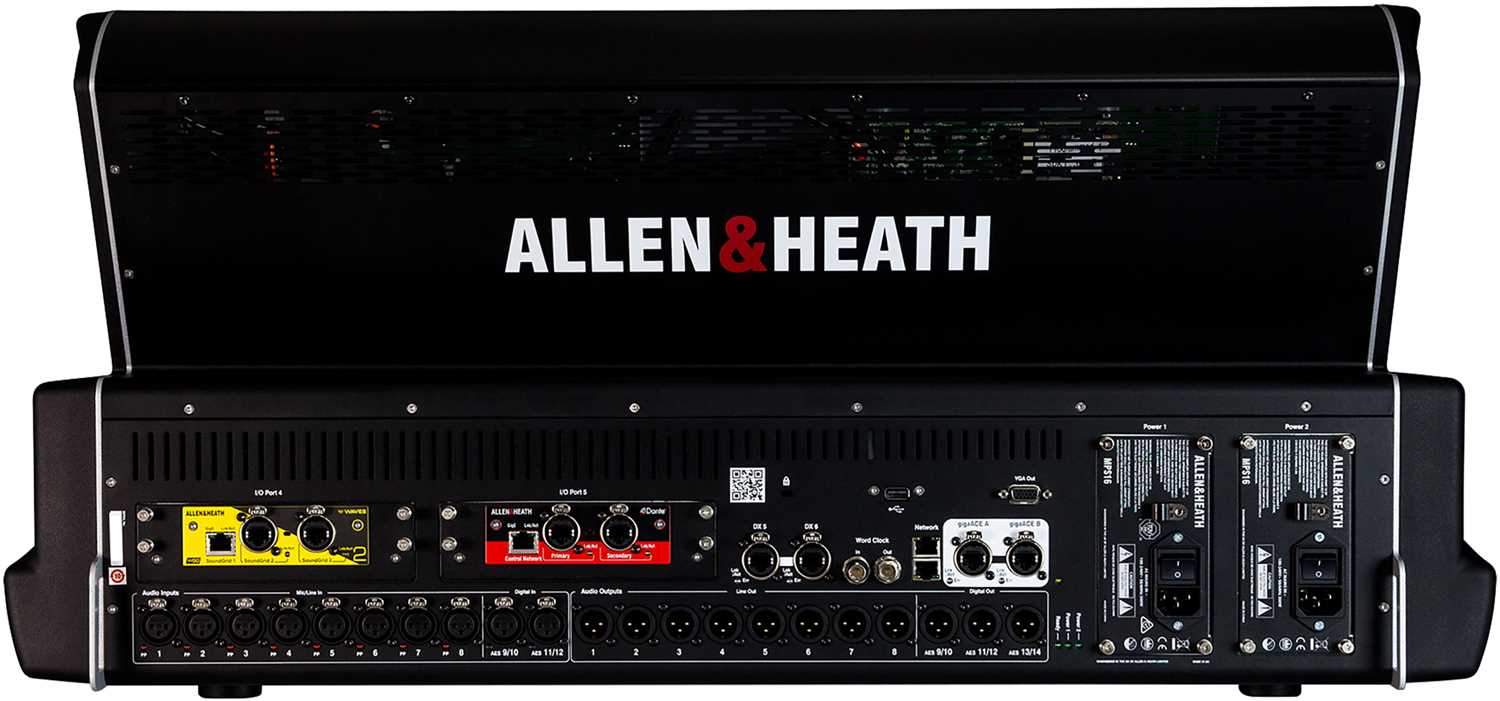

    • 8 XLR mic/line in, 8 XLR line out
    • 2 digital st AES3 in, 3 digital st AES3 out
    • Connection hub
      • Dual redundant GigaAce gigabit link to MixRack
      • 1x redundant DX link for I/O expansion
      • 2x I/O Ports - 128 ch 96 kHz each
      • 2x Network ports
      • Wordclock BNC I/O
      • Video output
    • Dual redundant, hot swappable power supply
    • 3 Year Warranty

    Manuals & Downloads

    PDFUser ManualPDF
    PDFTech SpecsPDF
    PDFWeight & DimensionsPDF
