    About this Product

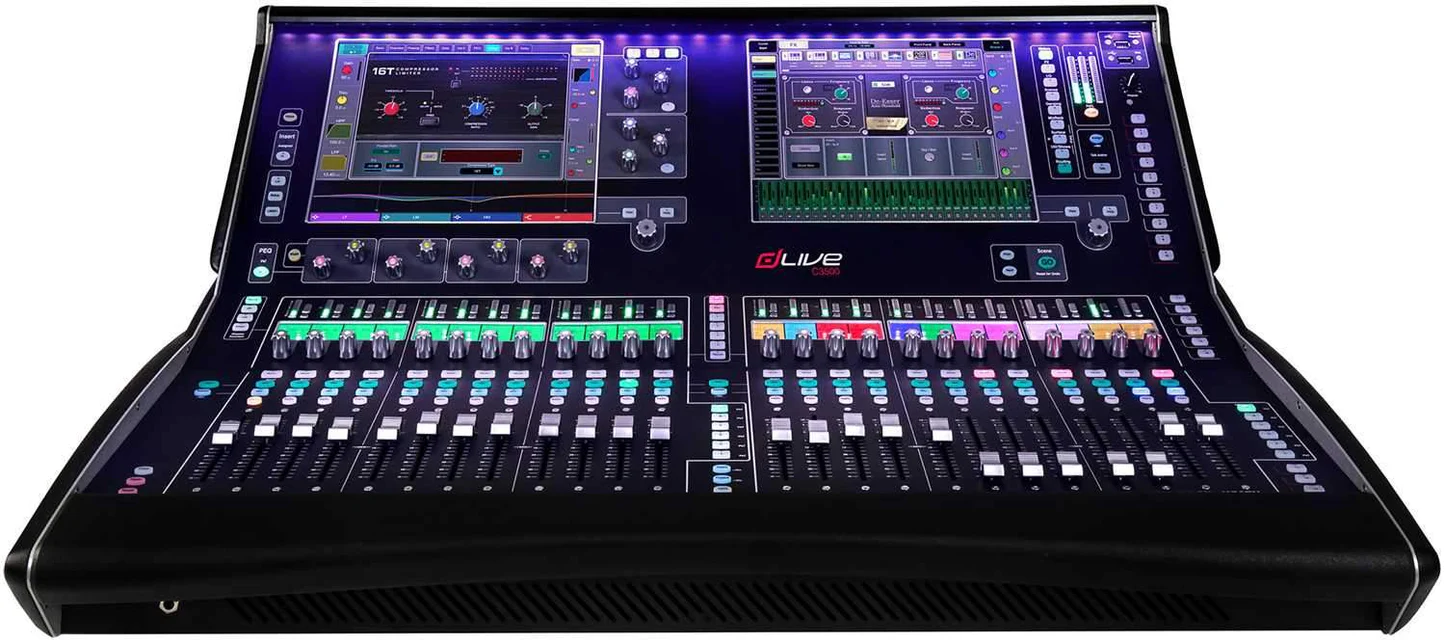

    The dLive C3500 is the largest C Class control surface, offering 24 faders across 6 layers and dual 12″ capacitive touchscreens. It bridges the gap between the compact C Class range and the full-size S Class, making it a strong choice for venues, touring systems, and production environments that want the dual-screen workflow and higher fader count of a larger desk with the cost efficiency of the C Class platform.

    Faders
    24
    144 strips across 6 layers

    Touchscreens
    2 x 12″
    Capacitive multitouch

    SoftKeys
    19
    Fully assignable

    Local I/O
    6 in / 6 out
    Mic/line in, line out

    System Architecture

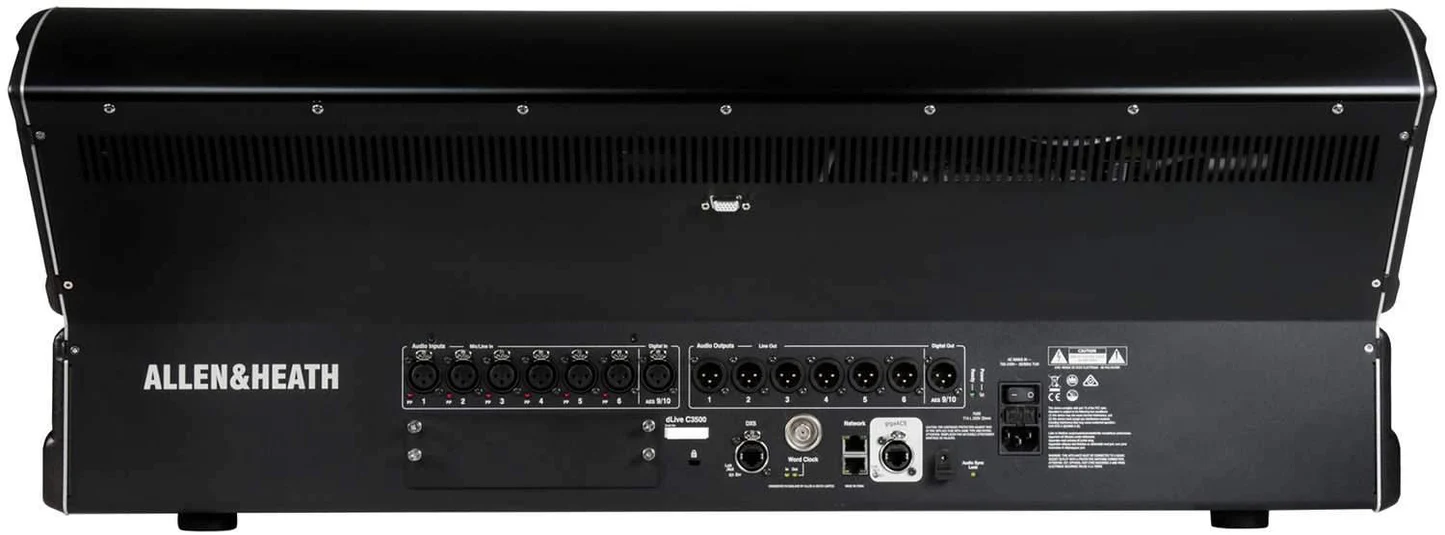

    The C3500 connects to any dLive MixRack via gigaACE with a DX link for I/O expansion. Built-in I/O includes 6 mic/line inputs, 6 line outputs, AES3 stereo digital I/O, a 128-channel 96 kHz I/O port, 2 network ports, Wordclock BNC I/O, and a video output. Dual touchscreens enable independent layouts — channel processing on one screen and meters, scenes, or FX on the other.

    Features
    ✓
    Dual 12″ capacitive touchscreens with Harmony UI
    ✓
    24 faders — largest C Class surface
    ✓
    6 mic/line inputs and 6 line outputs built in
    ✓
    AES3 stereo digital input and output
    ✓
    Fully customisable fader layout across all 6 layers
    ✓
    RGB-illuminated rotary controls with colour-mapped functions
    ✓
    Configurable widget areas for scenes, meters, FX and custom controls
    ✓
    Integrated power supply

    Specifications
    Faders 24 motorised (144 strips across 6 layers)
    Touchscreens 2 x 12″ capacitive multitouch
    Assignable SoftKeys 19
    Local Analogue Inputs 6 mic/line
    Local Analogue Outputs 6 line
    Digital I/O 1 stereo AES3 in / 1 stereo AES3 out
    I/O Port 128 channel, 96 kHz
    MixRack Connection gigaACE
    Power Supply Integrated
    SKU DLIVE-DLC35/240X

    More Information

    Features:

    • 24 faders
    • Fully assignable layout - 144 fader strips
    • Harmony UI integrates screen and wrap-around controls
    • Dual 12" capacitive touchscreens
    • Gesture control - pinch, swipe, drag 'n drop
    • Dedicated multi-mode EQ view
    • Configurable widget areas for Scenes, meters, FX and more
    • 3 pages of 6 assignable rotaries
    • 19 assignable SoftKeys
    • Engineer's Wedge and IEM fader strips
    • Comprehensive multipoint metering
    • Daylight visibility
    • USB stereo recording and playback
    • 6 XLR mic/line in, 6 XLR line out
    • 1 digital st AES3 in, 1 digital st AES3 out
    • Connection hub
    • GigaAce gigabit link to MixRack
    • DX link for I/O expansion
    • I/O Port - 128 ch 96 kHz
    • 2x Network ports
    • Wordclock BNC I/O
    • Video output

    Manuals & Downloads

    PDFUser ManualPDF
    PDFTech SpecsPDF
    PDFWeight & DimensionsPDF
