    About this Product

    The dLive C2500 is the mid-size C Class control surface, packing 20 faders across 6 layers into a compact frame with built-in audio I/O and networking. It brings the full dLive mixing engine to venues, houses of worship, and production companies that need more physical faders than the C1500 without stepping up to a full S Class desk.

    Faders
    20
    120 strips across 6 layers

    Touchscreen
    12″
    Capacitive multitouch

    SoftKeys
    19
    Fully assignable

    Local I/O
    6 in / 6 out
    Mic/line in, line out

    System Architecture

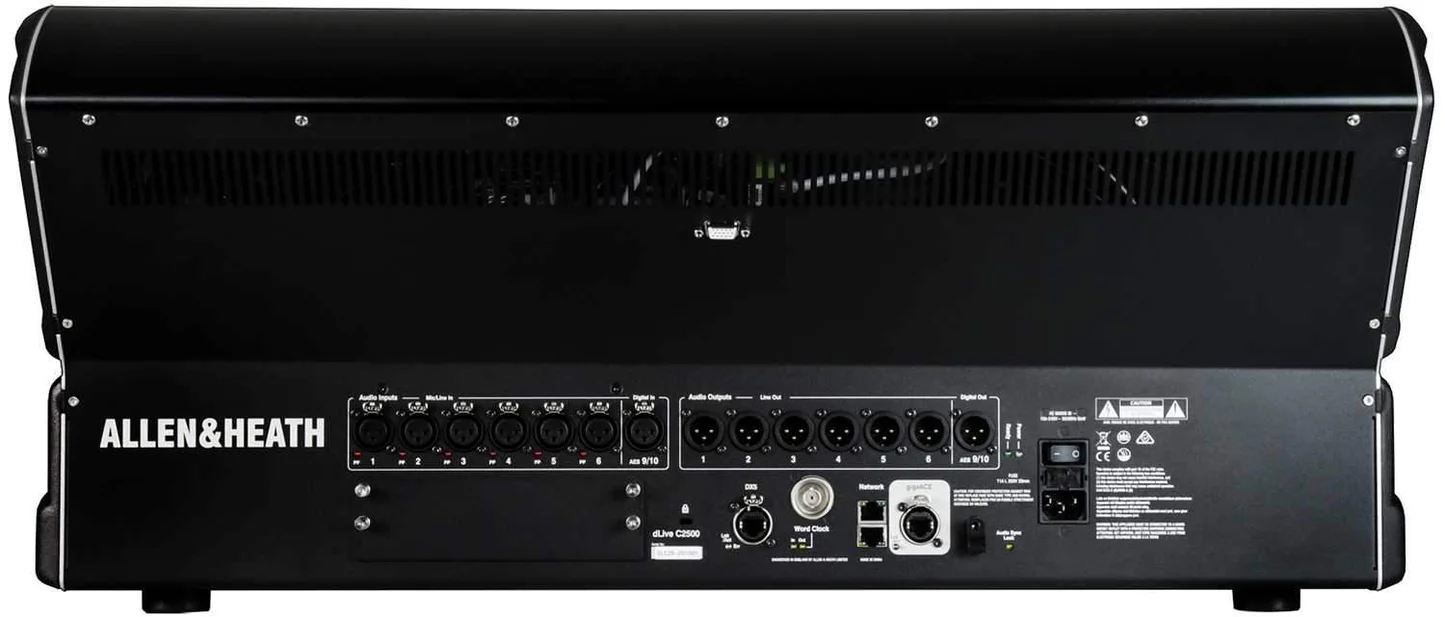

    The C2500 connects to any dLive MixRack via gigaACE with a DX link for I/O expansion. Built-in I/O includes 6 mic/line inputs, 6 line outputs, AES3 stereo digital I/O, a 128-channel 96 kHz I/O port, 2 network ports, Wordclock BNC I/O, and a video output. The integrated PSU keeps the footprint compact for fixed installations.

    Features
    ✓
    12″ capacitive touchscreen with Harmony UI
    ✓
    20 faders — same count as the S3000 in a more compact frame
    ✓
    6 mic/line inputs and 6 line outputs built in
    ✓
    AES3 stereo digital input and output
    ✓
    Fully customisable fader layout across all 6 layers
    ✓
    RGB-illuminated rotary controls with colour-mapped functions
    ✓
    Configurable widget areas for scenes, meters, FX and custom controls
    ✓
    Integrated power supply

    Specifications
    Faders 20 motorised (120 strips across 6 layers)
    Touchscreen 1 x 12″ capacitive multitouch
    Assignable SoftKeys 19
    Local Analogue Inputs 6 mic/line
    Local Analogue Outputs 6 line
    Digital I/O 1 stereo AES3 in / 1 stereo AES3 out
    I/O Port 128 channel, 96 kHz
    MixRack Connection gigaACE
    Power Supply Integrated
    SKU DLIVE-DLC25/240X

    More Information

    Features:

    • 20 faders
    • Fully assignable layout - 120 fader strips
    • Harmony UI integrates screen and wrap-around controls
      • Single 12" capacitive touchscreen
      • Gesture control - pinch, swipe, drag 'n drop
      • Dedicated multi-mode EQ view
      • Configurable widget areas for Scenes, meters, FX and more
      • 3 pages of 6 assignable rotaries
    • 19 assignable SoftKeys
    • Engineer's Wedge and IEM fader strips
    • Comprehensive multipoint metering
    • Daylight visibility
    • USB stereo recording and playback
    • 6 XLR mic/line in, 6 XLR line out
    • 1 digital st AES3 in, 1 digital st AES3 out
    • Connection hub
      • GigaAce gigabit link to MixRack
      • DX link for I/O expansion
      • I/O Port - 128 ch 96 kHz
      • 2x Network ports
      • Wordclock BNC I/O
      • Video output

    Manuals & Downloads

    PDFUser ManualPDF
    PDFTech SpecsPDF
    PDFWeight & DimensionsPDF
