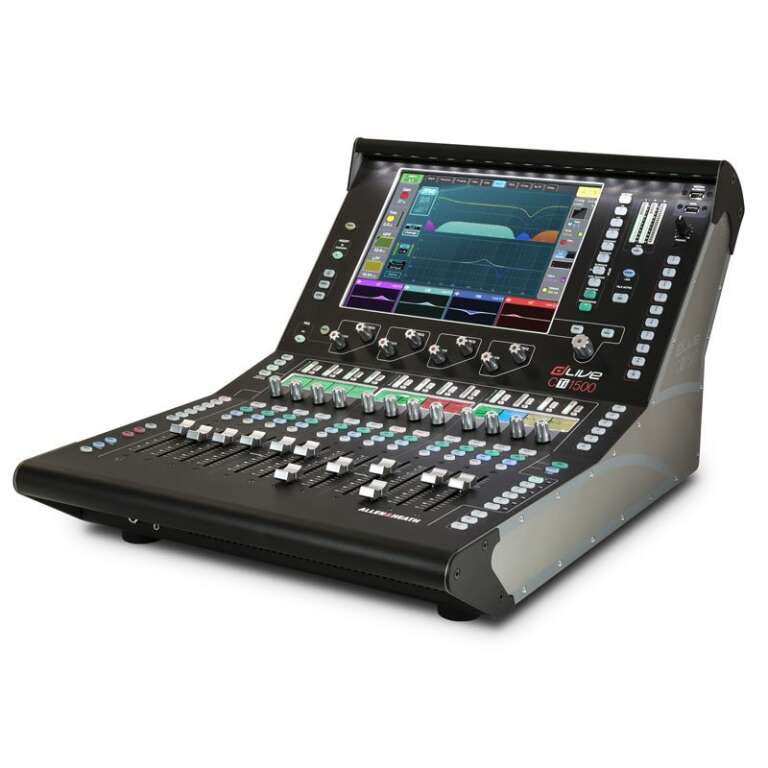

Allen & Heath dLive CTi1500 12 Fader Surface

SKU: DLIVE-CTI15/240x
Allen & Heath dLive CTi1500 12 Fader Surface
Allen & Heath dLive CTi1500 12 Fader Surface
Click to enlarge

    Usually delivered in 2–3 working days
    VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
    3 Year Manufacturer Warranty Included
    About Stage Supply
    Chat to us on WhatsApp

    About this Product

    The dLive CTi1500 is the ultra-portable entry point to the dLive C Class surface range. With 12 faders across 6 layers, a 12″ capacitive touchscreen, and built-in audio I/O including mic/line inputs and AES3 digital connectivity, it delivers the full dLive mixing experience in the smallest possible footprint — ideal for fly dates, remote broadcast positions, and compact installed systems.

    Faders
    12
    72 strips across 6 layers

    Touchscreen
    12″
    Capacitive multitouch

    SoftKeys
    19
    Fully assignable

    Local I/O
    6 in / 6 out
    Mic/line in, line out

    System Architecture

    The CTi1500 connects to any dLive MixRack via gigaACE with a DX link for I/O expansion. Built-in I/O includes 6 mic/line inputs, 6 line outputs, 1 stereo AES3 input and 1 stereo AES3 output, a 128-channel 96 kHz I/O port, 2 network ports, Wordclock BNC I/O, and a video output. The integrated PSU and ultra-compact form factor make it the most portable dLive surface option.

    Features
    ✓
    Ultra-portable design — the lightest dLive surface
    ✓
    12″ capacitive touchscreen with Harmony UI
    ✓
    6 mic/line inputs and 6 line outputs built in
    ✓
    AES3 stereo digital input and output
    ✓
    128-channel 96 kHz I/O port for option cards
    ✓
    Fully customisable fader layout across all 6 layers
    ✓
    gigaACE and DX link connections
    ✓
    Integrated power supply

    Note

    The CTi1500 shares the same 12-fader layout and I/O complement as the C1500 but in a more travel-friendly chassis. Both surfaces are fully compatible with all dLive MixRacks and share identical mixing capabilities.

    Specifications
    Faders 12 motorised (72 strips across 6 layers)
    Touchscreen 1 x 12″ capacitive multitouch
    Assignable SoftKeys 19
    Local Analogue Inputs 6 mic/line
    Local Analogue Outputs 6 line
    Digital I/O 1 stereo AES3 in / 1 stereo AES3 out
    I/O Port 128 channel, 96 kHz
    MixRack Connection gigaACE
    Power Supply Integrated
    SKU DLIVE-CTI15/240x

    More Information

    dLive CTi1500 Features

    Ultra-Portable Design

    • Weighs just 11.5 kg (25.4 lbs)
    • Fly-ready: sub-23 kg with flightcase*, I/O card & dust cover
    • Built with titanium side panels and lightweight alloy metalwork
      *Requires flightcase under 10 kg (22 lbs)

    Flexible Control Surface

    • 12 motorised faders with a fully assignable layout (up to 72 fader strips)
    • 12" capacitive touchscreen with Harmony UI for seamless control
    • Gesture control - pinch, swipe, drag & drop
    • Wrap-around controls for intuitive mixing
    • Dedicated EQ view with real-time visual feedback
    • Configurable widget areas for Scenes, FX, meters & more
    • 19 assignable SoftKeys
    • Engineer's Wedge and IEM strips for quick monitoring

    Comprehensive Metering & Recording

    • Full multi-point metering with daylight visibility
    • USB stereo recording & playback

    Professional I/O

    • 6 XLR mic/line inputs, 6 XLR line outputs
    • AES3 digital in/out (1 stereo pair each)
    • GigaACE gigabit link to MixRack
    • DX Link for remote I/O expansion
    • 128x128 channel I/O Port at 96 kHz
    • 2 network ports, BNC Wordclock I/O, and video output

    Manuals & Downloads

    PDFUser ManualPDF
    PDFWeight & DimensionsPDF

    Similar Products

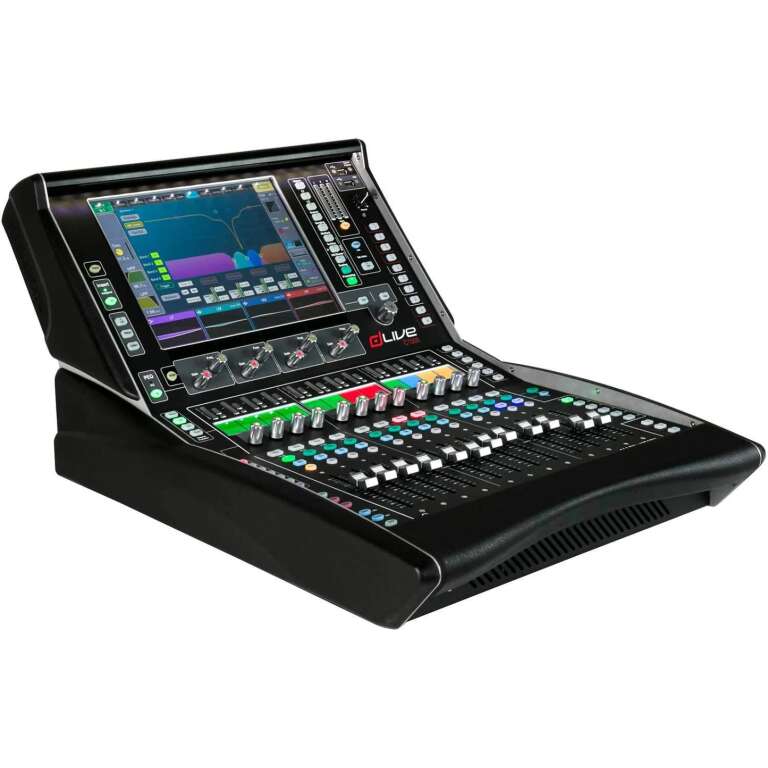

    Allen & Heath dLive C1500 Control Surface

    Allen & Heath dLive C1500 Control Surface

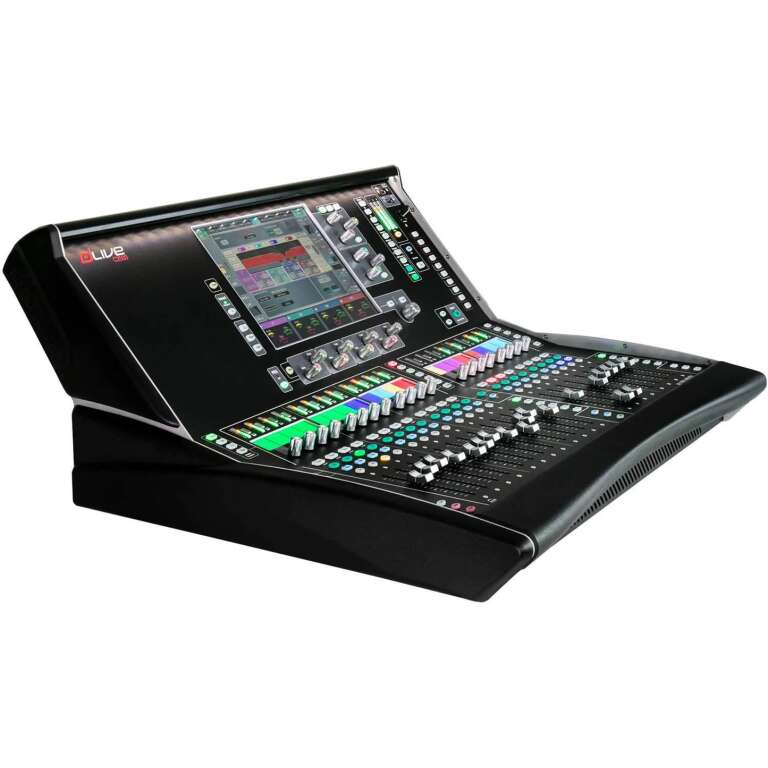

    Allen & Heath dLive C2500 Control Surface

    Allen & Heath dLive C2500 Control Surface

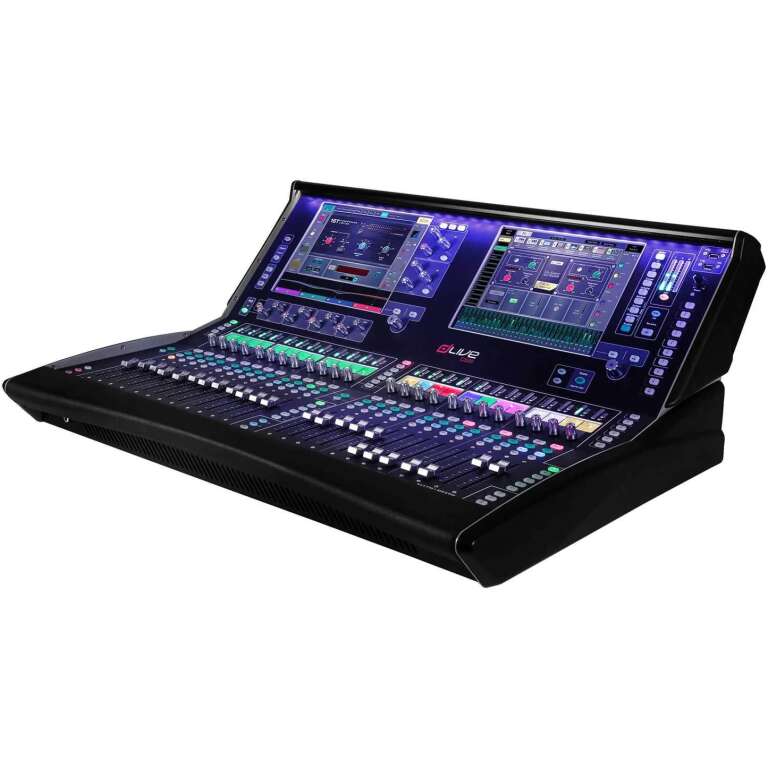

    Allen & Heath dLive C3500 Control Surface

    Allen & Heath dLive C3500 Control Surface

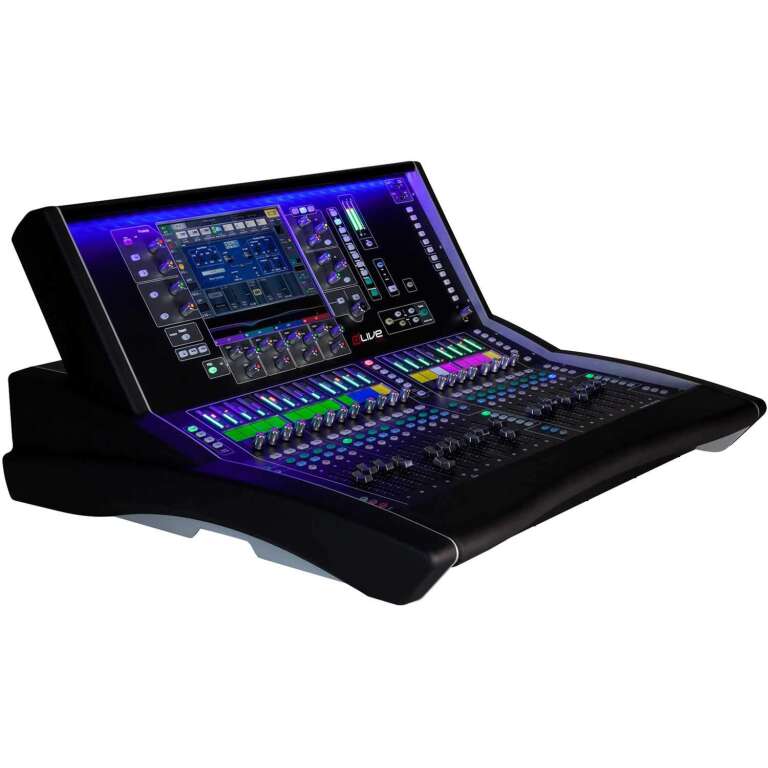

    Allen & Heath dLive S Class S3000 Control Surface

    Allen & Heath dLive S Class S3000 Control Surface

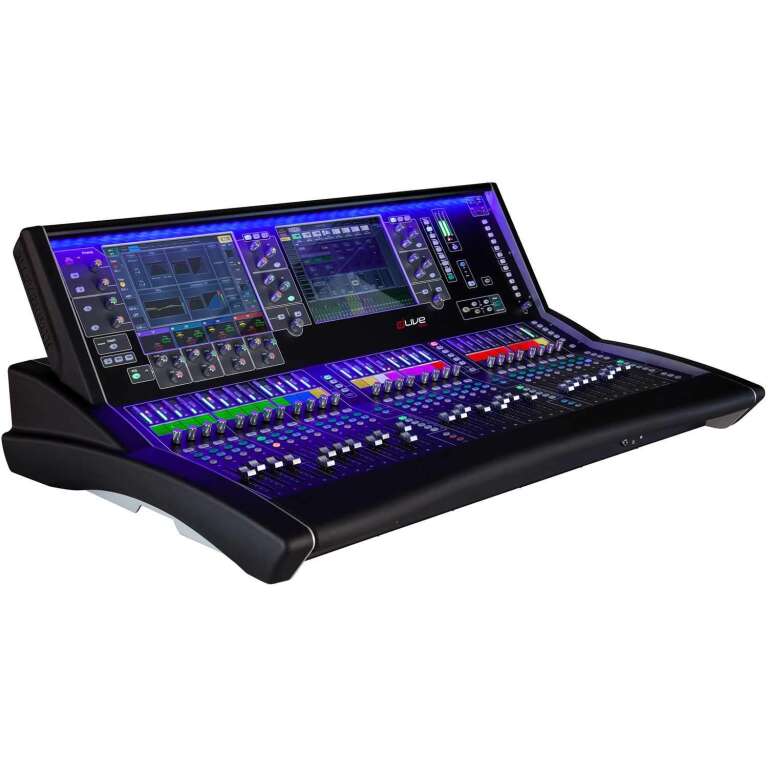

    Allen & Heath dLive S Class S5000 Control Surface
