Theatrixx xVision Reversible Bidirectional Converter Module HDMI 1.2 / 3G-SDI
Theatrixx xVision Reversible Bidirectional Converter Module HDMI 1.2 / 3G-SDI £750.00 inc VAT
£625.00 ex VAT
Back to products
Theatrixx xVision Reversible HD Converter Module
Theatrixx xVision Reversible HD Converter Module £373.50 inc VAT
£311.25 ex VAT
Theatrixx Technologies

Theatrixx xVision Reversible HD Converter Module 3G-SDI to HDMI 1.2

SKU: XVVRMSDI2HDMI
Theatrixx xVision Reversible HD Converter Module 3G-SDI to HDMI 1.2
Theatrixx xVision Reversible HD Converter Module 3G-SDI to HDMI 1.2
Theatrixx xVision Reversible HD Converter Module 3G-SDI to HDMI 1.2
Theatrixx xVision Reversible HD Converter Module 3G-SDI to HDMI 1.2
Theatrixx xVision Reversible HD Converter Module 3G-SDI to HDMI 1.2
Theatrixx xVision Reversible HD Converter Module 3G-SDI to HDMI 1.2
Theatrixx xVision Reversible HD Converter Module 3G-SDI to HDMI 1.2
Click to enlarge

    £373.50 inc VAT
    £311.25 ex VAT

    2 in stock (more available subject to additional lead time)

    Order in 17h 0m 52s for FREE delivery by Tuesday
    Click & collect available Monday ›
    VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
    5 Year Manufacturer Warranty Included
    About Stage Supply
    Chat to us on WhatsApp

    About this Product

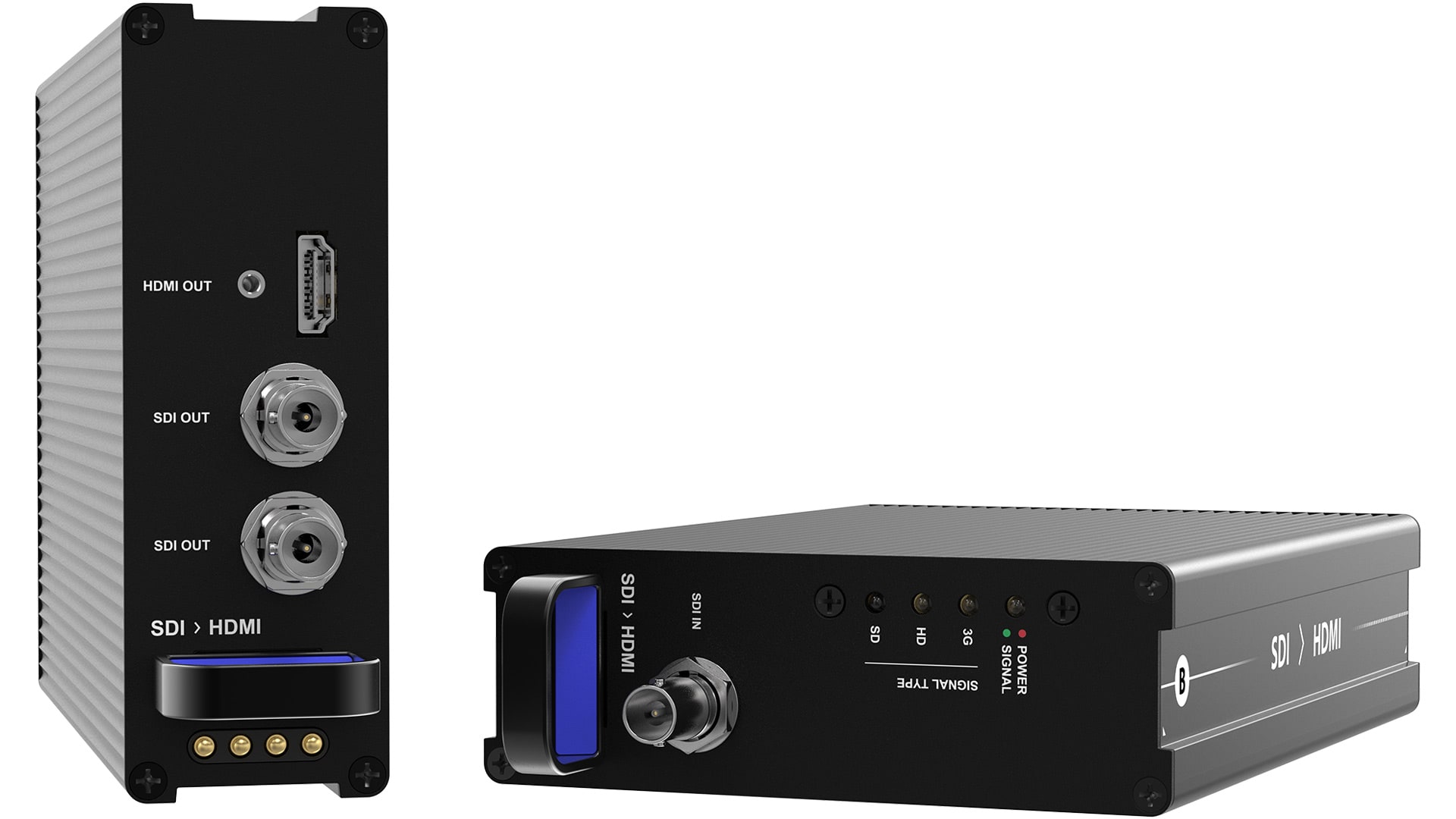

    A hot-swappable conversion module that takes 3G-SDI input and delivers HDMI 1.2 output, the Theatrixx xVision Reversible SDI to HDMI module bridges professional SDI infrastructure to HDMI displays, monitors, and projectors. Slides into any xVision Reversible frame from either direction – no tools, no power bricks, no fuss.

    Input
    3G-SDI
    BNC connector

    Output
    HDMI 1.2
    Type A connector

    Max Resolution
    1080p60
    Full HD

    Module Size
    Single
    Standard slot

    Features
    ✓
    Converts 3G-SDI input to HDMI 1.2 output up to 1080p60
    ✓
    Reversible design – insert from front or rear of frame
    ✓
    Hot-swappable – no need to power down the frame
    ✓
    Fully enclosed module – no exposed PCBs, protected against static and dust
    ✓
    Gold-plated redundant spring pins with magnetic retention
    ✓
    Embedded audio pass-through from SDI to HDMI
    ✓
    No external power supplies or additional cabling needed

    Note

    Requires a Theatrixx 2-Bay (RF2) or 8-Bay (RF8) Reversible Rackmount Converter frame (sold separately).

    Specifications
    SKU XVVRMSDI2HDMI
    Input 3G-SDI (BNC)
    Output HDMI 1.2 (Type A connector)
    Maximum Resolution 1920 x 1080p @ 60Hz
    SDI Standard SD / HD / 3G-SDI
    Module Size Single-width
    Compatible Frames xVision RF2 (2-Bay), RF8 (8-Bay)

    More Information

    • Reversible Module
    • Video Input: 1 x 3G/HD/SD SDI BNC
    • Video Output: 1 x HDMI 1.2 type A with locking system, 2 x 3G/HD/SD SDI BNC
    • Supports up to HD formats
    • SDI Video Sampling: 4:2:2 and 4:4:4
    • Fits in the 8-Bay Reversible Rackmount Converter system
