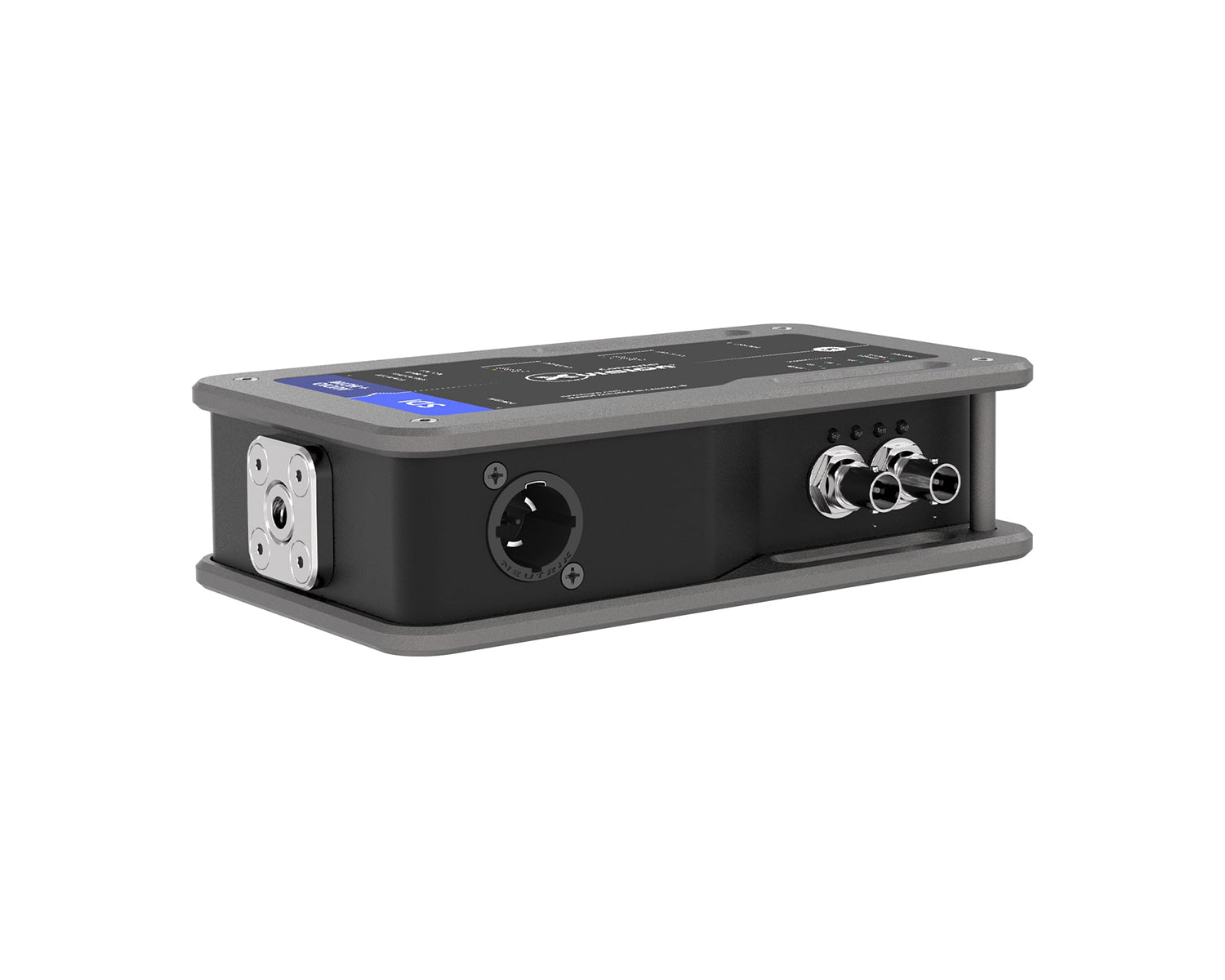

Strip embedded audio from SDI and route it separately – that is what the Theatrixx xVision Audio De-Embedder does, converting 3G-SDI to HDMI while simultaneously extracting the embedded audio channels. Essential for broadcast and live production workflows where audio needs to be split off to a mixing desk or IEM system while video continues to its destination. Built in the same road-hardened xVision enclosure trusted by touring professionals worldwide.
Input
3G-SDI
Source
Video Output
HDMI 1.2
Video
Audio Output
De-embedded
Extracted audio
Form Factor
A-Size
Standalone
Features
✓
De-embeds audio from 3G-SDI while converting video to HDMI 1.2
De-embeds audio from 3G-SDI while converting video to HDMI 1.2
✓
Separate audio output for routing to mixing desks or monitoring systems
Separate audio output for routing to mixing desks or monitoring systems
✓
Rugged touring enclosure with no exposed circuit boards
Rugged touring enclosure with no exposed circuit boards
✓
Internal power supply – no external power adapters required
Internal power supply – no external power adapters required
✓
Professional locking connectors throughout
Professional locking connectors throughout
✓

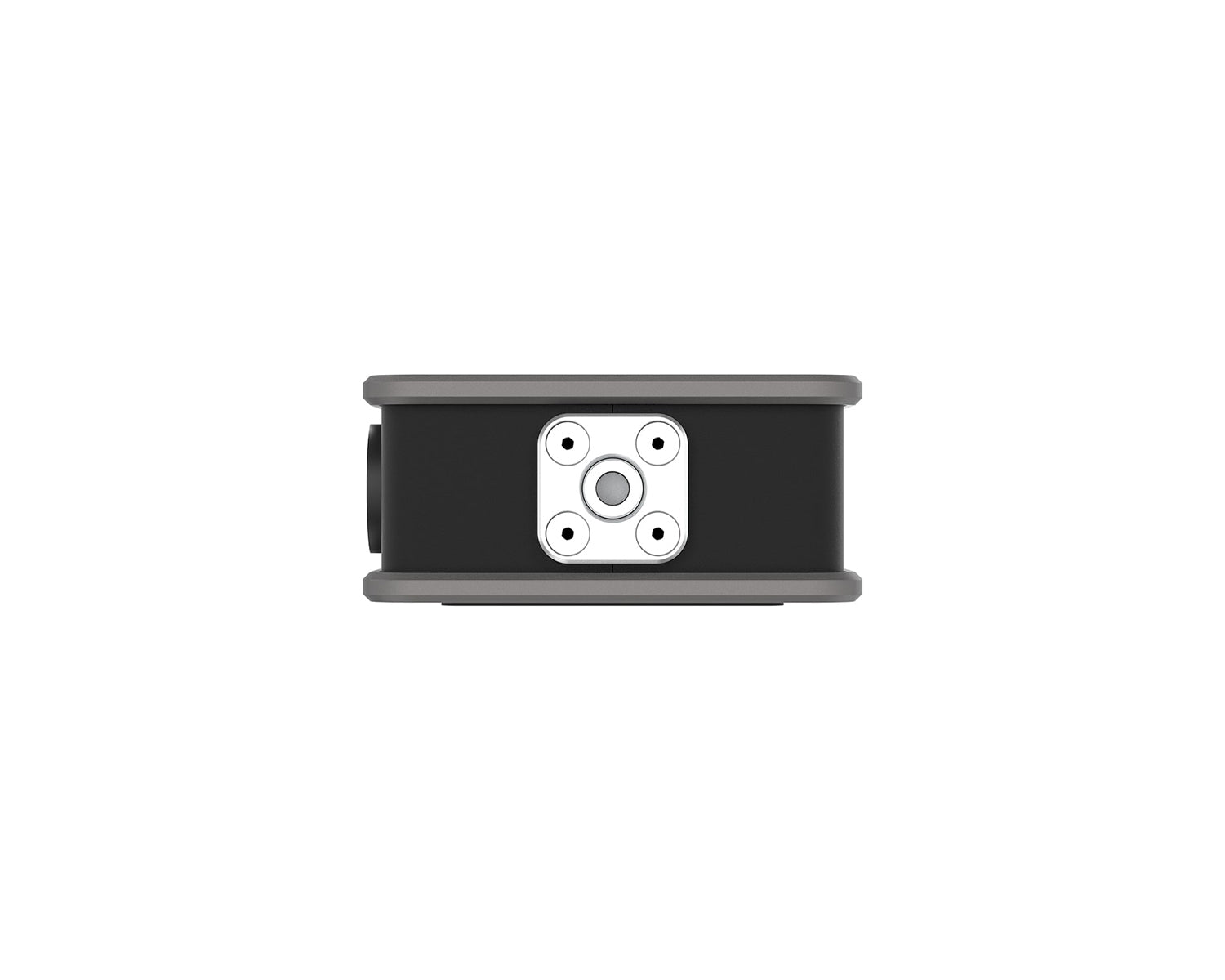

Magnetic mounting with spring-loaded plunger retention
Magnetic mounting with spring-loaded plunger retention
✓
Wall, bulkhead, or surface mount flexibility
Wall, bulkhead, or surface mount flexibility
Specifications
| Input | 3G-SDI |
| Video Output | HDMI 1.2 |
| Audio Output | De-embedded audio |
| Resolution | Up to 1080p (3G-SDI) |

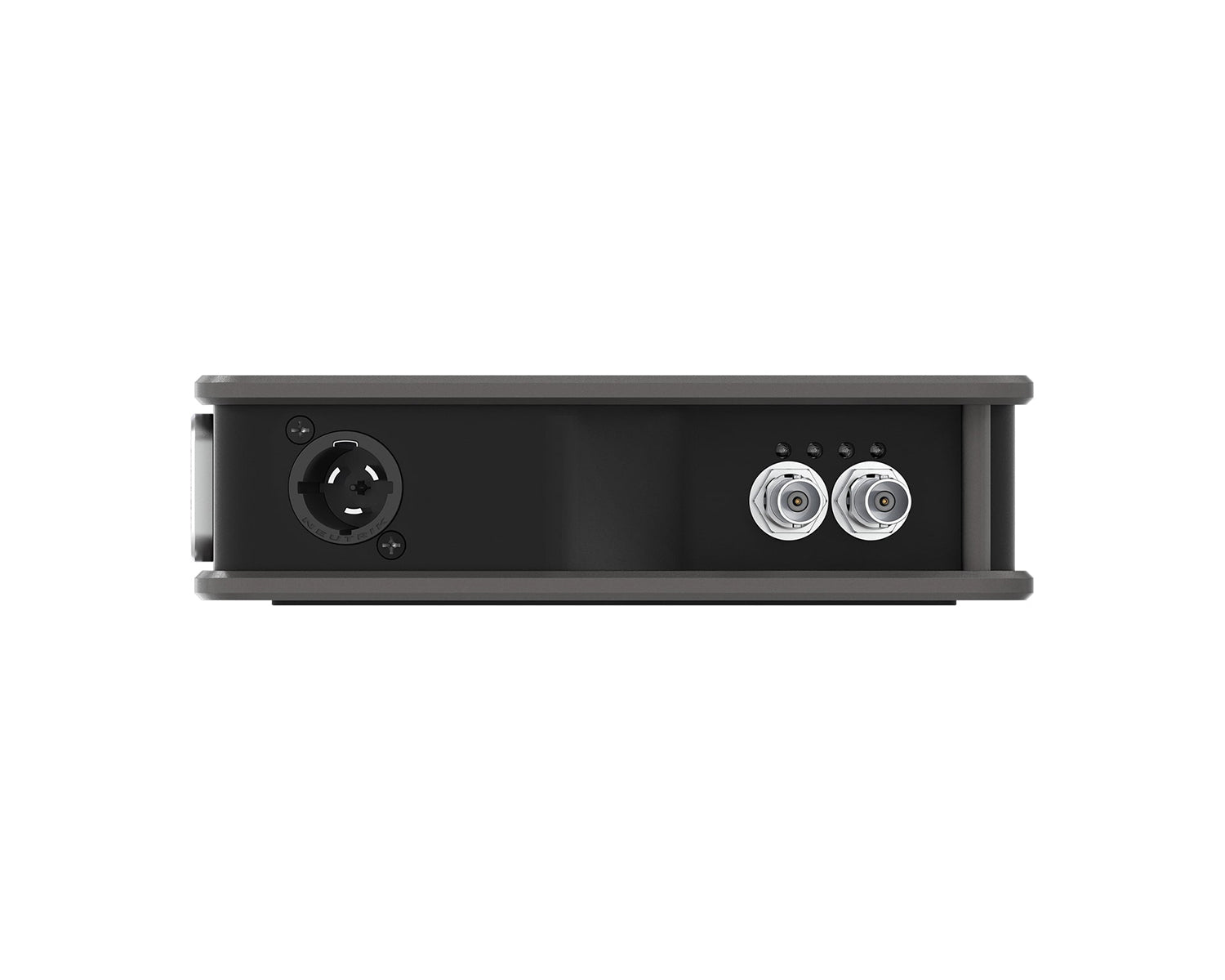

| Input Connector | BNC (SDI) |
| Output Connectors | HDMI, Audio output |
| Form Factor | A-Size Standalone |
| SKU | XVVSDI2AUDIOT1 |
