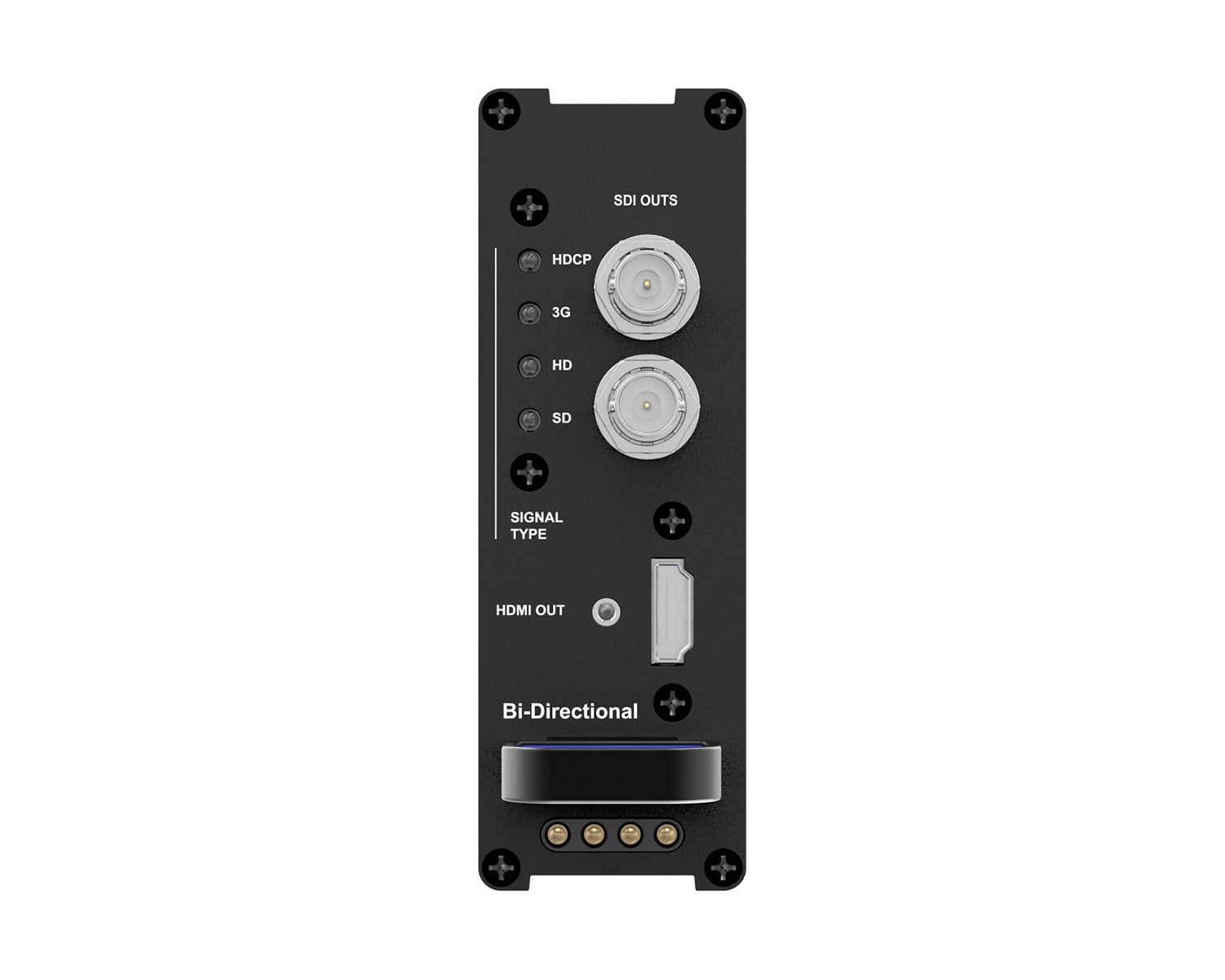

Unlike standard one-way converters, the Theatrixx xVision Reversible Bidirectional HDMI/SDI module handles both directions simultaneously – converting HDMI to 3G-SDI and 3G-SDI to HDMI at the same time through a single module slot. Ideal for workflows where signals need to cross between HDMI and SDI domains in both directions without dedicating two separate modules.
Conversion
Bidirectional
Simultaneous
Formats
HDMI + SDI
HDMI 1.2 / 3G-SDI
Max Resolution
1080p60
Full HD
Module Size
Single
Standard slot
Bidirectional Operation
This module converts in both directions at the same time. The HDMI input is converted to 3G-SDI output, while simultaneously the SDI input is converted to HDMI output – two independent conversion paths in a single module.
Features
✓
Simultaneous bidirectional conversion – HDMI to SDI and SDI to HDMI at once
Simultaneous bidirectional conversion – HDMI to SDI and SDI to HDMI at once
✓
Two independent conversion paths in a single module slot
Two independent conversion paths in a single module slot
✓
Reversible design – insert from front or rear of frame
Reversible design – insert from front or rear of frame
✓
Hot-swappable – swap modules without powering down
Hot-swappable – swap modules without powering down
✓

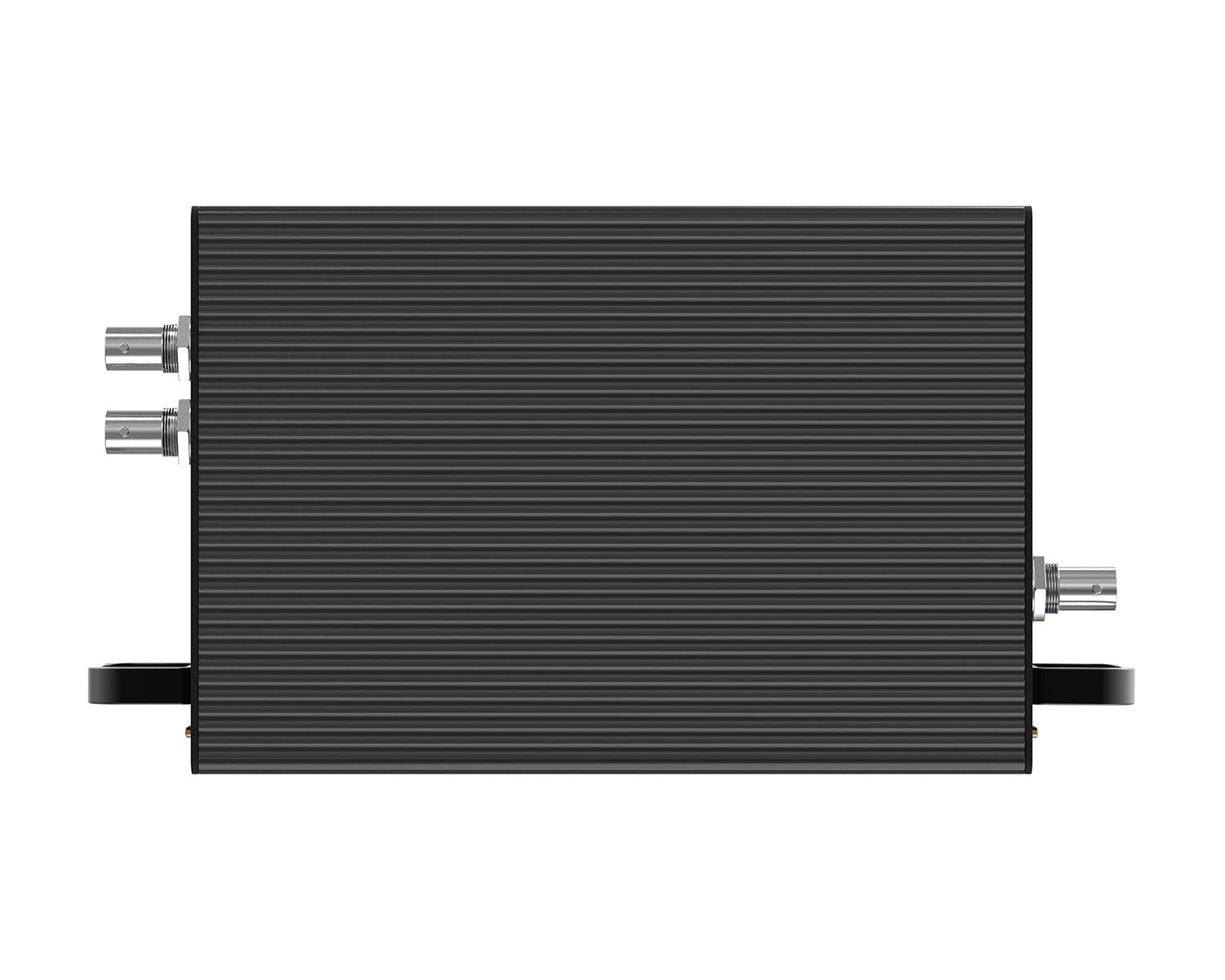

Fully enclosed housing – no exposed PCBs, protected against static and dust
Fully enclosed housing – no exposed PCBs, protected against static and dust
✓
Gold-plated redundant spring pins with magnetic retention for DC power
Gold-plated redundant spring pins with magnetic retention for DC power
✓
Embedded audio carried through in both directions
Embedded audio carried through in both directions
✓
No external power supplies or additional cabling required
No external power supplies or additional cabling required
Note

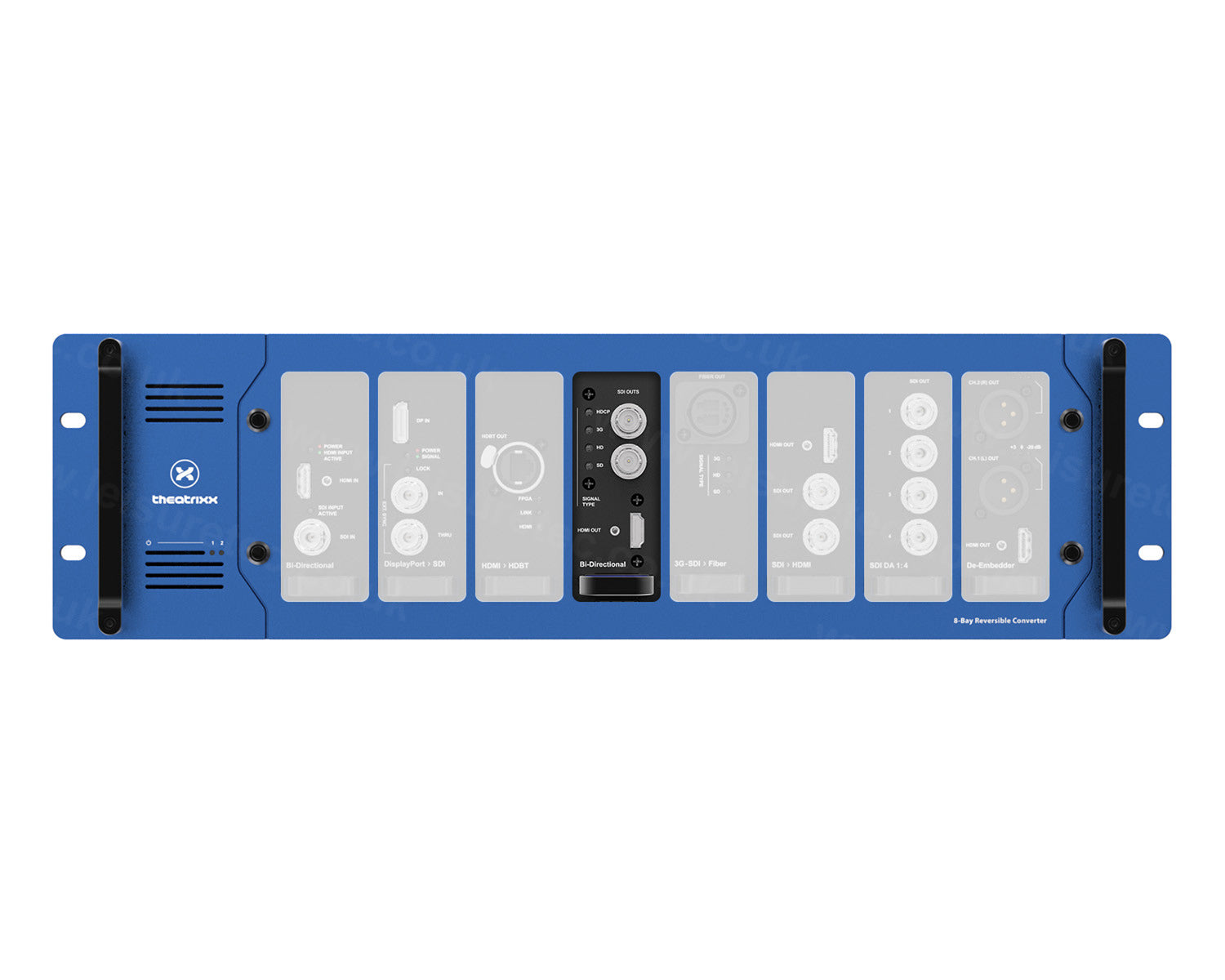

Requires a Theatrixx 2-Bay (RF2) or 8-Bay (RF8) Reversible Rackmount Converter frame (sold separately).
Specifications
| SKU | XVVRMSDIXHDMI |
| Conversion Mode | Bidirectional (simultaneous) |
| Path A | HDMI 1.2 In → 3G-SDI Out |
| Path B | 3G-SDI In → HDMI 1.2 Out |
| Maximum Resolution | 1920 x 1080p @ 60Hz |
| Module Size | Single-width |
| Compatible Frames | xVision RF2 (2-Bay), RF8 (8-Bay) |
