Theatrixx Technologies

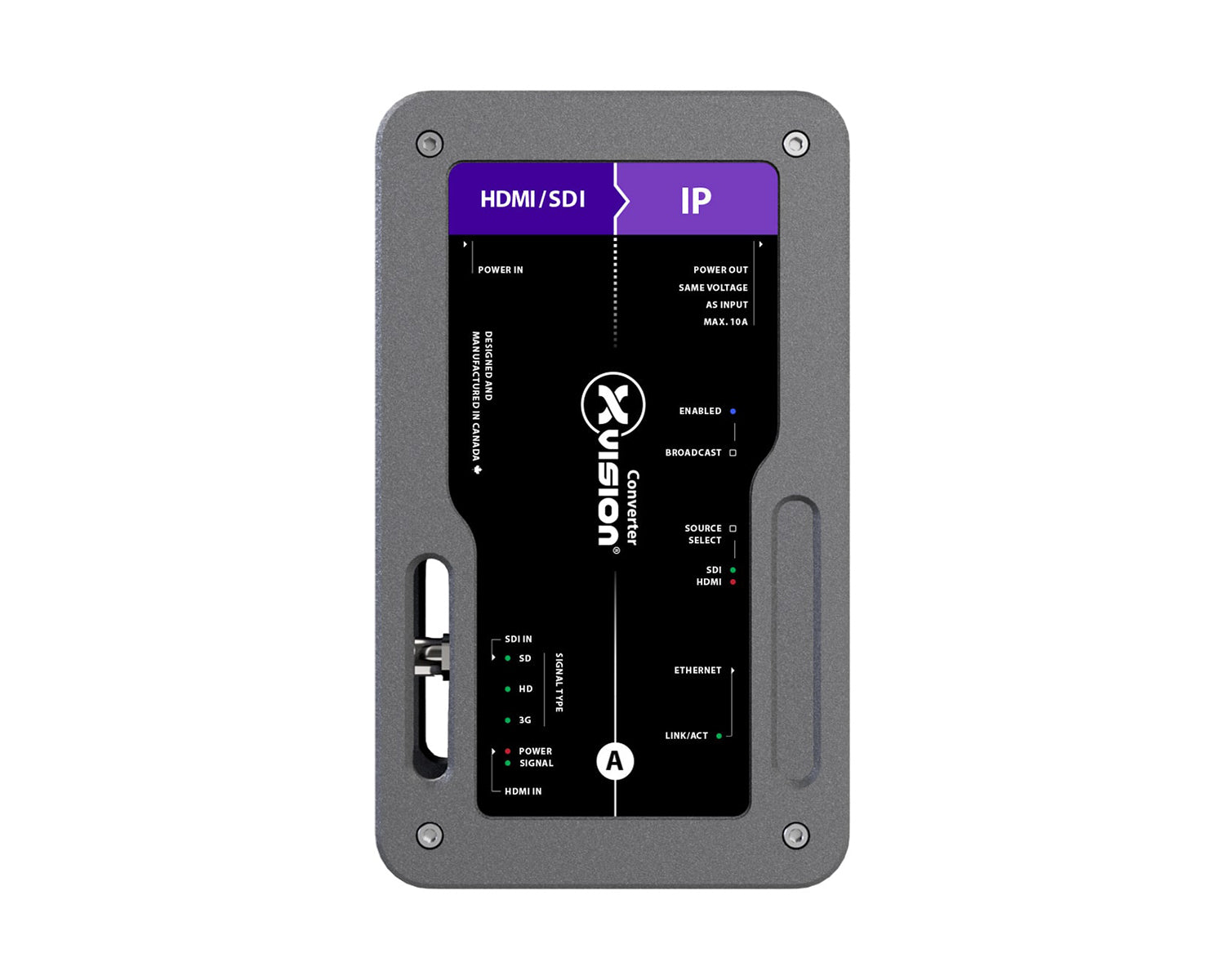

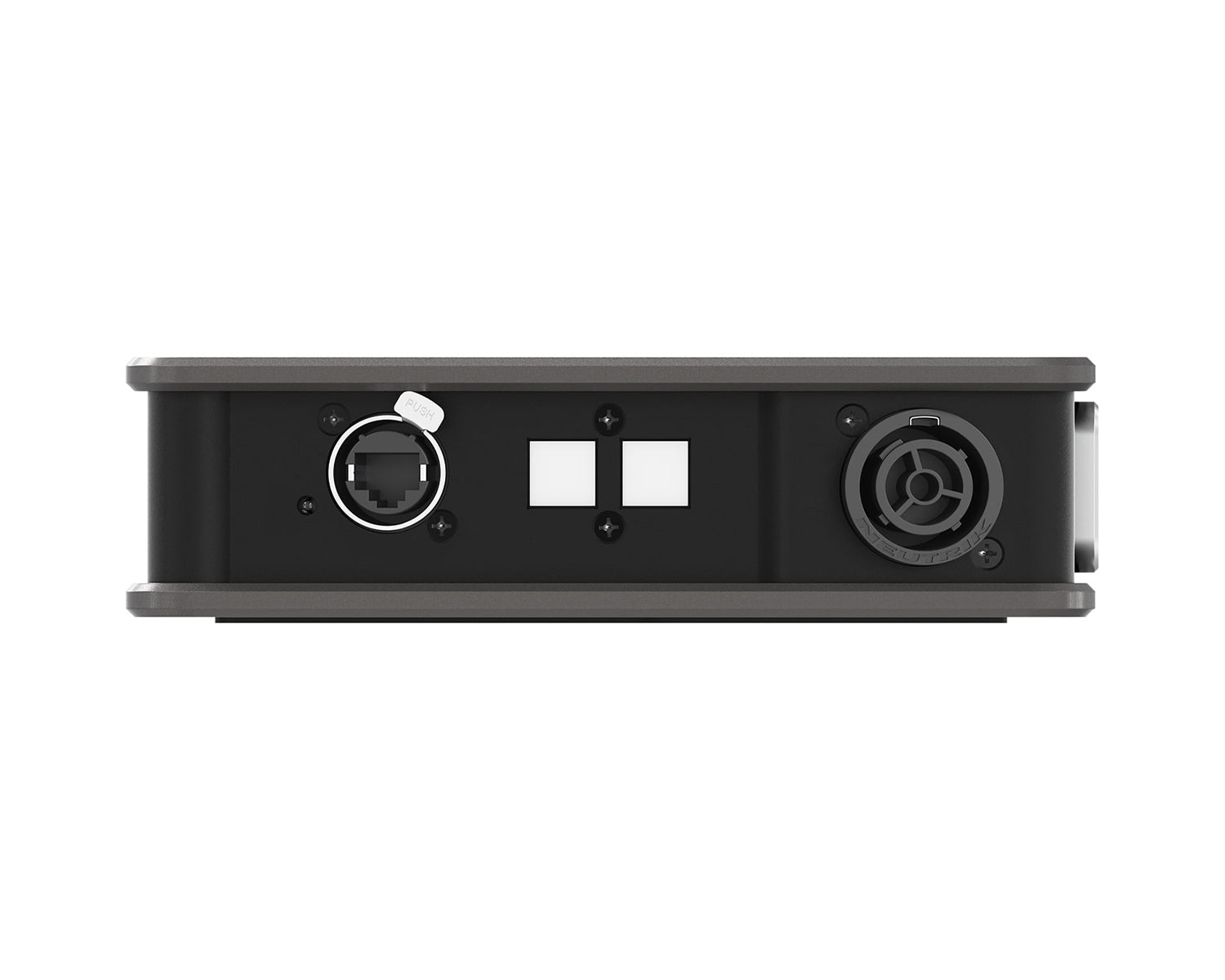

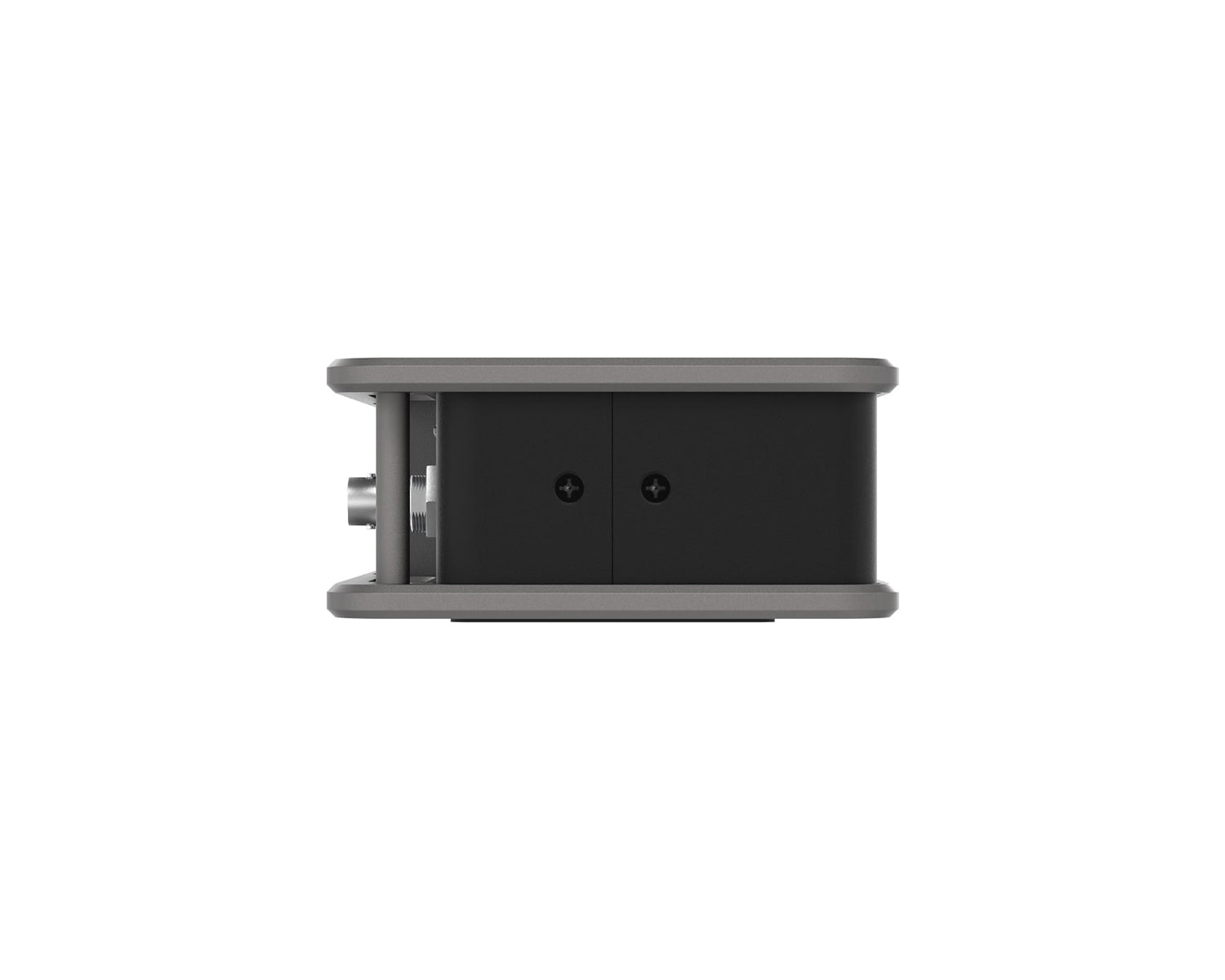

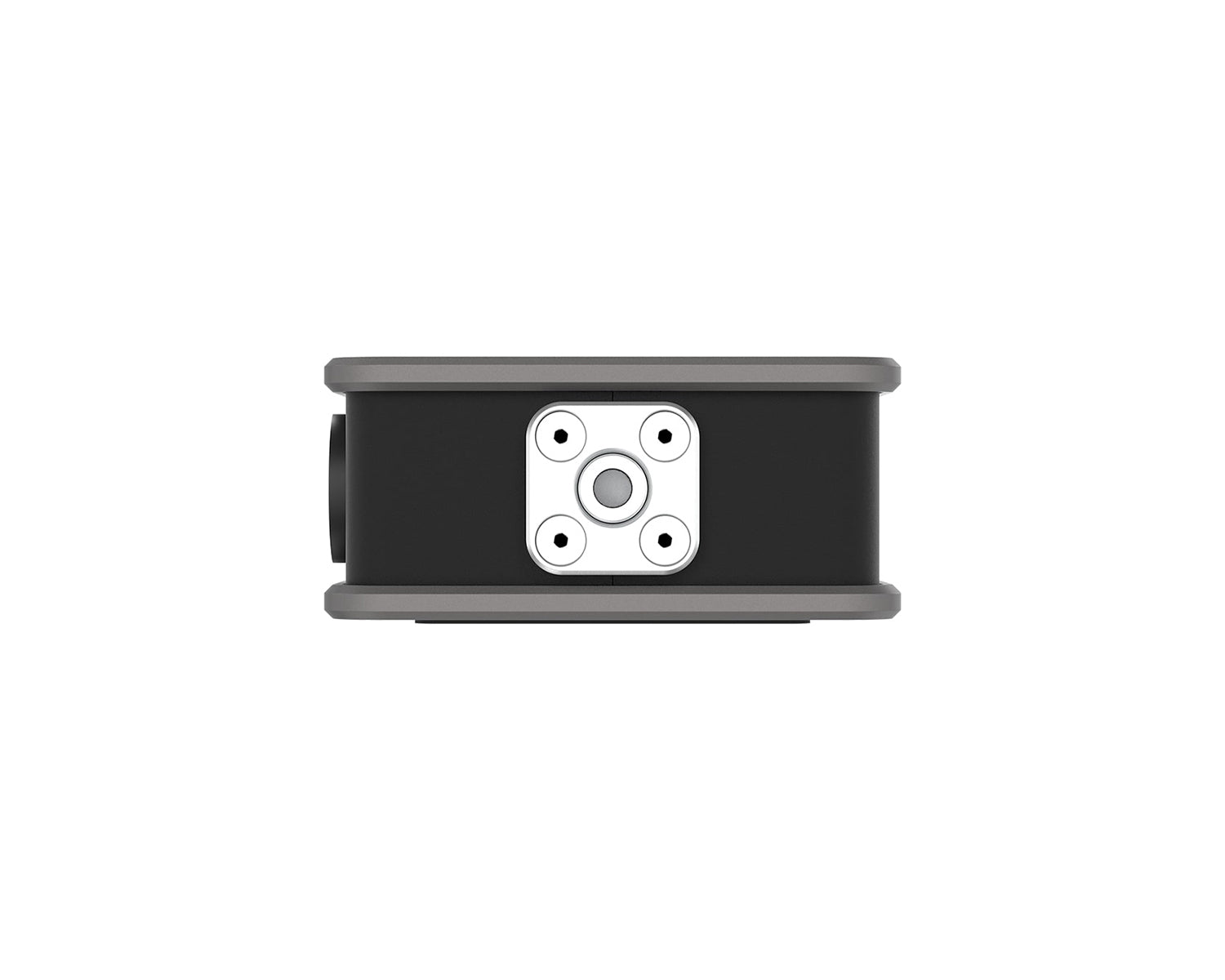

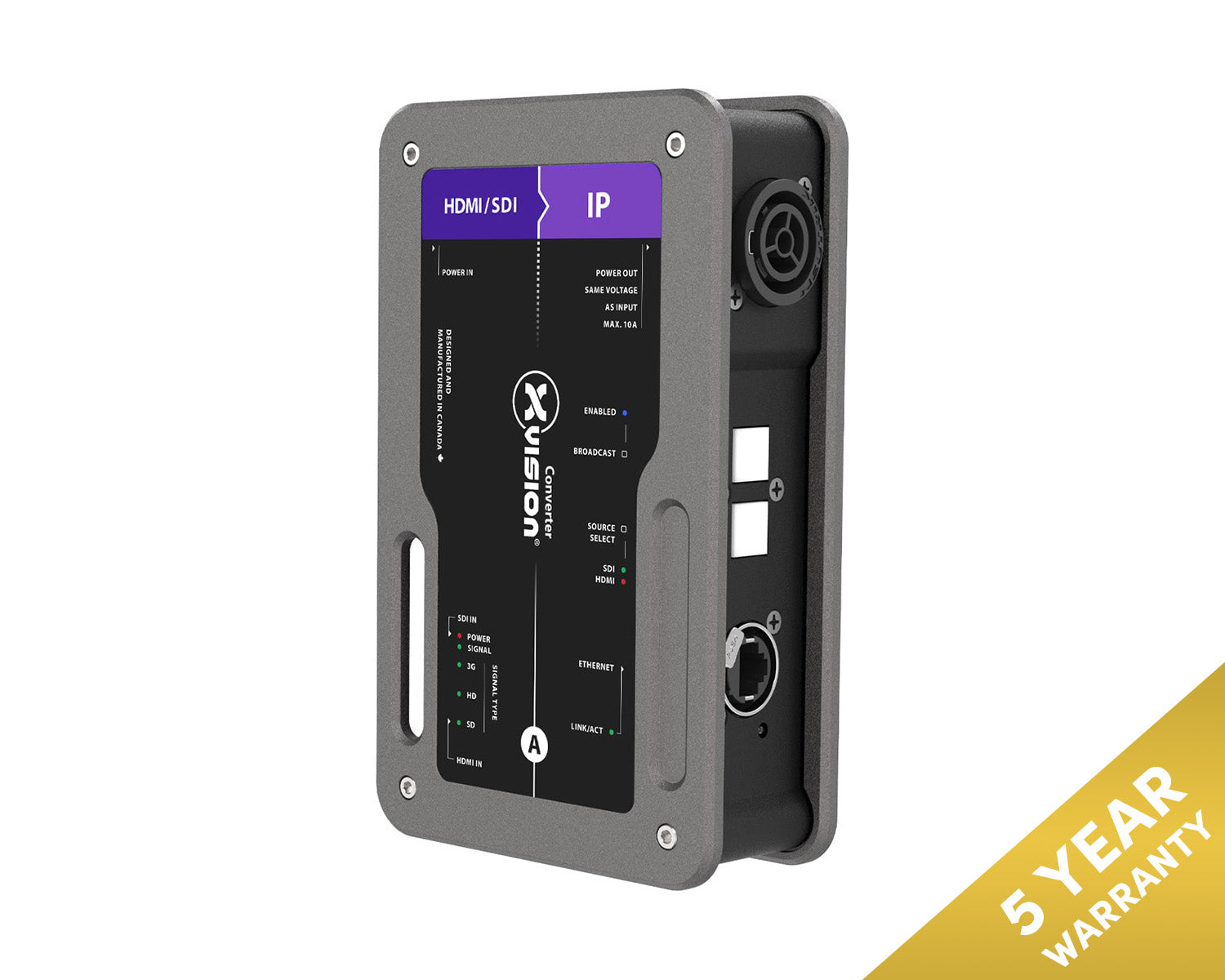

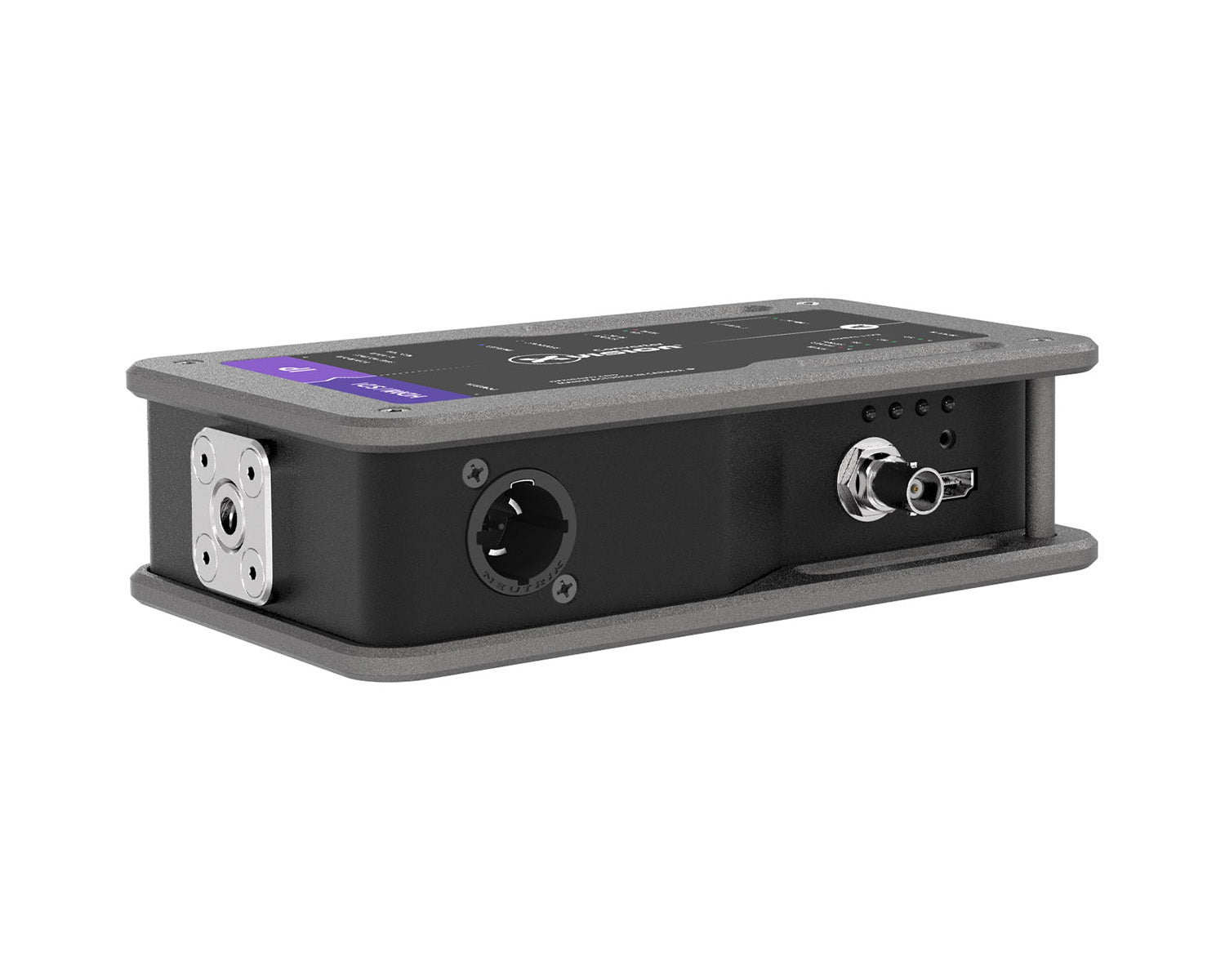

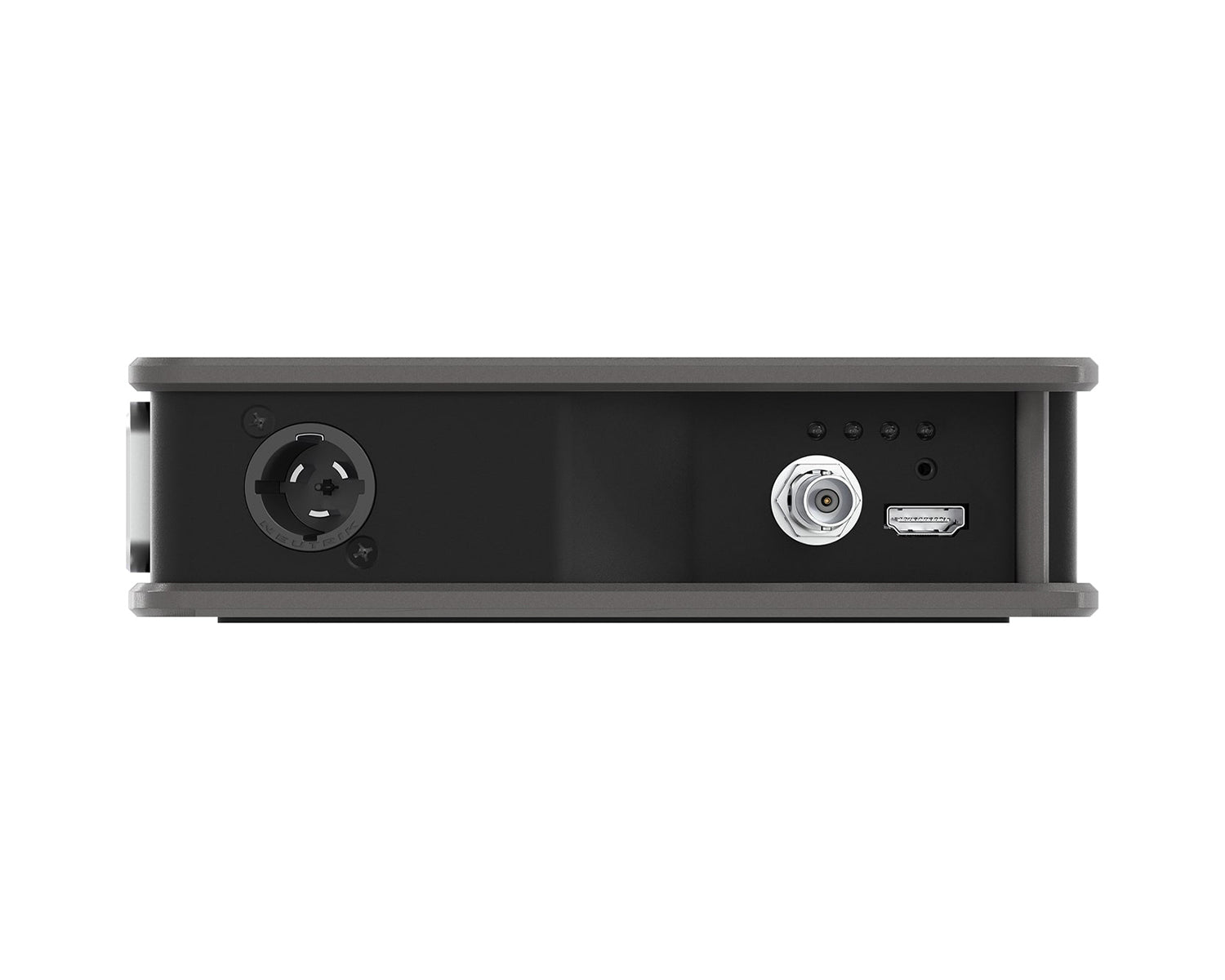

Theatrixx xVision HD Streaming Server

SKU: XVVVDO2IPT1
Theatrixx xVision HD Streaming Server
Theatrixx xVision HD Streaming Server
Theatrixx xVision HD Streaming Server
Theatrixx xVision HD Streaming Server
Theatrixx xVision HD Streaming Server
Theatrixx xVision HD Streaming Server
Theatrixx xVision HD Streaming Server
Click to enlarge

    £973.50 inc VAT
    £811.25 ex VAT

    5 in stock (more available subject to additional lead time)

    Order in 18h 17m 36s for FREE delivery by Tuesday
    Click & collect available Monday ›
    VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
    5 Year Manufacturer Warranty Included
    About Stage Supply
    Chat to us on WhatsApp

    About this Product

    The Theatrixx xVision HD Streaming Server is a standalone hardware encoder that converts HDMI 1.2 or 3G-SDI video to H.264 for IP streaming. Built in the compact A-size format with internal power supply, it eliminates the need for a laptop or software encoder on site – connect your video source, configure your stream destination, and go live. Ideal for houses of worship, corporate events, lecture capture, and any application requiring reliable, always-on streaming.

    Video Inputs
    HDMI + SDI
    HDMI 1.2 / 3G-SDI

    Encoding
    H.264
    Hardware encoder

    Form Factor
    A-Size
    Standalone

    Power
    Internal PSU
    No external adaptor

    Features
    ✓
    Standalone hardware H.264 encoder – no laptop or software required
    ✓
    Accepts HDMI 1.2 and 3G-SDI inputs
    ✓
    Encodes to H.264 for IP streaming over network
    ✓
    Internal power supply with locking connector
    ✓
    Compact A-size standalone enclosure – road-ready build
    ✓
    Ethernet connectivity for network streaming
    ✓
    Ideal for live streaming, lecture capture, and remote monitoring
    ✓
    Compatible with xVision rack frames for multi-unit installations

    Specifications
    SKU XVVVDO2IPT1
    Video Inputs 1x HDMI 1.2, 1x 3G-SDI (BNC)
    Encoding H.264
    Output IP stream (Ethernet)
    Form Factor A-Size Standalone
    Power Internal PSU, locking connector
    Manufacturer Theatrixx

    More Information

    • Integrated power supply with locking PowerCON True 1 Connector. Never rely on a cluster of wall-warts again.
    • Built-in convenience outlet to power nearby monitor, flat-screen, laptop, video projector or any device up to 10 amps… Power bar to connect both converter and device not required anymore.
    • Magnetic stacking system and non-skid rubber pad for table top application. Saves at least 10 gaffer tape rolls a year.
    • Multiple mounting options: C-Clamp, wall-mount adapter, LCD mount adapter and belt adaptor.
    • Rugged,Tour-ready and aesthetic enclosure: The sexiest widget in your tool box, that will keep looking good for years to come.
    • Clear and ample status LED indicators for quick troubleshooting. HDMI input tested and compatible with Apple computers and iPad.
    • Easy on-the-field identification with unique colour and alphabetic coding system.
    • Locking HDMI port prevents accidental disconnection.
    • Effortlessly stream Full HD 1080p, H.264-encoded video to YouTube, Facebook Live, or any RSTP or RTMP destination
    • Wide range of transport protocols supported
    • One-button operation after configuration with broadcast-grade operation keys directly on unit
    • Built in web server for configuration and control
    • Native support for HDMI and 3G-SDI signals with built-in scaling engine
    • Professional locking EtherCON connector for Ethernet connection
