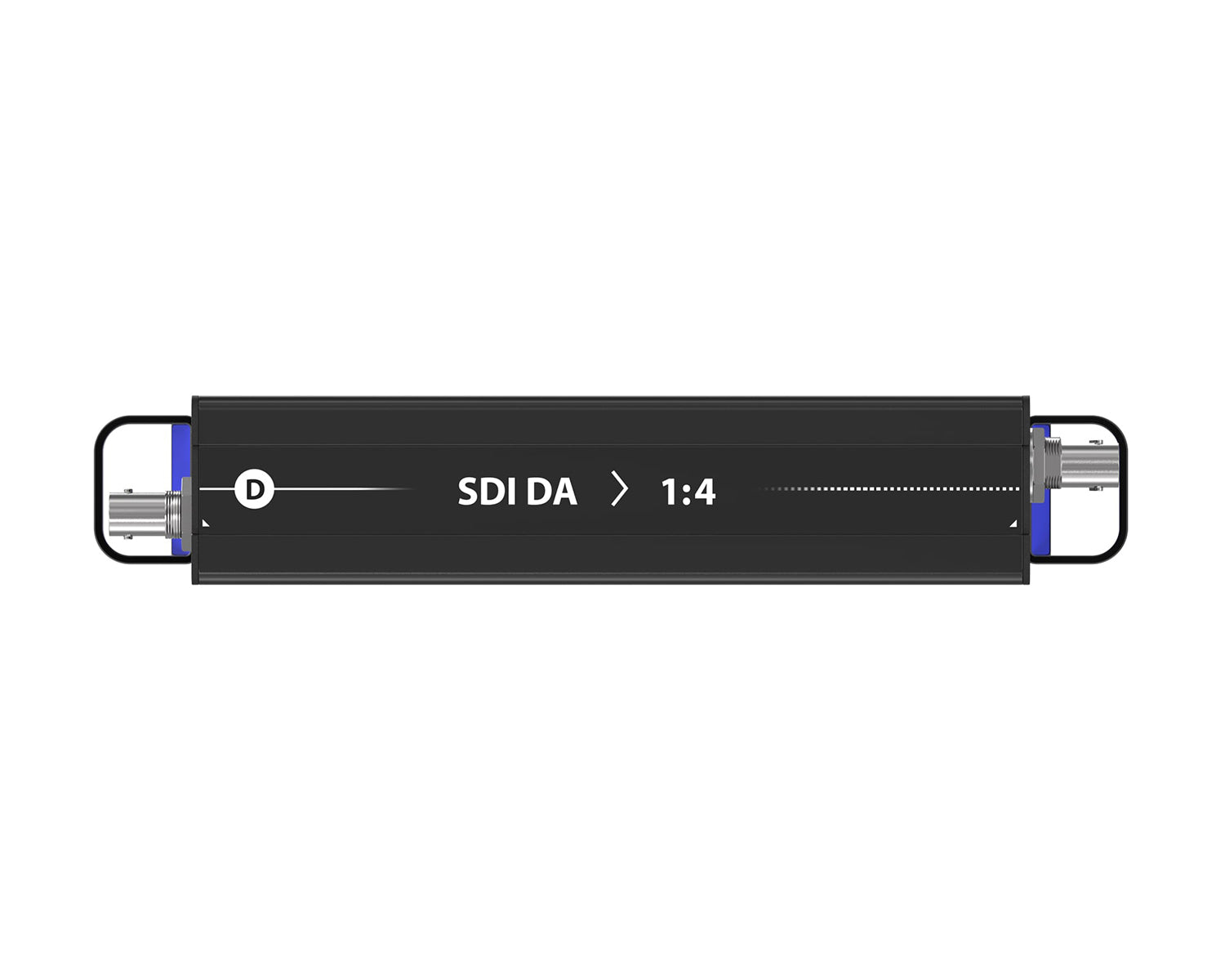

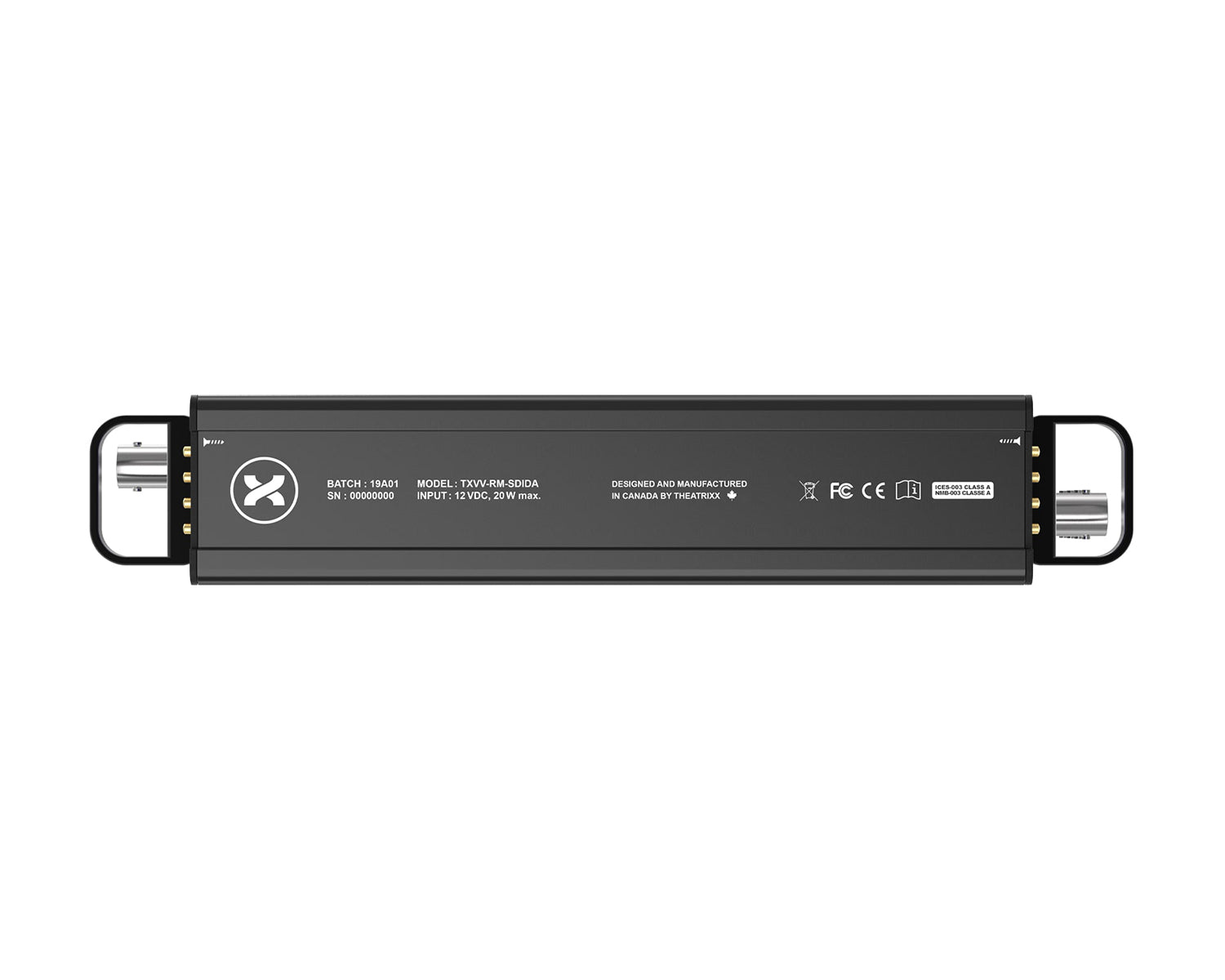

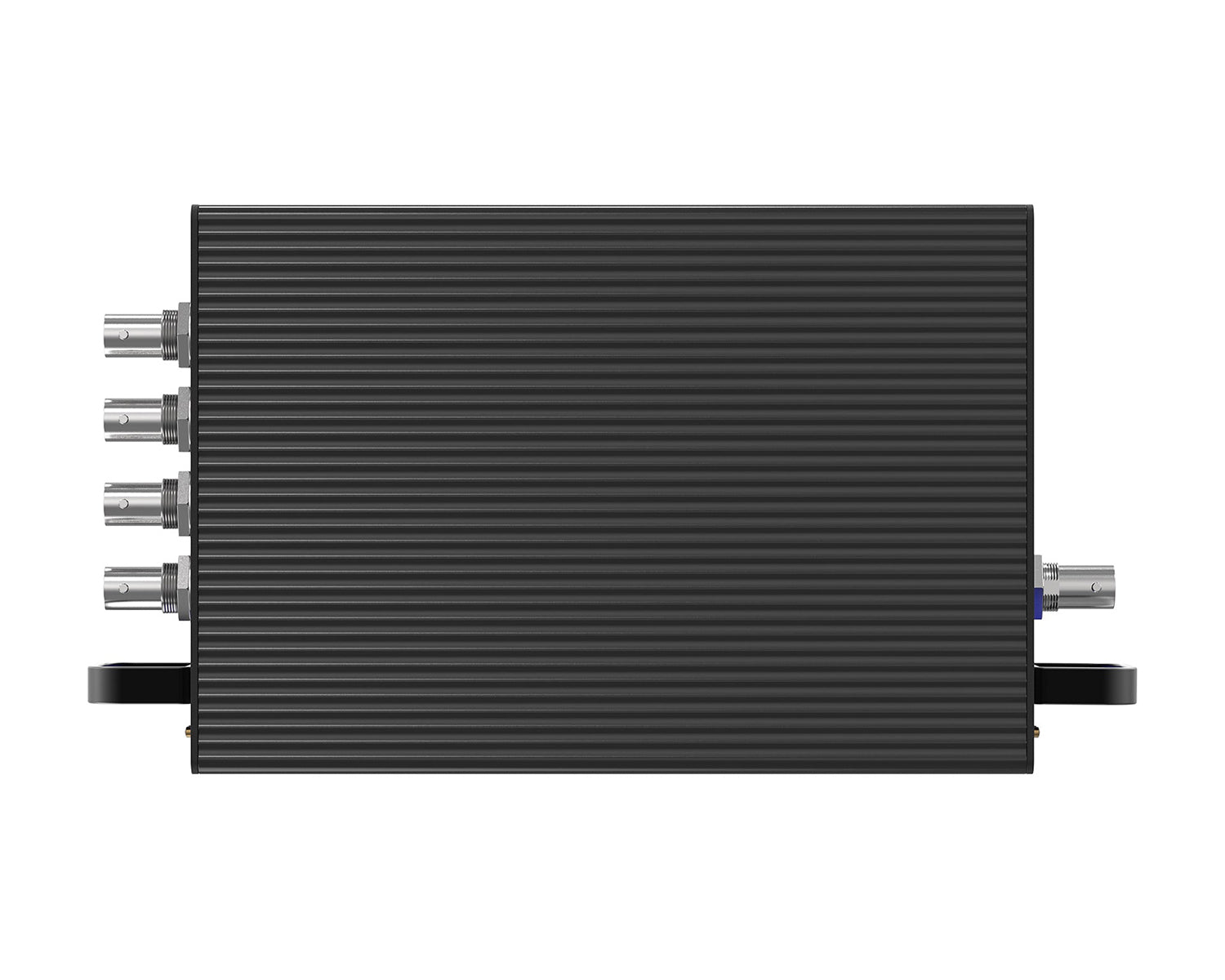

The Theatrixx xVision Reversible 1:4 3G-SDI DA takes a single SDI input and distributes it to four buffered outputs – all within a hot-swappable module that draws power directly from the xVision Reversible frame. A straightforward SDI distribution solution for multi-monitor feeds, recording splits, or backup destinations on live productions.
Distribution
1:4
1 in, 4 out
SDI Standard
3G-SDI
Up to 1080p60
Max Resolution
1080p60
Full HD
Features
✓
1 input to 4 buffered SDI outputs – clean, re-clocked distribution
1 input to 4 buffered SDI outputs – clean, re-clocked distribution
✓
Supports SD-SDI, HD-SDI, and 3G-SDI signals
Supports SD-SDI, HD-SDI, and 3G-SDI signals
✓
Reversible design – insert from front or rear of frame
Reversible design – insert from front or rear of frame
✓
Hot-swappable – swap modules without powering down
Hot-swappable – swap modules without powering down
✓
Fully enclosed housing – no exposed PCBs, protected against static and dust
Fully enclosed housing – no exposed PCBs, protected against static and dust
✓
Gold-plated redundant spring pins with magnetic retention for DC power
Gold-plated redundant spring pins with magnetic retention for DC power
✓
No external power supplies or additional cabling required
No external power supplies or additional cabling required
Note
Requires a Theatrixx 2-Bay (RF2) or 8-Bay (RF8) Reversible Rackmount Converter frame (sold separately).
Specifications
| SKU | XVVRMSDIDA4 |

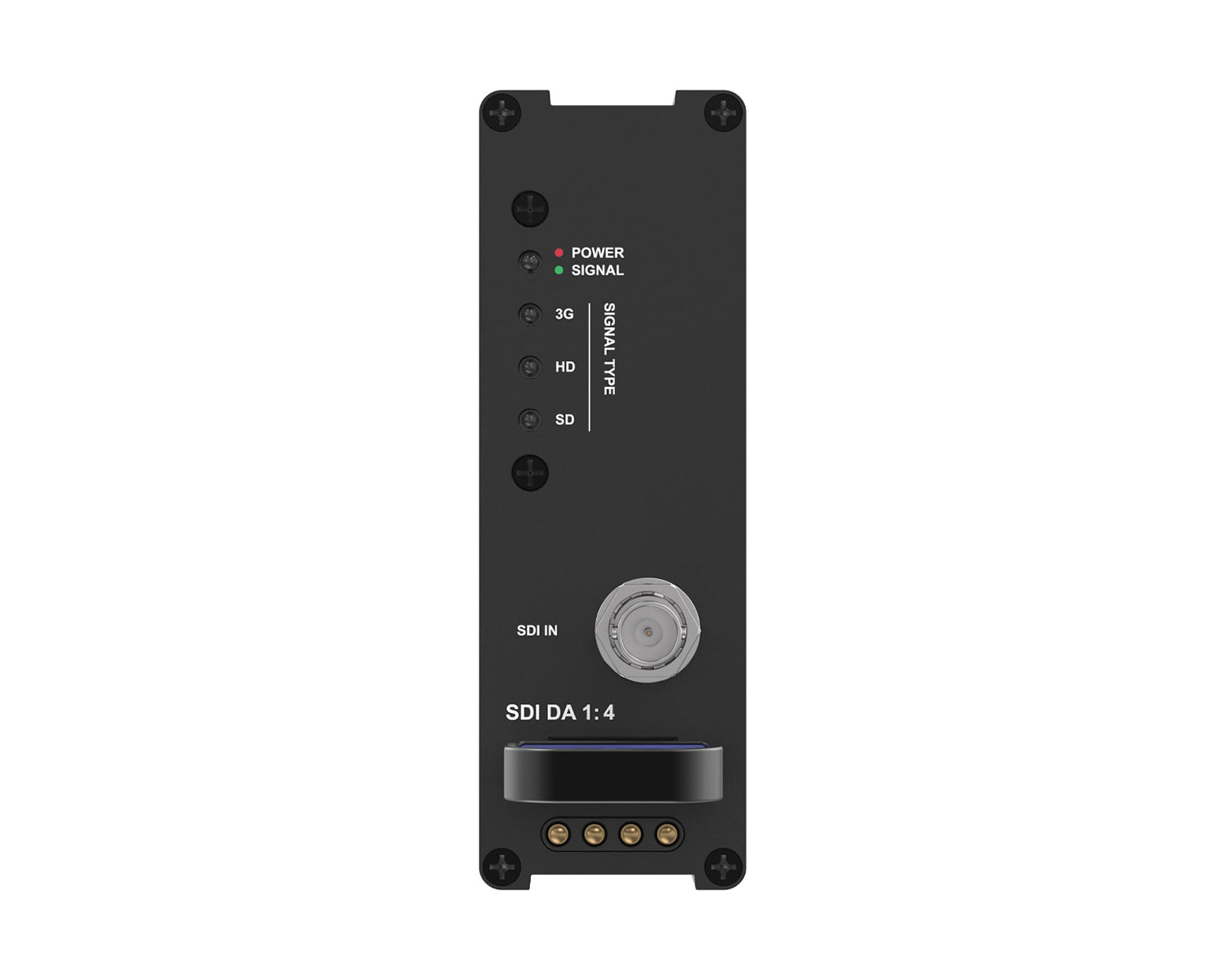

| Input | 1x 3G-SDI (BNC) |

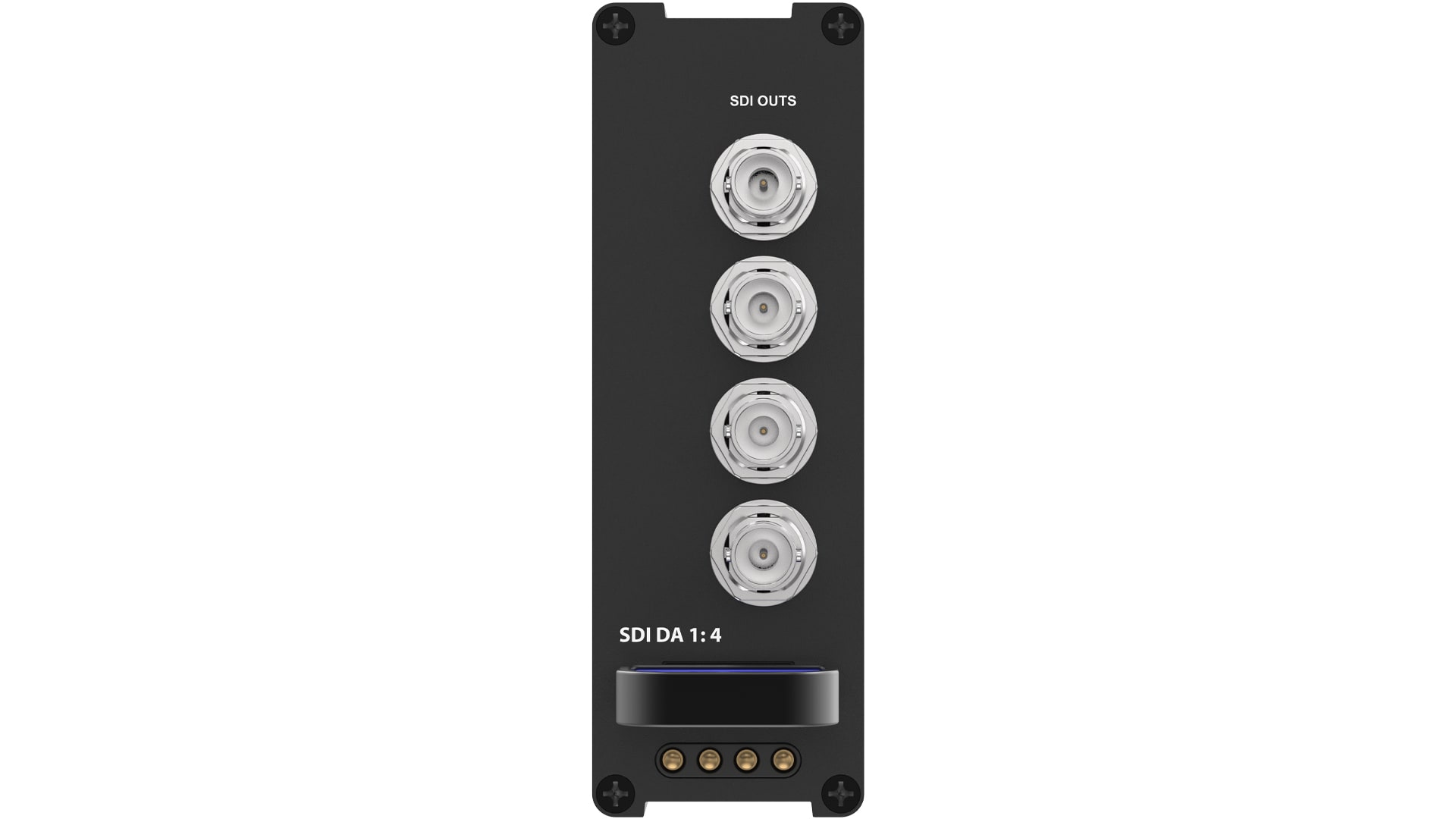

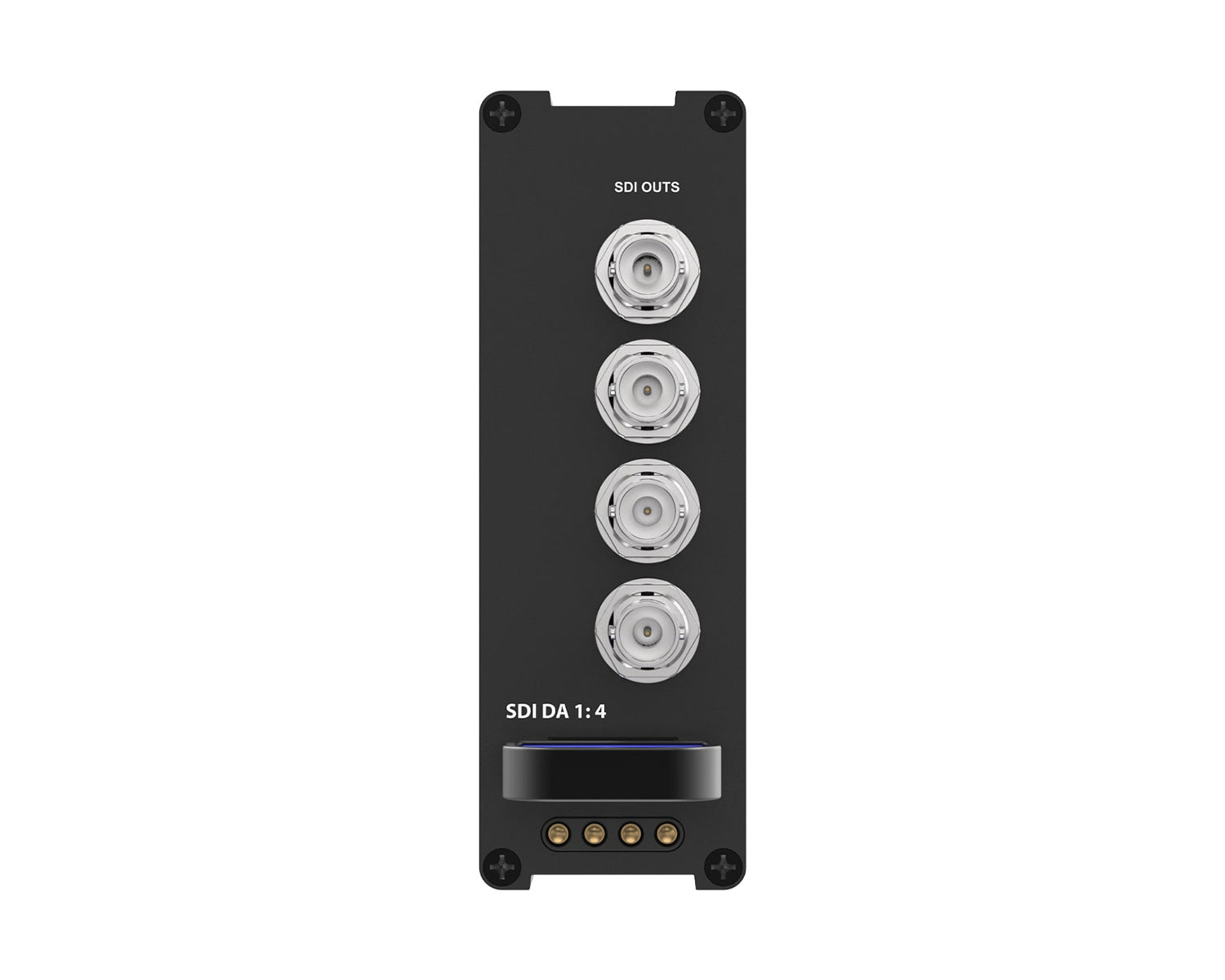

| Output | 4x 3G-SDI (BNC) |
| SDI Standard | SD / HD / 3G-SDI |
| Maximum Resolution | 1920 x 1080p @ 60Hz |
| Module Size | Single-width |
| Compatible Frames | xVision RF2 (2-Bay), RF8 (8-Bay) |
