Avolites Arena Console Bundle
Avolites Arena Console Bundle £16,829.00 inc VAT
£14,024.17 ex VAT
Back to products
Avolites Arena Live Lighting Console (White)
Avolites Arena Live Lighting Console (White) £15,731.00 inc VAT
£13,109.17 ex VAT
Avolites

Avolites Arena Live Lighting Console

SKU: 30/01/3045
Avolites Arena Live Lighting Console
Avolites Arena Live Lighting Console
Avolites Arena Live Lighting Console
Click to enlarge

    £16,163.00 inc VAT
    £13,469.17 ex VAT

    Ordered from manufacturer. Allow 1–3 weeks
    VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
    1 Year Manufacturer Warranty Included
    About Stage Supply
    Chat to us on WhatsApp
    Compare the Range

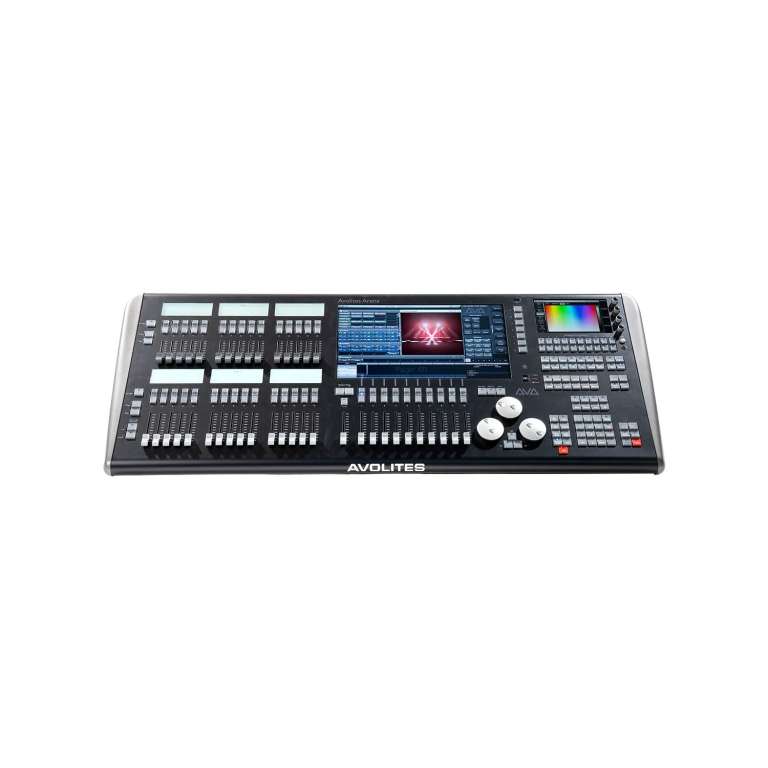

    Avolites Arena Live Lighting Console
    Avolites Arena Live Lighting Console
    £16,163.00 inc VAT
    £13,469.17 ex VAT
    • Console Only
    • Black Standard
    Viewing Now

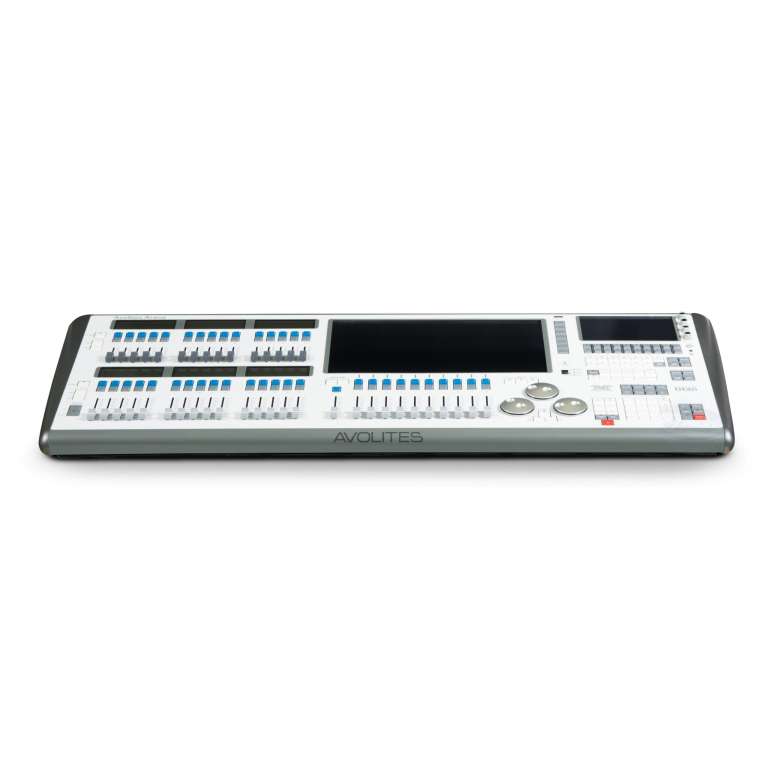

    Avolites Arena Live Lighting Console (White)
    Avolites Arena Live Lighting Console (White)
    £15,731.00 inc VAT
    £13,109.17 ex VAT
    • Console Only
    • White Limited Edition
    View →

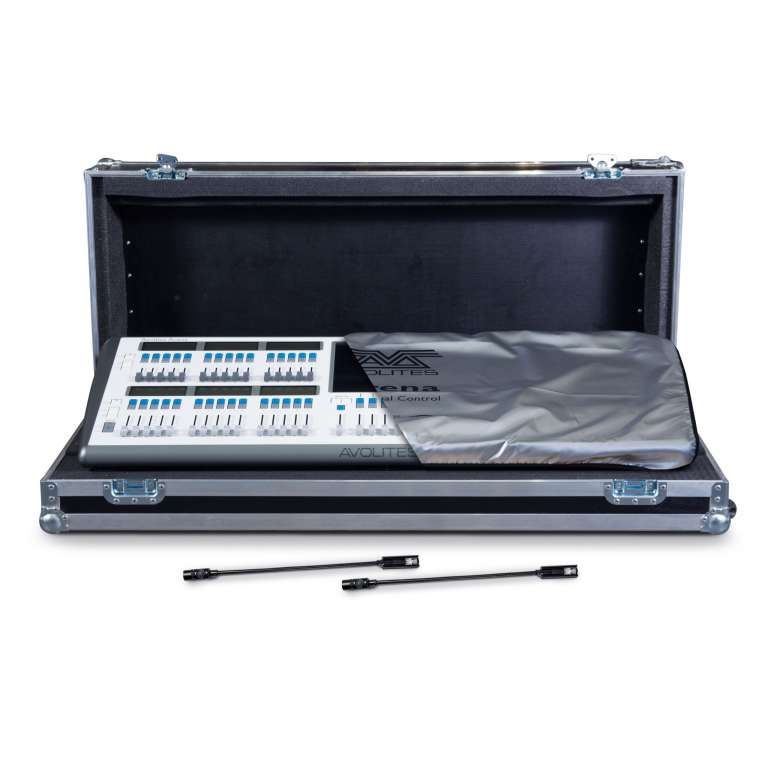

    Avolites Arena Console Bundle
    Avolites Arena Console Bundle
    £16,829.00 inc VAT
    £14,024.17 ex VAT
    • Console Bundle
    • Black + Flight Case
    View →

    About this Product

    The Avolites Arena is a full-size Titan-powered lighting console built for festivals, theatres, and large-scale live production. With dual touchscreens, six LCD screens across 30 motorised faders, and assignable playback encoder pots, it delivers the control surface real estate that complex shows demand. Optical fibre output and multi-user networking make it equally at home on a festival main stage or in a permanent venue install.

    Faders
    30
    With LCD screens

    Touchscreens
    2
    Dual integrated displays

    LCD Screens
    6
    Fader bank displays

    Output
    Optical Fibre
    Plus DMX & Ethernet

    Multi-User Networking

    The Arena supports Avolites multi-user mode, allowing multiple consoles and processing nodes to share a single show file across a network. Ideal for large-scale productions where lighting, media, and effects operators need simultaneous access.

    Features
    ✓
    Titan operating system with full fixture library
    ✓
    Dual integrated touchscreens for workspace and visualiser
    ✓
    Six LCD screens across 30 playback faders
    ✓
    Assignable playback encoder pots for speed and crossfade control
    ✓
    Optical fibre output for long-distance, interference-free data runs
    ✓
    Multi-user compatible for networked multi-console operation
    ✓
    Integrated optical trackball for pan/tilt control
    ✓
    Built for touring and festival environments

    Specifications
    SKU 30/01/3045
    Operating System Avolites Titan
    Touchscreens 2 x integrated
    LCD Fader Screens 6
    Playback Faders 30
    Optical Fibre Output Yes
    Multi-User Yes
    Finish Black
    Manufacturer Avolites

    More Information

    • 16GB RAM
    • 40 precision playback faders in three pageable groups.
    • 20 programmable macro executor buttons.
    • 3 metal shaft optical attribute encoders.
    • 4 optical playback encoder pots.
    • 15.6" vibrant main touch screen with brightness control.
    • 7" vibrant secondary touch screen.
    • 6 mono LCD screens for digital fader legends.
    • UPS battery back-up
    • New six-position articulation stand
    • Ergonomic trim and carry handles
    • Robust stainless and zinc treated steel construction - built for life on the road
    • Includes 4-port managed Gigabit network switch
    • OpticalCON Stage link output, with an optional second link
    • 8 physical 5-pin XLR opto-isolated DMX out, up to 16
      universes over ArtNet or streaming ACN - total of 8192 console channels.
    • Compatible with Titan Net - up to 64 universes, total of 32,768 system channels.
    • 4 Ethercon Gigabit primary network connection with a battery maintained managed switch supporting Titan Net, ArtNet and streaming ACN.
    • 1 Ethercon Gigabit secondary Network connection for Titan Net, ArtNet and streaming ACN.
    • 1 standard OpticalCON stage link output, to connect to industry standard network switches with optical support.
    • SMPTE Timecode/LTC input 3-pin XLR (transformer isolated).
    • Trigger inputs on ¼" jack, suitable for foot switches.
    • Audio in on stereo ¼" jack for Audio Triggering.
    • Headphone 3.5mm jack conveniently placed on the front panel.
    • 4 USB3 ports - 1 front, 3 rear.
    • DVI-D for external display.
    • Two 3-pin XLR dimmable lamp connector
    • MIDI in, out and thru.
    • Compatible with Titan Remote (Wi-Fi access point required)
    • Optional extras: Flight Case, Dimmable Lamp x2, Cover
