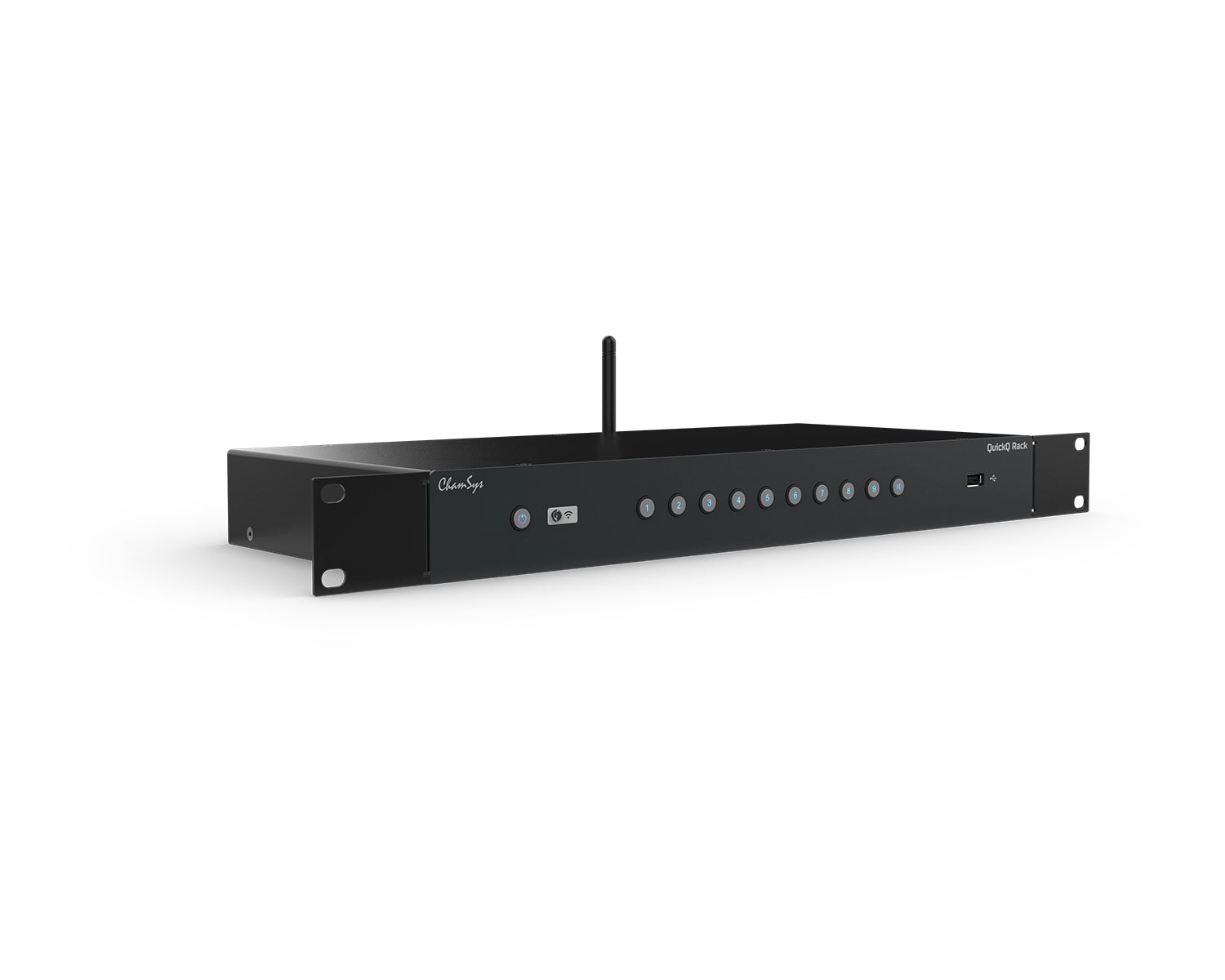

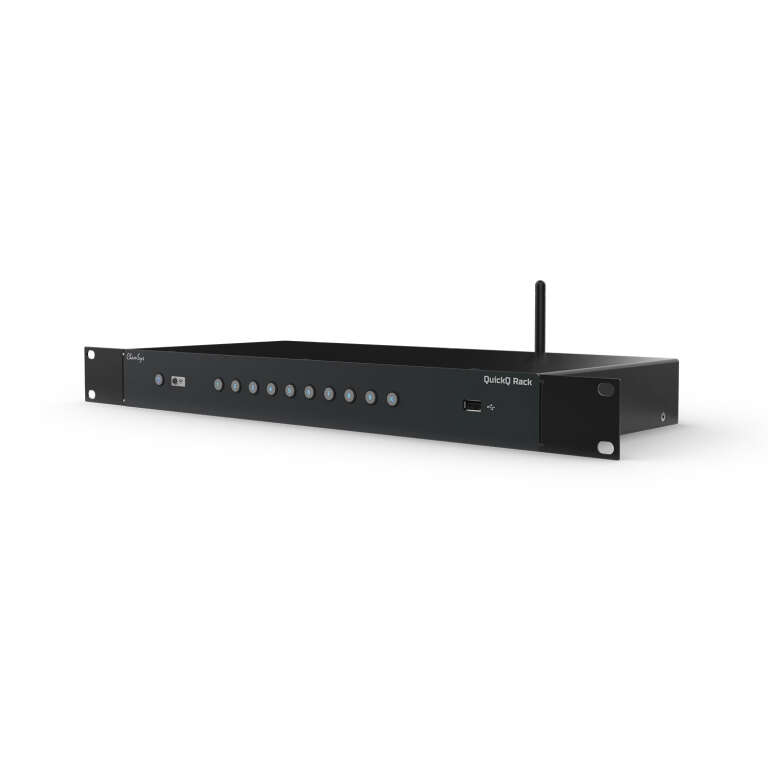

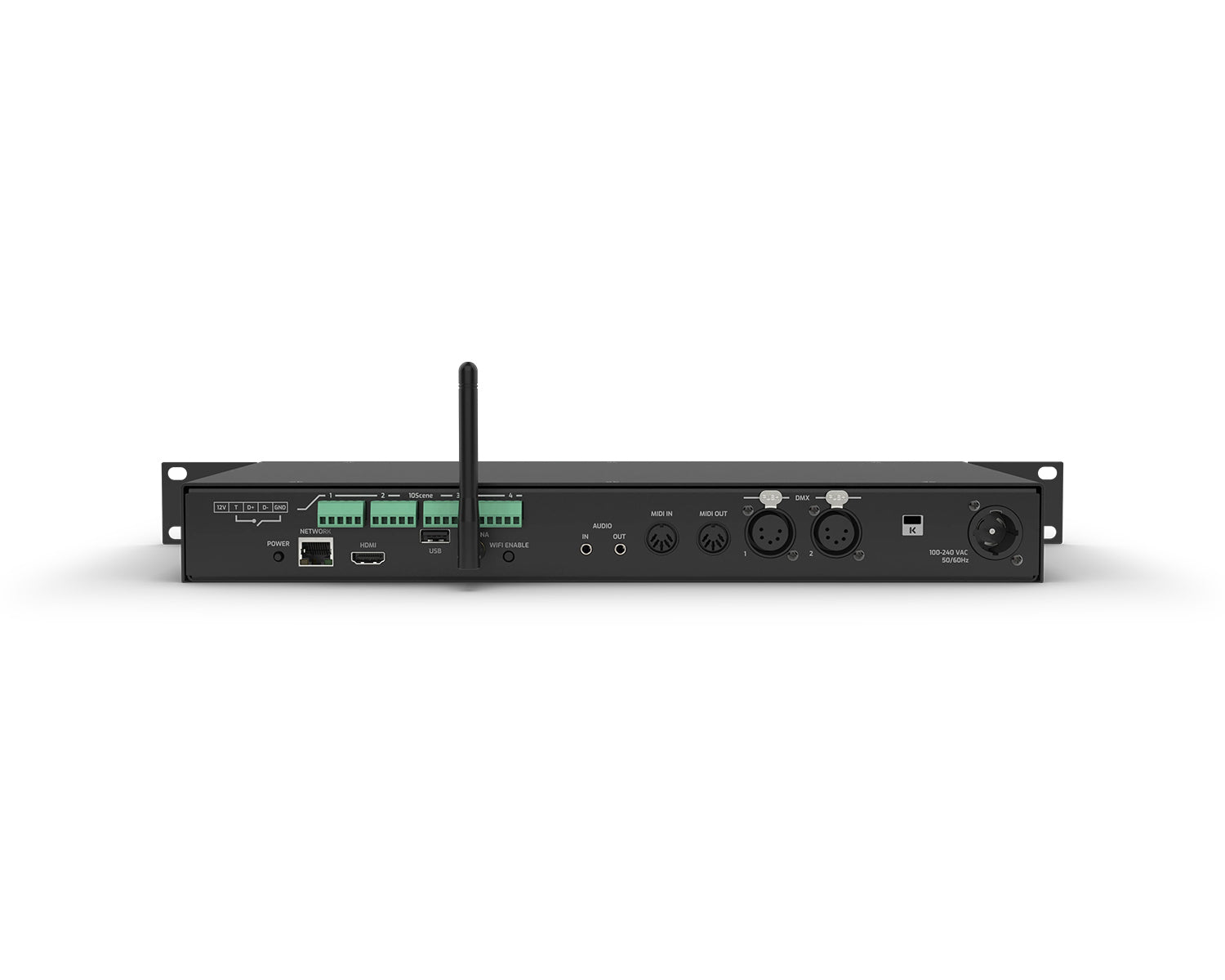

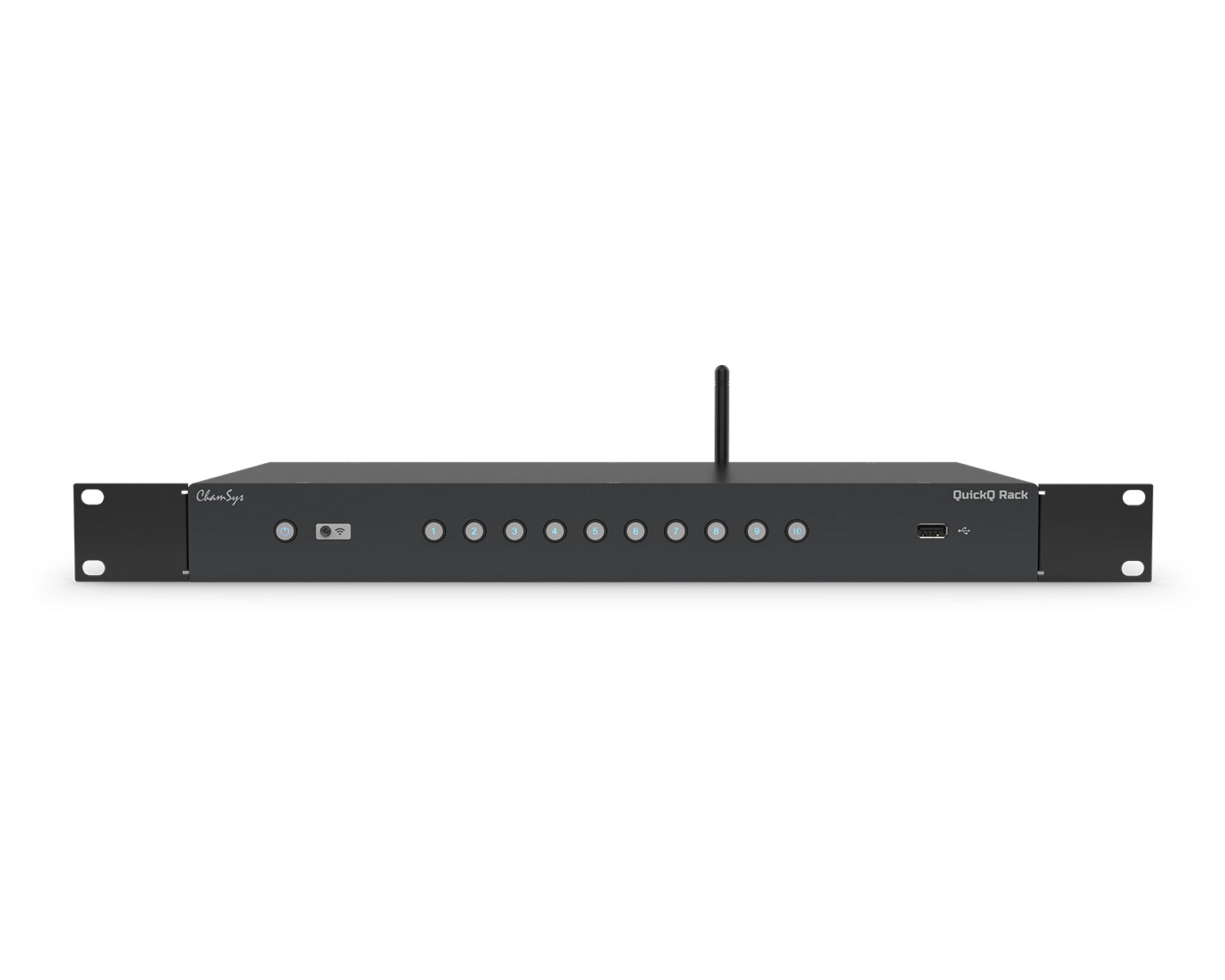

The ChamSys QuickQ Rack is a rack-mountable lighting controller running the full QuickQ software, designed for permanent installations where a traditional console isn’t practical. With no built-in display, it’s controlled entirely via the free QuickQ app or paired with ChamSys 10Scene wall plates for simple end-user operation. Four DMX universes and 10 playback/execute buttons make it a capable heart for venue and architectural lighting systems.
DMX Universes
4
2,048 channels
Execute Buttons
10
Playback / execute
Mounting
1U Rack
Ears included
10Scene
Compatible
Wall plate support
Installation Design
The QuickQ Rack is designed for headless operation — there is no built-in screen. Programming and day-to-day control is handled via the free QuickQ app on a phone, tablet or laptop, or through connected 10Scene wall plates for simple scene-recall by non-technical users. Rack ears are included for 19″ rack mounting, or it can sit on a desktop.
Features
✓
Full QuickQ software — same programming environment as the console range
Full QuickQ software — same programming environment as the console range
✓
4 DMX universes for larger fixture counts and complex installations
4 DMX universes for larger fixture counts and complex installations
✓
10 front-panel playback/execute buttons for local scene recall
10 front-panel playback/execute buttons for local scene recall
✓
Pairs with ChamSys 10Scene wall plates for end-user scene control
Pairs with ChamSys 10Scene wall plates for end-user scene control
✓
Built-in WiFi for remote programming via the free QuickQ app
Built-in WiFi for remote programming via the free QuickQ app
✓
Desktop or 19″ rack mount — rack ears included in the box
Desktop or 19″ rack mount — rack ears included in the box
✓
Headless operation — no display required for day-to-day use
Headless operation — no display required for day-to-day use
✓
Free lifetime software updates from ChamSys
Free lifetime software updates from ChamSys
Specifications
| SKU | CS100701 |
| Form Factor | 1U rack-mount / desktop (rack ears included) |
| DMX Universes | 4 |
| Playback / Execute Buttons | 10 |
| 10Scene Support | Yes — pairs with 10Scene wall plates |
| Display | None (headless — controlled via QuickQ app) |
| Remote Control | QuickQ app (iOS / Android / Windows) |
| Manufacturer | ChamSys |
