Sennheiser EW-D ASA 1G8 Antenna Splitter for EW-D and G4 (1.8 GHz)

SKU: 508881
Sennheiser EW-D ASA 1G8 Antenna Splitter for EW-D and G4 (1.8 GHz)
Sennheiser EW-D ASA 1G8 Antenna Splitter for EW-D and G4 (1.8 GHz)
Sennheiser EW-D ASA 1G8 Antenna Splitter for EW-D and G4 (1.8 GHz)
Sennheiser EW-D ASA 1G8 Antenna Splitter for EW-D and G4 (1.8 GHz)
Click to enlarge

    £583.00 inc VAT
    £485.83 ex VAT

    11 in stock (more available subject to additional lead time)

    Order in 13h 49m 37s for FREE delivery by Tuesday
    Click & collect available Monday ›
    VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
    2 Year Manufacturer Warranty Included
    About Stage Supply
    Chat to us on WhatsApp

    About this Product

    The Sennheiser EW-D ASA (1350–1805 MHz) is an active antenna splitter for Evolution Wireless Digital systems, distributing two antenna signals to up to eight EW-D EM receivers. Configurable as 2 x 1:4 or 1 x 1:8, it removes the need for individual antenna pairs on every receiver and feeds DC power to connected receivers down the same coax — a clean, rack-friendly solution for multi-channel deployments operating in the 1.8 GHz band.

    Compatibility

    This is the X-Y variant covering 1350–1805 MHz, intended for Evolution Wireless Digital (EW-D) systems running in the 1.8 GHz band. It supplies DC power to connected EW-D EM receivers and accepts EW-D AB active antennas.

    Features
    ✓Active splitter, configurable as 2 x 1:4 or 1 x 1:8
    ✓Feeds up to eight EW-D EM receivers from a single antenna pair
    ✓Supplies DC power to connected receivers over coax
    ✓Unity gain (0 ± 1 dB) preserves signal level across all paths
    ✓High linearity with IIP3 > 25 dBm
    ✓Supplied with NT 12-35 CS PSU and 8x BNC antenna cables

    Specifications
    Manufacturer Sennheiser
    Model EW-D ASA (1350–1805 MHz)
    Article number 508881
    Type Active antenna splitter, 2 x 1:4 or 1 x 1:8
    Frequency range 1350–1805 MHz
    Impedance 50 Ω
    Gain 0 ± 1 dB
    IIP3 > 25 dBm
    Reflection loss 10 dB (all RF outputs)
    Power supply DC +12 V via NT 12-35 CS
    Current consumption 210 mA (max. 3 A with 4 EW-D EM and connected EW-D AB)
    Operating temperature -10 °C to +55 °C
    Dimensions 212 x 168 x 43 mm
    Weight approx. 1100 g

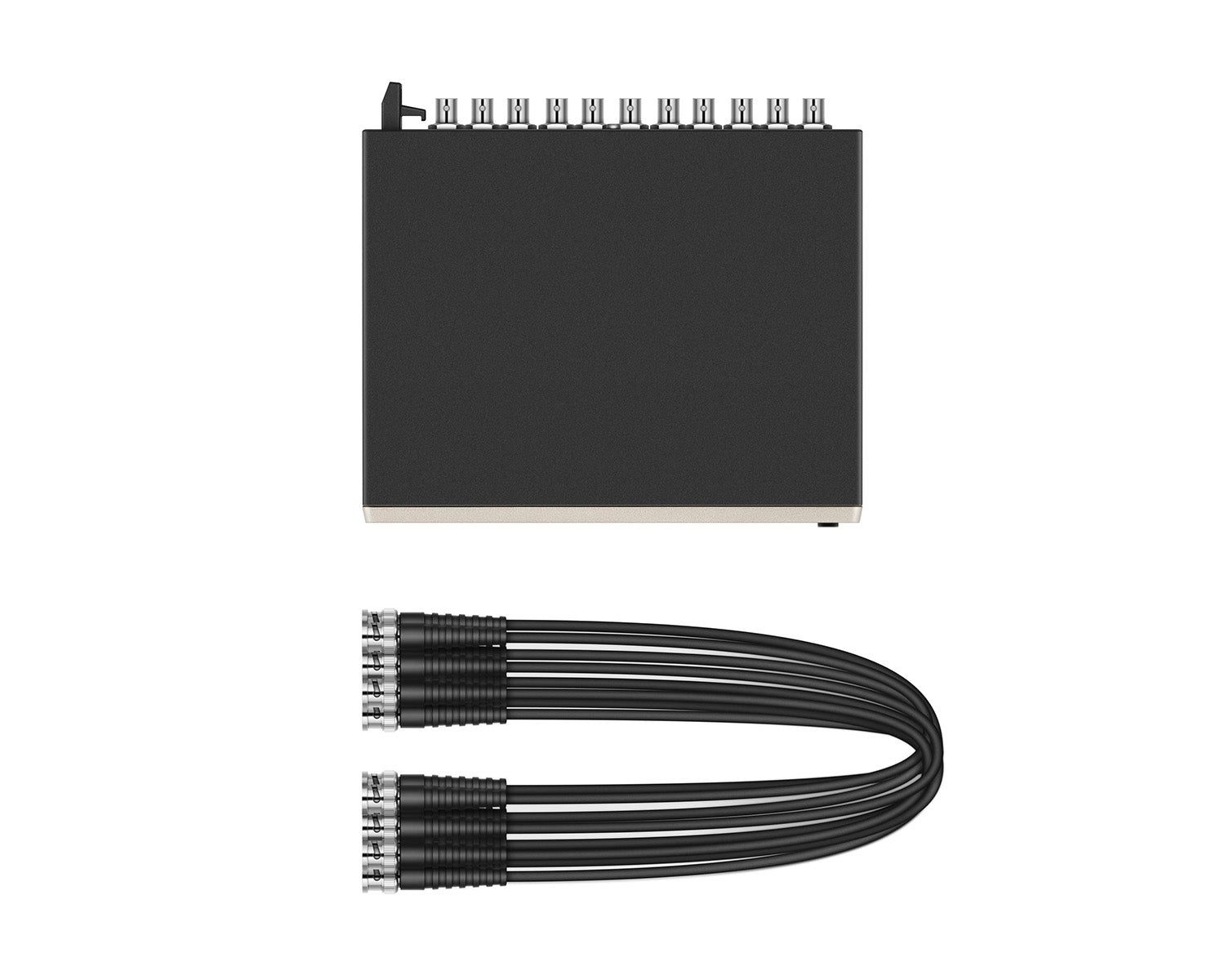

    In the box EW-D ASA splitter, NT 12-35 CS power supply, 8x BNC antenna cables

    More Information

    • Digital wireless eliminates noise, interference and static bursts
    • UHF transmission greatly enhances range, reliability and scalability
    • Mobile App streamlines setup and operation and eliminates complicated menus
    • Automated setup creates reliable connections with minimal time and effort
    • Up to 2,240 selectable frequencies
    • 56 MHz Bandwidth will allow for up to 90 channels
