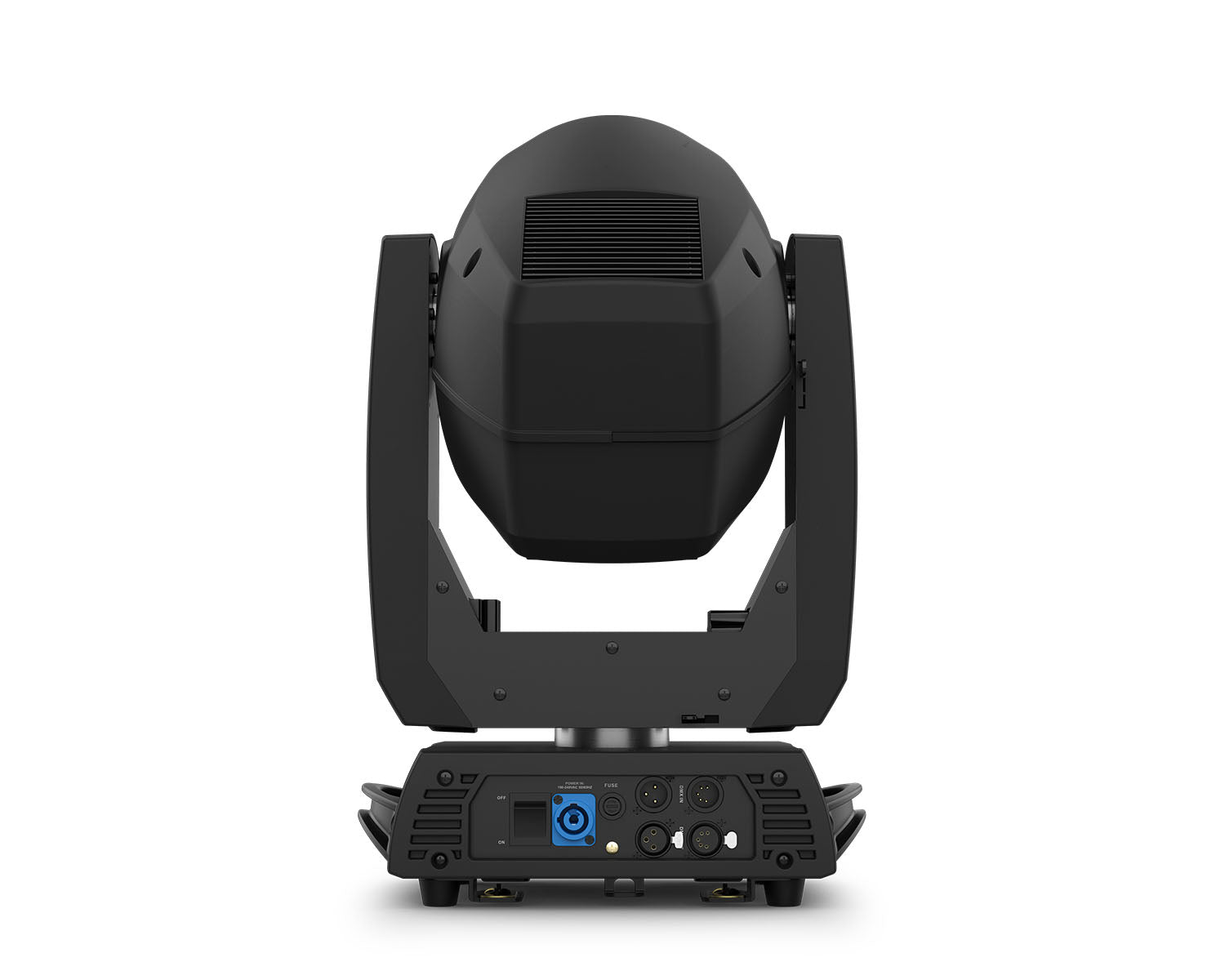

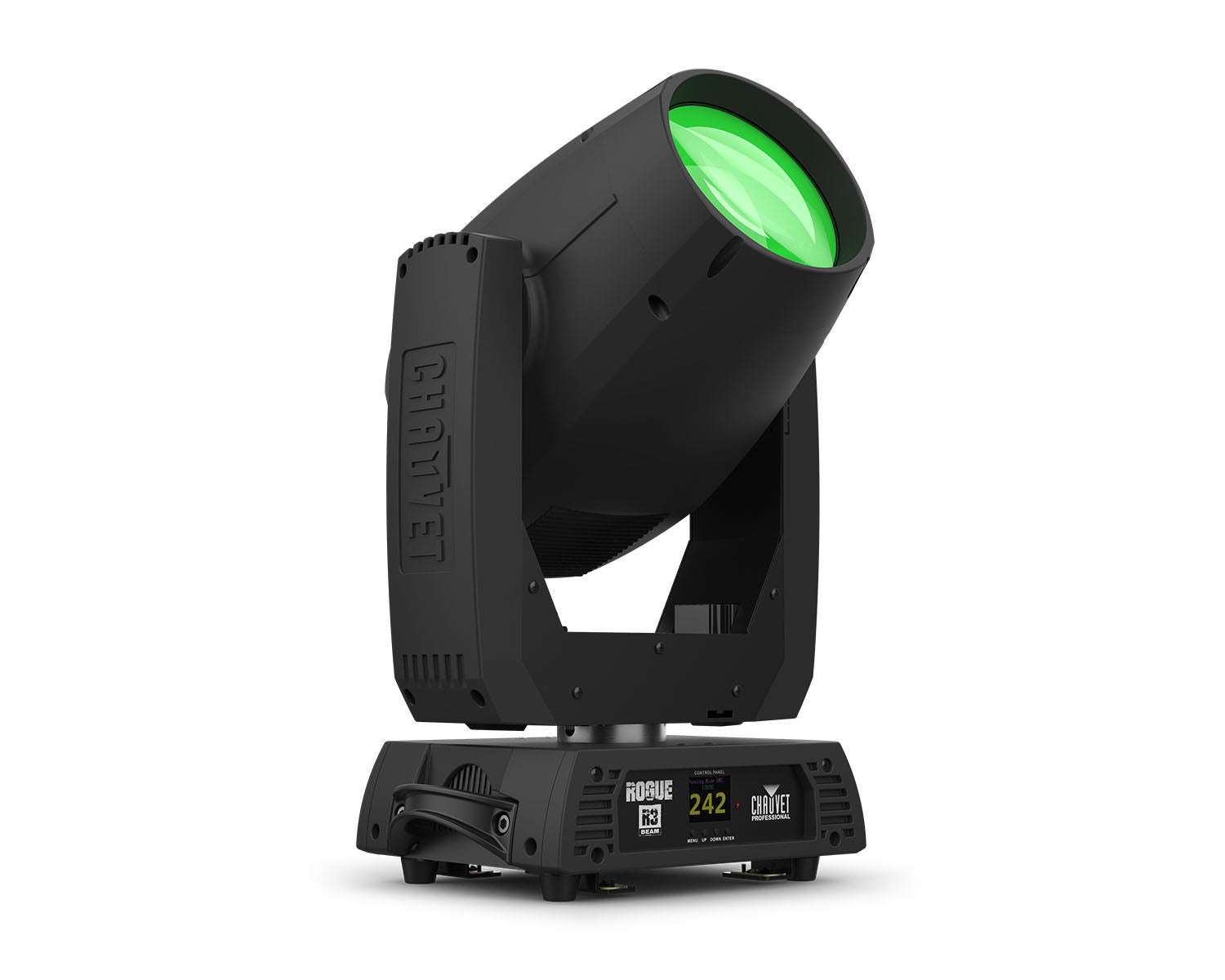

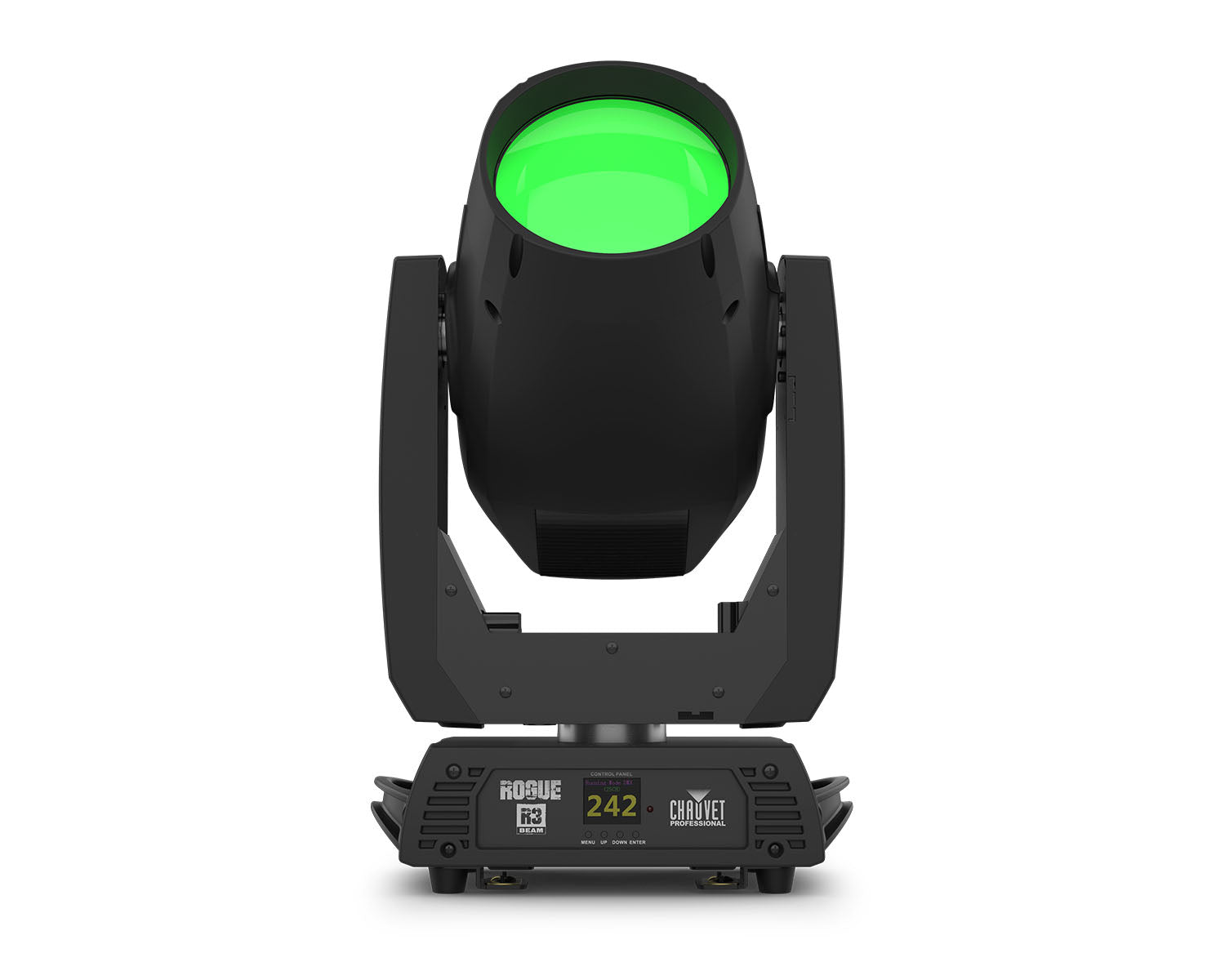

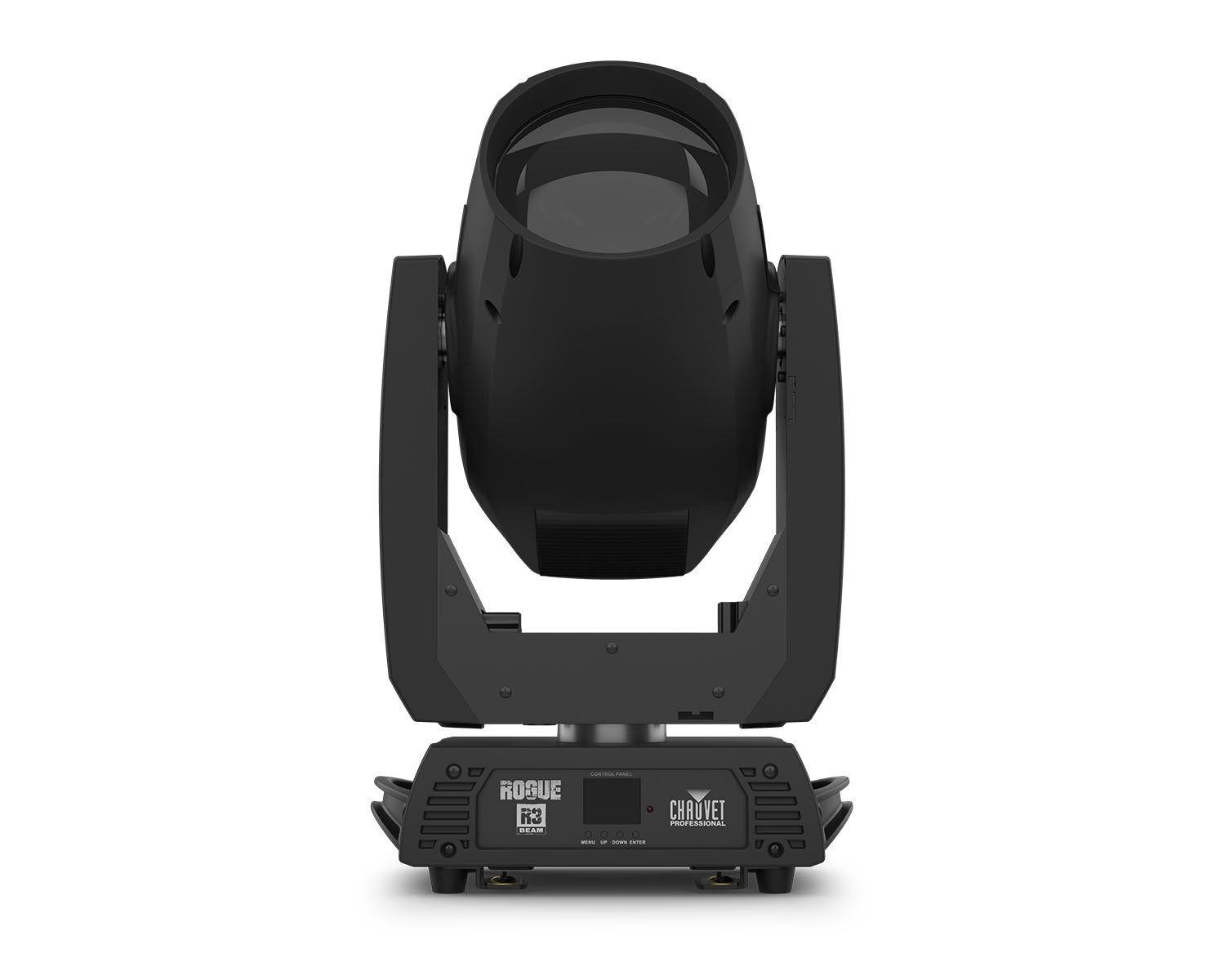

The Chauvet Professional Rogue R3 Beam is the high-intensity beam fixture in the Rogue series, delivering over 208,000 lux at 15 metres from its 300W Ushio NSL lamp. With a razor-sharp 0.8° beam angle, dual prism system, and a full complement of colours and gobos, it is purpose-built for arena tours, large festivals, and any application where raw beam punch is the priority.
Lamp
300W Ushio NSL
Discharge lamp
Output
208,000+ lux
At 15 metres
Beam Angle
0.8°
Extremely tight
Colours
14
Variable scroll
Features
✓
300W Ushio NSL lamp delivering over 208,000 lux at 15m
300W Ushio NSL lamp delivering over 208,000 lux at 15m
✓
Ultra-tight 0.8° beam angle for focused aerial effects
Ultra-tight 0.8° beam angle for focused aerial effects
✓
14-colour wheel with variable-speed scrolling
14-colour wheel with variable-speed scrolling
✓
17-gobo wheel with variable-speed scrolling
17-gobo wheel with variable-speed scrolling
✓
Overlapping 8-facet and 24-facet prisms for layered beam splits
Overlapping 8-facet and 24-facet prisms for layered beam splits
✓
Motorised frost for soft-edge wash looks
Motorised frost for soft-edge wash looks
✓
Motorised focus for precise beam definition
Motorised focus for precise beam definition
✓
RDM support for remote fixture addressing and configuration
RDM support for remote fixture addressing and configuration
Note
This fixture uses a 300W Ushio NSL discharge lamp. Budget for replacement lamps as part of your running costs — unlike LED-based Rogue models, the lamp has a finite life.
Specifications
| Lamp | 300W Ushio NSL |
| Output | Over 208,000 lux at 15m |
| Beam Angle | 0.8° |
| Colour Wheel | 14 colours, variable scroll |
| Gobo Wheel | 17 gobos, variable scroll |
| Prisms | 8-facet and 24-facet, individually overlapping |
| Frost | Motorised |
| Focus | Motorised |
| Control | DMX, RDM |
| SKU | ROGUER3BEAM |
