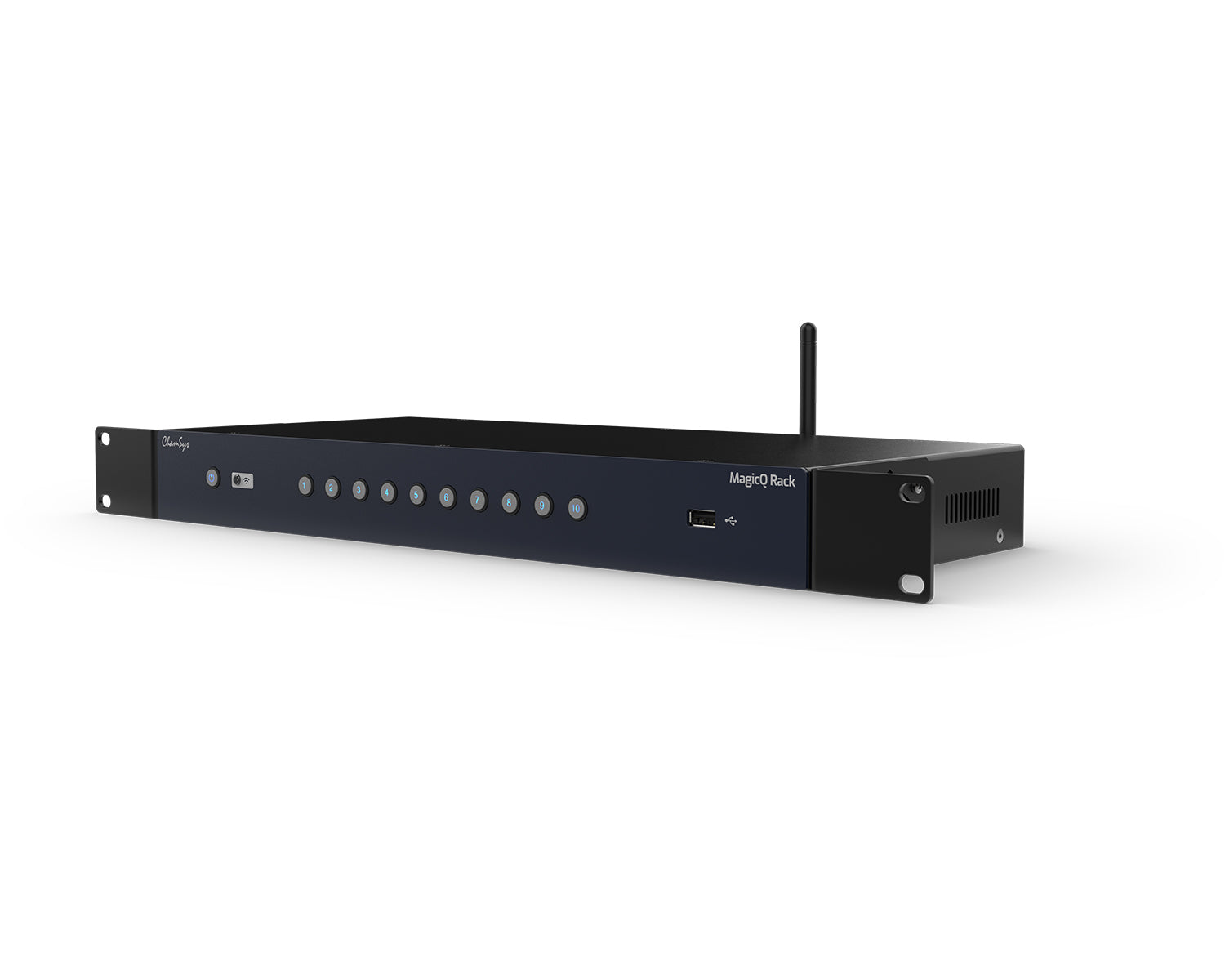

The ChamSys MagicQ Rack is a 1U rack-mountable (or desktop) unit running the full MagicQ operating system. With 24 universes expandable to 48, 2 RDM-enabled DMX ports, 4 x 10Scene ports for up to 40 wall plates, and built-in WiFi, it is designed for permanent installations in venues, theatres, and houses of worship where a full console is not required at the control position. 19″ rack ears are included.
Universes
24
Expandable to 48
Form Factor
1U
Rack or desktop
10Scene Ports
4
Up to 40 wall plates
DMX Ports
2
RDM-enabled
Features
✓
Full MagicQ operating system — not a node
Full MagicQ operating system — not a node
✓
24 universes expandable to 48
24 universes expandable to 48
✓
2 RDM-enabled DMX outputs
2 RDM-enabled DMX outputs
✓
4 x 10Scene ports supporting up to 40 wall plates
4 x 10Scene ports supporting up to 40 wall plates
✓
Built-in WiFi for remote control and programming
Built-in WiFi for remote control and programming
✓
10 buttons for Playbacks and Executes
10 buttons for Playbacks and Executes
✓
Scheduled events, OSC, UDP, and MIDI control
Scheduled events, OSC, UDP, and MIDI control
✓
19″ rack ears included
19″ rack ears included
Specifications
| SKU | CS100015 |
| Form Factor | 1U rack mount / desktop |
| Operating System | Full MagicQ |
| Universes | 24 (expandable to 48) |
| DMX Ports | 2 (RDM-enabled) |
| 10Scene Ports | 4 (up to 40 wall plates) |
| Front Panel | 10 buttons (Playback / Execute) |
| WiFi | Built-in |
| Control Protocols | OSC, UDP, MIDI, scheduled events |
| Included | 19″ rack ears |
