Linea Research 44M10 Power Amplifier

• Four channels of sonically pure Class D amplification
• Unique, precise, 96kHz digital signal processing
• Over-designed switch mode power supply
• 85V to 240V Auto-sensing PSU
• 6,000 to 20,000 watts RMS total output
• Full front panel user interface
• Ethernet network for system operation and monitoring
• Analogue, AES3 and optional Dante™ / AES67 digital network audio
• Powerful grouping & multi-layer EQ
• Accepts 48kHz and 96kHz FIR files via System Engineer (certain models)
• Fully designed and engineered in house by Linea Research
• Manufactured in the UK

General

• Number of channels:  Four
• Total power output, all channels driven:  20,000, 10,000, and 6,000 Watts RMS
• Audio inputs:  4x Analogue, 2x AES3 and 4x Dante™ / AES67 (factory fitted option)
• Digital Signal Processing:  High performance DSP processing on all inputs and outputs
• Control, monitoring and system status alarms:
  • Ethernet network
  • Volt-free relay and contact closure port
• Power-save modes:
  • Standby after user defined time, instant wake up on audio
  • Deep ECO sleep after user defined time, wake up on command
• System sleep and wakeup:  Front panel switch, network command, and audio detection

Power Output

• Model 44 Series M10
• Power specification:  RMS output power per channel, all channels driven with continuous program material and a nominal ambient temperature of 40°C / 105°F
• Crest Factor of 4 (12dB), 2-Ohm nominal load:  2,500W
• Crest Factor of 2.8 (9dB), 4-Ohm nominal load:  2,500W
• Crest Factor of 2 (6dB), 8-Ohm nominal load:  1,500W
• Bridged, per channel pair, 4-Ohm nominal load:  5,000W
• 100V line (CV) operation, Crest Factor 4 (12dB):  3,500W
• 70V line operation, Crest Factor 4 (12dB):  2,500W
• 25V line operation, Crest Factor 4 (12dB):  885W

Audio Performance

• Amplifier topology:  Linea Research high performance Class D
• Amplifier modulation scheme:  Low feedback, multiple loop, with feed-forward error correction
• Dynamic range (Measured relative to the amplifier output):
  • Analogue input, better than 113dBA typical
  • AES / Dante™ input, better than 114dBA typical
• Gain (with all DSP level controls set to 0dB):  32dB
• Frequency response, 4 Ohm load:  <7Hz to >30kHz, 4 Ohms, -2.5dB points
• Total harmonic distortion, THD:  <0.05% typical, 1kHz signal, AES17 filter, 4 Ohm load
• Inter-channel crosstalk, worst case combination:  better than -85dBr at 1kHz and -75dBr at 10kHz
• Maximum analogue input level:  +20dBu
• Analogue input sensitivity range for full output:  0dBu to +20dBu, continuously adjustable
• Analogue input and link:  Input 20k Ohm, electronically balanced, link directly connected to input
• Analogue ground scheme:  AES48 standard compliant
• AES3 input:  Transformer isolated with unique active cable equalisation for extended range
• AES3 link:  Active AES3 signal regeneration. Automatic direct bypass to the AES3 input ensuring the audio signal will still flow even when the amplifier is powered down
• AES3 supported sampling rates:  24kHz to 192kHz (auto locking)

Digital Signal Processing

• Resolution:  40 bit, Linea Research proprietary algorithms
• Sample rate:  96kHz throughout
• Physical inputs to DSP drive modules:  4x analogue, 2x AES & 4x Dante™ / AES67 inputs can be routed to four DSP drive modules
• Drive module input processing:
  • Input signal routing, delay, gain, HPF, Phase, Mute
  • EQ: 2x low shelf, 6x PEQ / band pass, and FIR shelving filters
• Drive module output processing:
  • Source, delay, gain, Phase, Mute, crossover filters, VX limiters
  • EQ: low shelf, 8x PEQ / band pass, and shelving filters
• Preset management:
  • 10 snapshots for device wide setup, 50 presets for loudspeaker settings
  • Presets can be recalled to sets of outputs or individual outputs as required

Unique high-performance processing

• Overlays:
  • Twelve additional independent overlays of EQ, Delay, and Gain
  • Flexible grouping for effective control of many amplifier channels in large systems
• Class leading VX limiters:  See the ‘speaker protection systems’ section
• Hardman crossover filters:  Better out of band rejection than Linkwitz-Riley
• LIR crossover filters:  Linear Phase without the compromises of FIR filters

Power Supply

• Topology (main power supply):  Linea Research high performance Series Resonant
• Topology (auxiliary and standby supplies):  Low quiescent Eco-Flyback
• Internally stored energy:  >600 Joules
• Nominal mains input voltage range:  85V to 240V Power supply automatically detects voltage and configures accordingly
• Mains input frequency range:  47Hz to 63Hz
• Mains inrush current (max for <10ms):  6A at 115V and 12A at 230V

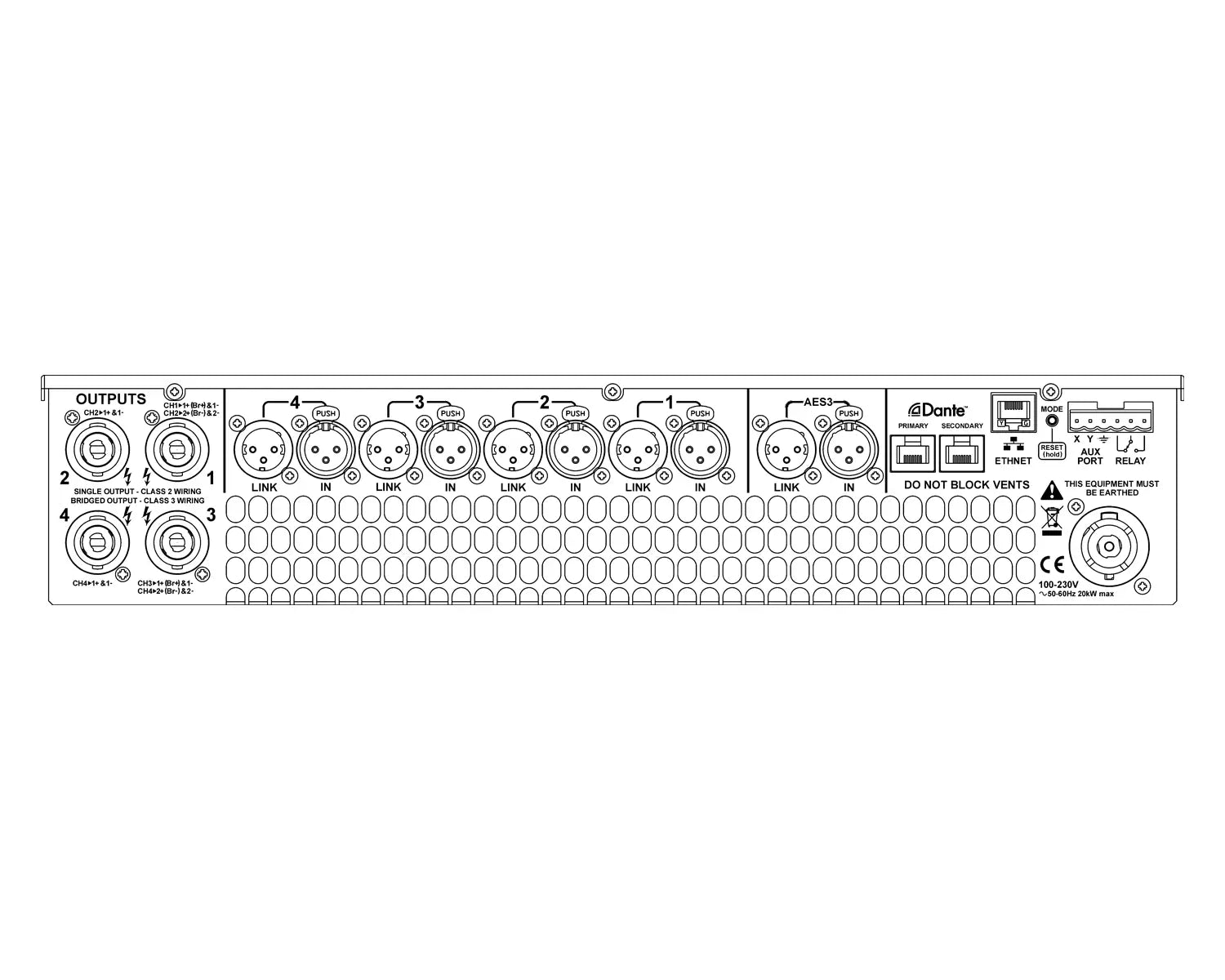

Physical

• Cooling:  Dual vari-speed fans, front to back airflow. Washable, toolless change filter media.
• Analogue IN and LINK:  4x female and 4x male Neutrik™ XLR
• AES3 dual channel IN and LINK:  1x female and 1x male Neutrik™ XLR
• Amplifiers output:  4x Neutrik Speakon™ NL4 connectors
• Mains input connector:  Neutrik 32A Powercon™
• Dante Primary and Secondary:  2x Shielded RJ45
• Relay output & contact closure inputs:  Phoenix™ pluggable terminal block (supplied)
• Front panel display (backlit):  Graphical, high contrast, daylight visible
• Front panel encoders:  Two, indented, velocity sensitive
• Front panel push buttons:  Large, tactile, illuminated
• LED indicators:  Bright, easily differentiated
• Enclosure:  Standard 19” 2U (88mm), 357mm (14”) deep  with handles and optional rear support
• Net Weight:  12.5kg (27.5 pounds).
