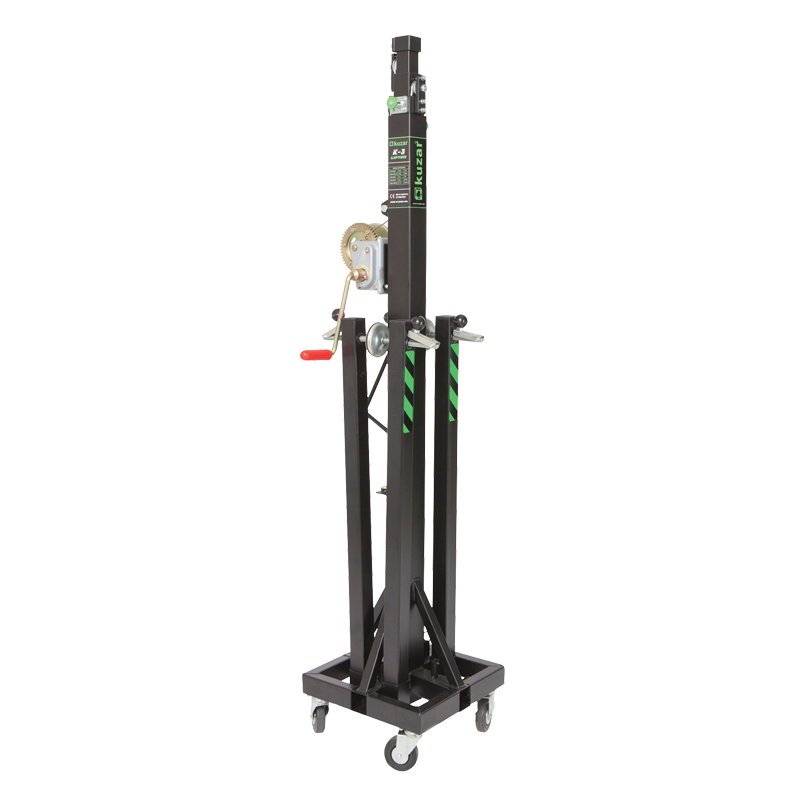

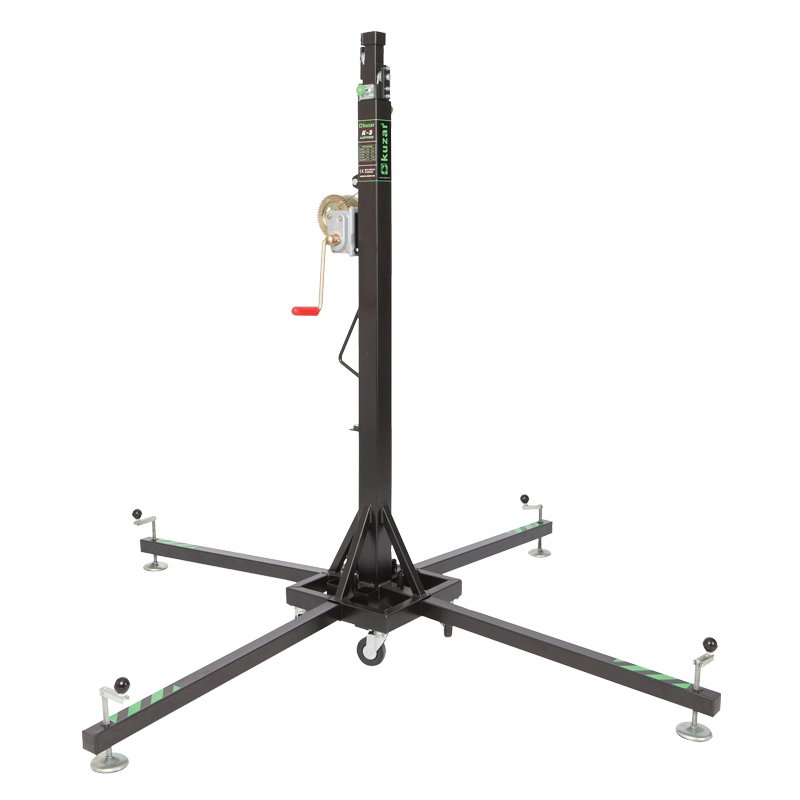

The Kuzar K-3 is a compact four section telescopic tower lifter rated for 125kg to a maximum height of 5.35m. The smallest of the Kuzar wind up tower range and ideal for smaller lighting bars, follow spot positions and live event applications where load weights are modest but height is still required. Folds down to 1.72m for transport and weighs only 41kg.
Max Load
125 kg
Max Height
5.35 m
Folded
1.72 m
transport
Weight
41 kg
Safety
Manufactured in Europe to BGV C1 and CE 2006/42/CE standards. KAT automatic locks engage at every section as the tower is raised, holding the load if the cable fails. Winch is certified to 450kg.
Features
✓Lifts up to 125kg to 5.35m
✓Four section telescopic steel profile
✓4mm steel DIN 3060 cable
✓1.43 x 1.43 m work surface
✓Lightweight at 41kg total
✓450kg certified winch
✓Manufactured in Europe to BGV C1 and CE 2006/42/CE standards
✓Automatic KAT locks engage at every section as the tower is raised
✓Adjustable non slip rubber stabilising plates on each leg
✓Steel base with swivel castors for transport between rooms and trucks
✓Steel cable winch with metal protected pulley bearings
✓2 year manufacturer warranty
Specifications
| Brand | Kuzar |
| Model | K-3 |
| Max load | 125 kg |
| Max height | 5.35 m |
| Folded height | 1.72 m |
| Weight | 41 kg |
| Footprint | 1.43 x 1.43 m |
| Cable | 4 mm steel DIN 3060 |
| Winch | 450 kg certified |
| Sections | 4 telescopic steel profiles |
| Material | Steel EN 10305 |
| Standards | BGV C1, CE 2006/42/CE |
| Warranty | 2 years |
