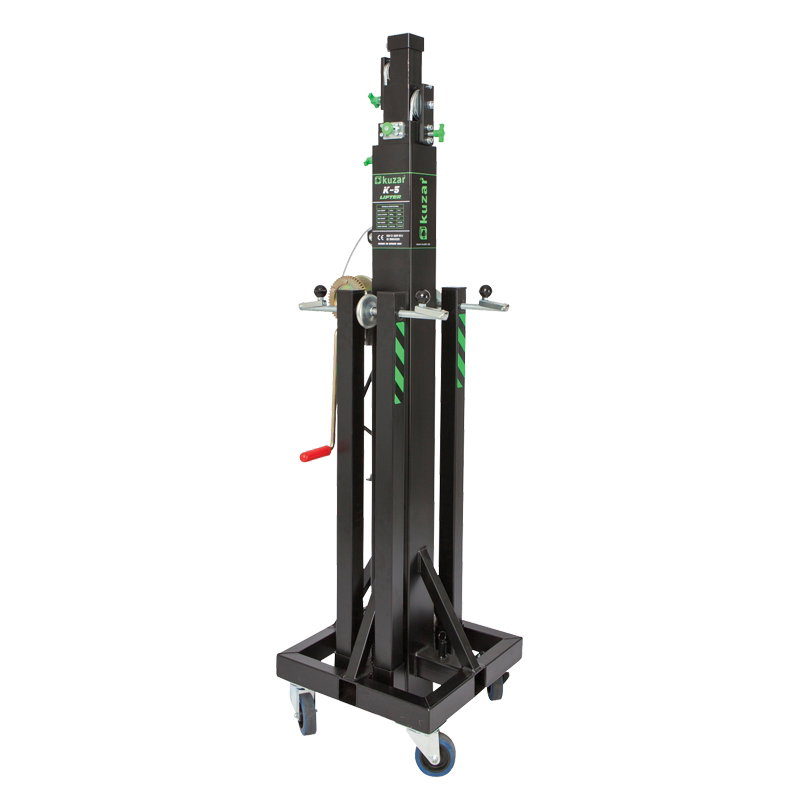

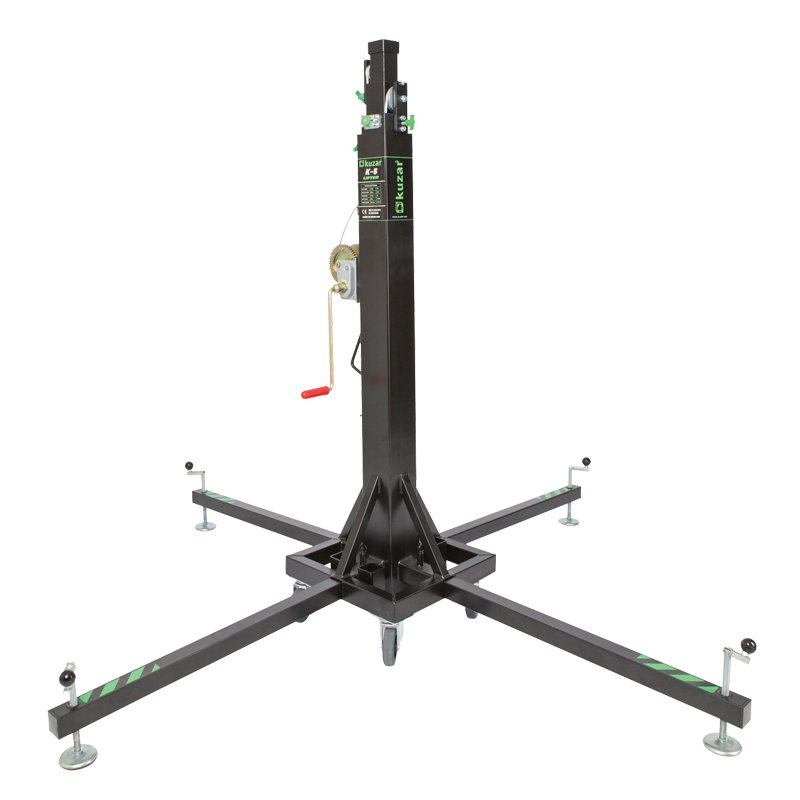

The Kuzar K-5 is a heavy duty four section telescopic tower lifter rated for 250kg to a maximum height of 5.35m. Designed for the event and rental industry where mid range truss spans, lighting rigs and PA flown loads need to be raised quickly and locked safely. Wide steel base with four wider profiles for added stability and adjustable non slip stabilising plates on each leg.
Max Load
250 kg
Max Height
5.35 m
Folded
1.74 m
transport
Weight
80 kg
Safety
Manufactured in Europe to BGV C1 and CE 2006/42/CE standards. Automatic KAT locks engage as the tower is raised, holding the load even if the steel cable fails.
Features
✓Lifts up to 250kg to 5.35m
✓Four section telescopic steel profile
✓6mm anti torsion anti corrosion steel cable
✓55mm diameter adaptor
✓2 x 2 m work surface footprint
✓Manufactured in Europe to BGV C1 and CE 2006/42/CE standards
✓Automatic KAT locks engage at every section as the tower is raised
✓Adjustable non slip rubber stabilising plates on each leg
✓Steel base with swivel castors for transport between rooms and trucks
✓Steel cable winch with metal protected pulley bearings
✓2 year manufacturer warranty
Specifications
| Brand | Kuzar |
| Model | K-5 |
| Max load | 250 kg |
| Max height | 5.35 m |
| Folded height | 1.74 m |
| Weight | 80 kg |
| Footprint | 2 x 2 m |
| Adaptor | 55 mm diameter |
| Cable | 6 mm anti torsion steel |
| Sections | 4 telescopic steel profiles |
| Standards | BGV C1, CE 2006/42/CE |
| Warranty | 2 years |
