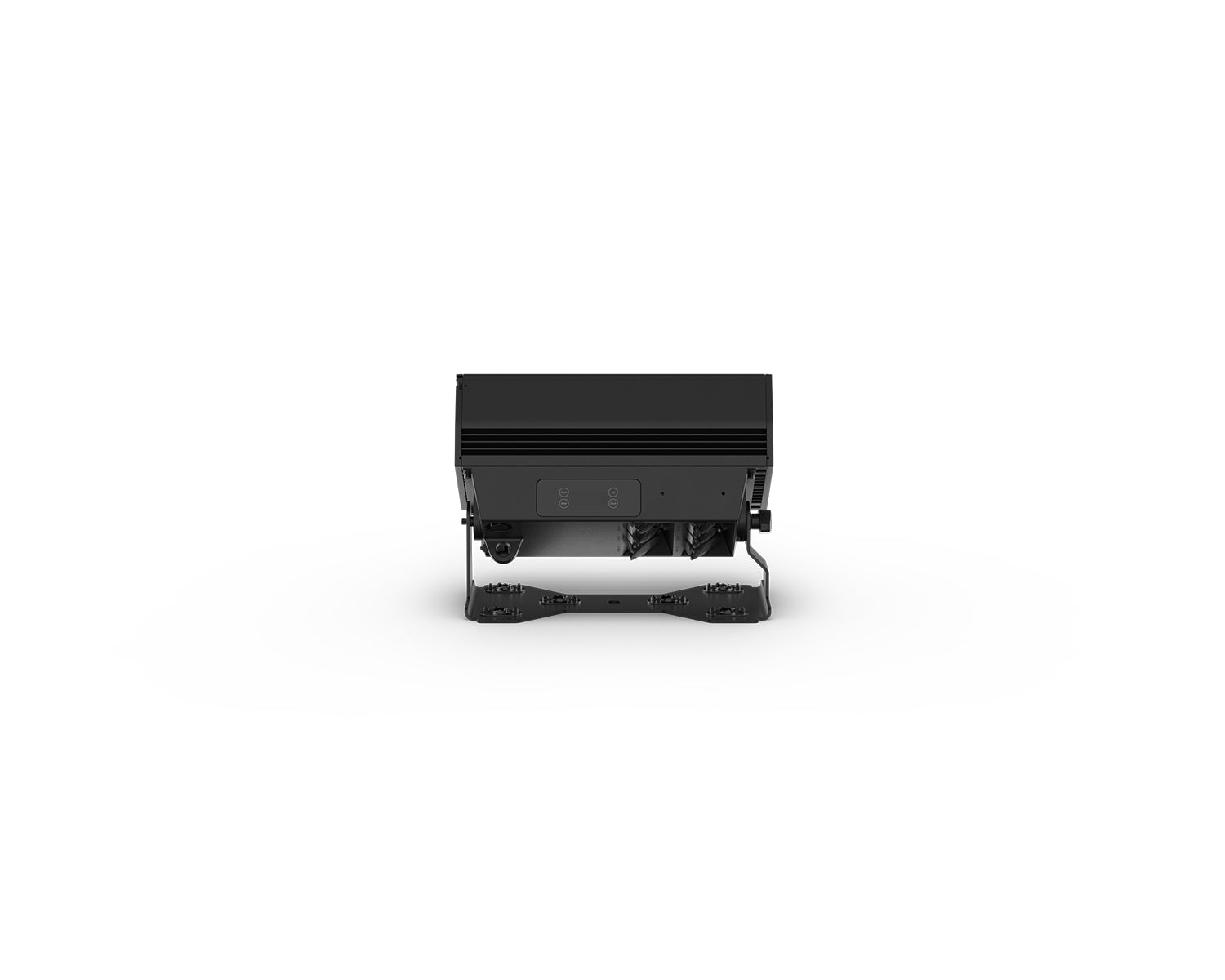

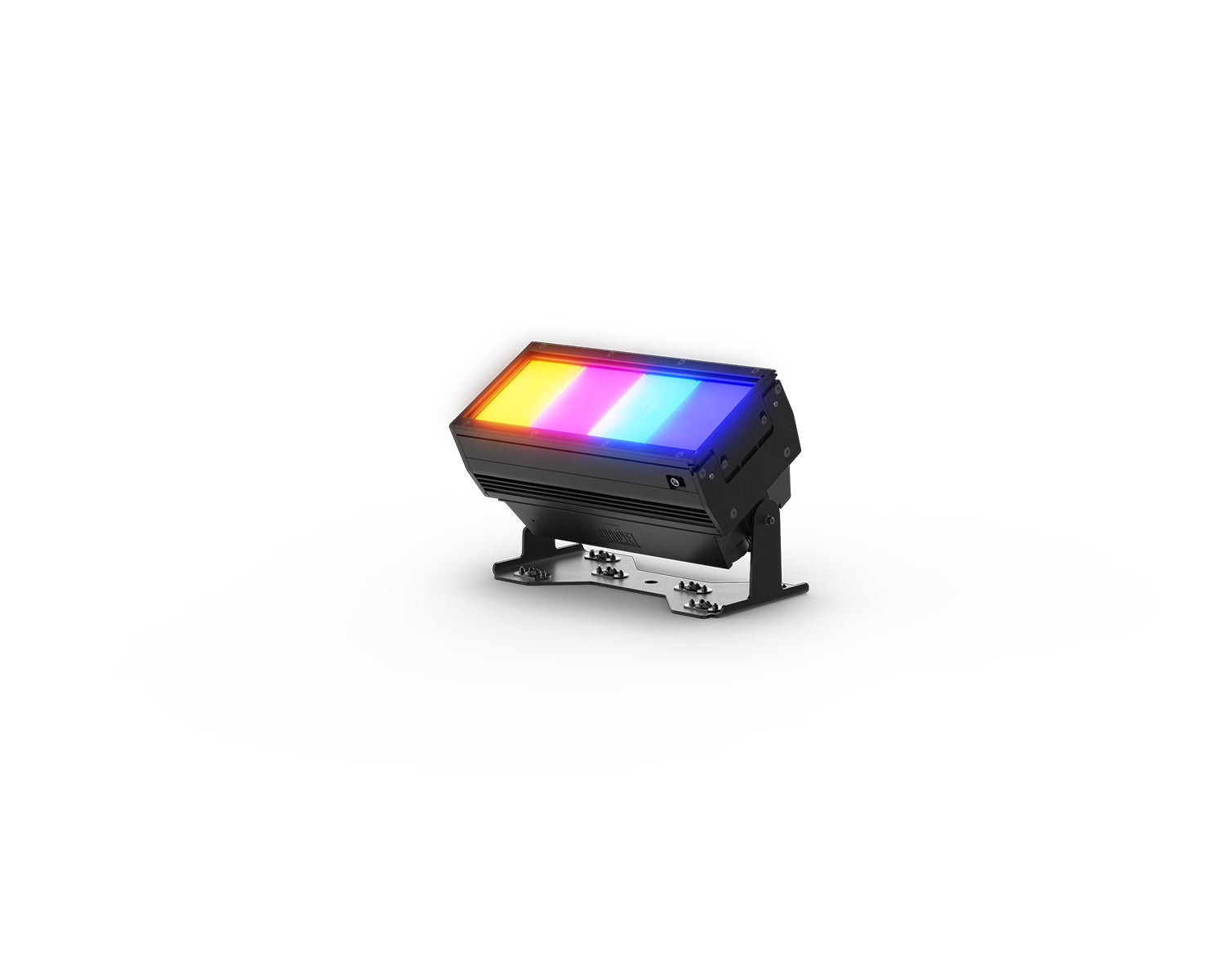

Chauvet Professional COLORado Solo Bar 1 LED Batten

• Full-spectrum LED batten suited equally for rental/production, broadcast, film, and special events
• IP65 rating for all weather use and protection from dust/fog/haze indoors or out
• Linear colour temperature presets from 2800 K to 6500 K with high TM-30, CRI and CQS
• Perfectly blended and even colour from edge to edge of the cell, no "circle in a square" look
• +/- Green adjustment and emulated red-shift via DMX or on-board control
• Multiple control methods from on-board DMX, RDM, CRMX, Art-Net and sACN
• Virtually silent operation for use in studio applications
• Easily adjustable sliding brackets (on standard T-rail) for optimal placement around truss supports
• Guide pins for easy end-to-end alignment
• Slide-in slot for various included and accessory filters as well as an on-board stowable glare shield
• Ultra-smooth 18-bit dimming curves and speeds to complement any lighting scheme

Optical

• Light Source: 4 LEDs (4 red, 4 green, 4 blue, 4 warm white, 4 lime) 15.2 – 18.4 W, (870 mA), 50,000 hours life expectancy.
• Colour Temperature (range): 2800 to 6500 K
• Colour Temperature (at full): 9,425 K
• CRI (2800k): 93.1
• Beam Angle: 18.9°
  • Beam Angle (w/CYC Diffusion): 38.8°
  • Beam Angle (w/Half Diffusion): 18.3°
• Field Angle: 48.7°
  • Field Angle (w/Half Diffusion): 42.6°
  • Field Angle (w/Stealth Diffusion): 68.2°
• Lumens: 4,639
  • Lumens (w/CYC Diffusion): 3,725
  • Lumens (w/Half Diffusion): 3,695
  • Lumens (w/Stealth Diffusion): 1,309
• Illuminance: 873 lux @ 5 m
  • Illuminance (w/CYC Diffusion): 249 lux @ 5 m
  • Illuminance (w/Half Diffusion): 636 lux @ 5 m
• Selectable PWM: 1,000 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 12,000 Hz, 25,000 Hz

Dynamic Effects

• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Strobe Rate: 0 to 30 Hz
• Standalone Colour Mixing: Yes
• Colour Temperature Presets: Yes
• Dim Modes: 4
• Dim Curves: 4
• Built-in Automated Programs: Yes

Control

• Control Protocol: Art-Net, sACN, DMX, CRMX, RDM
• DMX Channels:
  • 1 CELL (CCT 4ch,HSV 4ch, RGB 3ch, RGBW 4ch, RGBWL 5ch, RGBWL-16bit 10ch, RGB Ext. 10ch, RGBW Ext. 11ch, RGBWL Ext. 12ch, RGBWL Full 19ch, XY 4ch, XY Ext. 9ch)
  • 2 CELL (CCT 7ch,HSV 7ch, RGB 6ch, RGBW 8ch, RGBWL 10ch, RGBWL-16bit 20ch, RGB Ext. 17ch, RGBW Ext. 19ch, RGBWL Ext. 21ch, RGBWL Full 35ch)
  • 4 CELL (CCT 13ch,HSV 13ch, RGB 12ch, RGBW 16ch, RGBWL 20ch, RGBWL-16bit 40ch, RGB Ext. 31ch, RGBW Ext. 35ch, RGBWL Ext. 39ch, RGBWL Full 67ch)
• Art-Net / sACN Channels:
  • 1 CELL (CCT 4ch,HSV 4ch, RGB 3ch, RGBW 4ch, RGBWL 5ch, RGBWL-16bit 10ch, RGB Ext. 10ch, RGBW Ext. 11ch, RGBWL Ext. 12ch, RGBWL Full 19ch, XY 4ch, XY Ext. 9ch)
  • 2 CELL (CCT 7ch,HSV 7ch, RGB 6ch, RGBW 8ch, RGBWL 10ch, RGBWL-16bit 20ch, RGB Ext. 17ch, RGBW Ext. 19ch, RGBWL Ext. 21ch, RGBWL Full 35ch)
  • 4 CELL (CCT 13ch,HSV 13ch, RGB 12ch, RGBW 16ch, RGBWL 20ch, RGBWL-16bit 40ch, RGB Ext. 31ch, RGBW Ext. 35ch, RGBWL Ext. 39ch, RGBWL Full 67ch)
• Modes/Personalities: 32 personalities

Electrical

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 110 W, 1.12 A @ 100 V, 60 Hz
• Power and Current: 108 W, 0.93 A @ 120 V, 60 Hz
• Power and Current: 106 W, 0.59 A @ 208 V, 60 Hz
• Power and Current: 105 W, 0.48 A @ 230 V, 50 Hz
• Power and Current: 107 W, 0.46 A @ 240 V, 60 Hz

Connections

• Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
• Power Input: Seetronic Powerkon IP65
• Power Output: Seetronic Powerkon IP65
• Data Connectors: 5-pin IP65 XLR, Seetronic etherCON® compatible
• Software Connection: USB

Certifications / Qualifications

• CE, MET, FCC, UKCA
• IP Rating: IP65, temporary outdoor use, with pressure equalizing M12 GORE valve
• Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

Construction / Physical

• Dimensions: 12.13 x 6.30 x 8.36 in (308 x 160 x 212.4 mm)
• Weight: 13.1 lb (6.1 kg)
• Exterior Colour: Black
• Housing Material: Aluminium diecast, aluminium profile
