Cloud Z4 Mk4 Four Zone-Mixer 6-Line+2-Mic+Paging Mic Input 3U

SKU: Z4MK4EK
Cloud Z4 Mk4 Four Zone-Mixer 6-Line+2-Mic+Paging Mic Input 3U
Cloud Z4 Mk4 Four Zone-Mixer 6-Line+2-Mic+Paging Mic Input 3U
Cloud Z4 Mk4 Four Zone-Mixer 6-Line+2-Mic+Paging Mic Input 3U
Click to enlarge

    £767.00 inc VAT
    £639.17 ex VAT

    11 in stock (more available subject to additional lead time)

    Order in 14h 14m 30s for FREE delivery by Tuesday
    Click & collect available Monday ›
    VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
    1 Year Manufacturer Warranty Included
    About Stage Supply
    Chat to us on WhatsApp

    About this Product

    The Cloud Z4 MK4 is a 4-zone mixer for commercial paging and background music installations, designed for use with Cloud’s Cat5 PM series paging microphones. Six-line and 2-mic inputs with priority override, RS232 control, and 3U rack format suit hotels, retail, and office environments.

    Zones
    4
    Inputs
    6 Line +
    2 Mic
    Paging Mic
    Cat5
    PM series
    Cat5 Paging Mic Ready

    The Z4 MK4 and Z8 MK4 are designed for use with Cloud’s PM series Cat5 digital paging microphones. The paging mic connects over a single Cat5 cable and gives operators direct zone-selection from the front desk or reception without additional wiring.

    Features
    ✓Cat5 digital paging microphone port (PM series compatible)
    ✓6-line and 2-mic audio inputs with priority override
    ✓Per-zone level and source selection
    ✓RS232 control for building automation integration
    ✓Front-panel zone controls and metering
    ✓Balanced and unbalanced line inputs
    ✓3U 19″ rack format
    Specifications
    Zones 4
    Inputs 6× line, 2× mic
    Paging Mic Cat5 (PM series)
    Control RS232
    Format 3U 19″ rack

    More Information

    • 4 Zone Mono Mixer
    • NEW Digital Paging Interface for PM Paging Mics with IN/THRU Connections for Multi Mixer Configuration
    • NEW Digital Switch Mode Power Supply (600mA Input Optional Paging & Message Announcer (PM-4SA)

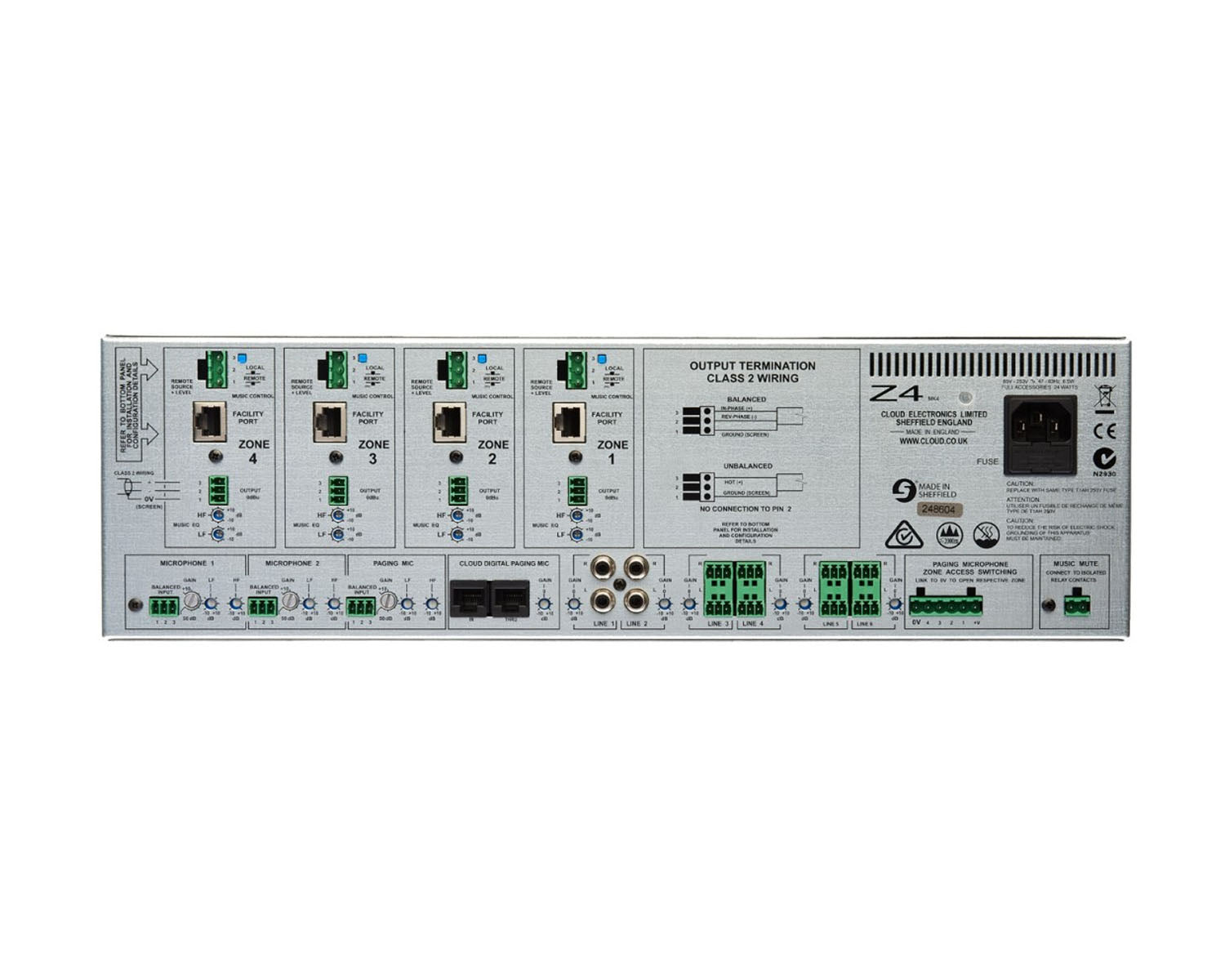

    • NEW Lines 1-6 now 2 x Unbalanced on PHONO + 4 x Balanced on Phoenix 3pin 3.5mm connectors
    • Line 6 priority, can be selected on a Zone by Zone basis
    • Optional Facility input plates on all zones (LM-2/A, B&W)
    • Zone Music Level and Source Selection via RSL-6/A (B&W) or RL-1/A (B&W) Wall Remotes
    • 2 Mic Inputs with Volume Controls
    • Input for Paging Mic with Priority and Zone Selection
    • Separate EQ for Mic and Music
    • All Mics have Priority over Music
    • Fire Alarm “Music Mute” Interface
    • Requires one CDPM-PSU per paging microphone when multiple paging mics are connected to a single digital paging input
