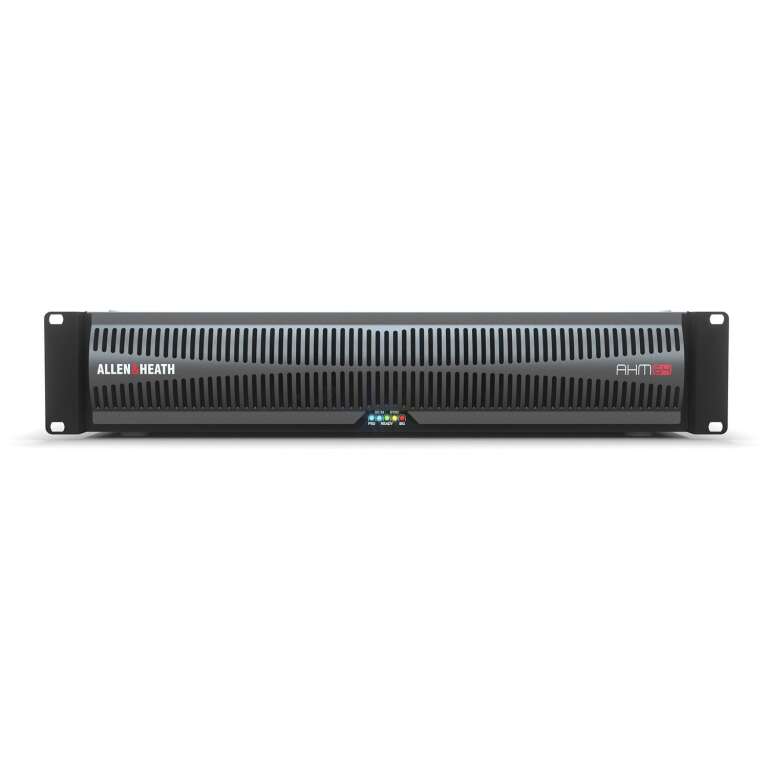

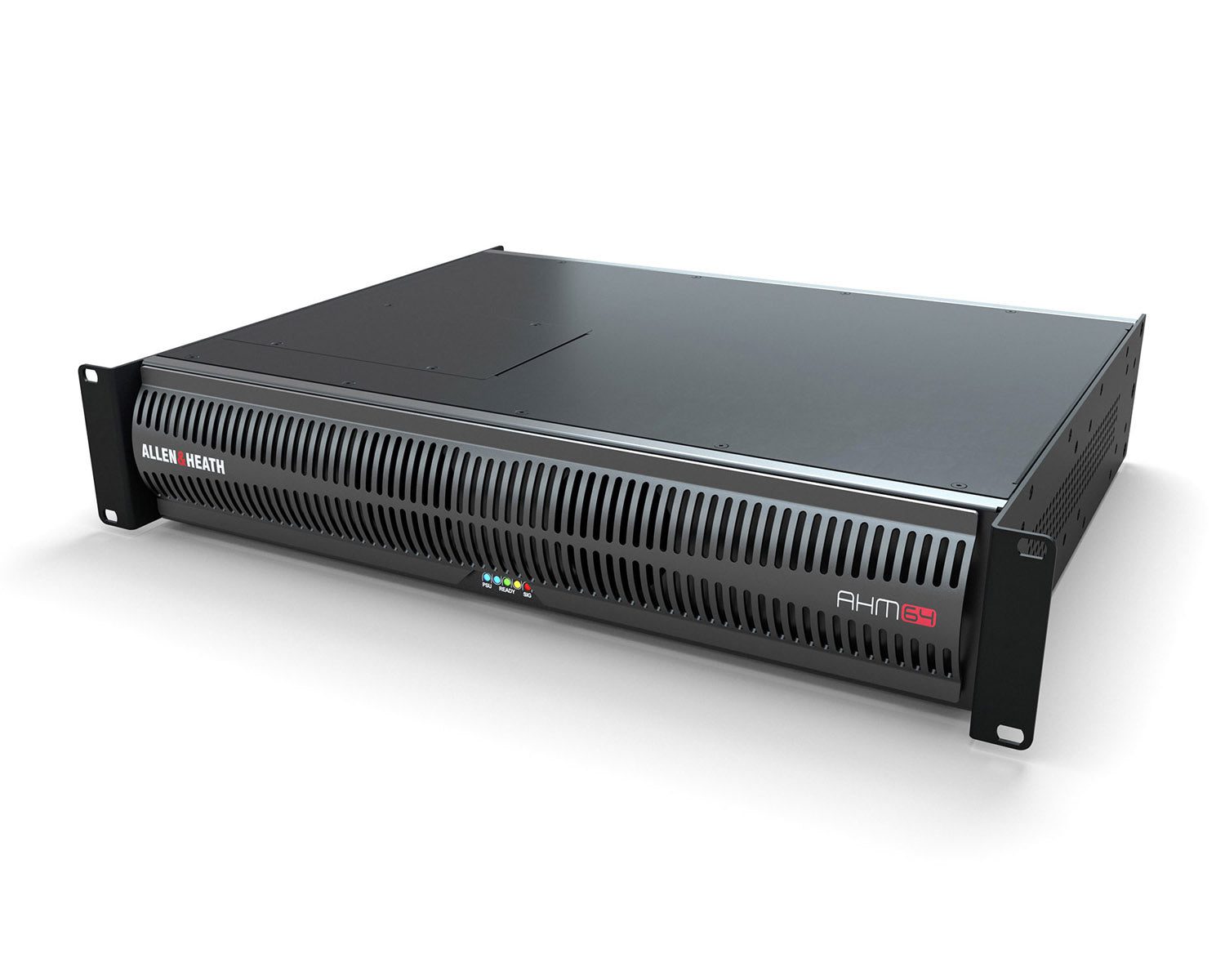

The most powerful matrix processor in the range, AHM-64 can scale to large campus installations with up to 64 zones, 96 controllers and hundreds of system I/O.
64×64 Processing Matrix
Flexible routing with configurable processing on all 64 outputs — the most powerful AHM processor in the range.

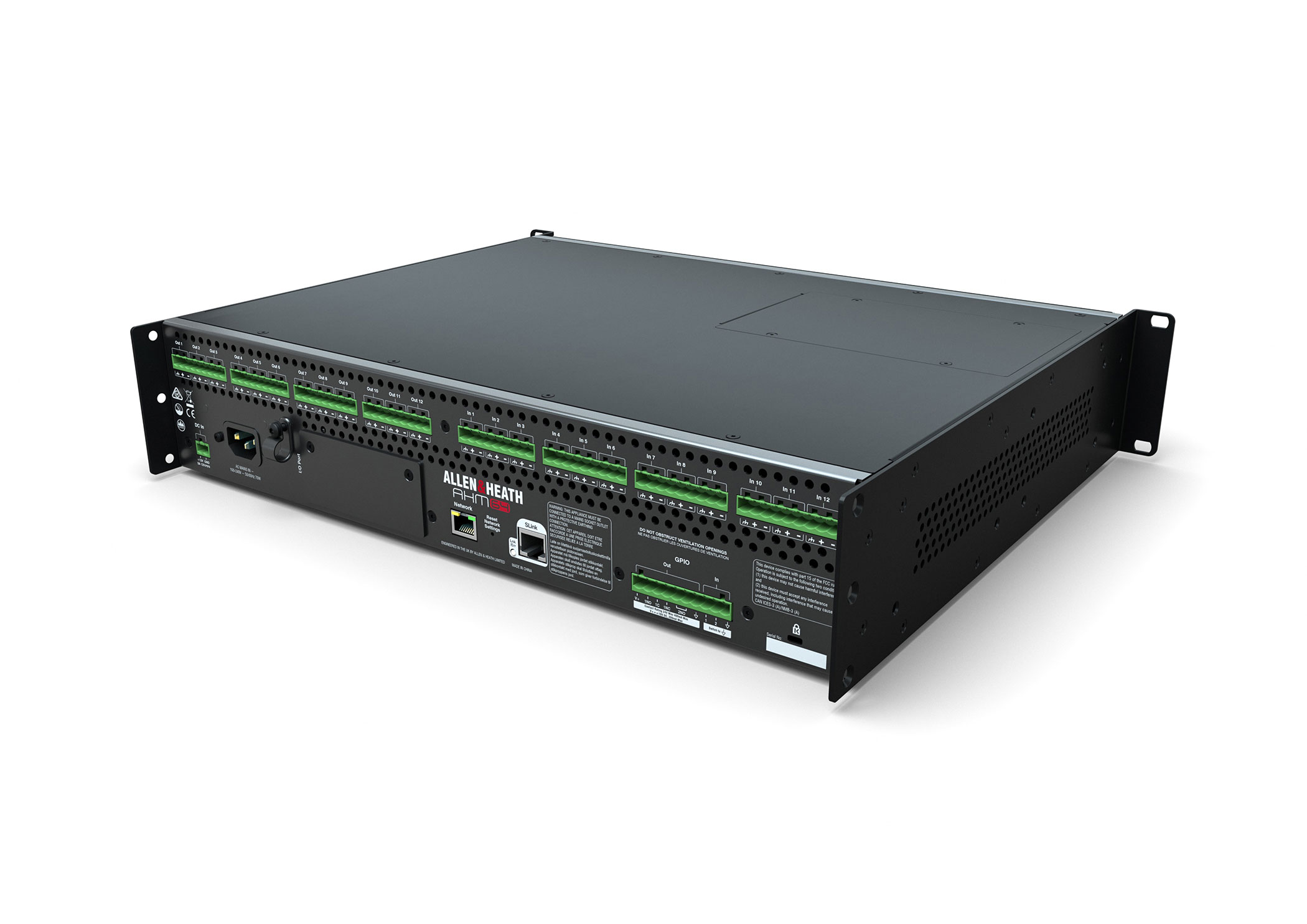

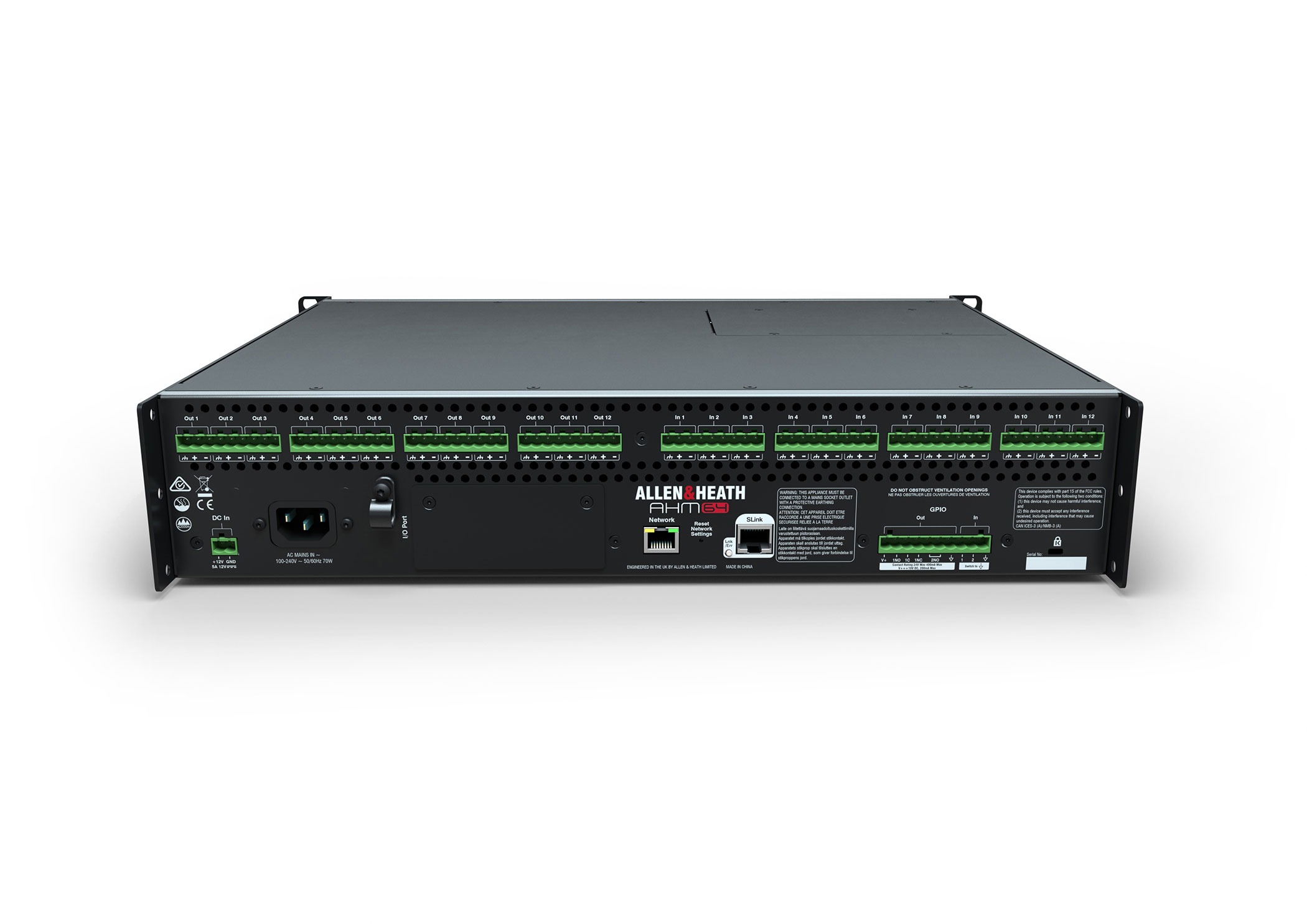

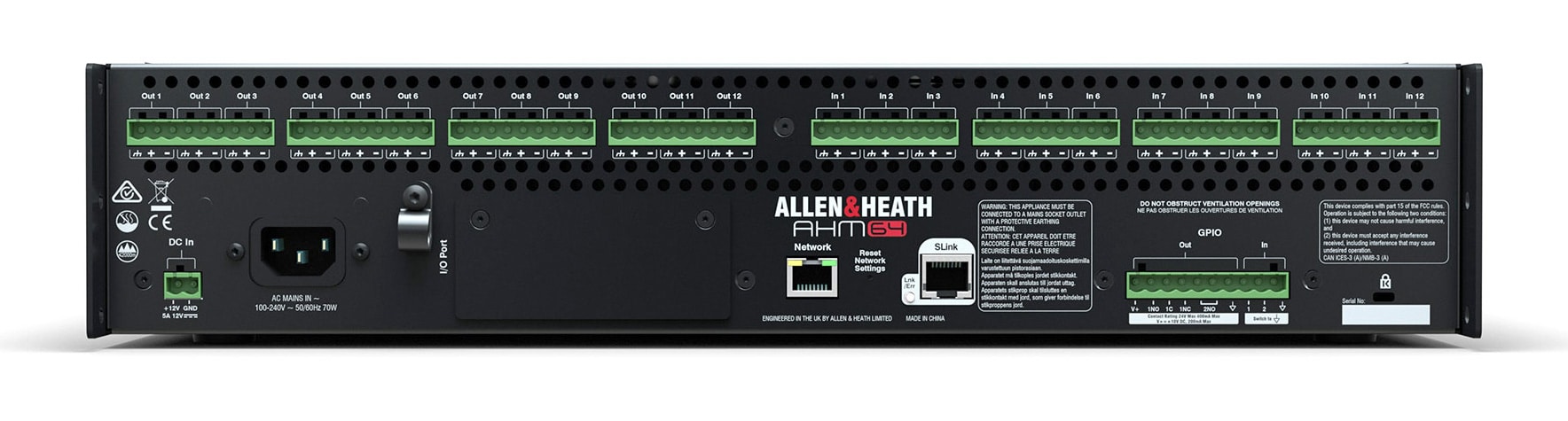

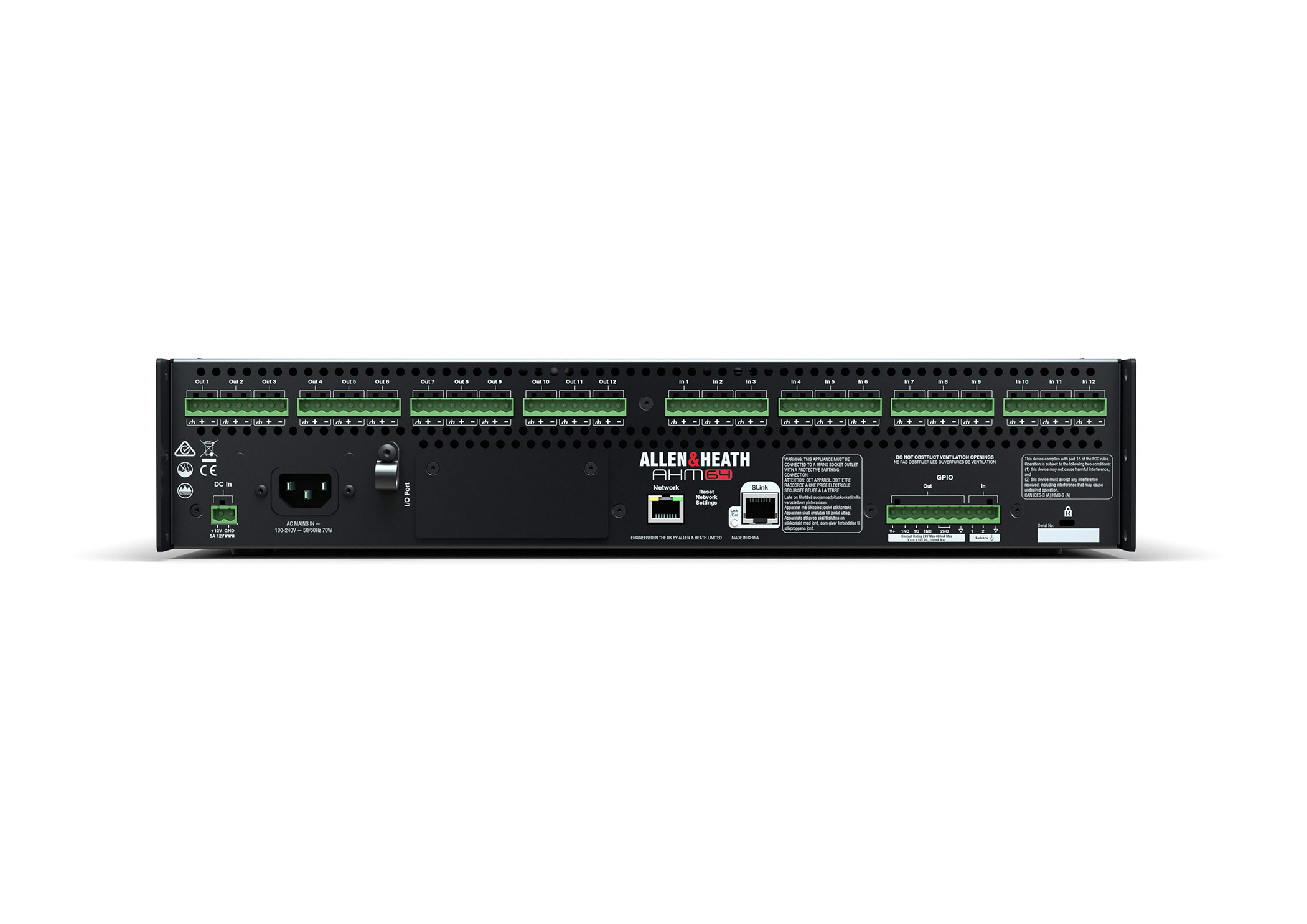

12×12 Local Analogue I/O
12× mic/line inputs and 12× relay protected line outputs on Phoenix connectors, with networking for hundreds more.
Built-in SLink 128×128
Built-in SLink port for audio expansion plus an additional I/O card slot for Dante, MADI or Waves.
Processing
Sound Management Tools
- 8× Automatic Mic Mixers
- ANC (Ambient Noise Compensation)
- Priority Ducking
- 8-band PEQ, dynamics and delay on every input and zone
- Speaker processing with x-over filter, delay, limiter, PEQ and All-Pass Filters
- NTP support
- EQ Ganging (Relative, Absolute, and Mirrored Controls)
- Processing expansion module
Features
- 64×64 Processing Matrix
- 12×12 Local Analogue I/O
- I/O Port for Audio Networking (Up to 128×128)
- Dante 96kHz Option Card (AES67 and DDM Ready)
- 128×128 Built-in SLink Port for Audio Expansion
- 64 Configurable Processing Outputs – Mono / Stereo Zones or Speaker Processing
- 96kHz FPGA Core With Ultra-low Latency
- DC backup power supply
- Compatible With IP1, IP6, IP8 Remote Controllers
- 2×2 Local GPIO Plus Networkable GPIO Interface
- TCP/IP Protocol for Third Party Integration
- Crestron, AMX and Extron Drivers

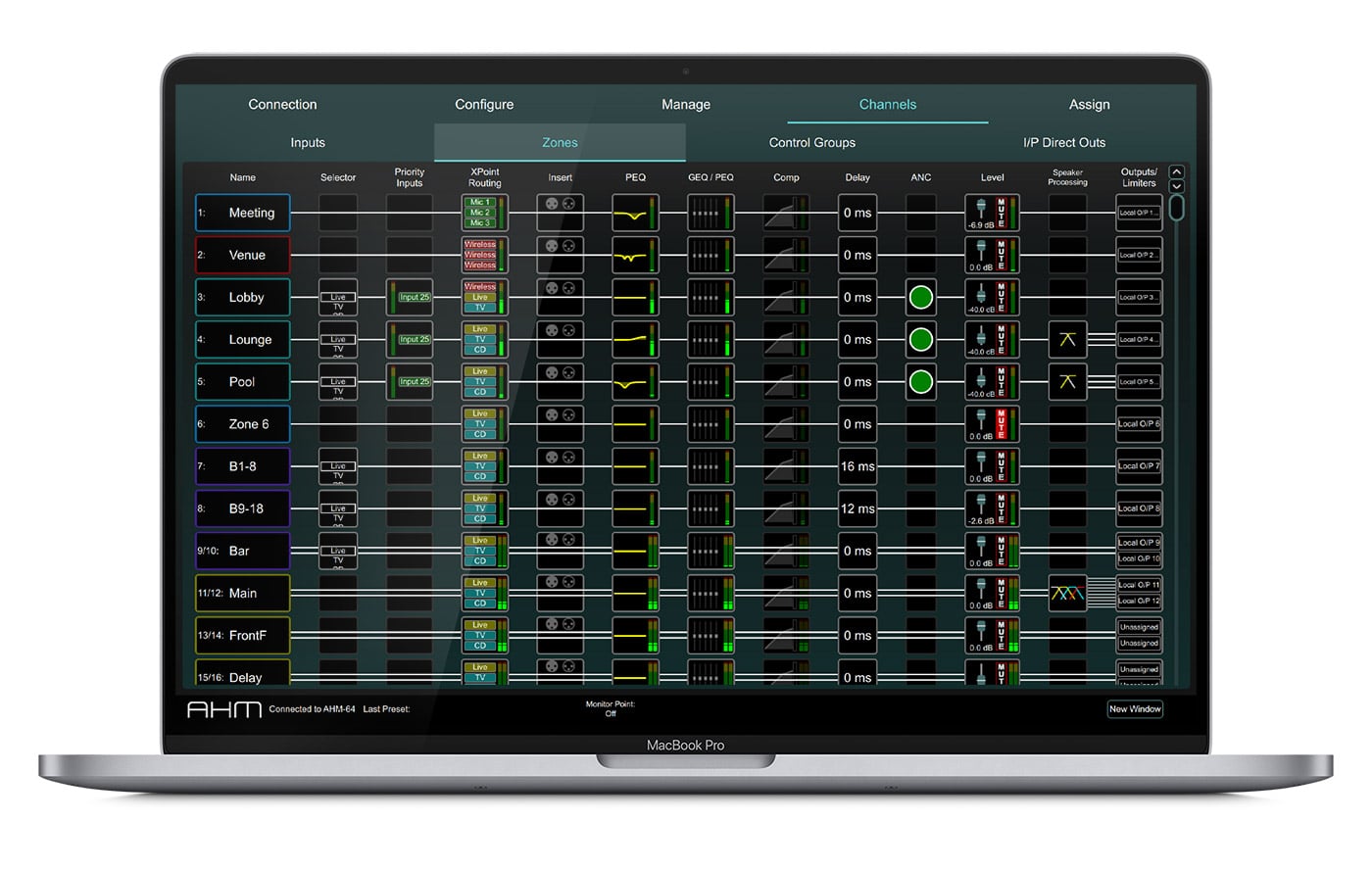

- Mac / Windows System Manager Software
- Custom Control app and Editor for BYOD
- 32 User Profiles
- Integrated Stereo Playback
- Event Scheduler
