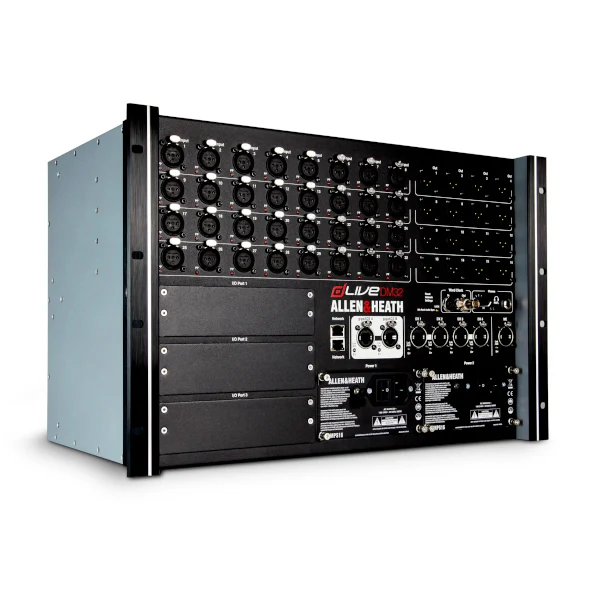

The dLive DM32U MixRack provides 32 mic/line inputs and 16 line outputs of local analogue I/O alongside the full dLive XCVI processing core with UltraFX. It is the mid-range option in the DM MixRack family, suited to touring systems, houses of worship, and theatre installations where a moderate local I/O count covers the core stage requirements, with DX expanders available for overflow.
Local Inputs
32
Mic/line
Local Outputs
16
Line
Processing
128 x 64
Full matrix
Latency
< 0.7 ms
96 kHz / 96-bit
Compatible Surfaces
Control from any dLive surface or IP controller
S7000
S5000
S3000
C3500
C2500
C1500
CTi1500
S5000
S3000
C3500
C2500
C1500
CTi1500
Option Card Slots
3 x 128-channel I/O ports
Dante
MADI
Waves SoundGrid
fibreACE
gigaACE
MADI
Waves SoundGrid
fibreACE
gigaACE
Features
✓
128 input x 64 output matrix with full processing on every channel
128 input x 64 output matrix with full processing on every channel
✓
UltraFX engine included
UltraFX engine included
✓
64 channels of automatic mic mixing
64 channels of automatic mic mixing
✓
32 local mic/line inputs and 16 local line outputs
32 local mic/line inputs and 16 local line outputs
✓
Redundant hot-swappable power supplies
Redundant hot-swappable power supplies
✓
Redundant audio connections throughout
Redundant audio connections throughout
✓
Over 800 x 800 networked audio I/O capacity
Over 800 x 800 networked audio I/O capacity
✓
Third-party control via TCP/IP
Third-party control via TCP/IP
Specifications
| Local Analogue Inputs | 32 mic/line |
| Local Analogue Outputs | 16 line |
| Processing Matrix | 128 inputs x 64 outputs, full processing |
| Sample Rate | 96 kHz |
| Accumulator | 96-bit |
| Latency | < 0.7 ms |
| Option Card Slots | 3 x 128-channel I/O ports |
| Auto Mic Mixing | 64 channels |
| Power Supply | Dual redundant, hot-swappable |
| SKU | DLIVE-DM32U/240X |
