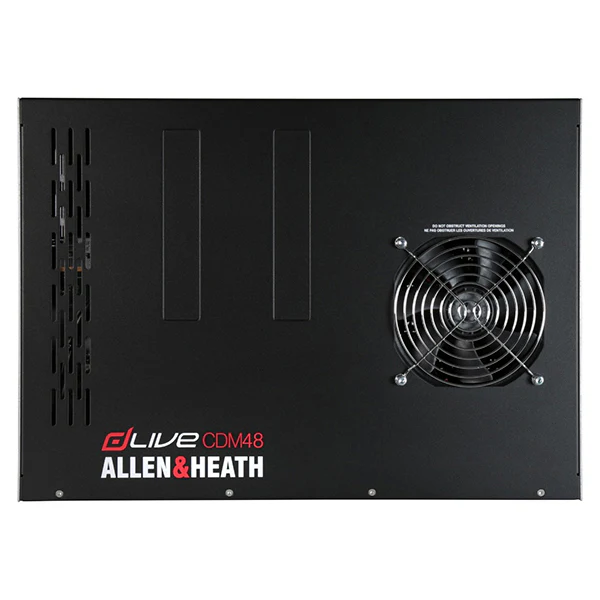

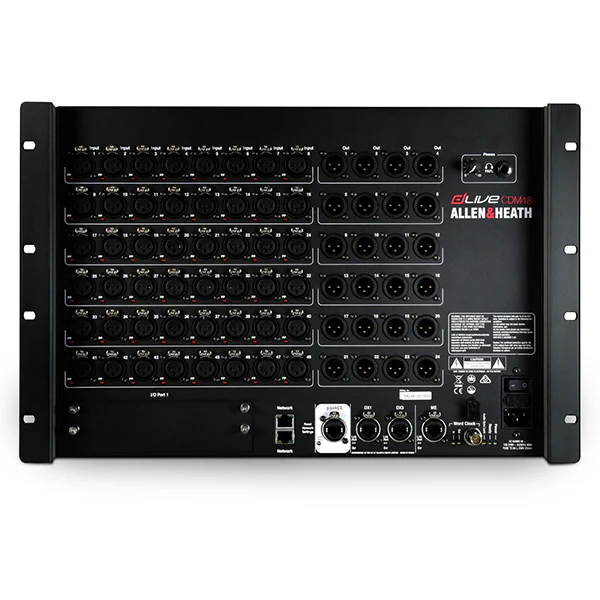

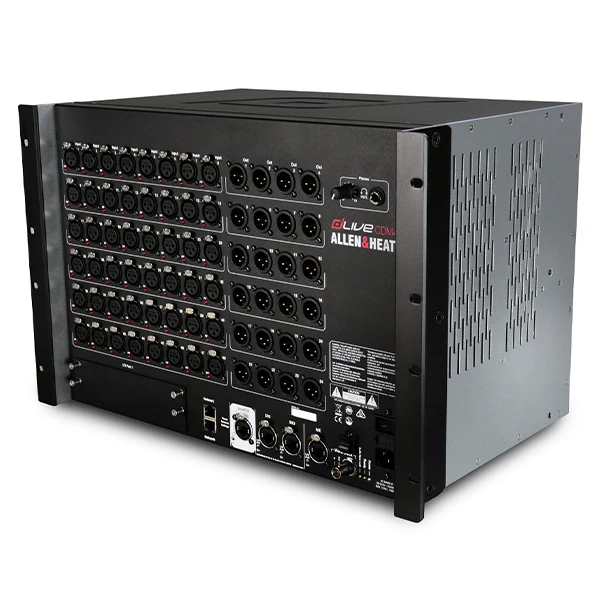

The dLive CDM48U is the mid-size C Class MixRack, providing 48 mic/line inputs and 24 line outputs of local analogue I/O in a compact chassis. It runs the same XCVI processing core and UltraFX engine as all dLive MixRacks, delivering 128 input channels with full processing at 96 kHz. A strong choice for venues, touring systems, and production companies that need a high channel count in a space-efficient MixRack.
Local Inputs
48
Mic/line
Local Outputs
24
Line
Processing
128 x 64
Full matrix
Latency
< 0.7 ms
96 kHz / 96-bit
Control Options
Surface, laptop, iPad, or third-party controller
dLive Surfaces
IP Controllers
TCP/IP
Laptop / iPad
IP Controllers
TCP/IP
Laptop / iPad
Expansion
Add I/O via DX expanders and option cards
DX expanders
Dante
MADI
Waves SoundGrid
Dante
MADI
Waves SoundGrid
Features
✓
128 input channels and 64 mix outputs with full processing
128 input channels and 64 mix outputs with full processing
✓
UltraFX engine included
UltraFX engine included
✓
48 local mic/line inputs and 24 local line outputs
48 local mic/line inputs and 24 local line outputs
✓
64 channels of automatic mic mixing
64 channels of automatic mic mixing
✓
Compact form factor — designed to pair with C Class surfaces
Compact form factor — designed to pair with C Class surfaces
✓
Expandable to over 800 x 800 networked audio I/O
Expandable to over 800 x 800 networked audio I/O
✓
Controllable without a surface via laptop, iPad, or TCP/IP
Controllable without a surface via laptop, iPad, or TCP/IP
✓
96 kHz sample rate with 96-bit accumulator
96 kHz sample rate with 96-bit accumulator
Specifications
| Local Analogue Inputs | 48 mic/line |
| Local Analogue Outputs | 24 line |
| Processing Matrix | 128 inputs x 64 outputs, full processing |
| Sample Rate | 96 kHz |
| Accumulator | 96-bit |
| Latency | < 0.7 ms |
| Auto Mic Mixing | 64 channels |
| SKU | DLIVE-CDM48U/240X |
