With an unrivalled price-performance ratio, AHM-16 delivers a 16×16 matrix with uncompromised processing for single room applications and smaller multi-room environments including bars, restaurants, shops and school halls.
16×16 Processing Matrix
Flexible routing with configurable processing on all 16 outputs.
8×8 Local Analogue I/O

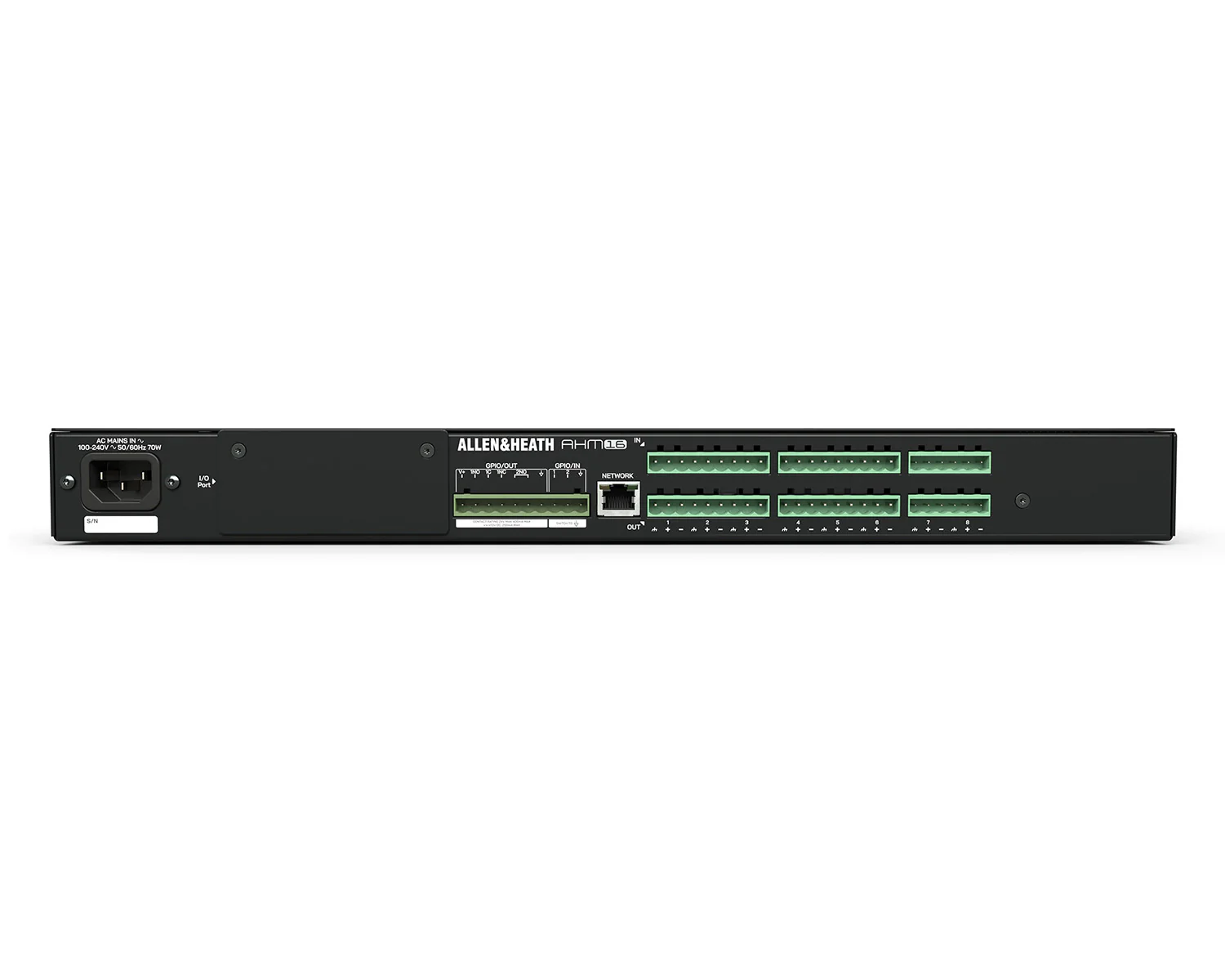

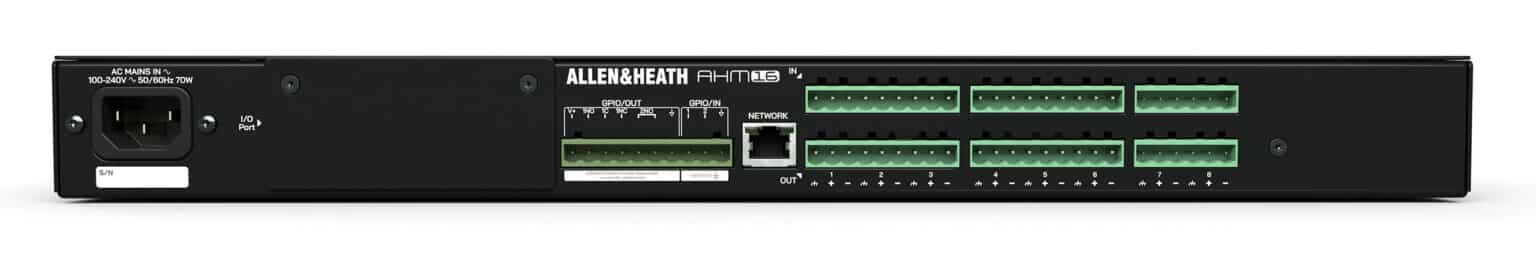

8× mic/line inputs and 8× relay protected line outputs on Phoenix connectors.
Audio Networking I/O Port
Card options include Dante, MADI, Waves and SLink.
Processing
Sound Management Tools
- Automatic Mic Mixer
- ANC (Ambient Noise Compensation)
- Priority Ducking
- 8-band PEQ, dynamics and delay on every input and zone
- Speaker processing with x-over filter, delay, limiter, PEQ and All-Pass Filters
- NTP support
- EQ Ganging (Relative, Absolute, and Mirrored Controls)
Hardware
Always In Control

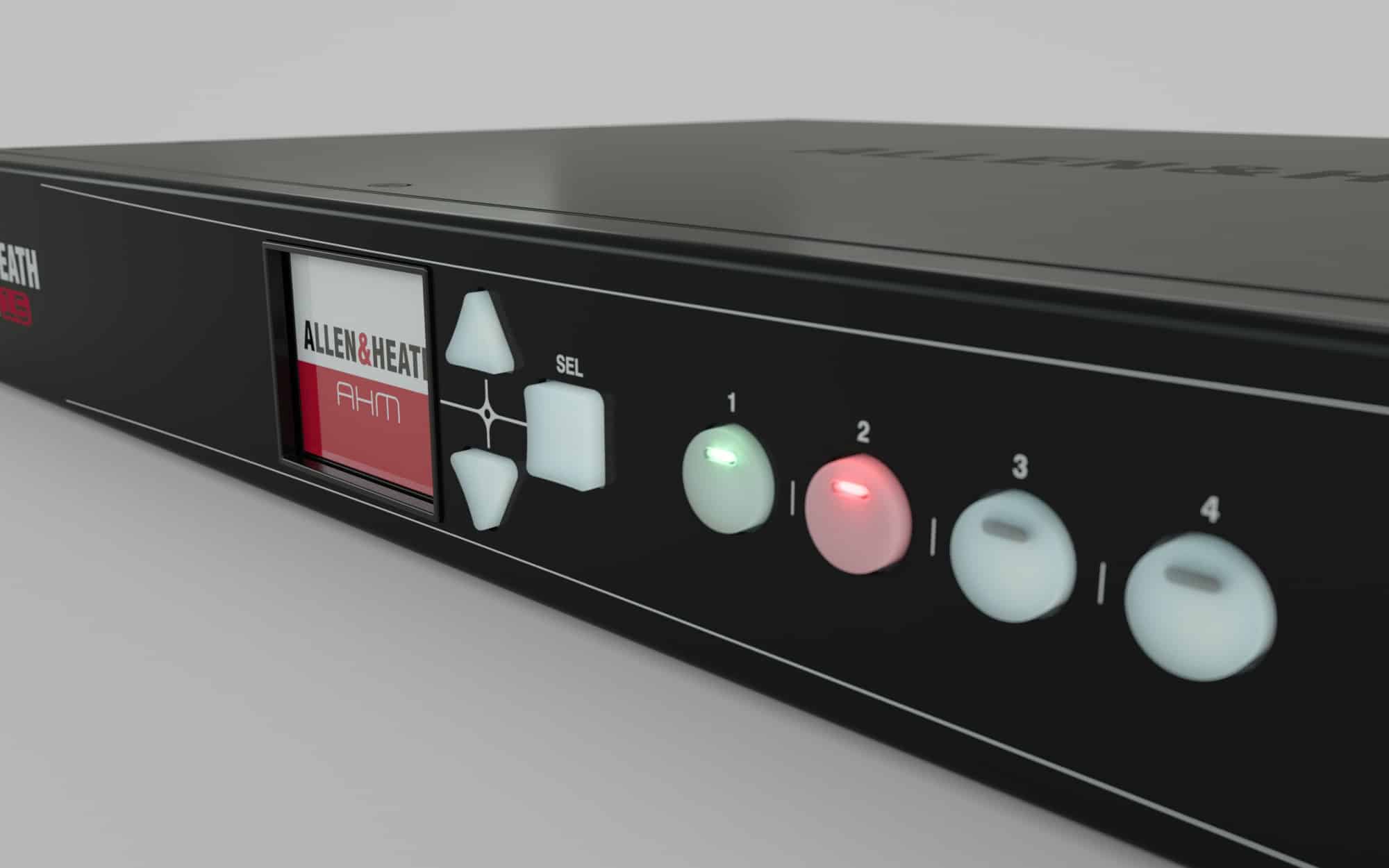

In addition to remote controllers, GPIO and 3rd party integration, AHM-16 has a front panel screen and 4× programmable SoftKeys for intuitive volume control, source select, preset recall and more.
Features
- 16×16 Processing Matrix
- 8×8 Local Analogue I/O
- I/O Port for Audio Networking (Up to 128×128)
- Dante 96kHz Option Card (AES67 and DDM Ready)
- SLink 128×128 Option Card for Audio Expansion
- 16 Configurable Processing Outputs – Mono / Stereo Zones or Speaker Processing
- 96kHz FPGA Core With Ultra-low Latency
- Front Panel Screen and Navigation
- 4x SoftKeys
- Compatible With IP1, IP6, IP8 Remote Controllers
- 2×2 Local GPIO Plus Networkable GPIO Interface
- TCP/IP Protocol for Third Party Integration
- Crestron, AMX and Extron Drivers

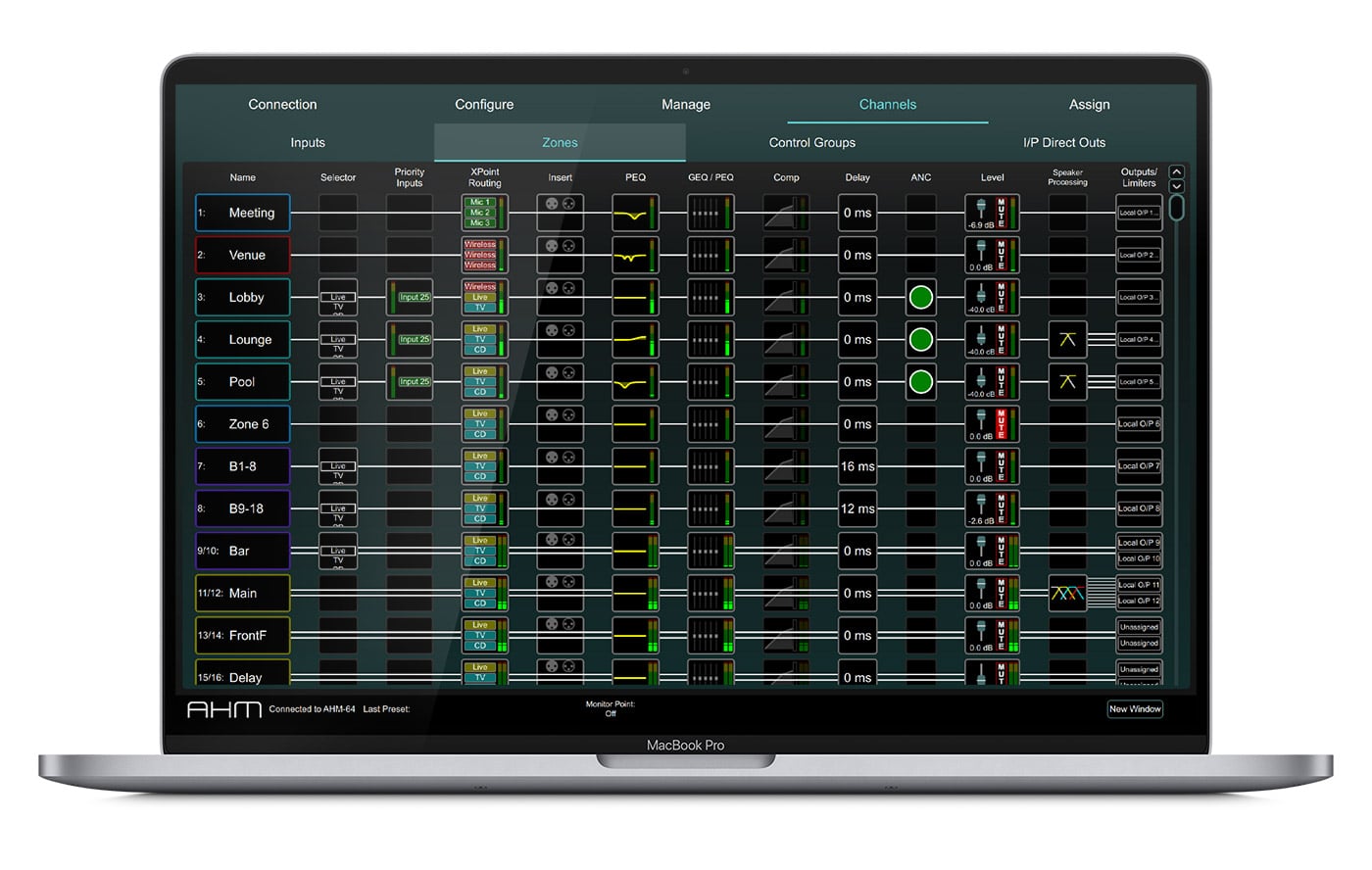

- Mac / Windows System Manager Software
- Custom Control app and Editor for BYOD
- 4 User Profiles
- Integrated Stereo Playback
- Event Scheduler
