Sennheiser EW-DX SK Dual (S1-10) Wireless Lavalier Set with 2 x MKE2 Capsules

SKU: 509316

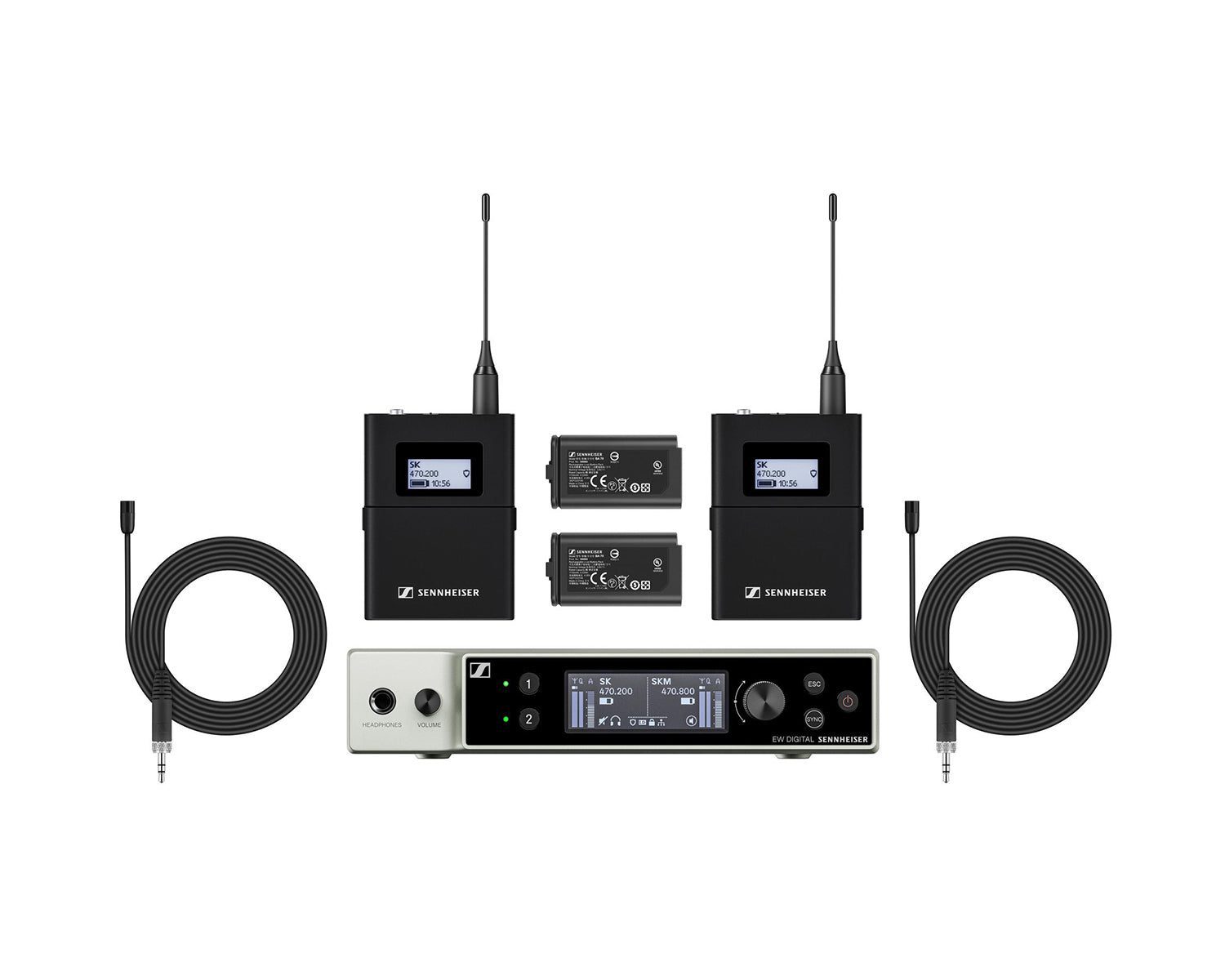

Sennheiser EW-DX SK Dual (S1-10) Wireless Lavalier Set with 2 x MKE2 Capsules
Click to enlarge

    £2,417.00 inc VAT
    £2,014.17 ex VAT

    5 in stock (more available subject to additional lead time)

    Order in 17h 4m 39s for FREE delivery by Tuesday
    Click & collect available Monday ›
    VisaMastercardAmerican ExpressApple PayGoogle PayPayPalPayPal Credit
    2 Year Manufacturer Warranty Included
    About Stage Supply
    Chat to us on WhatsApp

    About this Product

    Evolution Wireless Digital EW-DX is Sennheiser’s professional digital UHF platform, offering AES 256 encryption, up to 88 MHz switching bandwidth, equidistant frequency grid and automatic frequency setup via the Smart Assist app or Wireless Systems Manager. This set ships as a complete lavalier radio mic system with bodypack transmitter, clip-on lav capsule, rack receiver, PSU and rackmount hardware. Band variant: S1-10, 606 – 694 MHz (UK CH38 and above). Operation within UK CH38 is covered by an Ofcom shared PMSE licence; frequencies above 630 MHz require a coordinated licence.

    Key Features
    ✓Professional digital UHF platform with AES 256 audio encryption
    ✓Up to 88 MHz switching bandwidth with equidistant frequency grid
    ✓134 dB transmitter input dynamic range, no audio gain staging required
    ✓Automatic setup via Smart Assist app or Wireless Systems Manager over network
    ✓Persistent e-ink display remains readable when the transmitter is powered down
    ✓Compatible with Sennheiser BA 70 Li-ion pack and CHG 70N networked charger
    ✓UK band S1-10: 606 – 694 MHz (UK CH38 and above)
    ✓MKE2 capsule: omnidirectional condenser lavalier in broadcast-grade housing
    ✓RF output: BLE: max. 10 mW EIRP
    ✓Switching bandwidth: 200 kHz
    Specifications
    System Audio link frequency ranges
    System: R1-9 520 – 607.8 MHz
    System: S1-10 606.2 – 693.8 MHz
    System: S2-10 614.2 – 693.8 MHz
    System: S4-10 630 – 693.8 MHz
    System: U1/5 823.2 – 831.8 MHz & 863.2 – 864.8 MHz
    System: V3-4 925.2 – 937.3 MHz
    System: V5-7 941.7 – 951.8 MHz & 953.05 – 956.05 MHz & 956.65 – 959.65 MHz
    System: X1-6 1350.2 – 1398.8 MHz
    System: X9-18 1435.2 – 1524.8 MHz
    System: Y1-3 1785.2 – 1799.8 MHz
    System: Bluetooth Low Energy (BLE) frequency range 2402 – 2480 MHz
    System: Audio frequency response 20 Hz – 20 kHz (-3 dB)
    System: Dynamic range 134 dB
    System: System latency 1.9 ms
    System: Operating temperature -10 °C – +55 °C (14 °F – 131 °F)
    System: Relative humidity 5 – 95 % (non-condensing)
    EW-DX EM 2 (Rack Reciever): Input voltage 11 – 13 V DC or PoE IEEE 802.3af Class 0 (CAT5e or higher)
    EW-DX EM 2 (Rack Reciever): Input current <= 1 A
    EW-DX EM 2 (Rack Reciever): Transmit power (radiated) BLE: max. 10 mW EIRP
    EW-DX EM 2 (Rack Reciever): Audio output power 18 dBu max.
    EW-DX EM 2 (Rack Reciever): Headphone output 2x 70 mW @ 32 Ω
    EW-DX EM 2 (Rack Reciever) Ethernet
    EW-DX EM 2 (Rack Reciever): Dimensions 212 x 44 x 189 mm (8.35″ x 1.73″ x 7.44″)
    EW-DX EM 2 (Rack Reciever): Weight approx. 1000 g (2.2 lbs) (without antennas and power supply)
    MKE 2 (Lavalier Microphone): Transducer principle pre-polarized condenser microphone
    MKE 2 (Lavalier Microphone): Pick-up pattern omni-directional
    MKE 2 (Lavalier Microphone): Sensitivity (free field, no load) (1 kHz) 5 mV/Pa +- 3 dB
    Sennheiser part number 509316
    UK band S1-10 (606 – 694 MHz (UK CH38 and above))

    More Information

    • 134 dB input dynamic range - no need to set gain on your wireless transmitters at all, thanks to proprietary Sennheiser Performance Audio Codec (SePAC)
    • AutoScan-feature quickly scans your environment and deploys frequencies with equidistant channel spacing - even without RF knowledge
    • Network enabled for expanded remote control with Sennheiser Control Cockpit, Wireless System Manager (WSM - Available in mid-2023) and 3rd party media control systems via plug-in
    • Remote control via Smart Assist App over Bluetooth Low Energy (BLE) at distances up to 25 meters (Available in late 2023)
    • Secure transmission of confidential content using AES 256 encryption
    • Up to 12 hours of operation time with rechargeable lithium ion battery BA 70 (included)
    • Function buttons - control all the transmitter settings directly from bodypack including button lock function
    • Persistent E-Ink display for "always on" information - parameters visible on screen even when taking out batteries
    • Equidistant channel spacing to easily allocate intermodulation-free channels: Standard Mode with 600 kHz spacing for up to 146 channels; Link Density (LD) Mode with 300 kHz spacing for up to 293 channels
    • Up to 88 MHz switching bandwidth
    • Low latency of 1.9 ms wireless transmission thanks to proprietary Sennheiser Performance Audio Codec (SePAC)
    • Digital audio trim
    • Transmitters with charging contacts for in-device charging with CHG 70N charger (sold separately)
    • Compatible with a wide range of Sennheiser lavalier and headset microphones with 3.5 mm jack plug connection
    • Versatile charging options optionally available: CHG 70 N, L 70 USB, LM 6070 Module for L 6000 full rack charging station (Availability in 2023)
    • Worldwide usage (specific frequencies subject to local RF regulations)

    EW-DX EM 2

    • 2 channel half rack (9.5')
    • Up to 88 MHz switching bandwidth
    • PoE IEEE 802.3af Class 3
    • Equidistant Channel Spacing: 146 channels in standard mode; 293 channels in Link Density Mode
    • Network enabled for control with Sennheiser Control
    • Cockpit/media control system through a number of 3rd party modules
    • Clear and easy focused user interface with OLED display
    • Ethernet connectivity (IPv4 and IPv6)
    • Secure AES 256 encryption
    • External PSU 12V/1A
    • All-metal housing

    EW-DX SK

    • 3,5 mm jack or 3-pin connector variants
    • 10mW RF power with up to 100m/328ft working range
    • Charging contacts for in-device charging with CHG 70N
    • Persistent eInk display - parameters visible on screen even when device is not powered on
    • Programmable mute switch - customize the device depending on your professional needs
    • Extended runtime with lithium ion batteries - up to 12 hours operation time
    • Mic input trim control
    • Metal housing
